Upload/Download Files to Azure Storage with the ABP Framework

Introduction

In this article you will learn how to setup and use the Blob Storing Azure Provider to Upload/Download files to Azure Storage in a Blazor APB Framework application.

To keep this article as simple as possible, I will only show the steps to upload a file to Azure Storage. In the accompanying source code you can find the code you need to Download or Delete a file from Azure Storage.

I made use of Azurite (an emulator for local Storage Development), so you don't need to set up an Azure Storage account in Azure to follow along. If you want to upload/download files to a real Azure Storage account in Azure, you need to replace the connection string in the AzureStorageAccountSettings section of the appsettings.json file in the HttpApi.Host project.

Source code

The Source code of the completed application is available on GitHub.

Requirements

The following tools are needed to be able to run the solution and follow along.

.NET 5.0 SDK
VsCode, Visual Studio 2019 16.8.0+ or another compatible IDE
Node.js (version 8.0 or later)
Microsoft Azure Storage Explorer. Download it here
Azurite (Emulator for local Azure Storage development). Read more about it here.

Tools needed

Install and run Azurite

Open a command prompt and install Azurite by using NPM.

  npm install -g azurite

Create an azurite folder in your c-drive (c:\azurite).
start Azurite emulator from a command prompt with admin privileges.

  azurite --silent --location c:\azurite --debug c:\azurite\debug.log

Alternatively you could also run Azurite as a docker container (see docs how to proceed).

Install and configure Microsoft Azure Storage Explorer

Download and install Azure Storage Explorer. A free tool to easily manage your Azure cloud storage resources anywhere, from Windows, macOS, or Linux.
Click on the Open Connect Dialog icon in the left menu.
Select Attach to a local emulator and click Next, keep default settings, click Connect.
Do not forget to start your emulator, Storage Explorer will not start it for you.

Create and run Application

Creating a new ABP Framework Application

Install or update the ABP CLI:

dotnet tool install -g Volo.Abp.Cli || dotnet tool update -g Volo.Abp.Cli

Use the following ABP CLI command to create a new Blazor ABP application:

abp new AbpFileUploadToAzureStorage -o AbpFileUploadToAzureStorage -u blazor

Open & run the Application

Open the solution in Visual Studio (or your favorite IDE).
Run the AbpFileUploadToAzureStorage.DbMigrator application to apply the migrations and seed the initial data.
Run the AbpFileUploadToAzureStorage.HttpApi.Host application to start the server side.
Run the AbpFileUploadToAzureStorage.Blazor application to start the Blazor UI project.

Development

Install Volo.Abp.BlobStoring.Azure NuGet package to Domain project

Open a command prompt in the directory of the Domain project.
Run the command below to install Volo.Abp.BlobStoring.Azure NuGet package

  abp add-package Volo.Abp.BlobStoring.Azure

Create a class AzureStorageAccountOptions to retrieve Azure Storage settings

Create an AzureStorage folder in the Domain project of your application.
Add a AzureStorageAccountOptions.cs file to the AzureStorage folder.

namespace AbpFileUploadToAzureStorage
{
  public class AzureStorageAccountOptions
  {
    public string ConnectionString { get; set; }
    public string AccountUrl { get; set; }
  }
}

Add AzureStorageAccountSettings to the appsettings.json file in the HttpApi.Host project

{
  // other settings here

  "AzureStorageAccountSettings" : {
    "ConnectionString" : "AccountName=devstoreaccount1;AccountKey=Eby8vdM02xNOcqFlqUwJPLlmEtlCDXJ1OUzFT50uSRZ6IFsuFq2UVErCz4I6tq/K1SZFPTOtr/KBHBeksoGMGw==;DefaultEndpointsProtocol=http;BlobEndpoint=http://127.0.0.1:10000/devstoreaccount1;QueueEndpoint=http://127.0.0.1:10001/devstoreaccount1;TableEndpoint=http://127.0.0.1:10002/devstoreaccount1;",
    "AccountUrl" : "http://127.0.0.1:10000/devstoreaccount1/"
  }
}

The connection string above serves as connection to Azurite (local Azure Storage emulator). You will need to replace the connection string when you want to upload files to Azure Storage in the cloud.

Create a ConfigureAzureStorageAccountOptions method in the AbpFileUploadToAzureStorageDomainModule class of the Domain project

    // Comment out and place in using section page
    // using Microsoft.Extensions.Configuration;

    private void ConfigureAzureStorageAccountOptions(ServiceConfigurationContext context, IConfiguration configuration)
    {
      Configure<AzureStorageAccountOptions>(options =>
      {
        var azureStorageConnectionString = configuration["AzureStorageAccountSettings:ConnectionString"];
        var azureStorageAccountUrl = configuration["AzureStorageAccountSettings:AccountUrl"];

        options.ConnectionString = azureStorageConnectionString;
        options.AccountUrl = azureStorageAccountUrl;
      });
    }

Call the ConfigureAzureStorageAccountOptions method from the ConfigureServices method in the AbpFileUploadToAzureStorageDomainModule

    public override void ConfigureServices(ServiceConfigurationContext context)
    {
      // ...

      var configuration = context.Services.GetConfiguration();
      ConfigureAzureStorageAccountOptions(context, configuration);
    }

Add a PizzaPictureContainer class in the Domain project

Add a PizzaPictureContainer.cs file to the AzureStorage/Pizzas folder of the Domain project.

using Volo.Abp.BlobStoring;

namespace AbpFileUploadToAzureStorage.Domain.AzureStorage
{
    [BlobContainerName("pizza-picture-container")]
    public class PizzaPictureContainer
    {

    }
}

Create a ConfigureAbpBlobStoringOptions method in the AbpFileUploadToAzureStorageDomainModule of the Domain project

    // Comment out and place in using section page
    // using Volo.Abp.BlobStoring;
    // using AbpFileUploadToAzureStorage.Domain.AzureStorage;


    private void ConfigureAbpBlobStoringOptions(IConfiguration configuration)
    {
      Configure<AbpBlobStoringOptions>(options =>
      {
        var azureStorageConnectionString = configuration["AzureStorageAccountSettings:ConnectionString"];
        options.Containers.Configure<PizzaPictureContainer>(container =>
        {
          container.UseAzure(azure =>
                {
                  azure.ConnectionString = azureStorageConnectionString;
                  azure.CreateContainerIfNotExists = true;
                });
        });
      });
    }

Call the ConfigureAbpBlobStoringOptions method from the ConfigureServices method in the AbpFileUploadToAzureStorageDomainModule

    public override void ConfigureServices(ServiceConfigurationContext context)
    {
      // ...

      var configuration = context.Services.GetConfiguration();
      ConfigureAzureStorageAccountOptions(context, configuration);

      ConfigureAbpBlobStoringOptions(configuration);
    }

Create PizzaPictureContainerManager class in folder AzureStorage/Pizzas of the Domain project

using System;
using System.IO;
using System.Threading.Tasks;
using Microsoft.Extensions.Options;
using Volo.Abp.BlobStoring;
using Volo.Abp.Domain.Services;

namespace AbpFileUploadToAzureStorage.Domain.AzureStorage.Pizzas
{
  public class PizzaPictureContainerManager : DomainService
  {
    private readonly IBlobContainer<PizzaPictureContainer> _pizzaPictureContainer;
    private readonly AzureStorageAccountOptions _azureStorageAccountOptions;

    public PizzaPictureContainerManager(IBlobContainer<PizzaPictureContainer> pizzaPictureContainer, IOptions<AzureStorageAccountOptions> azureStorageAccountOptions)
    {
      _pizzaPictureContainer = pizzaPictureContainer;
      _azureStorageAccountOptions = azureStorageAccountOptions.Value;
    }

    public async Task<string> SaveAsync(string fileName, byte[] byteArray, bool overrideExisting = false)
    {
      var extension = Path.GetExtension(fileName);
      var storageFileName = $"{Path.GetFileNameWithoutExtension(fileName)}_{Guid.NewGuid()}{extension}";
      await _pizzaPictureContainer.SaveAsync(storageFileName, byteArray, overrideExisting);
      return storageFileName;
    }
  }
}

Add IPizzaAppService, SavePizzaPictureDto and SavedPizzaPictureDto to the Application.Contracts project

using System.Threading.Tasks;
using Volo.Abp.Application.Services;

namespace AbpFileUploadToAzureStorage.Application.Contracts.AzureStorage.Pizzas
{
  public interface IPizzaAppService : IApplicationService
  {
    Task<SavedPizzaPictureDto> SavePizzaPicture(SavePizzaPictureDto input);
  }
}

namespace AbpFileUploadToAzureStorage.Application.Contracts.AzureStorage.Pizzas
{
  public class SavePizzaPictureDto
  {
    public string FileName { get; set; }
    public byte[] Content { get; set; }
  }
}

namespace AbpFileUploadToAzureStorage.Application.Contracts.AzureStorage.Pizzas
{
  public class SavedPizzaPictureDto
  {
    public string StorageFileName { get; set; }
  }
}

Add a PizzaAppService class in the Application project and implement IPizzaAppService interface

using System.Threading.Tasks;
using AbpFileUploadToAzureStorage.Application.Contracts.AzureStorage.Pizzas;
using AbpFileUploadToAzureStorage.Domain.AzureStorage.Pizzas;
using Volo.Abp.Application.Services;

namespace AbpFileUploadToAzureStorage.Application.AzureStorage.Pizzas
{

  public class PizzaAppService : ApplicationService, IPizzaAppService
  {
    private readonly PizzaPictureContainerManager _pizzaPictureContainerManager;

    public PizzaAppService(PizzaPictureContainerManager pizzaPictureContainerManager)
    {
      _pizzaPictureContainerManager = pizzaPictureContainerManager;
    }

    public async Task<SavedPizzaPictureDto> SavePizzaPicture(SavePizzaPictureDto input)
    {
      var storageFileName = await _pizzaPictureContainerManager.SaveAsync(input.FileName, input.Content, true);
      return new SavedPizzaPictureDto { StorageFileName = storageFileName };
    }
  }
}

Replace content of Index.razor with code below

@page "/"
@inherits AbpFileUploadToAzureStorageComponentBase
<div class="container">
    <CardDeck>
        <div class="card mt-4 mb-5">
            <div class="card-body">
                <div class="col-lg-12">
                    <div class="p-12">
                        <h5><i class="fas fa-file-upload text-secondary pr-2 my-2 fa-2x"></i>Upload
                            File to Azure Storage
                        </h5>
                        <p>
                            <InputFile OnChange="@OnInputFileChange" />
                        </p>
                    </div>
                </div>
            </div>
        </div>
        <div class="card mt-4 mb-5">
            <div class="card-body">
                <CardImage Source="@PictureUrl" Alt="Pizza picture will be displayed here!"></CardImage>
            </div>
        </div>
    </CardDeck>
</div>

Replace content of Index.razor.cs with code below

using System;
using System.Linq;
using System.Threading.Tasks;
using AbpFileUploadToAzureStorage.Application.Contracts.AzureStorage.Pizzas;
using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Forms;

namespace AbpFileUploadToAzureStorage.Blazor.Pages
{
  public partial class Index
  {
    [Inject] protected IPizzaAppService PizzaAppService { get; set; }
    public SavedPizzaPictureDto SavedPizzaPictureDto { get; set; } = new SavedPizzaPictureDto();
    protected string PictureUrl;

    protected async Task OnInputFileChange(InputFileChangeEventArgs e)
    {
      var file = e.GetMultipleFiles(1).FirstOrDefault();
      var byteArray = new byte[file.Size];
      await file.OpenReadStream().ReadAsync(byteArray);

      SavedPizzaPictureDto = await PizzaAppService.SavePizzaPicture(new SavePizzaPictureDto { Content = byteArray, FileName = file.Name }); ;

      var format = "image/png";
      var imageFile = (e.GetMultipleFiles(1)).FirstOrDefault();
      var resizedImageFile = await imageFile.RequestImageFileAsync(format, 100, 100);
      var buffer = new byte[resizedImageFile.Size];
      await resizedImageFile.OpenReadStream().ReadAsync(buffer);
      PictureUrl = $"data:{format};base64,{Convert.ToBase64String(buffer)}";
    }
  }
}

Test uploading a picture to Azure Storage

Start both the Blazor and the HttpApi.Host project.
Choose a pizza picture in the File Upload to Azure Storage section.

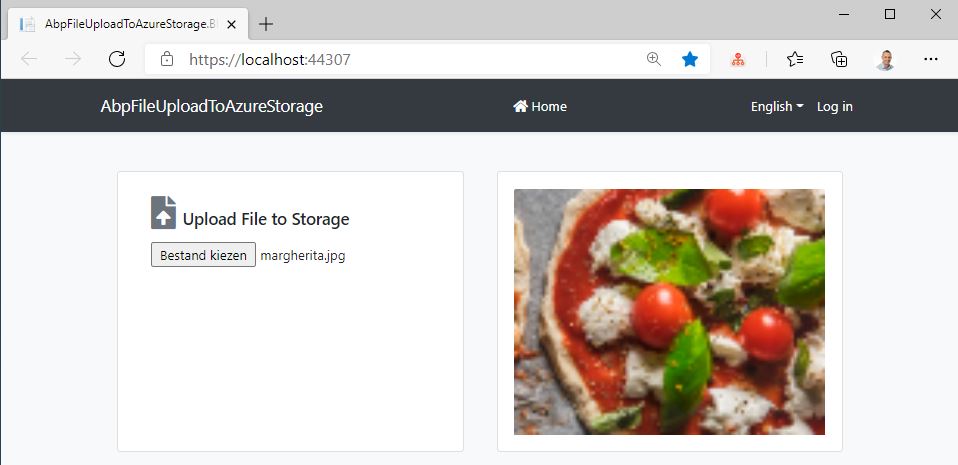

Upload file to Azure Storage

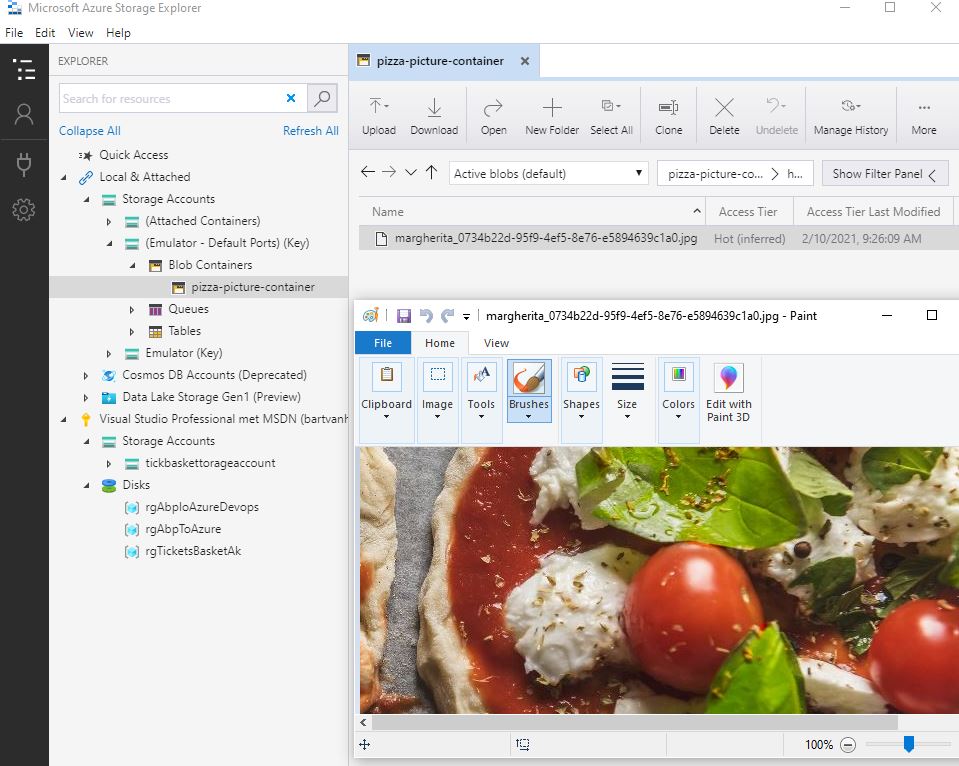

Et voilà! As you can see in the Azure Storage Explorer, the pizza picture has been successfully stored in Azure Storage.

File uploaded to Azure Storage

Congratulations, you can upload a file to Azure Storage by now! Check out the source code of this article to see my implementation of Uploading/Deleting a file to Azure Storage.

Find more information about the ABP Framework Blob Storing System here and BLOB Storing Azure Provider here.

Get the source code on GitHub.

Enjoy and have fun!
