Accessing Multiple Remote ABP based Backends Using HttpApi.Client

cover

Introduction

This post is part of my Managing Communication and Restructring blazor UI in ABP Multi-App.
We are working with three primary applications:

  • Prabh.Stock – Manages stock-related functionality
  • Prabh.News – Handles market news and updates
  • Prabh.Finance – Aggregates financial data, integrating both stock and news insights

In this article, we’ll demonstrate how to enable Prabh.Finance to call the backends of Prabh.News and Prabh.Stock by adding their HttpApi.Client projects as references.

These applications use Blazor for the UI layer and PostgreSQL as the database provider.

💻 Source Code

Source code of the this completed post is available on GitHub.
ddd

🖼️ Screenshots

Here, the applications screenshot of all three applications.

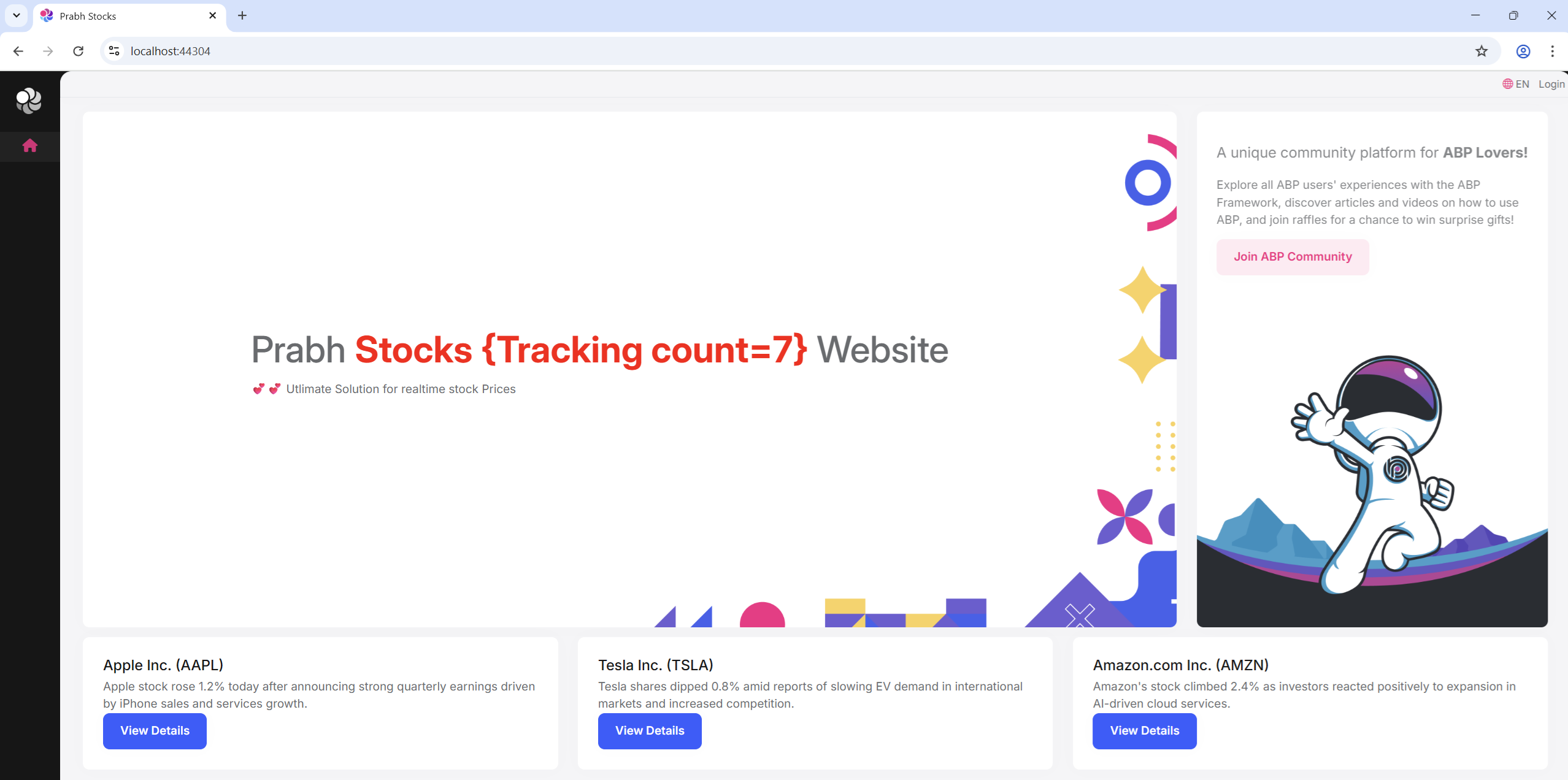

Prabh.Stock

prabh-stock-ui

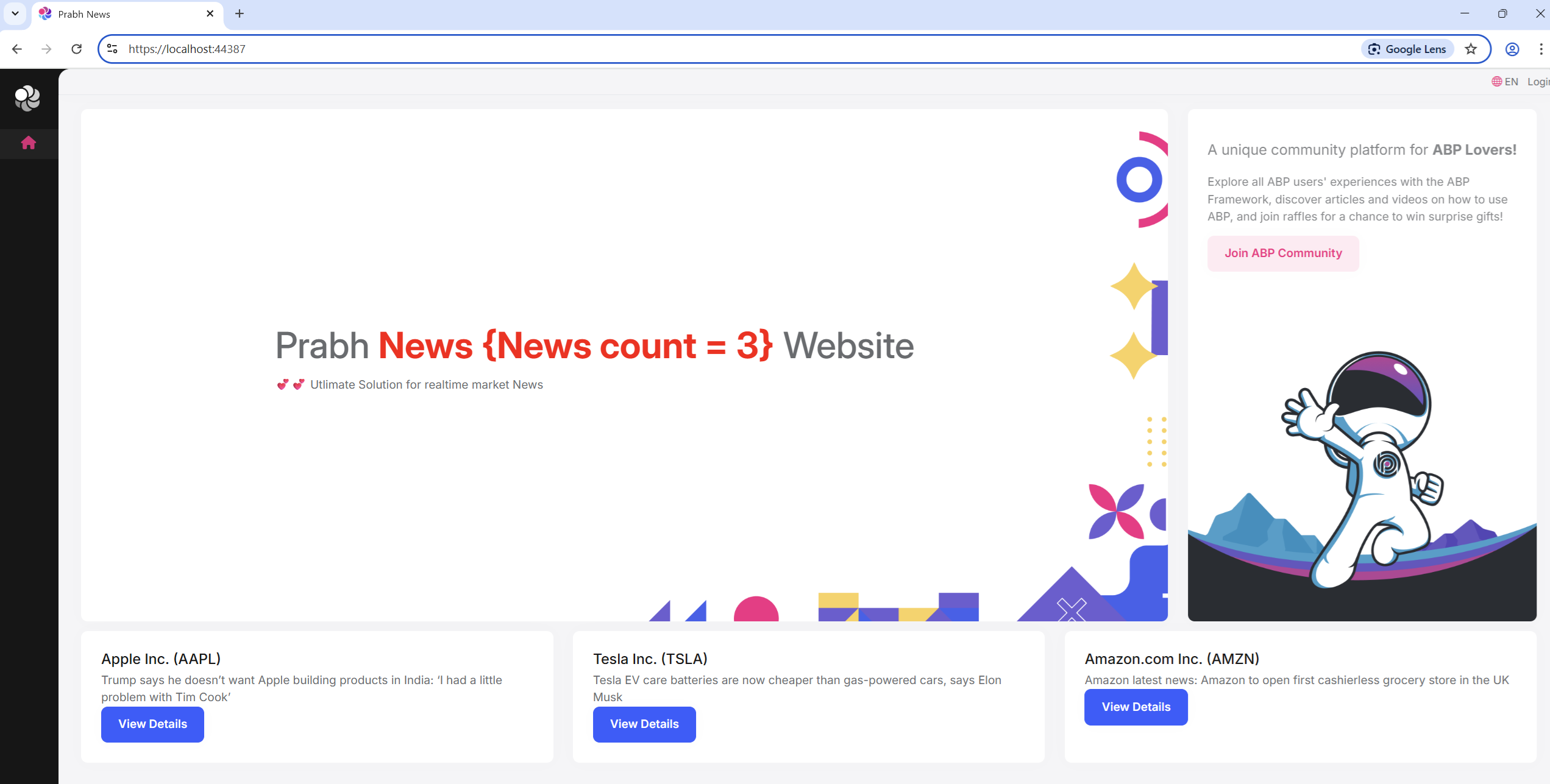

Prabh.News

prabh-news-ui

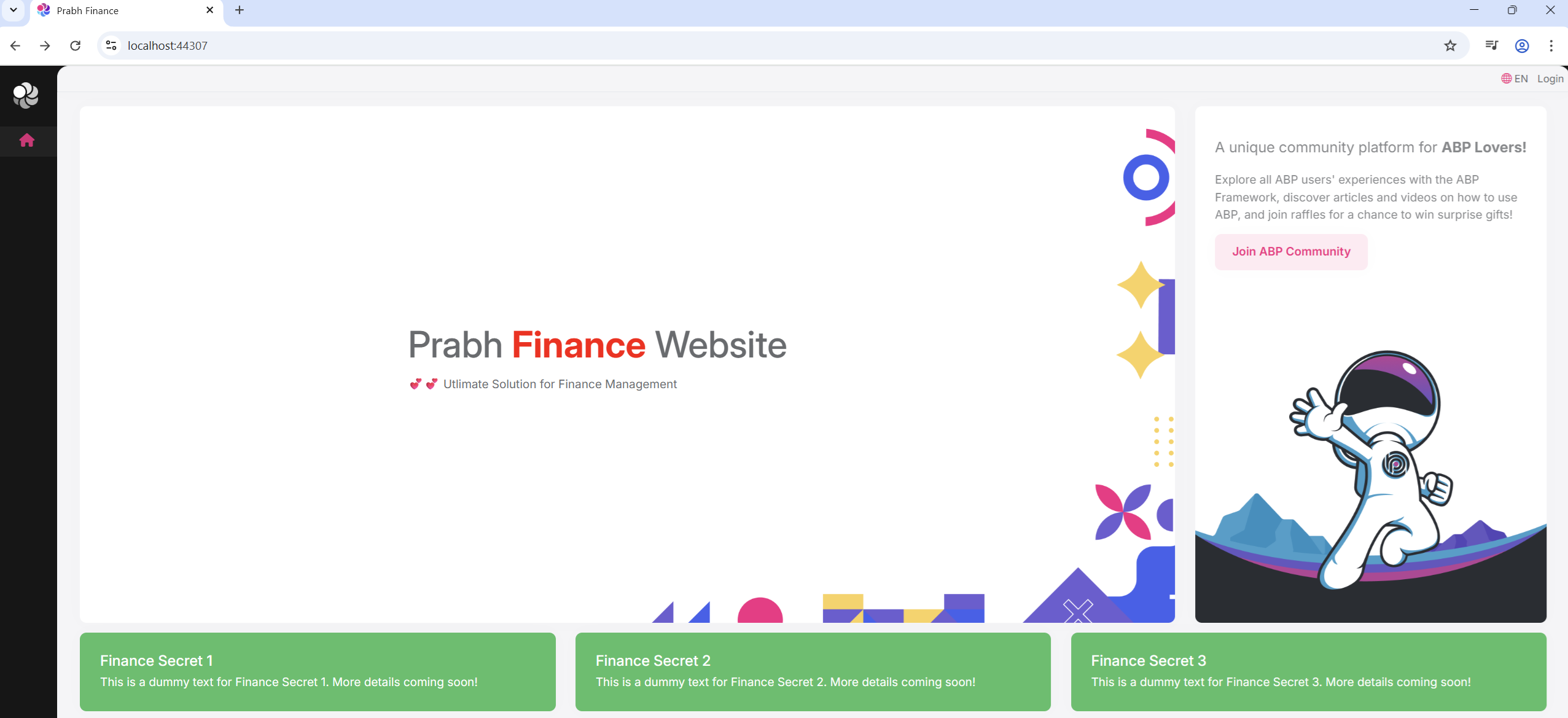

Prabh.Finance

prabh-finance-ui

Requirements

The following tools are needed to be able to run the solution.

  • .NET 9.0 SDK
  • Visual Studio 2022 or another compatible IDE
  • PostgreSQL

Troubleshooting tip

  • If you try to run more than one ABP application's UI at the same time through visual studio, you might encounter issues while running. A simple workaround is to open the second application in a different browser.

Setup

Open & Run the Application

  • Open the Stock Application solution in Visual Studio (or your favorite IDE).
  • Run the Prabh.Stock.DbMigrator application to seed the initial data.
  • Run the Prabh.Stock.HttpApi.Host application that starts the server side.
  • Run the Prabh.Stock.Blazor application to start the UI.
  • Repeat above steps for Prabh.News and Prabh.Finance
  • Stop All Applications after checking they are working fine.

Development

🆕 Prabh Stock Application Changes

  • Update Remote Service Name for Stock API

    • Open the Prabh.Stock.HttpApi.Client project and update the name of the Stock application's backend remote service to Stock.
      public const string RemoteServiceName = "Default";
//change to
public const string RemoteServiceName = "Stock";

  • Decouple and Add new value in Remote Service for Stock API

    • Add a new Stock property with the same URL as Default in appsettings.

      This change is part of our effort to decouple our APIs from the pre-existing backend APIs (such as Accounts, tenant,localization, etc.).

      Going forward:

    • The Stock UI and any third party(e.g. Prabh Finance UI) will use the Stock prop URL to communicate with APIs developed by us.

    • The Stock UI will use the Default prop URL to communicate with APIs developed by abp and attached to our backend.

      "RemoteServices": {
  "Default": {
    "BaseUrl": "https://localhost:44354"
  },
  "AbpAccountPublic": {
    "BaseUrl": "https://localhost:44354"
  }
}
//add a new prop named Stock
"RemoteServices": {
  "Default": {
    "BaseUrl": "https://localhost:44354"
  },
  "Stock": {
    "BaseUrl": "https://localhost:44354"
  },
  "AbpAccountPublic": {
    "BaseUrl": "https://localhost:44354"
  }
},

      similar type of changes is needed for News API

🆕 Prabh Finance Application Changes

  • Open the Prabh Finance Application solution in Visual Studio (or your preferred IDE).

  • In the Prabh.Finance.HttpApi.Client project, add project references to:

    • Prabh.Stock.HttpApi.Client
    • Prabh.News.HttpApi.Client
        <ProjectReference Include="..\..\..\Prabh.Stock\src\Prabh.Stock.HttpApi.Client\Prabh.Stock.HttpApi.Client.csproj" />
  <ProjectReference Include="..\..\..\Prabh.News\src\Prabh.News.HttpApi.Client\Prabh.News.HttpApi.Client.csproj" />

  • Sometimes Visual Studio does show a error related to reference. If you encounter this issue, run the following command in the terminal to resolve it and restart visual studio

    dotnet restore or dotnet build /graphbuild

  • Open FinanceHttpApiClientModule module and add StockHttpApiClientModule in the DependsOn(a beauty of ABP modularity)

    using Prabh.Stock;
using Prabh.News;

namespace Prabh.Finance;

[DependsOn(
    // Code remove for brevity
    typeof(StockHttpApiClientModule)
)]
public class FinanceHttpApiClientModule : AbpModule
{
    // Code remove for brevity
}

  • You can now access the Stock APIs from within the Finance UI

  • Similar changes are required to integrate the News API

🔗 Prabh Finance Blazor Consume APIs from Stock and News to combine the Data.

  • Open Index.Razor.cs inside Pages of Prabh.Finance.Blazor.Client and change to something like this.

      using Blazorise;
  using Microsoft.AspNetCore.Components;
  using Prabh.News.Books;
  using Prabh.Stock.Books;
  using System;
  using System.Collections.Generic;
  using System.Linq;
  using System.Threading.Tasks;
  using Volo.Abp.AspNetCore.Components.Alerts;

  namespace Prabh.Finance.Blazor.Client.Pages;


  public record LatestStockNews(string Ticker, string CompanyName, decimal CurrentPrice, string Summary);


  public partial class Index
  {

      [Inject] public IStockAppService StockAppService_HTTP { get; set; }

      [Inject] public INewsAppService NewsAppService_HTTP { get; set; }

      [Inject]  IMessageService MessageService { get; set; }


      private List<LatestStockNews> LatestStockNews = [];
      protected override async Task OnInitializedAsync()
      {
          await base.OnInitializedAsync();

          try
          {
              var stockResponse = await StockAppService_HTTP.GetThisMonthTopStocksAsync();
              var newsResponse = await NewsAppService_HTTP.GetTopMonthlyNewsAsync();

              LatestStockNews = [.. from s in stockResponse.Items.ToList()
                                            join n in newsResponse.Items.ToList() on s.Ticker equals n.Ticker
                                            select new LatestStockNews(s.Ticker, s.CompanyName, s.CurrentPrice, n.Summary)];
          }
          catch (System.Exception ex)
          {
              //This is just to mange eror If any external apis are not working or not reachable.
              MessageService?.Error("Error calling Stock Or New APis. See Console for me error");
              Console.WriteLine(ex.Message ?? ex.InnerException.Message);
          }
      }
  }

  • Open Index.Razor.cs inside Pages of Prabh.Finance.Blazor.Client and change to something like this.

    <div class="card-body f">
  <div class="starting-content pe-5" style="position:static !important">
    <h1 class="f3">Prabh <strong class="c">Finance</strong> Website</h1>
    <p>💕💕 Utlimate Solution for Finance Management</p>

    <div>
      @if (LatestStockNews.Count > 0) {
      <CardDeck>
        @foreach (var item in LatestStockNews) {
        <Card Background="Background.Success" WhiteText>
          <CardBody>
            <CardTitle Size="5">
              <div class="d-flex justify-content-between">
                <div>@item.CompanyName</div>
                <div>$ @item.CurrentPrice</div>
              </div>
            </CardTitle>

            <CardText> @item.Summary </CardText>
          </CardBody>
        </Card>
        }
      </CardDeck>
      } else {
      <Callout Color="CalloutColor.Danger" HideHeading="true">
        <h4>Something is Wrong</h4>
        <p>
          No stock news could be loaded. Please check with your admin or try
          again later.
        </p>
      </Callout>
      }
    </div>
  </div>
</div>

⚠️ Wait! CORS Still Needs to Be Configured

  • One final change is needed in the Stock API and News API: currently, these services only accept HTTP requests from specific UI/Domain.

    alt text

    Please update the appsettings.json of both projects to allow requests from Prabh Finance UI, then restart the applications.

    • Prabh.Stock.HttpApi.Host
    • Prabh.News.HttpApi.Host

    alt text

🔌 Run & Results

  • Run these project
    • Prabh.Stock.HttpApi.Host
    • Prabh.News.HttpApi.Host
    • Prabh.Finance.HttpApi.Host
    • Prabh.Finance.Blazor

final result prabh finance page

Source Code

Source code of the this completed post is available on GitHub.

Next

  • While we are able to access Stock API and News API from Finance UI, But we found out that the process to run all four applications are quite complex and separated.

  • So, Our Next post is going to be 'Adopting the new .slnx format to organize applications and services in a streamlined solution' and is
    available on GitHub
