如何使用RapiDoc替换SwaggerUI
介绍
abp使用非常流行的 SwaggerUI 作为默认api文档页面. 但是如果你对它的UI感到厌倦, 可以尝试使用 RapiDoc 替换Swagger-UI.
RapiDoc提供与SwaggerUI几乎相同的能力, 但是他的UI更加漂亮, 可定制化更高.
如果你对此感兴趣, 请继续阅读, 了解如何使用 RapiDoc 作为您项目的文档页面.
创建一个新项目
在这里我使用单层模板进行演示, 对其他模板步骤相同. 你也可以在现有项目上完成后续步骤.
abp new RapiDocDemo -t app-nolayers
安装RapiDoc
感谢luoyunchong创建的IGeekFan.AspNetCore.RapiDoc项目, 让我们刚容易使用RapiDoc.
让我们将RapiDoc添加到Web项目.
dotnet add package IGeekFan.AspNetCore.RapiDoc
创建abp.rapi-doc.js
在Web项目创建文件夹wwwroot/rapi-doc, 并使用以下内容创建abp.rapi-doc.js文件.
var abp = abp || {};
(function () {
window.addEventListener('DOMContentLoaded', (event) => {
var excludeUrl = ["swagger.json", "connect/token"]
var firstRequest = true;
/*
Ensure that the DOM is loaded, then add the event listener.
here we are listenig to 'before-try' event which fires when the user clicks
on TRY, it then modifies the POST requests by adding a custom header
*/
const rapidocEl = document.getElementById('thedoc');
rapidocEl.addEventListener('before-try', async (e) => {
var request = e.detail.request;
if (request.url.includes(excludeUrl[1])) {
firstRequest = true;
}
if (firstRequest && !excludeUrl.some(url => request.url.includes(url))) {
await fetch(`${abp.appPath}abp/Swashbuckle/SetCsrfCookie`, {
headers: request.headers
});
firstRequest = false;
}
var antiForgeryToken = abp.security.antiForgery.getToken();
if (antiForgeryToken) {
request.headers.append(abp.security.antiForgery.tokenHeaderName, antiForgeryToken);
}
});
});
})();
配置RapiDoc
配置RapiDocDemoModule.
步骤1. 添加using.
using IGeekFan.AspNetCore.RapiDoc;
步骤2. 配置RapiDoc.
按如下所示修改ConfigureSwaggerServices来配置RapiDocOptions.
private void ConfigureSwaggerServices(IServiceCollection services, IConfiguration configuration)
{
+ Configure<RapiDocOptions>(options =>
+ {
+ options.RoutePrefix = "rapi-doc";//access url
+ // optional
+ options.GenericRapiConfig.RenderStyle = "focused";// view | read | focused
+ options.GenericRapiConfig.Theme = "dark"; // light | dark
+ options.GenericRapiConfig.SchemaStyle = "tree"; // table | tree
+ options.GenericRapiConfig.ShowMethodInNavBar = "as-colored-text"; // false | as-plain-text | as-colored-text | as-colored-block
+ options.GenericRapiConfig.UsePathInNavBar = true;
+
+ // required
+ options.SwaggerEndpoint("/swagger/v1/swagger.json", "RapiDocDemo API");
+ options.InjectJavascript("/swagger/ui/abp.js");
+ options.InjectJavascript("/rapi-doc/abp.rapi-doc.js");
+ });
services.AddAbpSwaggerGen(
options =>
{
options.SwaggerDoc("v1", new OpenApiInfo { Title = "Blogs API", Version = "v1" });
options.DocInclusionPredicate((docName, description) => true);
options.CustomSchemaIds(type => type.FullName);
}
);
}
更多配置请参考https://rapidocweb.com/api.html.
对于Web项目, 直接看第三步.
HttpApi.Host项目
按照下面修改ConfigureSwaggerServices
private void ConfigureSwaggerServices(IServiceCollection services, IConfiguration configuration)
{
+ Configure<RapiDocOptions>(options =>
+ {
+ options.RoutePrefix = "rapi-doc";//access url
+ // optional
+ options.GenericRapiConfig.RenderStyle = "focused";// view | read | focused
+ options.GenericRapiConfig.Theme = "dark"; // light | dark
+ options.GenericRapiConfig.SchemaStyle = "tree"; // table | tree
+ options.GenericRapiConfig.ShowMethodInNavBar = "as-colored-text"; // false | as-plain-text | as-colored-text | as-colored-block
+ options.GenericRapiConfig.UsePathInNavBar = true;
+
+ // required
+ options.SwaggerEndpoint("/swagger/v1/swagger.json", "RapiDocDemo API");
+ options.InjectJavascript("/swagger/ui/abp.js");
+ options.InjectJavascript("/rapi-doc/abp.rapi-doc.js");
+ });
services.AddAbpSwaggerGenWithOAuth(
authority: configuration["App:SelfUrl"],
scopes: new Dictionary<string, string>()
{
{ "RapiDocDemo", "RapiDocDemo API" }
},
options =>
{
options.SwaggerDoc("v1", new OpenApiInfo { Title = "RapiDocDemo API", Version = "v1" });
options.DocInclusionPredicate((docName, description) => true);
options.CustomSchemaIds(type => type.FullName);
+ // See https://rapidocweb.com/api.html#vendor-extensions
+ var oauth2SecurityScheme = options.SwaggerGeneratorOptions.SecuritySchemes.GetOrDefault+"oauth2");
+ if (oauth2SecurityScheme != null)
+ {
+ oauth2SecurityScheme.Extensions = new +ictionary<string, Microsoft.OpenApi.Interfaces.IOpenApiExtension>()
+ {
+ {"x-client-id", new Microsoft.OpenApi.Any.OpenApiString("RapiDocDemo_RapiDoc")},
+ {"x-default-scopes", new Microsoft.OpenApi.Any.OpenApiString("RapiDocDemo")},
+ };
+ }
}
);
}
DbMigrator项目appsettings.json进行如下修改.
{
...
"OpenIddict": {
...
+ "RapiDocDemo_RapiDoc": {
+ "ClientId": "RapiDocDemo_RapiDoc",
+ "RootUrl": "https://localhost:44394" // your host
}
}
}
}
按照下面配置OpenIddictDataSeedContributor的CreateApplicationsAsync方法.
private async Task CreateApplicationsAsync()
{
...
+ var rapidocClientId = configurationSection["RapiDocDemo_RapiDoc:ClientId"];
+ if (!rapidocClientId.IsNullOrWhiteSpace())
+ {
+ var rapidocRootUrl = configurationSection["RapiDocDemo_RapiDoc:RootUrl"]?.TrimEnd('/');
+
+ await CreateApplicationAsync(
+ name: rapidocClientId!,
+ type: OpenIddictConstants.ClientTypes.Public,
+ consentType: OpenIddictConstants.ConsentTypes.Implicit,
+ displayName: "RapiDoc Application",
+ secret: null,
+ grantTypes: new List<string>
+ {
+ OpenIddictConstants.GrantTypes.AuthorizationCode,
+ },
+ scopes: commonScopes,
+ redirectUri: $"{rapidocRootUrl}/rapi-doc/oauth-receiver.html",
+ clientUri: rapidocRootUrl
+ );
+ }
}
运行DbMigrator项目.
步骤3. 修改OnApplicationInitialization
public override void OnApplicationInitialization(ApplicationInitializationContext context)
{
...
- app.UseAbpSwaggerUI(options => { options.SwaggerEndpoint("/swagger/v1/swagger.json", "Blogs API"); });
+ //app.UseAbpSwaggerUI(options => { options.SwaggerEndpoint("/swagger/v1/swagger.json", "Blogs API"); });
+ app.UseRapiDocUI(options =>
+ {
+ options.SwaggerEndpoint("/swagger/v1/swagger.json", "Blogs API");
+ options.InjectJavascript("/swagger/ui/abp.js");
+ options.InjectJavascript("/swagger/ui/abp.rapi-doc.js");
+ });
...
}
如果你想同时使用swagger-ui和RapiDoc, 可以不用注释app.UseAbpSwaggerUI.
配置完成后运行项目, 访问https://your-host/rapi-doc开始使用.
预览

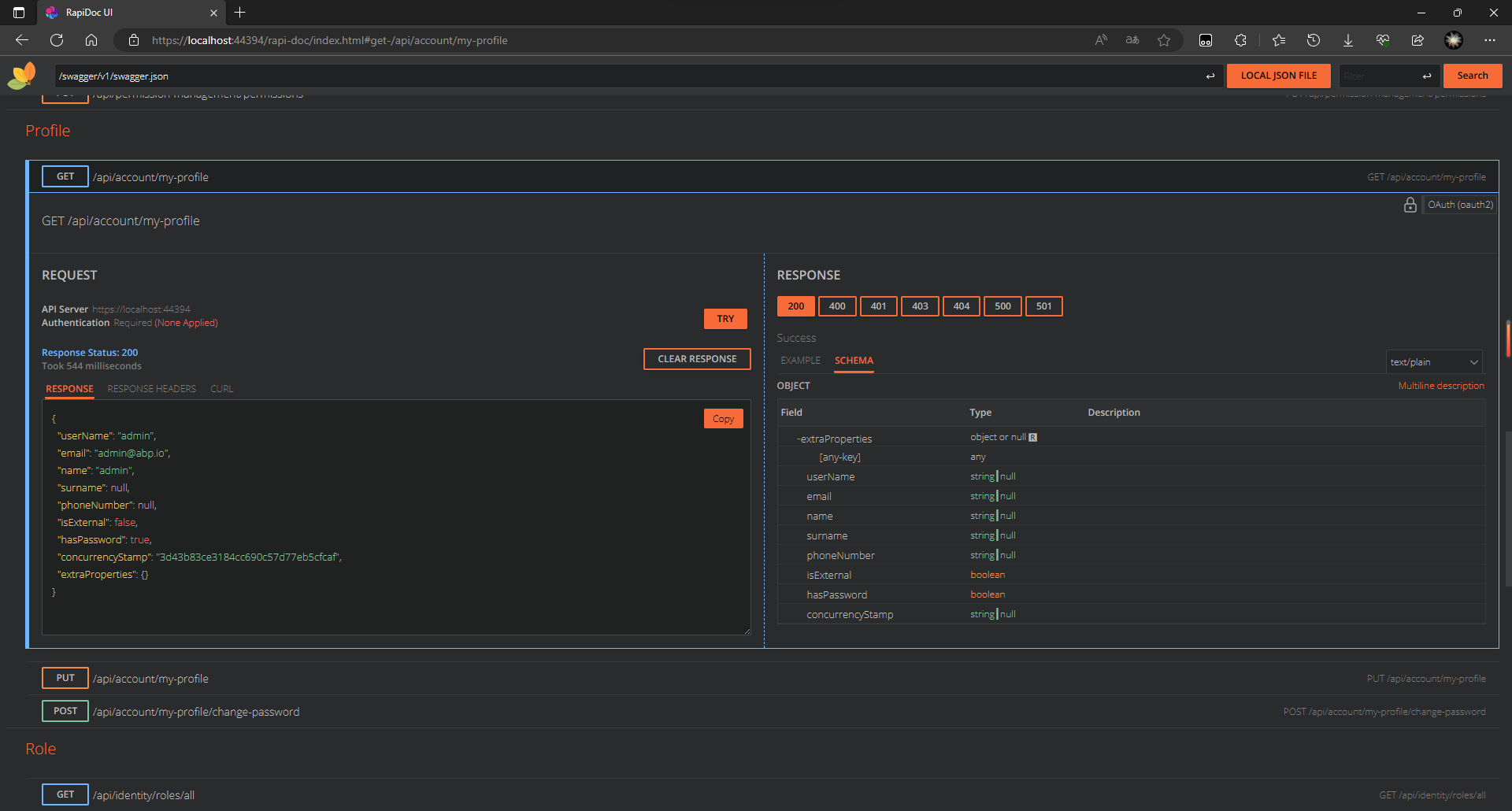

RenderStyle focused

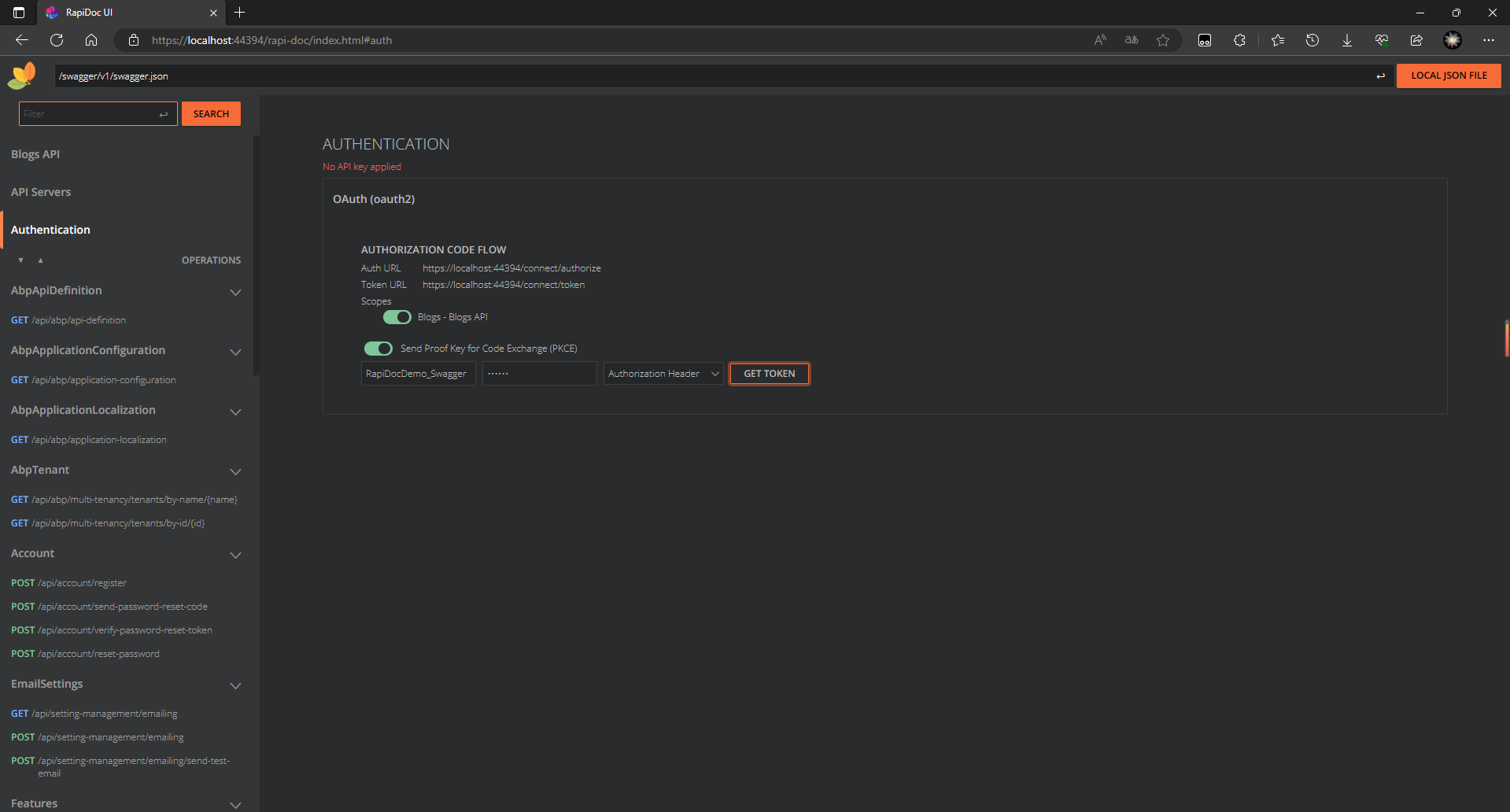

OAuth authorization

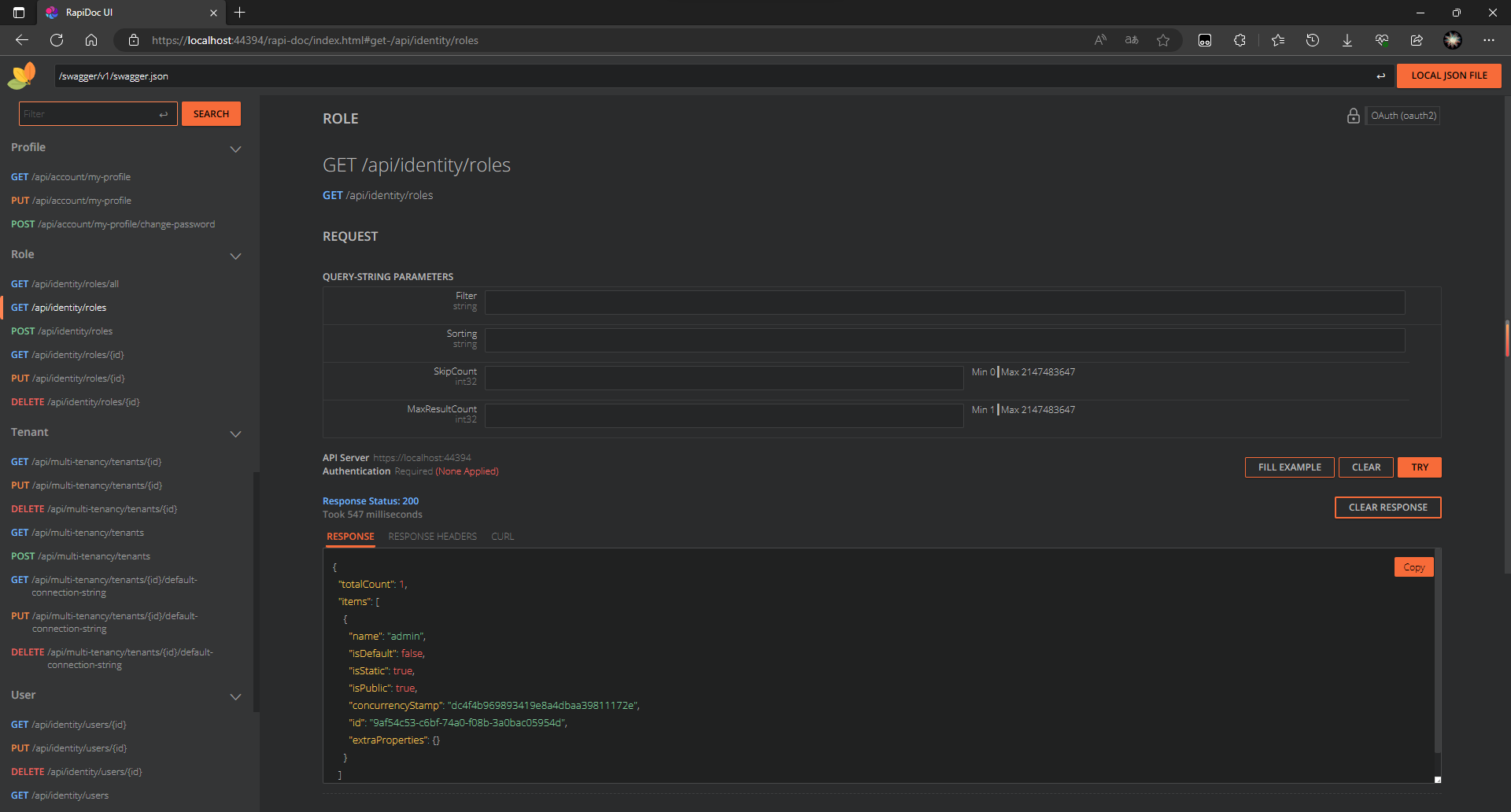

RenderStyle view
