The permission-management API is unusually slow. #8796

joumingt created one month ago

Template: app
Created ABP Studio Version: 0.8.1
Tiered: No
UI Framework: angular
Theme: leptonx
Theme Style: system
Database Provider: ef
Database Management System: sqlserver
Separate Tenant Schema: No
Mobile Framework: none
Progressive Web App: No
Public Website: Yes
Optional Modules:
- GDPR
- FileManagement
- TextTemplateManagement
- LanguageManagement
- AuditLogging
- SaaS
- Chat
- OpenIddictAdmin

I use ABP's background operations and want to manage AbpRole and AbpUserRole, but the reading speed is abnormally slow. I have never modified these ABP native APIs. I don't understand how there could be a performance issue.

maliming created one month ago

Support Team Fullstack Developer

How many permissions in your project? Can you enable the debug logs, reproduce the problem, and then share the logs?

https://abp.io/support/questions/8622/How-to-enable-Debug-logs-for-troubleshoot-problems

Thanks

liming.ma@volosoft.com

joumingt created one month ago

Hi,

I have a total of 1548 permissions
I tried to set up the log according to the instructions. If possible, could you help me confirm whether the settings are correct?

class Program
{
    static async Task Main(string[] args)
    {
Log.Logger = new LoggerConfiguration()
             .MinimumLevel.Debug()
             .MinimumLevel.Override("Microsoft", LogEventLevel.Warning)
             .MinimumLevel.Override("Volo.Abp", LogEventLevel.Warning)
             // .MinimumLevel.Override("Microsoft.EntityFrameworkCore", LogEventLevel.Warning)
             .MinimumLevel.Override("PortalApi", LogEventLevel.Debug)
             .Enrich.FromLogContext()
             .WriteTo.Async(c => c.File("Logs/logs.txt"))
             .WriteTo.Async(c => c.Console())
             .CreateLogger();
        await CreateHostBuilder(args).RunConsoleAsync();
    }

    public static IHostBuilder CreateHostBuilder(string[] args) =>
        Host.CreateDefaultBuilder(args)
            .AddAppSettingsSecretsJson()
            .ConfigureLogging((context, logging) => logging.ClearProviders())
            .ConfigureServices((hostContext, services) => { services.AddHostedService<DbMigratorHostedService>(); });
}

At the same time, I also sent the log to the above mailbox. I roughly looked at the log content, and there was no record of calling https://localhost:44374/api/permission-management/permissions?providerName=R&providerKey=user. I am not sure what information should appear in the log.

maliming created one month ago

Support Team Fullstack Developer

Update your Program like that, then run your app. call https://localhost:44374/api/permission-management/permissions?providerName=R&providerKey=user then share the Logs.txt file

Thanks.

static async Task Main(string[] args)
{
    Log.Logger = new LoggerConfiguration()
                 .MinimumLevel.Debug()
                 .Enrich.FromLogContext()
                 .WriteTo.Async(c => c.File("Logs/logs.txt"))
                 .WriteTo.Async(c => c.Console())
                 .CreateLogger();
    await CreateHostBuilder(args).RunConsoleAsync();
}

joumingt created one month ago

I was stupid. I just modified the Main of PortalApi.DbMigrator.csproj. No wonder the Log didn't respond. This time I am sure that the changes are correct and I have received the log. Please check the email again.

maliming created one month ago

Support Team Fullstack Developer

Please test if these codes can improve the performance.

public override void ConfigureServices(ServiceConfigurationContext context)
{

    PostConfigure<PermissionManagementOptions>(options =>
    {
        options.ManagementProviders.Remove<UserPermissionManagementProvider>();
        options.ManagementProviders.Remove<RolePermissionManagementProvider>();

        options.ManagementProviders.Add<MyUserPermissionManagementProvider>();
        options.ManagementProviders.Add<MyRolePermissionManagementProvider>();
    });
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Volo.Abp.Authorization.Permissions;
using Volo.Abp.Domain.Repositories;
using Volo.Abp.Guids;
using Volo.Abp.Identity;
using Volo.Abp.MultiTenancy;
using Volo.Abp.PermissionManagement;
using Volo.Abp.PermissionManagement.Identity;

namespace MyCompanyName.MyProjectName.Web;

public class MyRolePermissionManagementProvider : RolePermissionManagementProvider
{
    public MyRolePermissionManagementProvider(IPermissionGrantRepository permissionGrantRepository, IGuidGenerator guidGenerator, ICurrentTenant currentTenant, IUserRoleFinder userRoleFinder) : base(permissionGrantRepository, guidGenerator, currentTenant, userRoleFinder)
    {
    }

    public async override Task<MultiplePermissionValueProviderGrantInfo> CheckAsync(string[] names, string providerName, string providerKey)
    {
        using (PermissionGrantRepository.DisableTracking())
        {
            var multiplePermissionValueProviderGrantInfo = new MultiplePermissionValueProviderGrantInfo(names);
            var permissionGrants = new List<PermissionGrant>();

            if (providerName == Name)
            {
                permissionGrants.AddRange(await PermissionGrantRepository.GetListAsync(names, providerName, providerKey));

            }

            if (providerName == UserPermissionValueProvider.ProviderName)
            {
                var userId = Guid.Parse(providerKey);
                var roleNames = await UserRoleFinder.GetRoleNamesAsync(userId);

                foreach (var roleName in roleNames)
                {
                    permissionGrants.AddRange(await PermissionGrantRepository.GetListAsync(names, Name, roleName));
                }
            }

            permissionGrants = permissionGrants.Distinct().ToList();
            if (!permissionGrants.Any())
            {
                return multiplePermissionValueProviderGrantInfo;
            }

            foreach (var permissionName in names)
            {
                var permissionGrant = permissionGrants.FirstOrDefault(x => x.Name == permissionName);
                if (permissionGrant != null)
                {
                    multiplePermissionValueProviderGrantInfo.Result[permissionName] = new PermissionValueProviderGrantInfo(true, permissionGrant.ProviderKey);
                }
            }

            return multiplePermissionValueProviderGrantInfo;
        }
    }
}

using System.Linq;
using System.Threading.Tasks;
using Volo.Abp.Domain.Repositories;
using Volo.Abp.Guids;
using Volo.Abp.MultiTenancy;
using Volo.Abp.PermissionManagement;
using Volo.Abp.PermissionManagement.Identity;

namespace MyCompanyName.MyProjectName.Web;

public class MyUserPermissionManagementProvider : UserPermissionManagementProvider
{
    public MyUserPermissionManagementProvider(IPermissionGrantRepository permissionGrantRepository, IGuidGenerator guidGenerator, ICurrentTenant currentTenant) : base(permissionGrantRepository, guidGenerator, currentTenant)
    {
    }

    public async override Task<MultiplePermissionValueProviderGrantInfo> CheckAsync(string[] names, string providerName, string providerKey)
    {
        var multiplePermissionValueProviderGrantInfo = new MultiplePermissionValueProviderGrantInfo(names);
        if (providerName != Name)
        {
            return multiplePermissionValueProviderGrantInfo;
        }

        using (PermissionGrantRepository.DisableTracking())
        {
            var permissionGrants = await PermissionGrantRepository.GetListAsync(names, providerName, providerKey);

            foreach (var permissionName in names)
            {
                var isGrant = permissionGrants.Any(x => x.Name == permissionName);
                multiplePermissionValueProviderGrantInfo.Result[permissionName] = new PermissionValueProviderGrantInfo(isGrant, providerKey);
            }

            return multiplePermissionValueProviderGrantInfo;
        }
    }
}

joumingt created one month ago

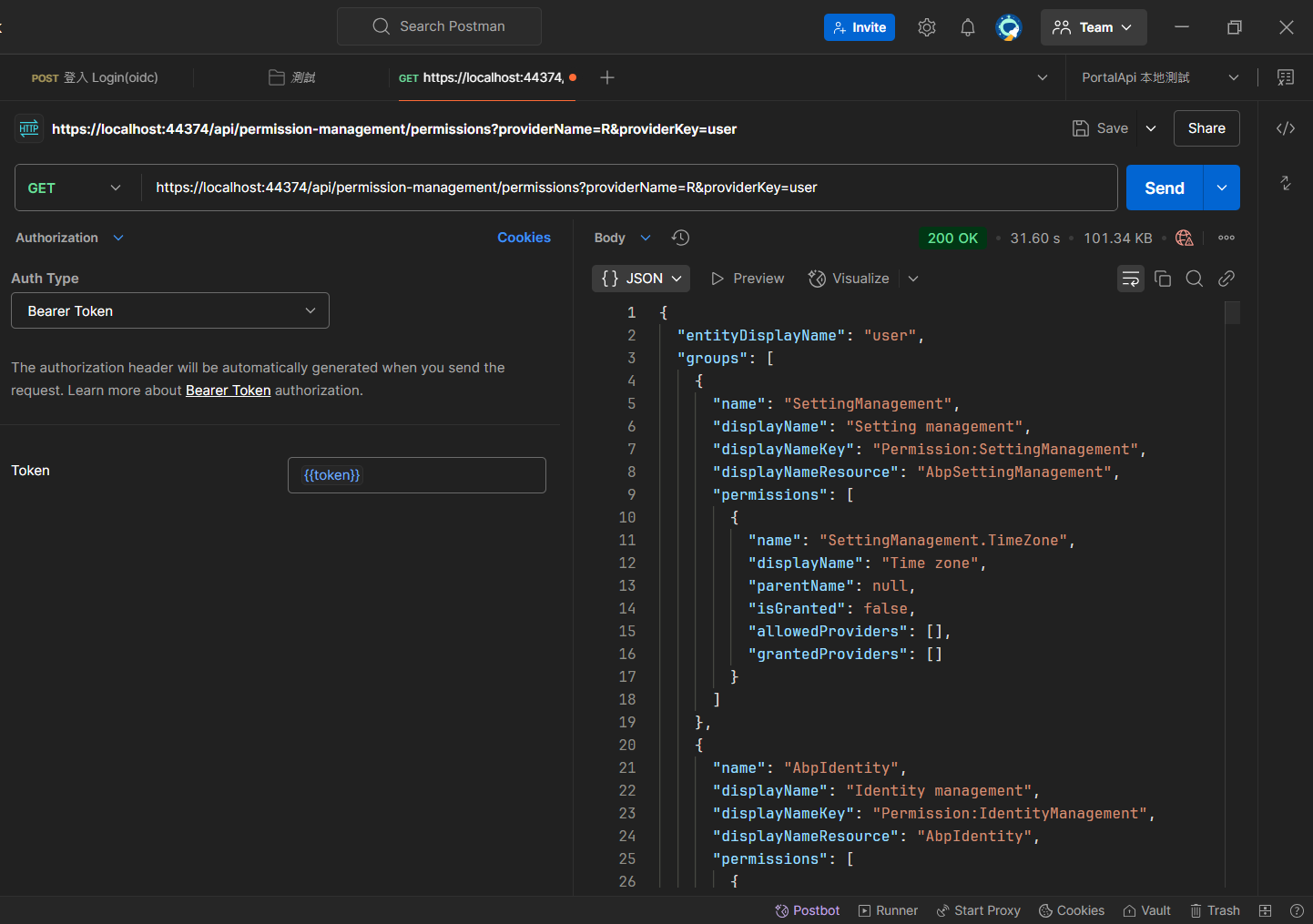

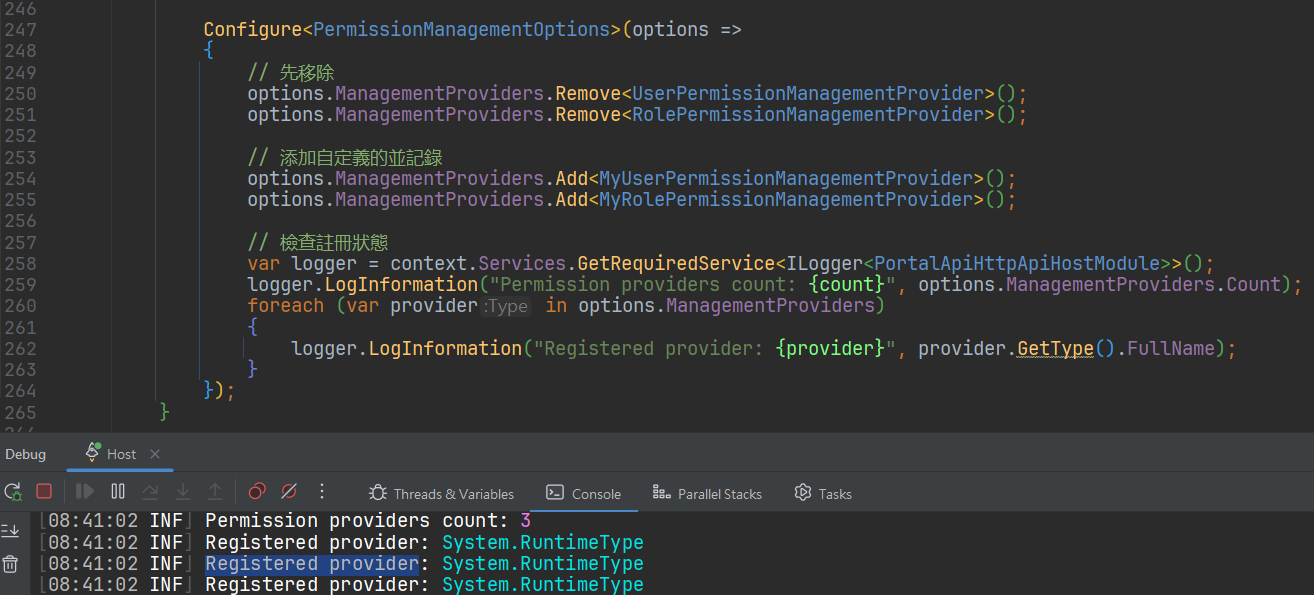

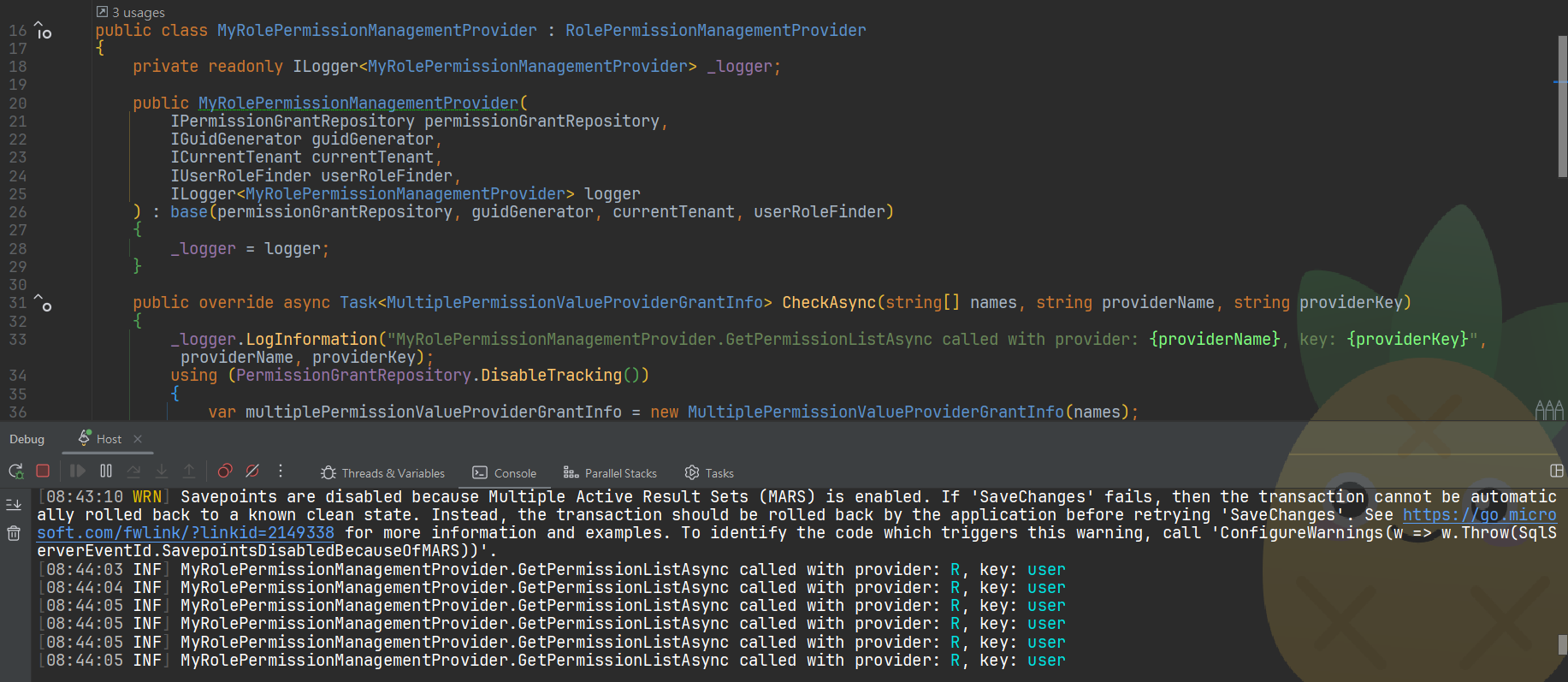

Hi, It took some time to implement. Unfortunately it didn't work and it still took more than a minute. I have added logs in the implementation to check if the custom provider is actually called and confirm that the override method is actually called.

maliming created one month ago

Support Team Fullstack Developer

Can you share a project to reproduce the problem?

I will download and check it.

Thanks.

liming.ma@volosoft.com

joumingt created one month ago

Hi, Sorry to have kept you waiting. Please check the email again.

maliming created one month ago

Support Team Fullstack Developer

I didn’t receive your project, Can you check again?

joumingt created one month ago

Hi, The annoying email attachment policy keeps blocking me. I changed to upload to Onedrive sharing. Please check the email again.

mx.google.com rejected your message to the following email addresses:

liming.ma@volosoft.com (liming.ma@volosoft.com)
Your message wasn't delivered because the recipient's email provider rejected it.


mx.google.com gave this error:
This message was blocked because its content presents a potential security issue. To review our message content and attachment content guidelines, go to https://support.google.com/mail/?p=BlockedMessage 41be03b00d2f7-ae0f0da369esi18473378a12.470 - gsmtp

maliming created one month ago

Support Team Fullstack Developer

joumingt created one month ago

Hi, I have switched to my personal Onedrive, please confirm again.

maliming created one month ago

Support Team Fullstack Developer

I have changed the PermissionAppService service, now, there is only one SQL query.

What is your GitHub username? I will invite you to join.

https://github.com/maliming/PortalApi-main/commit/4e479470d6076e3971a05053950cbf93b20b602c

[INF] Request starting HTTP/2 GET api/permission-management/permissions?providerName=R&providerKey=admin

[INF] Executed DbCommand (6ms) [Parameters=[@__names_0='["FeatureManagement.ManageHostFeatures",.......]'
(Size = -1), @__providerName_1='R'
(Size = 64), @__providerKey_2='admin' (Size = 64)], CommandType='"Text"', CommandTimeout='30']

SELECT [a].[Id], [a].[Name], [a].[ProviderKey], [a].[ProviderName], [a].[TenantId]
FROM [AbpPermissionGrants] AS [a]
WHERE [a].[TenantId] IS NULL AND [a].[Name] IN (
    SELECT [n].[value]
    FROM OPENJSON(@__names_0) WITH ([value] nvarchar(128) '$') AS [n]
) AND [a].[ProviderName] = @__providerName_1 AND [a].[ProviderKey] = @__providerKey_2

[INF] Request finished HTTP/2 GET /api/permission-management/permissions?providerName=R&providerKey=admin - 412.39ms

joumingt created one month ago

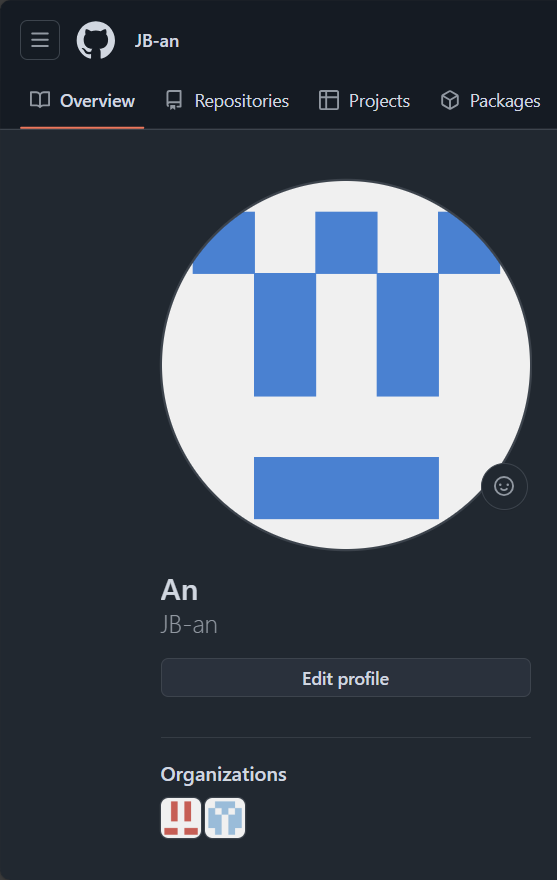

Hi, I am not sure which is my username.😅 An or JB-an.

maliming created one month ago

Support Team Fullstack Developer

https://github.com/maliming/PortalApi-main/invitations

joumingt created 25 days ago

Hi, We're sorry to have kept you waiting. I tested your modified code and found no performance improvement. Using the browser still takes more than 1 minute. Using Postman to call also takes 30 seconds. It would be helpful if you could clarify some issues for me first.

Did your modified code improve performance in your environment?
Based on your experience, what is the expected response speed in a scenario with thousands of Permission entries?
Apart from database performance, what other reasons are there for the API's low performance?

maliming created 25 days ago

Support Team Fullstack Developer

I use https://github.com/maliming/PortalApi-main project with brand new SQL server database.

Migrate and run API.Host. Login admin user, then check the permission endpoint.

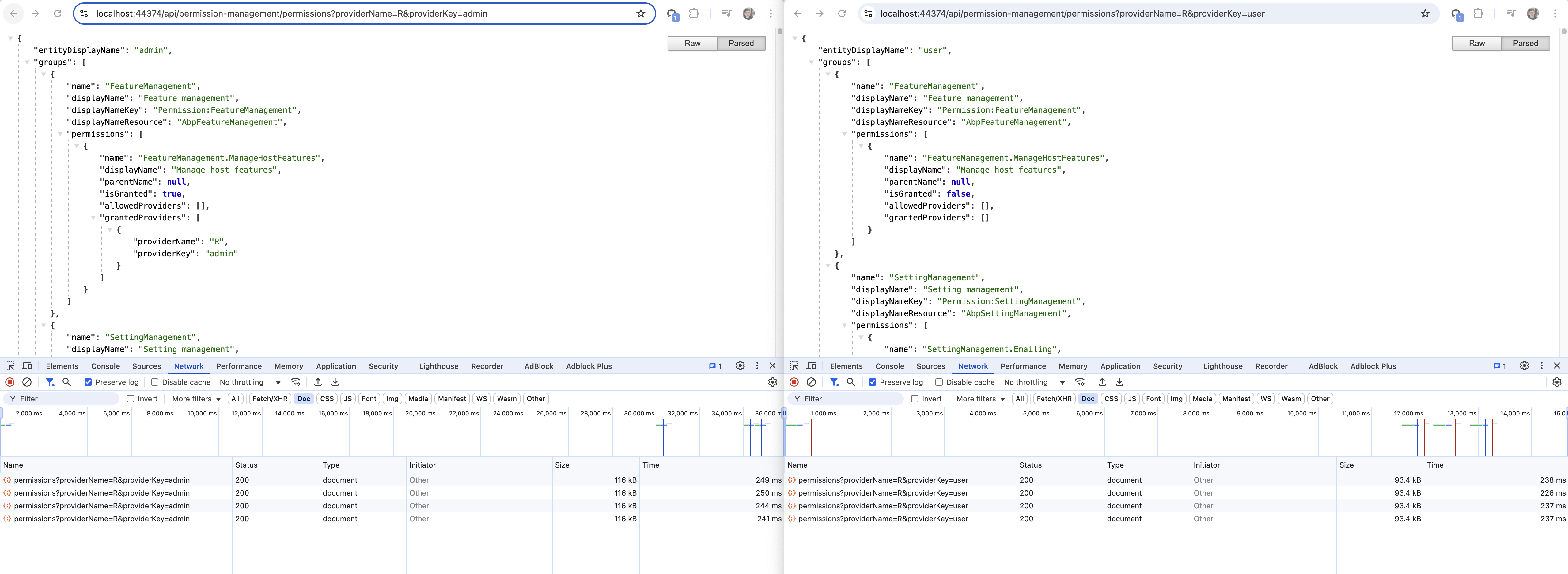

Here are the results, as you can see, the response time is about 200-300ms

joumingt created 22 days ago

Hi, In my current environment, there is no performance increase due to changes related to MyPermissionManagementProvider. I would like to confirm whether there are also situations where performance is low (taking 30 to 60 seconds) in your environment test? I suspect that it might be caused by my computer environment, but the differences in the environments I can test are too small (the computers of colleagues are distributed by the company).

maliming created 22 days ago

Support Team Fullstack Developer

No, it always takes about 200-300ms on my computer. Can you change the environment to test again?

Thanks.

joumingt created 22 days ago

Hi, Got it. I'll think about what kind of environment I can test it in.

maliming created 22 days ago

Support Team Fullstack Developer

Thanks.

joumingt created 21 days ago

I use https://github.com/maliming/PortalApi-main project with brand new SQL server database.

Migrate and run API.Host. Login admin user, then check the permission endpoint.

Here are the results, as you can see, the response time is about 200-300ms

Hi, I'd like to confirm, when you say "with brand new SQL server database," does this refer to a database with all data included, or just an empty database with only the structure? Also, when you say you always measure speeds of 300ms, does this include using the 'nas.i23.me' DB I provided, and you obtained the same results?

maliming created 21 days ago

Support Team Fullstack Developer

I use a database and seed the initial data. It sets all permissions for the admin user and role.

joumingt created 21 days ago

Hi, I apologize, but I'm having trouble understanding your meaning fully. I'm facing a dilemma here. I'm not sure whether the performance issue is caused by the database or the code.

You're getting normal speeds using both a database with basic data and your optimized code. I'm uncertain how similar your database is to the 'nas.i23.me' database I provided, which makes it difficult for me to interpret your test results.

Additionally, if your optimized code is effective, you should get similar results regardless of whether you're connecting to the 'nas.i23.me' database or your own database. Have you tested this scenario? Conversely, if the issue is code-related, using the original code I provided in my OneDrive should result in the same poor performance even with your database. Have you tested this scenario as well?

maliming created 21 days ago

Support Team Fullstack Developer

Can you try to change your environment by follow:

Change to a new local SQL server database. https://github.com/maliming/PortalApi-main/blob/master/src/PortalApi.DbMigrator/appsettings.json#L3 https://github.com/maliming/PortalApi-main/blob/master/src/PortalApi.HttpApi.Host/appsettings.json#L14
Change the Redis to a local Redis. https://github.com/maliming/PortalApi-main/blob/master/src/PortalApi.HttpApi.Host/appsettings.json#L11
Run https://github.com/maliming/PortalApi-main/tree/master/src/PortalApi.DbMigrator
Run https://github.com/maliming/PortalApi-main/tree/master/src/PortalApi.HttpApi.Host
Check the https://localhost:44374/api/permission-management/permissions?providerName=R&providerKey=admin

You can create a SQL server and Redis if you have a Docker.

These are my test db and redis.

docker run -d --name sql_server -e 'ACCEPT_EULA=Y' -e 'SA_PASSWORD=1q2w3E***' -p 1433:1433 mcr.microsoft.com/azure-sql-edge

docker run -p 6379:6379 --name redis -d redis:alpine

ConnectionStrings": {
    "Default": "Server=123.windows.net,3342;Database=Portal;User Id=jb;Password=1123123;TrustServerCertificate=True;MultipleActiveResultSets=true;"
}

"Redis": {
    "Configuration": "127.0.0.1"
}
