Facing issues while customising the SIdebars with latest update of ABP Studio. #9819


User avatar
0
abpdevPro created

We are following this articles to customise the sidebars - https://abp.io/docs/latest/framework/ui/angular/component-replacement?_redirected=B8ABF606AA1BDF5C629883DF1061649A#how-to-replace-a-layout https://github.com/abpio/abp-commercial-docs/blob/dev/en/themes/lepton-x/how-to-use-lepton-x-components-with-angular-custom-layout.md

Initially we used to do it in our previous projects and it was working completely fine. We were using app.module.ts (Traditional Module-Based Configuration).

With ABP studio new update - we were using app.config.ts (Standalone API-Based Configuration)

we are following the appraoch that we used to follow and the imports

import { LpxSideMenuLayoutModule } from '@volosoft/ngx-lepton-x/layouts'; import { LpxResponsiveModule } from '@volo/ngx-lepton-x.core';// optional. Only, if you are using lpxResponsive directive

these imports I am doing in app.config.ts ,

We are able to see the Customised Sidebars in the UI, but none of the leptonX components are visible in the UI.

like <lpx-navbar></lpx-navbar>, <lpx-footer></lpx-footer> and all.


13 Answer(s)
  • User Avatar
    0
    AI-Bot created
    Support Team ABP Agent

    To use LeptonX components (like <lpx-navbar>, <lpx-footer>, etc.) in a custom layout with the new ABP Studio standalone API-based configuration (app.config.ts), you must ensure that the LeptonX modules are properly registered in the providers array, since standalone configuration does not use NgModules in the traditional way.

    Here's how you can resolve the issue:

    1. Instead of importing LeptonX modules in app.config.ts as you would in app.module.ts, you need to add them to the providers array using the provide* functions exported by those modules.

    2. For LeptonX, use the provideLpxSideMenuLayout() and provideLpxResponsive() (if needed) functions.

    Example for app.config.ts:

    import { ApplicationConfig } from '@angular/core';
    import { provideLpxSideMenuLayout } from '@volosoft/ngx-lepton-x/layouts';
    import { provideLpxResponsive } from '@volosoft/ngx-lepton-x.core'; // optional

    export const appConfig: ApplicationConfig = {
      providers: [
        // ...other providers
        provideLpxSideMenuLayout(),
        provideLpxResponsive(), // only if you use lpxResponsive directive
      ]
    };

    1. Remove any direct module imports (like LpxSideMenuLayoutModule) from app.config.ts, as they are not compatible with standalone API-based configuration.

    2. Ensure your custom layout component is declared as a standalone component and imports the necessary LeptonX components in its imports array.

    Example:

    import { Component } from '@angular/core';
    import { LpxNavbarComponent, LpxFooterComponent } from '@volosoft/ngx-lepton-x/components';

    @Component({
      selector: 'app-custom-layout',
      standalone: true,
      imports: [LpxNavbarComponent, LpxFooterComponent /*, ...other LeptonX components*/],
      templateUrl: './custom-layout.component.html',
    })
    export class CustomLayoutComponent {}

    1. Use the LeptonX components in your template as before:
    <lpx-navbar></lpx-navbar>
    <!-- ... -->
    <lpx-footer></lpx-footer>


    By registering the LeptonX providers and importing the components in your standalone component, the LeptonX elements will render correctly in the UI.

    Sources:

    • https://abp.io/docs/latest/framework/ui/angular/component-replacement?_redirected=B8ABF606AA1BDF5C629883DF1061649A#how-to-replace-a-layout
    • https://github.com/abpio/abp-commercial-docs/blob/dev/en/themes/lepton-x/how-to-use-lepton-x-components-with-angular-custom-layout.md

    This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  • User Avatar
    0
    abpdevPro created

    with this response of AI,

    import { LpxNavbarComponent, LpxFooterComponent } from '@volosoft/ngx-lepton-x/components';

    we dont have @volosoft/ngx-lepton-x/components

    and unable to find this too import { provideLpxResponsive } from '@volosoft/ngx-lepton-x.core'; // optional

    Please help me in this.

  • User Avatar
    0
    abpdevPro created

    [AI-Bot] said: To use LeptonX components (like <lpx-navbar>, <lpx-footer>, etc.) in a custom layout with the new ABP Studio standalone API-based configuration (app.config.ts), you must ensure that the LeptonX modules are properly registered in the providers array, since standalone configuration does not use NgModules in the traditional way.

    Here's how you can resolve the issue:

    1. Instead of importing LeptonX modules in app.config.ts as you would in app.module.ts, you need to add them to the providers array using the provide* functions exported by those modules.

    2. For LeptonX, use the provideLpxSideMenuLayout() and provideLpxResponsive() (if needed) functions.

    Example for app.config.ts:

    import { ApplicationConfig } from '@angular/core';
    import { provideLpxSideMenuLayout } from '@volosoft/ngx-lepton-x/layouts';
    import { provideLpxResponsive } from '@volosoft/ngx-lepton-x.core'; // optional

    export const appConfig: ApplicationConfig = {
      providers: [
        // ...other providers
        provideLpxSideMenuLayout(),
        provideLpxResponsive(), // only if you use lpxResponsive directive
      ]
    };

    1. Remove any direct module imports (like LpxSideMenuLayoutModule) from app.config.ts, as they are not compatible with standalone API-based configuration.

    2. Ensure your custom layout component is declared as a standalone component and imports the necessary LeptonX components in its imports array.

    Example:

    import { Component } from '@angular/core';
    import { LpxNavbarComponent, LpxFooterComponent } from '@volosoft/ngx-lepton-x/components';

    @Component({
      selector: 'app-custom-layout',
      standalone: true,
      imports: [LpxNavbarComponent, LpxFooterComponent /*, ...other LeptonX components*/],
      templateUrl: './custom-layout.component.html',
    })
    export class CustomLayoutComponent {}

    1. Use the LeptonX components in your template as before:
    <lpx-navbar></lpx-navbar>
    <!-- ... -->
    <lpx-footer></lpx-footer>


    By registering the LeptonX providers and importing the components in your standalone component, the LeptonX elements will render correctly in the UI.

    Sources:

    • https://abp.io/docs/latest/framework/ui/angular/component-replacement?_redirected=B8ABF606AA1BDF5C629883DF1061649A#how-to-replace-a-layout
    • https://github.com/abpio/abp-commercial-docs/blob/dev/en/themes/lepton-x/how-to-use-lepton-x-components-with-angular-custom-layout.md

    This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

    with this response of AI,

    import { LpxNavbarComponent, LpxFooterComponent } from '@volosoft/ngx-lepton-x/components';

    we dont have @volosoft/ngx-lepton-x/components

    and unable to find this too import { provideLpxResponsive } from '@volosoft/ngx-lepton-x.core'; // optional

    Please help me in this.

  • User Avatar
    0
    abpdevPro created

    Can we get an quick response on this thread.

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Hello,

    You can refer to this up-to-date documentation for custom layout usage for lepton-x components: https://abp.io/docs/latest/ui-themes/lepton-x/how-to-use-lepton-x-components-with-angular-custom-layout

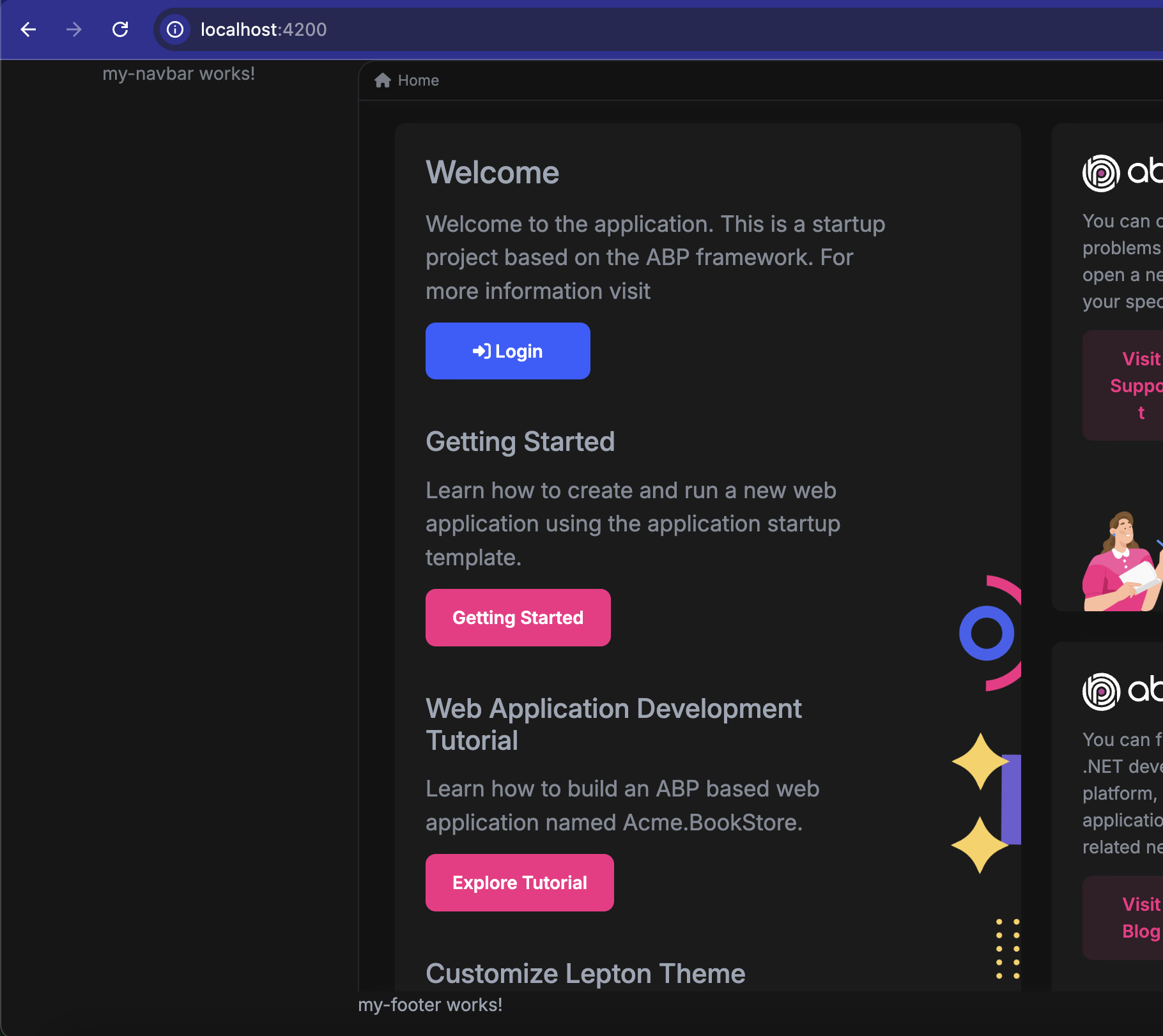

    Other than that I can replace the navbar and footer using this technique as it was the same in the previous versions:

    export class AppComponent {
      replacableComponent = inject(ReplaceableComponentsService);

      constructor() {
        this.replacableComponent.add({
          key: eThemeLeptonXComponents.Navbar,
          component: MyNavbar,
        });
        this.replacableComponent.add({
          key: eThemeLeptonXComponents.Footer,
          component: MyFooter,
        });
      }
    }


    If you think that your problem is something else, I can assist you further.

  • User Avatar
    0
    abpdevPro created

    You can refer to this up-to-date documentation for custom layout usage for lepton-x components: https://abp.io/docs/latest/ui-themes/lepton-x/how-to-use-lepton-x-components-with-angular-custom-layout

    I followed the article and made the imports according to that, but still it's not working,

    I mean unable to see the lpx components in the UI like lpx-navbar, lpx-settings.

    Can we do one approach, will provide my code snippets how I am implementing the Customisations of the sidebar and you can better tell us how to fix this.

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Sure, that would be the best if you could provide a minimal example through my e-mail address: sumeyye.kurtulus@volosoft.com.

  • User Avatar
    0
    abpdevPro created

    Following the latest doucmentation, I am able to resolve the issue, now my leptonX components are working fine,

    But i am encountering an issue with this,

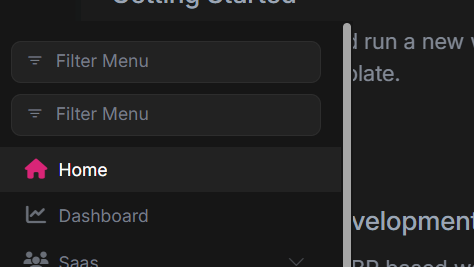

    we are getting two filter menus, which we don't want.

    Can you guide me how to solve this issue.

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Hello again, I am glad that your problems are almost resolved. Could you clarify that you do not duplicate the theme providers in your app.config.ts?

    //...
    providers: [
      provideThemeLeptonX(),
      provideSideMenuLayout(),
      //You need to remove these if you have them
      //importProvidersFrom([
        //ThemeLeptonxModule.forRoot(),
        //SideMenuLayoutModule.forRoot()
      //])
    ]
    //...

  • User Avatar
    0
    abpdevPro created

    [sumeyye.kurtulus] said: Hello again, I am glad that your problems are almost resolved. Could you clarify that you do not duplicate the theme providers in your app.config.ts?

    //...
    providers: [
      provideThemeLeptonX(),
      provideSideMenuLayout(),
      //You need to remove these if you have them
      //importProvidersFrom([
        //ThemeLeptonxModule.forRoot(),
        //SideMenuLayoutModule.forRoot()
      //])
    ]
    //...


    no this is my app.config.ts code

    import { provideAbpCore, SubscriptionService, withOptions } from '@abp/ng.core';
    import { provideAbpOAuth } from '@abp/ng.oauth';
    import { provideSettingManagementConfig } from '@abp/ng.setting-management/config';
    import { provideFeatureManagementConfig } from '@abp/ng.feature-management';
    import {
      provideAbpThemeShared,
      withValidationBluePrint,
      withHttpErrorConfig,
    } from '@abp/ng.theme.shared';
    import { provideIdentityConfig } from '@volo/abp.ng.identity/config';
    import { provideCommercialUiConfig } from '@volo/abp.commercial.ng.ui/config';
    import { provideAccountAdminConfig } from '@volo/abp.ng.account/admin/config';
    import { provideAccountPublicConfig } from '@volo/abp.ng.account/public/config';
    import { provideGdprConfig, withCookieConsentOptions } from '@volo/abp.ng.gdpr/config';
    import { provideAuditLoggingConfig } from '@volo/abp.ng.audit-logging/config';
    import { provideLanguageManagementConfig } from '@volo/abp.ng.language-management/config';
    import { registerLocale } from '@volo/abp.ng.language-management/locale';
    import { provideSaasConfig } from '@volo/abp.ng.saas/config';
    import { provideTextTemplateManagementConfig } from '@volo/abp.ng.text-template-management/config';
    import { provideOpeniddictproConfig } from '@volo/abp.ng.openiddictpro/config';
    import { HttpErrorComponent, provideThemeLeptonX } from '@volosoft/abp.ng.theme.lepton-x';
    import { provideSideMenuLayout } from '@volosoft/abp.ng.theme.lepton-x/layouts';
    import { provideLogo, withEnvironmentOptions } from '@volo/ngx-lepton-x.core';
    import { ApplicationConfig } from '@angular/core';
    import {  importProvidersFrom } from '@angular/core';
    import { provideAnimations } from '@angular/platform-browser/animations';
    import { provideRouter } from '@angular/router';
    import { environment } from '../environments/environment';
    import { APP_ROUTES } from './app.routes';
    import { APP_ROUTE_PROVIDER } from './route.provider';
    import { CODE_STANDARDS_CODE_STANDARD_ROUTE_PROVIDER } from './code-standards/code-standard/providers/code-standard-route.provider';
    import { CODE_VERSIONS_CODE_VERSION_ROUTE_PROVIDER } from './code-versions/code-version/providers/code-version-route.provider';
    import { JURISDICTIONS_JURISDICTION_ROUTE_PROVIDER } from './jurisdictions/jurisdiction/providers/jurisdiction-route.provider';
    import {
      CUSTOM_LAYOUT_PROVIDERS,
      myDynamicLayouts,
    } from './shared/layouts/custom-application-layout/custom-application-layout';


    import { CommonModule } from '@angular/common';
    import { FormsModule } from '@angular/forms';
    import { NgbModule } from '@ng-bootstrap/ng-bootstrap';
    import { ThemeSharedModule } from '@abp/ng.theme.shared';
    import { CoreModule } from '@abp/ng.core';
    import { ThemeLeptonXModule } from '@volosoft/abp.ng.theme.lepton-x';
    import { SideMenuLayoutModule } from '@volosoft/abp.ng.theme.lepton-x/layouts';
    import { AccountLayoutModule } from '@volosoft/abp.ng.theme.lepton-x/account';
    import { LpxSideMenuLayoutModule } from '@volosoft/ngx-lepton-x/layouts';
    import { LpxResponsiveModule } from '@volo/ngx-lepton-x.core';
    import { IdentityConfigModule } from '@volo/abp.ng.identity/config';
    import { AccountAdminConfigModule } from '@volo/abp.ng.account/admin/config';
    import { GdprConfigModule } from '@volo/abp.ng.gdpr/config';
    import { AuditLoggingConfigModule } from '@volo/abp.ng.audit-logging/config';

    export const appConfig: ApplicationConfig = {
      providers: [
        provideRouter(APP_ROUTES),
        APP_ROUTE_PROVIDER,
        CUSTOM_LAYOUT_PROVIDERS,

        // Import all required modules for LeptonX components
        importProvidersFrom(CommonModule),
        importProvidersFrom(FormsModule),
        importProvidersFrom(NgbModule),
        importProvidersFrom(ThemeSharedModule),
        importProvidersFrom(CoreModule),
        importProvidersFrom(ThemeLeptonXModule.forRoot()),
        importProvidersFrom(SideMenuLayoutModule.forRoot()),
        importProvidersFrom(AccountLayoutModule.forRoot()),
        importProvidersFrom(LpxSideMenuLayoutModule),
        importProvidersFrom(LpxResponsiveModule),
        importProvidersFrom(IdentityConfigModule),
        importProvidersFrom(AccountAdminConfigModule),
        importProvidersFrom(GdprConfigModule),
        importProvidersFrom(AuditLoggingConfigModule),

        provideAnimations(),


        provideAbpCore(
          withOptions({
            dynamicLayouts: myDynamicLayouts, // Essential for dynamic layout switching
            environment,
            registerLocaleFn: registerLocale(),
          })
        ),

        provideAbpOAuth(),
        provideIdentityConfig(),
        provideSettingManagementConfig(),
        provideFeatureManagementConfig(),
        provideAccountAdminConfig(),
        provideAccountPublicConfig(),
        provideCommercialUiConfig(),
        provideThemeLeptonX(),
        provideSideMenuLayout(),
        provideAbpThemeShared(
          withHttpErrorConfig({
            errorScreen: {
              component: HttpErrorComponent,
              forWhichErrors: [401, 403, 404, 500],
              hideCloseIcon: true,
            },
          }),
          withValidationBluePrint({
            wrongPassword: 'Please choose 1q2w3E*',
          })
        ),
        provideGdprConfig(
          withCookieConsentOptions({
            cookiePolicyUrl: '/gdpr-cookie-consent/cookie',
            privacyPolicyUrl: '/gdpr-cookie-consent/privacy',
          })
        ),
        provideLanguageManagementConfig(),
        provideSaasConfig(),
        provideAuditLoggingConfig(),
        provideOpeniddictproConfig(),
        provideTextTemplateManagementConfig(),
        CODE_STANDARDS_CODE_STANDARD_ROUTE_PROVIDER,
        CODE_VERSIONS_CODE_VERSION_ROUTE_PROVIDER,
        JURISDICTIONS_JURISDICTION_ROUTE_PROVIDER,
        SubscriptionService
      ],
    };


  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Could you try again after removing one of these providers

    // You can keep this
        provideThemeLeptonX(),
        provideSideMenuLayout(),

        // You can remove those
        importProvidersFrom(ThemeLeptonXModule.forRoot()),
        importProvidersFrom(SideMenuLayoutModule.forRoot()),

  • User Avatar
    0
    abpdevPro created

    Hi Thanks, we are done, Need one advice :

    How to implement this in our custom layout component.

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    You can follow this documentation in order to manage the custom layout structure https://abp.io/docs/latest/framework/ui/angular/component-replacement#how-to-replace-a-layout

Boost Your Development
ABP Live Training
Packages
See Trainings
Mastering ABP Framework Book
The Official Guide
Mastering
ABP Framework
Learn More
Mastering ABP Framework Book
Made with ❤️ on ABP v10.0.0-preview. Updated on September 01, 2025, 08:37
