Email Confirmation and Reset Password links (from email) redirects to page with 404 after applying changes suggested in ticket #9843 #9938

4 Answer(s)

•

  0

  AI-Bot created 10 hours ago

  Support Team ABP Agent

  To resolve the 404 error for email confirmation and password reset links in your multi-tenant ABP microservice solution, you must ensure that:

  1. The URLs generated for email confirmation and password reset are tenant-aware and use the correct subdomain (e.g., auth.{tenant}.cloverleafcms.dev).
  2. The AuthServer is configured to resolve the tenant from the subdomain and not from the host-only domain (e.g., authserver.cloverleafcms.dev).

  Key Points and Solution

  1. Environment Variable Configuration

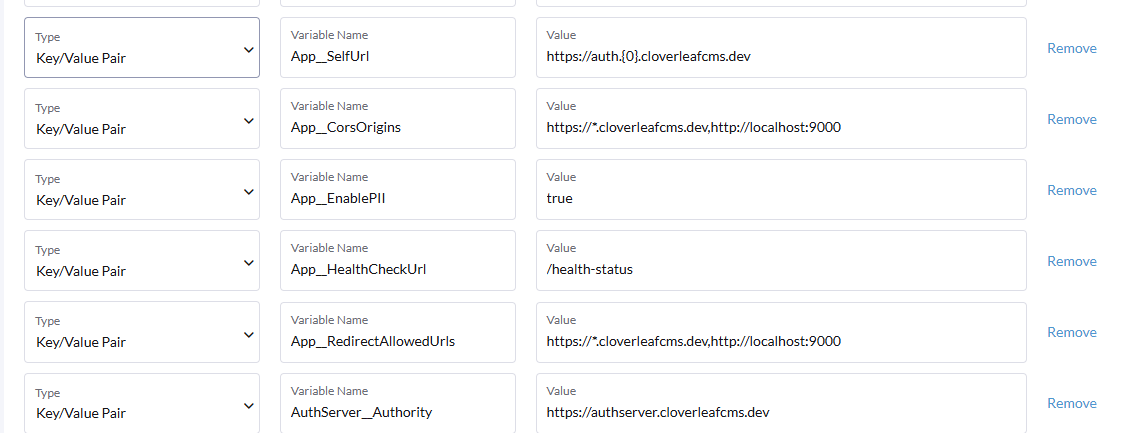

  • Your current environment variables show:

    • App__SelfUrl = https://auth.{0}.cloverleafcms.dev
    • AuthServer__Authority = https://authserver.cloverleafcms.dev

    The AuthServer__Authority should also use the {0} placeholder for tenant resolution:

  AuthServer__Authority = https://auth.{0}.cloverleafcms.dev


  This allows the system to generate tenant-specific URLs.

  2. Tenant Resolver

  • Ensure your tenant resolver is correctly extracting the tenant from the subdomain (e.g., cooptrustcu from auth.cooptrustcu.cloverleafcms.dev).
  • The resolver should not return null for the prefix if the subdomain is present.

  3. URL Generation for Emails

  • When generating email confirmation and reset password links, use the tenant-specific URL format.
  • The ABP framework uses the App:SelfUrl and AuthServer:Authority settings to generate these links. Both must be tenant-aware.

  4. Kubernetes and AppSettings

  • In your Kubernetes deployment, set both App__SelfUrl and AuthServer__Authority to use the {0} placeholder.
  • Example:

  "App": {
      "SelfUrl": "https://auth.{0}.cloverleafcms.dev"
    },
    "AuthServer": {
      "Authority": "https://auth.{0}.cloverleafcms.dev"
    }


  5. ABP Multi-Tenant Domain Resolving

  • Follow the official ABP documentation for multi-tenant domain resolving in microservice solutions:

    • https://abp.io/docs/latest/guides/ms-multi-tenant-domain-resolving

  • Ensure your configuration matches the documented approach, especially for subdomain-based tenant resolution.

  6. Restart and Test

  • After updating the environment variables and configuration, restart your AuthServer and related services.
  • Register a new user and confirm that the email confirmation link uses the correct tenant subdomain.
  • The link should look like:

  https://auth.cooptrustcu.cloverleafcms.dev/Account/EmailConfirmation?userId=...


  • The tenant resolver should now correctly resolve the tenant, and the user should be found in the correct context.

  ---

  Summary:
  Update your AuthServer__Authority to use the {0} placeholder for tenant subdomains, ensure your tenant resolver is subdomain-aware, and verify your email link generation uses tenant-specific URLs. Follow the ABP multi-tenant domain resolving guide for full details.

  Sources (validated):

  • https://abp.io/docs/latest/guides/ms-multi-tenant-domain-resolving

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  fordz created 9 hours ago

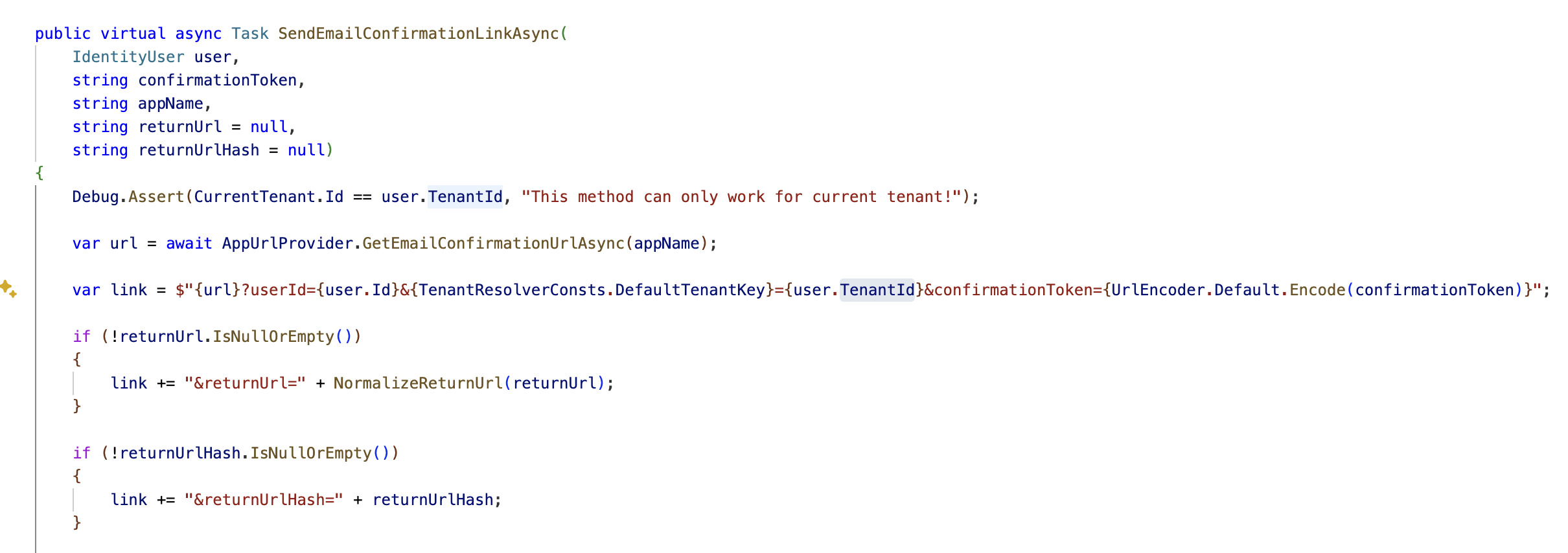

  Here is the generated email confirmation link. It does look like suggested in Step 6 above. https://auth.cooptrustcu.cloverleafcms.dev/Account/EmailConfirmation?userId=7c35ab2c-1f30-b33f-1b3a-3a1c93671327&__tenant=7a5bc172-edda-3f19-78f6-3a1c7aa58661&confirmationToken=CfDJ8JgaA0MlWwBBhj6j207cixmu5y42jSy4ry8ycfDDBf%2BCXXc5yitosQCqt4qxGl1LuArwH0ucsbBbkxMfm1HwybHVP5NvjKRFg2Fl%2BbKwOd8HD7iMGufmXfRvDTvYLEzzRximE00AEz5WL5qCWsrru2b0e92EYxkW0IqkMItTuQSV7tTJpV136o3SOkfeZmY10Su731vOVAUkEFdLohNw58W7mEmLtZxf4Q%2Bc29yAmOciNHIj7nNuAGKmxnT3Y5wfxQ%3D%3D&returnUrl=%2fconnect%2fauthorize%3fclient_id%3dCloverleafCMS%26redirect_uri%3dhttps%253A%252F%252Fcooptrustcu.cloverleafcms.dev%252Fsignin-oidc%26response_type%3dcode%26scope%3daddress%2520email%2520phone%2520profile%2520roles%2520ActionItemService%2520AdministrationService%2520AIService%2520AuditLoggingService%2520AuthServer%2520ClientService%2520ClientServicesQuery%2520CommunicationsTemplateService%2520ContactService%2520DocTemplateService%2520DocumentService%2520EngagementLogService%2520FinancialService%2520GdprService%2520GuardianshipService%2520HousingService%2520HudService%2520IdentityService%2520LanguageService%2520MemberConfigService%2520NoteService%2520SaasService%2520ServicesService%2520SMSService%2520StaffService%2520TokenService%2520WorkshopService%26state%3d057a9c327a884cb4b4986b97b30e279f%26code_challenge%3dq_0a68W7EJ3fcOqZi_qDBr8TdB2rqQVwsdd80-HL1ok%26code_challenge_method%3dS256%26response_mode%3dquery

  When I click on the link I get the 404 error because the httpContext host is 'authserver.cloverleafcms.dev' and not from the url which has the correct tenant.

  Save Cancel
•

  0

  fordz created 9 hours ago

  I get this error when I change the AuthServer__Authority to 'https://auth.{0}.cloverleafcms.dev'

  [16:27:50 INF] Starting CloverleafCMS.AuthServer 2025-09-25T16:27:51.304356585Z CloverleafCMS.AuthServer terminated unexpectedly! 2025-09-25T16:27:51.312983837Z Volo.Abp.AbpInitializationException: An error occurred during ConfigureServicesAsync phase of the module Volo.Abp.OpenIddict.AbpOpenIddictAspNetCoreModule, Volo.Abp.OpenIddict.AspNetCore, Version=9.2.0.0, Culture=neutral, PublicKeyToken=null. See the inner exception for details. 2025-09-25T16:27:51.313015436Z ---> System.UriFormatException: Invalid URI: The hostname could not be parsed. 2025-09-25T16:27:51.313019508Z at System.Uri.CreateThis(String uri, Boolean dontEscape, UriKind uriKind, UriCreationOptions& creationOptions) 2025-09-25T16:27:51.313023141Z at System.Uri..ctor(String uriString) 2025-09-25T16:27:51.313026845Z at CloverleafCMS.AuthServer.CloverleafCMSAuthServerModule.<>c__DisplayClass3_0.<PreConfigureOpenIddict>b__1(OpenIddictServerBuilder serverBuilder) in D:\CodeRepositories\CloverleafCMS-Microservices-Abp\apps\auth-server\CloverleafCMS.AuthServer\CloverleafCMSAuthServerModule.cs:line 253 2025-09-25T16:27:51.313031158Z at Volo.Abp.Options.PreConfigureActionList1.Configure(TOptions options) 2025-09-25T16:27:51.313034387Z at Microsoft.Extensions.DependencyInjection.ServiceCollectionPreConfigureExtensions.ExecutePreConfiguredActions[TOptions](IServiceCollection services, TOptions options) 2025-09-25T16:27:51.313037294Z at Volo.Abp.OpenIddict.AbpOpenIddictAspNetCoreModule.<>c__DisplayClass1_0.<AddOpenIddictServer>b__0(OpenIddictServerBuilder builder) 2025-09-25T16:27:51.313040180Z at Microsoft.Extensions.DependencyInjection.OpenIddictServerExtensions.AddServer(OpenIddictBuilder builder, Action1 configuration) 2025-09-25T16:27:51.313043087Z at Volo.Abp.OpenIddict.AbpOpenIddictAspNetCoreModule.AddOpenIddictServer(IServiceCollection services) 2025-09-25T16:27:51.313045733Z at Volo.Abp.OpenIddict.AbpOpenIddictAspNetCoreModule.ConfigureServices(ServiceConfigurationContext context) 2025-09 -25T16:27:51.313048583Z at Volo.Abp.Modularity.AbpModule.ConfigureServicesAsync(ServiceConfigurationContext context) 2025-09-25T16:27:51.313051602Z at Volo.Abp.AbpApplicationBase.ConfigureServicesAsync() 2025-09-25T16:27:51.313054693Z --- End of inner exception stack trace --- 2025-09-25T16:27:51.313057457Z at Volo.Abp.AbpApplicationBase.ConfigureServicesAsync() 2025-09-25T16:27:51.313059913Z at Volo.Abp.AbpApplicationFactory.CreateAsync[TStartupModule](IServiceCollection services, Action1 optionsAction) 2025-09-25T16:27:51.313062722Z at Microsoft.Extensions.DependencyInjection.ServiceCollectionApplicationExtensions.AddApplicationAsync[TStartupModule](IServiceCollection services, Action1 optionsAction) 2025-09-25T16:27:51.313065556Z at Microsoft.Extensions.DependencyInjection.WebApplicationBuilderExtensions.AddApplicationAsync[TStartupModule](WebApplicationBuilder builder, Action1 optionsAction) at CloverleafCMS.AuthServer.Program.Main(String[] args) in D:\CodeRepositories\CloverleafCMS-Microservices-Abp\apps\auth-server\CloverleafCMS.AuthServer\Program.cs:line 58 2025-09-25T16:27:51.313136379Z at Volo.Abp.AbpApplicationBase.ConfigureServicesAsync() 2025-09-25T16:27:51.313141099Z at Volo.Abp.AbpApplicationFactory.CreateAsync[TStartupModule](IServiceCollection services, Action1 optionsAction) 2025-09-25T16:27:51.313145918Z at Microsoft.Extensions.DependencyInjection.ServiceCollectionApplicationExtensions.AddApplicationAsync[TStartupModule](IServiceCollection services, Action1 optionsAction) 2025-09-25T16:27:51.313148621Z at Microsoft.Extensions.DependencyInjection.WebApplicationBuilderExtensions.AddApplicationAsync[TStartupModule](WebApplicationBuilder builder, Action1 optionsAction) 2025-09-25T16:27:51.313151609Z at CloverleafCMS.AuthServer.Program.Main(String[] args) in D:\CodeRepositories\CloverleafCMS-Microservices-Abp\apps\auth-server\CloverleafCMS.AuthServer\Program.cs:line 58

  I realize the {0} in the uri make it not a FQDN and that is the error - not parsing. So how do I get the correct tenant from the Email Confirmation link?

  Save Cancel
•

  0

  fordz created 3 hours ago

  Found this line of code in our AuthServer service. It was added to try to fix the issue with the the 'discovery document' not returning as https. see #9849 https://abp.io/support/questions/9849/Error-retrieving-discovery-document-Endpoint-does-not-use-HTTPS-httpauthservermydomaindevconnectauthorize

  // Force HTTPS scheme for AKS/ingress scenarios - must be early in pipeline
  if (!env.IsDevelopment())
  {
      app.Use((httpContext, next) =>
      {
          httpContext.Request.Scheme = "https";
          // Set the host to the authority from configuration, removing the scheme if present
              httpContext.Request.Host = new      HostString(configuration["AuthServer:Authority"]!.Replace("https://", "").Replace("http://", ""));
          return next();
      });
  }


  Added this line of code to NOT overwrite the url when the HttpContext.Request is not coming from the 'authserver.domain.dev'.

  // Force HTTPS scheme for AKS/ingress scenarios - must be early in pipeline
  if (!env.IsDevelopment())
  {
      app.Use((httpContext, next) =>
      {
          httpContext.Request.Scheme = "https";
          if (httpContext.Request.Host.HasValue && httpContext.Request.Host.Value.Contains("authserver"))
          {
              // Set the host to the authority from configuration, removing the scheme if present
              httpContext.Request.Host = new HostString(configuration["AuthServer:Authority"]!.Replace("https://", "").Replace("http://", ""));
          }
          return next();
      });
  }


  This seems to have fixed the case where we are doing the EmailConfirmation and PasswordReset links that have the 'tenant' as part of the uri. I need to test now to see if I can still get a token via our token service as in #9849.
