How to host multiple sites on single Azure web app for Containers using docker compose #9968

0

AI-Bot created 21 days ago

Support Team ABP Agent

To host multiple ABP applications (Web Public, Blazor Admin, API, AuthServer) on a single Azure App Service using Web App for Containers with Docker Compose, and expose them under different paths on the same domain, you need to use a reverse proxy container (such as Nginx or Traefik) as the entry point. This proxy will route requests to the correct internal service based on the URL path.

Step-by-Step Solution

Prepare Docker Images for Each App
- Build/publish Docker images for each ABP application: Web Public, Blazor Admin, API, and AuthServer.
- Push these images to a container registry (e.g., Azure Container Registry or Docker Hub).
Create a Reverse Proxy Configuration
- Use Nginx (or Traefik) as a reverse proxy to route traffic based on the URL path.
- Example Nginx configuration (nginx.conf):

server {
         listen 80;
         server_name www.example.com;

         location / {
             proxy_pass http://webpublic:80;
         }
         location /admin/ {
             proxy_pass http://blazoradmin:80/;
             rewrite ^/admin(/.*)$ $1 break;
         }
         location /api/ {
             proxy_pass http://api:80/;
             rewrite ^/api(/.*)$ $1 break;
         }
         location /auth/ {
             proxy_pass http://authserver:80/;
             rewrite ^/auth(/.*)$ $1 break;
         }
     }

This configuration assumes your internal Docker services are named webpublic, blazoradmin, api, and authserver.

Create a docker-compose.yml File
- Example:

version: '3.8'
     services:
       nginx:
         image: nginx:latest
         ports:
           - "80:80"
         volumes:
           - ./nginx.conf:/etc/nginx/conf.d/default.conf:ro
         depends_on:
           - webpublic
           - blazoradmin
           - api
           - authserver

       webpublic:
         image: <your-registry>/webpublic:latest
         environment:
           # Set environment variables as needed
         # ...

       blazoradmin:
         image: <your-registry>/blazoradmin:latest
         environment:
           # ...
         # ...

       api:
         image: <your-registry>/api:latest
         environment:
           # ...
         # ...

       authserver:
         image: <your-registry>/authserver:latest
         environment:
           # ...
         # ...

Deploy to Azure App Service for Containers
- Zip your docker-compose.yml and nginx.conf and deploy to your Azure App Service configured for multi-container (Docker Compose) deployment.
- Ensure your App Service is set to use Linux and supports Docker Compose.
HTTPS Configuration
- Azure App Service provides a built-in SSL certificate for your domain. All traffic will go through the Nginx container, which will receive HTTPS traffic from Azure's front end and forward it to your internal services over HTTP.
ABP Application Configuration
- Set the App:SelfUrl and other relevant URLs in each app to match the public paths (e.g., https://www.example.com/admin for Blazor Admin).
- Update CORS and redirect URIs to match the new paths.

Notes

All endpoints will share the same domain and SSL certificate.
Path-based routing is handled by the reverse proxy.
You do not need multiple App Services or subdomains.

Example Reference

Official ABP Docker Compose deployment guide:
- https://abp.io/docs/latest/solution-templates/layered-web-application/deployment/deployment-docker-compose

This approach is fully supported and aligns with ABP and Azure best practices for containerized multi-app hosting.

Sources:

https://abp.io/docs/latest/solution-templates/layered-web-application/deployment/deployment-docker-compose

This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

0

devchase321 created 21 days ago

I have tried these steps but I am still unable to resolve the problem. Please advise.

0

maliming created 21 days ago

Support Team Fullstack Developer

hi

Which step did you encounter a problem with?

What is the problem?

Thanks.

0

devchase321 created 21 days ago

[maliming] said: hi

Which step did you encounter a problem with?

What is the problem?

Thanks.

Hi

I have followed the ABP documentation for Docker Compose deployment: https://abp.io/docs/latest/solution-templates/layered-web-application/deployment/deployment-docker-compose?UI=Blazor&DB=EF&Tiered=Yes I have successfully deployed a single application to an Azure App Service for Containers. I want to deploy multiple applications in a single Azure App Service using Docker Compose. Could you please guide me on how to host multiple applications in a single azure App Service using docker compose?

0

maliming created 21 days ago

Support Team Fullstack Developer

hi

Using Nginx as a reverse proxy is the simplest solution. You can try following the steps mentioned above. If you encounter any issues, please feel free to let us know.

Thanks.

https://abp.io/support/questions/9968/How-to-host-multiple-sites-on-single-Azure-web-app-for-Containers-using-docker-compose#answer-3a1ccad4-7745-6f9b-77aa-160e3807f6e6

0

devchase321 created 21 days ago

[maliming] said: hi

Using Nginx as a reverse proxy is the simplest solution. You can try following the steps mentioned above. If you encounter any issues, please feel free to let us know.

Thanks.

https://abp.io/support/questions/9968/How-to-host-multiple-sites-on-single-Azure-web-app-for-Containers-using-docker-compose#answer-3a1ccad4-7745-6f9b-77aa-160e3807f6e6

Hi I am using sperate app service for each application, but I am getting below error :

36307Z RabbitMQ.Client.Exceptions.BrokerUnreachableException: None of the specified endpoints were reachable 2025-10-06T18:48:49.9236339Z ---> System.AggregateException: One or more errors occurred. (Connection failed, host 127.0.0.1:5672) 2025-10-06T18:48:49.9236367Z ---> RabbitMQ.Client.Exceptions.ConnectFailureException: Connection failed, host 127.0.0.1:5672 2025-10-06T18:48:49.9236392Z ---> System.Net.Sockets.SocketException (111): Connection refused 2025-10-06T18:48:49.9236459Z at System.Net.Sockets.Socket.AwaitableSocketAsyncEventArgs.System.Threading.Tasks.Sources.IValueTaskSource.GetResult(Int16 token) 2025-10-06T18:48:49.9236490Z at System.Net.Sockets.Socket.<ConnectAsync>g__WaitForConnectWithCancellation|285_0(AwaitableSocketAsyncEventArgs saea, ValueTask connectTask, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236521Z at RabbitMQ.Client.Impl.SocketFactory.ConnectUsingAddressFamilyAsync(IPEndPoint endpoint, Func2 socketFactory, AddressFamily family, TimeSpan connectionTimeout, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236545Z --- End of inner exception stack trace --- 2025-10-06T18:48:49.9236575Z at RabbitMQ.Client.Impl.SocketFactory.ConnectUsingAddressFamilyAsync(IPEndPoint endpoint, Func2 socketFactory, AddressFamily family, TimeSpan connectionTimeout, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236605Z at RabbitMQ.Client.Impl.SocketFactory.OpenAsync(AmqpTcpEndpoint amqpTcpEndpoint, Func2 socketFactory, TimeSpan connectionTimeout, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236633Z at RabbitMQ.Client.Impl.SocketFrameHandler.CreateAsync(AmqpTcpEndpoint amqpTcpEndpoint, Func2 socketFactory, TimeSpan connectionTimeout, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236665Z at RabbitMQ.Client.ConnectionFactory.CreateFrameHandlerAsync(AmqpTcpEndpoint endpoint, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236697Z at RabbitMQ.Client.EndpointResolverExtensions.SelectOneAsync[T](IEndpointResolver resolver, Func3 selector, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236733Z --- End of inner exception stack trace --- 2025-10-06T18:48:49.9236761Z at RabbitMQ.Client.EndpointResolverExtensions.SelectOneAsync[T](IEndpointResolver resolver, Func3 selector, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236790Z at RabbitMQ.Client.ConnectionFactory.CreateConnectionAsync(IEndpointResolver endpointResolver, String clientProvidedName, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236814Z --- End of inner exception stack trace --- 2025-10-06T18:48:49.9236842Z at RabbitMQ.Client.ConnectionFactory.CreateConnectionAsync(IEndpointResolver endpointResolver, String clientProvidedName, CancellationToken cancellationToken) 2025-10-06T18:48:49.9236869Z at Volo.Abp.RabbitMQ.ConnectionPool.GetConnectionAsync(String connectionName, ConnectionFactory connectionFactory) 2025-10-06T18:48:49.9236893Z at Volo.Abp.RabbitMQ.ConnectionPool.GetAsync(String connectionName) 2025-10-06T18:48:49.9236917Z at Volo.Abp.RabbitMQ.RabbitMqMessageConsumer.TryCreateChannelAsync()

Thanks

0

maliming created 21 days ago

Support Team Fullstack Developer

hi

Have you added the RabbitMQ service to your Docker file?

Thanks.

0

devchase321 created 20 days ago

[maliming] said: hi

Have you added the RabbitMQ service to your Docker file?

Thanks.

Hi No. Can you please provide details to add RabbitMQ service? When I click on the login button in the Blazor application, it redirects to the same URL instead of navigating to the authentication (Auth) URL. Thanks.

0

maliming created 20 days ago

Support Team Fullstack Developer

hi

services:
  rabbitmq:
    container_name: rabbitmq
    image: rabbitmq:3.12.7-management-alpine
    ports:
      - "15672:15672"
      - "5672:5672"

0

maliming created 20 days ago

Support Team Fullstack Developer

hi

Can you try to use a subdomain instead of a sub-app?

https://www.example.com → Web Public

https://admin.example.com/ → Blazor Admin

https://api.example.com/ → API

https://auth.example.com/ → AuthServer

0

devchase321 created 20 days ago

[maliming] said: Can you try to use a subdomain instead of a sub-app?

I have created separate Azure App Services (for containers) for each application.

0

maliming created 20 days ago

Support Team Fullstack Developer

ok, using a subdomain for each app will be fine.

Thanks.

0

devchase321 created 19 days ago

[maliming] said: hi

Can you try to use a subdomain instead of a sub-app?

https://www.example.com → Web Public

https://admin.example.com/ → Blazor Admin

https://api.example.com/ → API

https://auth.example.com/ → AuthServer

Hi

When I click on the login button in the Blazor application, it redirects to the same URL instead of navigating to the authentication (Auth) URL.

I have added subdomain but it is not working. Thanks.

0

maliming created 19 days ago

Support Team Fullstack Developer

hi

it redirects to the same URL instead of navigating to the authentication (Auth) URL.

What is the current redirect URL?

https://admin.example.com/Account/Login ?

Thanks.

0

devchase321 created 19 days ago

[maliming] said: hi

it redirects to the same URL instead of navigating to the authentication (Auth) URL.

What is the current redirect URL?

https://admin.example.com/Account/Login ?

Thanks.

Hi

This is the current redirect URL: https://admin.example.com/Account/Login same for public application https://example.com/Account/Login

Thanks

0

maliming created 19 days ago

Support Team Fullstack Developer

hi

Can you share your public and Blazor module C# files to liming.ma@volosoft.com?

Thanks.

0

devchase321 created 19 days ago

[maliming] said: hi

Can you share your public and Blazor module C# files to liming.ma@volosoft.com?

Thanks.

Hi I have sent the files to the email.

0

maliming created 19 days ago

Support Team Fullstack Developer

hi

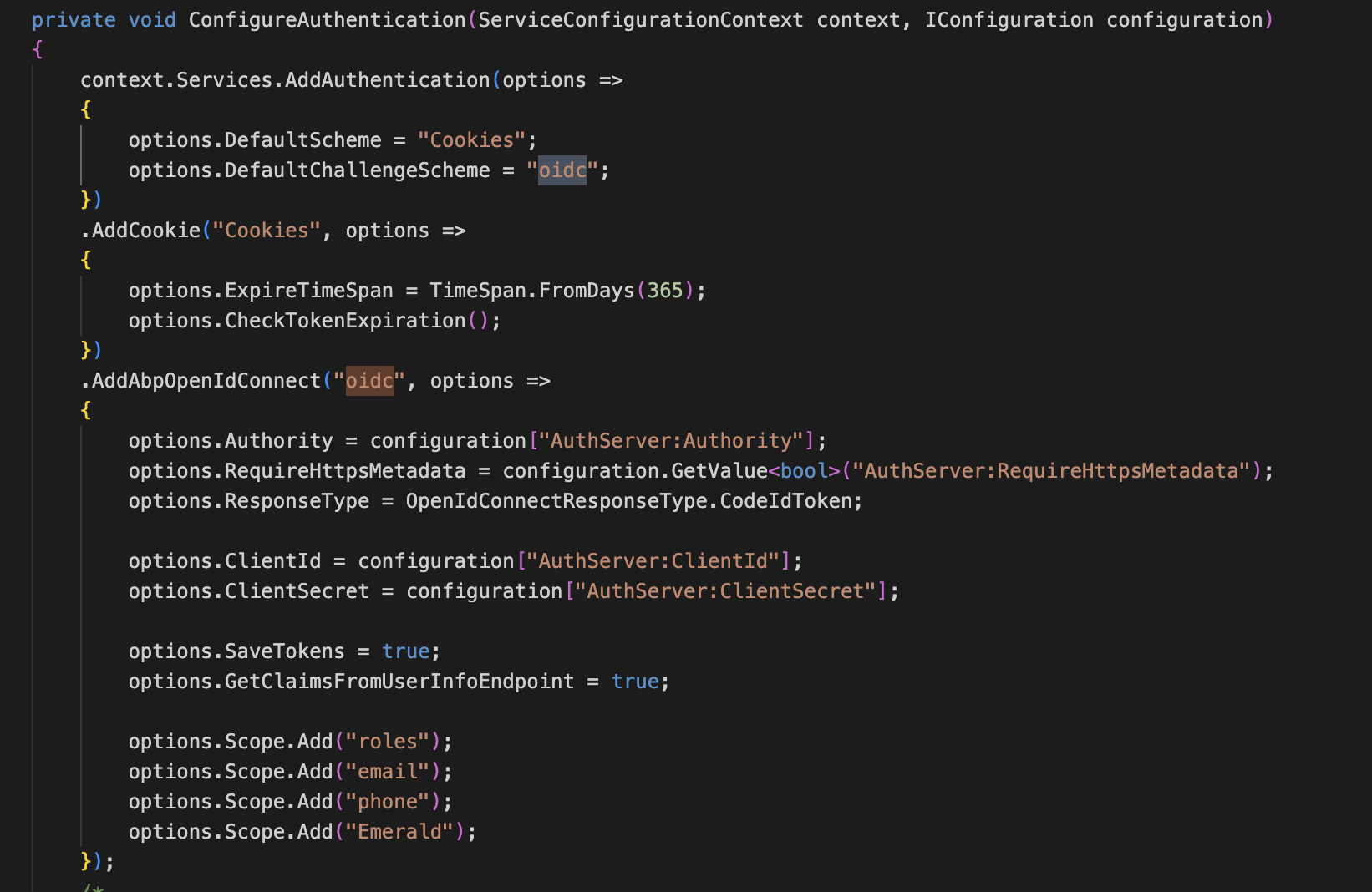

Both Blazor and PublicWeb are using oidc as the default challenge scheme.

When you click login, it will redirect to https://admin.example.com/Account/Login and then redirec to authserver website login page.

0

devchase321 created 19 days ago

[maliming] said: hi

Both Blazor and PublicWeb are using oidc as the default challenge scheme.

When you click login, it will redirect to https://admin.example.com/Account/Login and then redirec to authserver website login page.

Hi

But right now it's not working? Can you please provide solution?

thanks

0

maliming created 19 days ago

Support Team Fullstack Developer

Can you share a GIF?

Thanks.

0

devchase321 created 19 days ago

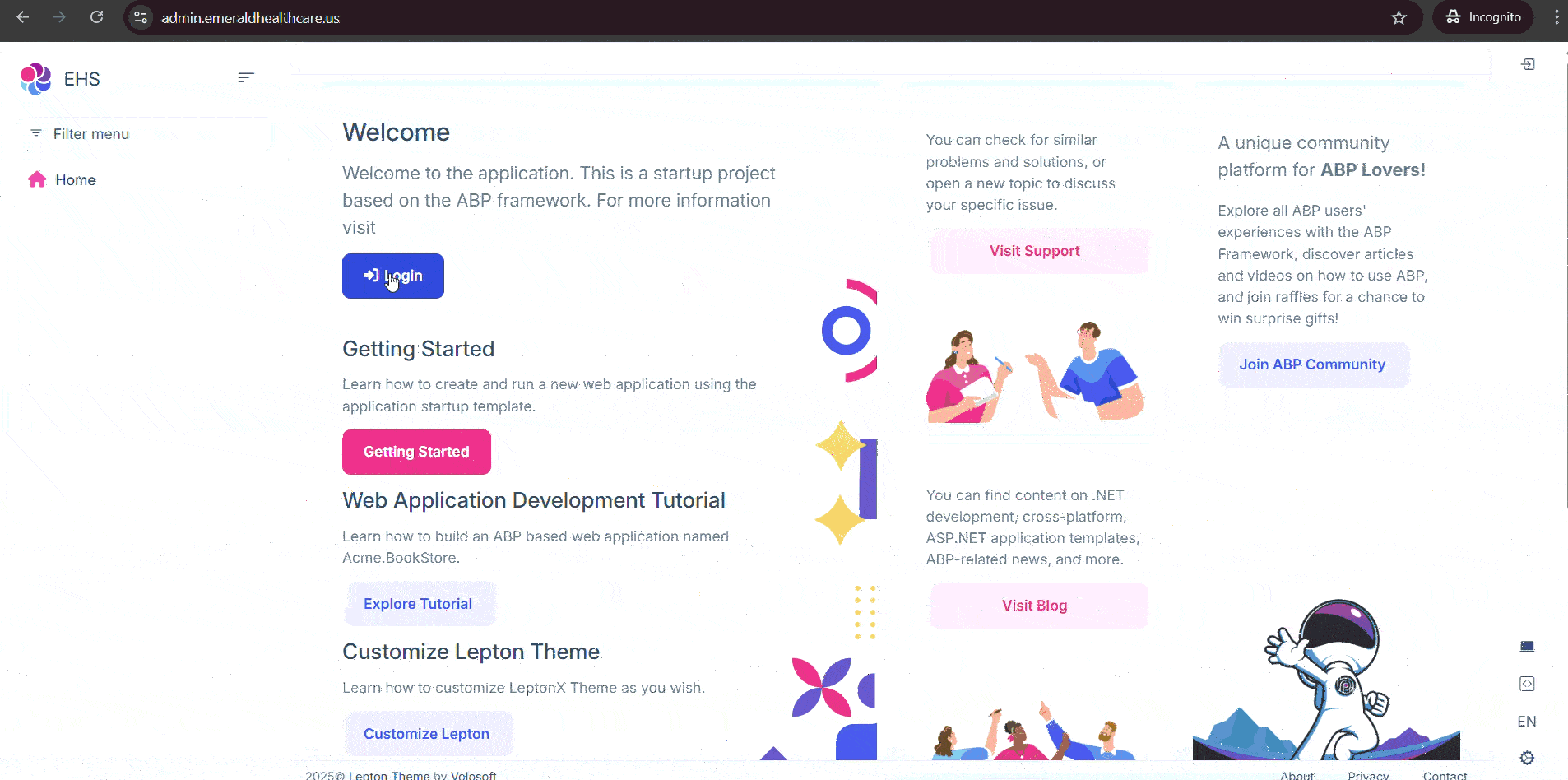

[maliming] said: Can you share a GIF?

Thanks.

Hi

thanks

0

maliming created 19 days ago

Support Team Fullstack Developer

hi

There is an exception during login.

Can you share the logs.txt of admin website?

liming.ma@volosoft.com

Thanks

0

devchase321 created 19 days ago

[maliming] said: hi

There is an exception during login.

Can you share the logs.txt of admin website?

liming.ma@volosoft.com

Thanks

I have sent it

0

maliming created 19 days ago

Support Team Fullstack Developer

hi

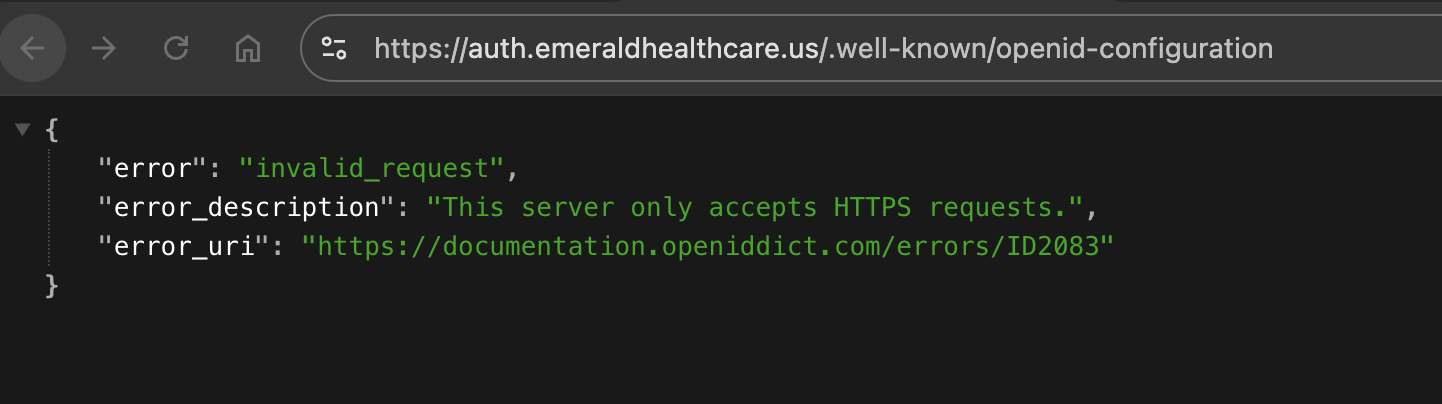

Your auth returns an error.

Does it have such code in the auth website startup module?

app.Use(async (ctx, next) =>
{
    ctx.Request.Scheme = "https";
    await next();
});

Thanks.

0

devchase321 created 19 days ago

[maliming] said: hi

Your auth returns an error.

Does it have such code in the auth website startup module?
app.Use(async (ctx, next) =>
{
    ctx.Request.Scheme = "https";
    await next();
});
Thanks.

No, I have not added any such code in the auth website's startup module.
