Blazor Web App (Interactive Auto): Authentication lost after WebAssembly transition in production with nginx reverse proxy #10125

5 Answer(s)

•

  0

  AI-Bot created yesterday

  Support Team ABP Agent

  1. Solution

  • Root cause

    • In Interactive Auto, the initial request is SSR (server-side) and then the WebAssembly sub-app takes over. When running behind a reverse proxy, the WebAssembly sub-app must also be able to authenticate requests. If cookie, token, or origin settings aren’t aligned for the WebAssembly sub-app, the hydration step loses the authenticated state and you appear logged out on client-side navigation.

  • Mandatory checks and fixes

    1. Forwarded headers and cookie security behind nginx

       • Keep UseForwardedHeaders early in the pipeline in production (before auth and endpoints).
       • Ensure nginx forwards X-Forwarded-Proto and you use CookieSecurePolicy.Always and SameSite=Lax (or Strict only if you do not do cross-site redirects). Interactive flows usually need Lax.
       • Your configuration snippet for forwarded headers is correct; just ensure:
         • app.UseForwardedHeaders() is before app.UseAuthentication(), app.UseAuthorization(), app.UseAntiforgery(), endpoints.
         • nginx’s proxy_set_header Host $host; and X-Forwarded-* are set (as you showed).

    2. Data Protection key ring must be shared across every server that issues or reads cookies

       • You’ve already configured Redis for data protection. Verify all app instances (Blazor host, API, auth server if it emits cookies) read/write the same key ring and use the same application name and purpose strings for data protection. If any instance uses a different key ring or app name, the cookie can’t be decrypted by the WebAssembly sub-app’s endpoints it calls during hydration.

    3. SameSite for all OIDC correlation/nonce and auth cookies

       • Ensure OpenIdConnect correlation/nonce cookies and your primary auth cookie align with your global cookie policy:
         • SameSite=Lax
         • Secure=Always
         • HttpOnly=true
       • Mismatched SameSite here causes the client-side OIDC callbacks or cookie roundtrips to fail specifically in production behind a proxy.

    4. WebAssembly sub-app authentication for Blazor Web App

       • The WebAssembly side must be configured to authenticate against the same authority/base URLs as the server-side, and it must be able to send cookies to the server endpoints it calls after hydration.
       • In ABP Blazor Web App, do:
         • In the WebAssembly client module ConfigureAuthentication, ensure the standard ABP client setup is added (AddBlazorWebAppServices is fine) and that the appsettings for the client include:
           • AuthServer.Authority and RemoteServices.Default.BaseUrl pointing to the externally reachable HTTPS origin that the browser sees (the nginx public host), not the internal container hostname.
         • Important: If origin changes between SSR and WASM (e.g., SSR sees internal http://backend:8080 but client sees https://example.com), cookies may not roundtrip as expected. All URLs used by the client must be the public origin.

    5. CORS and RedirectAllowedUrls

       • In your Auth Server/OpenIddict and API configuration, include RedirectAllowedUrls/CorsOrigins that match the exact public origin of the Blazor app through nginx (scheme + host + port). For InteractiveAuto with WebAssembly sub-app, the same public origin must be whitelisted for redirects and CORS on any endpoints the WASM side calls.
       • If the WebAssembly sub-app serves under the same host, use same-site cookies and do not enable cross-site scenarios unless needed.

    6. Cookie path and domain

       • Ensure the auth cookie Domain and Path are compatible with the URLs used after hydration. Typically:
         • Do not set a custom Domain unless you need a parent domain. Let it default to the request host so it’s valid for both SSR and WASM navigations.
         • Path should be “/”.

    7. WebSocket support (for Server interop and signalr features used during SSR/interactive server)

       • Behind some hosting/proxies, missing WebSocket upgrade can cause odd interaction failures. Ensure nginx allows WebSocket upgrades if you rely on Interactive Server during the transition.

    8. Place app.UseBlazorFrameworkFiles (if hosting WASM assets) before app.UseStaticFiles when applicable

       • If you host the WASM assets in the same server app, ensure app.UseBlazorFrameworkFiles(); then app.UseStaticFiles(); and correct public base path so the browser fetches the correct boot resources under the public origin.

    9. Do not rely on AddAuthenticationStateSerialization to fix this

       • That extension is not a requirement for ABP’s OpenIdConnect + cookie setup in Interactive Auto and will not solve lost auth across SSR-to-WASM. The issue is typically misaligned origins/cookies/forwarded headers.

  • Concrete checklist you can apply now

    • Move app.UseForwardedHeaders(); immediately after app.UseCorrelationId() and before authentication:
      • app.UseForwardedHeaders();
      • app.UseAbpRequestLocalization();
      • app.UseStaticFiles();
      • app.UseRouting();
      • app.UseAuthentication();
      • app.UseAuthorization();
      • endpoints...
    • Verify nginx:
      • proxy_set_header X-Forwarded-Proto $scheme;
      • proxy_set_header X-Forwarded-Host $host;
      • proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      • proxy_set_header Host $host;
      • For WebSockets, include upgrade headers if you need interactive server:
        • proxy_set_header Upgrade $http_upgrade;
        • proxy_set_header Connection $connection_upgrade;
    • Ensure AuthServer.Authority, RemoteServices.Default.BaseUrl, and SelfUrl in Blazor client point to the public https origin (the same value in DbMigrator/seed RedirectAllowedUrls and CorsOrigins).
    • Confirm cookie settings in production:
      • options.Cookie.SameSite = SameSiteMode.Lax;
      • options.Cookie.SecurePolicy = CookieSecurePolicy.Always;
      • options.Cookie.HttpOnly = true;
      • Do not set Cookie.Domain manually unless you truly need it across subdomains.
    • Ensure Redis Data Protection configuration is identical for all apps that read/write the auth cookie (same key ring and application name).
    • If you offload TLS at nginx, do NOT terminate to http internally without forwarded headers; ASP.NET Core must see the original scheme via X-Forwarded-Proto so it marks cookies as secure and builds correct redirect URIs.

  • Answers to your specific questions

    1. Additional configuration for ABP Interactive Auto in production?
       • No ABP-specific extra switch. What’s critical is correct public origin alignment, forwarded headers, shared data protection, and cookie settings as above. This is the same baseline required by ASP.NET Core + Blazor Web App behind a reverse proxy.
    2. Special authentication state provider for Docker + nginx?
       • No special provider is required. Use the default ABP setup. The problem is typically cookies/forwarded headers/origin, not the provider.
    3. Should AddAuthenticationStateSerialization() be used?
       • Not required for ABP’s OpenIdConnect + cookie. It doesn’t address this scenario.
    4. Known issues with cookie auth in Interactive Auto behind reverse proxies?
       • The common pitfalls are:
         • X-Forwarded-Proto/Host not processed early, causing wrong cookie scheme or redirect URIs.
         • Public origin mismatch between SSR host and WASM sub-app settings.
         • SameSite/Secure mismatch for OIDC correlation/nonce and primary cookies.
         • Non-shared data protection keys across scaling units.

  • Minimal code/config examples

    Server (Program/Module order hints):

  public override void OnApplicationInitialization(ApplicationInitializationContext context)
    {
        var app = context.GetApplicationBuilder();
        var env = context.GetEnvironment();

        if (!env.IsDevelopment())
        {
            app.UseForwardedHeaders(); // before auth
        }

        app.UseCorrelationId();
        app.UseStaticFiles();
        app.UseRouting();

        app.UseAuthentication();
        app.UseAuthorization();

        app.UseConfiguredEndpoints();
    }


  Cookie settings:

  services.AddAuthentication()
        .AddCookie("Cookies", options =>
        {
            options.ExpireTimeSpan = TimeSpan.FromDays(365);
            if (!env.IsDevelopment())
            {
                options.Cookie.SameSite = SameSiteMode.Lax;
                options.Cookie.SecurePolicy = CookieSecurePolicy.Always;
                options.Cookie.HttpOnly = true;
            }
        });


  nginx (add upgrade headers if needed):

  proxy_set_header X-Forwarded-For  $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Forwarded-Host  $host;
    proxy_set_header Host $host;

    # For WebSockets (interactive server features)
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $connection_upgrade;


  WebAssembly client appsettings (points to public HTTPS origin):

  {
      "App": {
        "SelfUrl": "https://your-public-host"
      },
      "AuthServer": {
        "Authority": "https://your-public-host",
        "ClientId": "Your_Blazor_Client",
        "ResponseType": "code"
      },
      "RemoteServices": {
        "Default": {
          "BaseUrl": "https://your-public-host"
        }
      }
    }


  2. Sources

  • https://abp.io/docs/latest/framework/ui/blazor/authentication
  • https://abp.io/docs/latest/framework/ui/blazor/authorization
  • https://learn.microsoft.com/aspnet/core/host-and-deploy/proxy-load-balancer?view=aspnetcore-9.0

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  merdan created yesterday

  I have checked all of this, and everything seems to be configured correctly, but still not working. You can give url of the application to the support team if needed.

  Save Cancel
•

  0

  maliming created yesterday

  Support Team Fullstack Developer

  hi

  Can you share a test URL and test user?

  liming.ma@volosoft.com Thanks

  Save Cancel
•

  0

  merdan created yesterday

  Hi @maliming! sent you an email with url and credentials.Thanks

  Save Cancel
•

  0

  maliming created yesterday

  Support Team Fullstack Developer

  hi

  Can you share full code of your XxxBlazorModule and XxxBlazorClientModule client module code and App.razor?

  liming.ma@volosoft.com

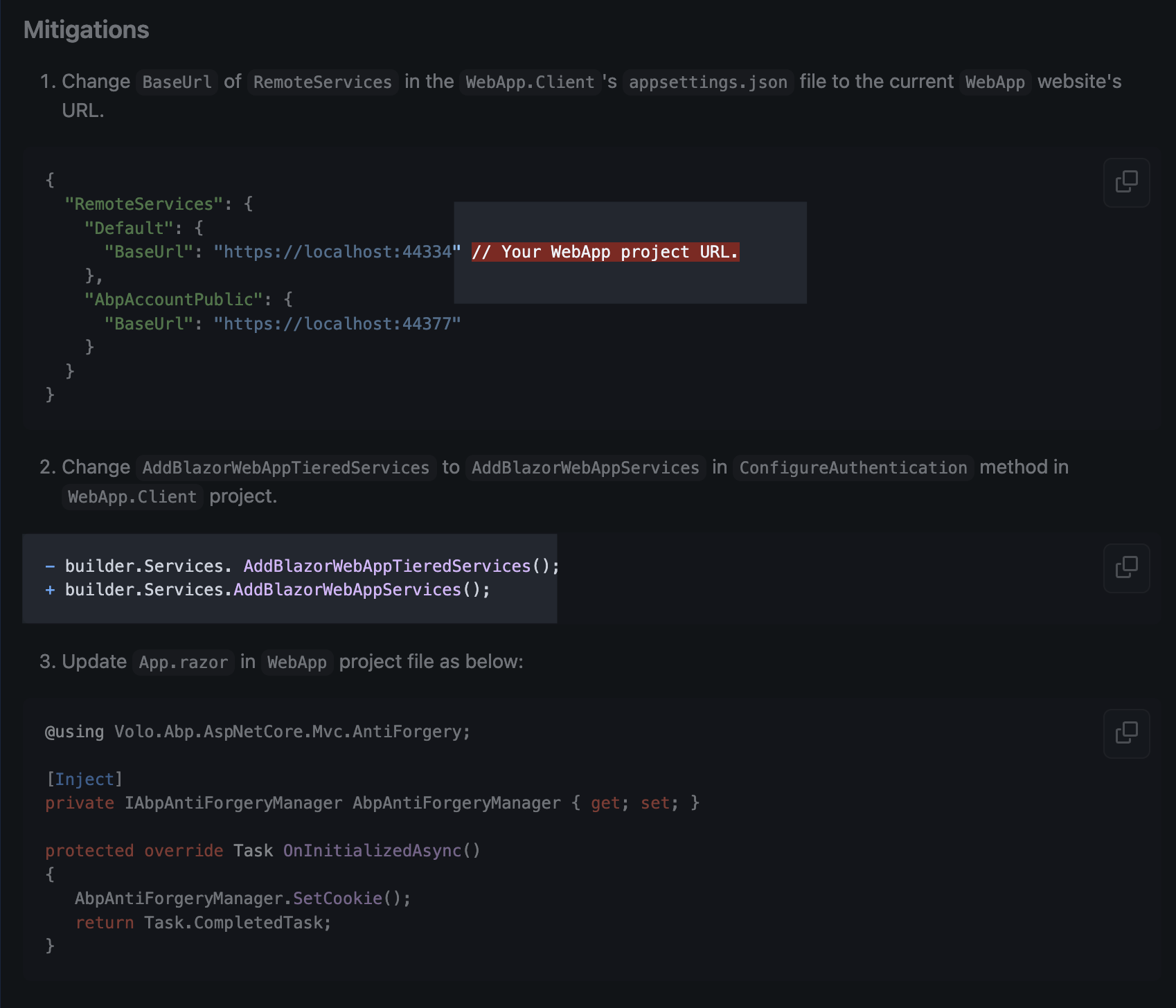

  Also, you can check this https://github.com/abpframework/abp/issues/22622



  Thanks.

  Save Cancel
