IntegrationService HttpClientProxyConfig Error #9469

8 Answer(s)

•

  0

  AI-Bot created one month ago

  Support Team ABP Agent

  • The error "Could not get HttpClientProxyConfig for ... IEmployeeIntegrationService" indicates that the client proxy for your integration service is not properly configured or registered in your consuming microservice.

  To resolve this, follow these steps:

  1. Expose Integration Services in the Provider Microservice

     • In the microservice that provides the integration service (e.g., EmployeeService), ensure you expose integration services in your module:

       public override void ConfigureServices(ServiceConfigurationContext context)
       {
           Configure<AbpAspNetCoreMvcOptions>(options =>
           {
               options.ExposeIntegrationServices = true;
           });
       }


  2. Reference the HttpApi.Client Package in the Consumer Microservice

     • In the microservice that consumes the integration service, add a reference to the HttpApi.Client project of the provider microservice.

  3. Configure the Remote Service URL

     • In the consumer microservice's appsettings.json, set the base URL for the remote service:

       "RemoteServices": {
         "AbcEmployeeService": {
           "BaseUrl": "https://localhost:PORT"
         }
       }


     • The key (AbcEmployeeService) should match the remote service name used in your proxy registration.

  4. Register the Client Proxy

     • In the consumer microservice's module, register the static client proxy for the integration service:

       context.Services.AddStaticHttpClientProxies(
           typeof(Abc.EmployeeService.Application.Contracts.EmployeeServiceApplicationContractsModule).Assembly,
           "AbcEmployeeService"
       );


  5. Use the Integration Service Interface

     • Inject and use IEmployeeIntegrationService in your consumer microservice as needed.

  6. Restart All Services

     • After making these changes, rebuild and restart both the provider and consumer microservices.

  If you follow these steps, the error should be resolved and the integration service proxy will be available for HTTP calls between your microservices.

  Sources:

  • https://abp.io/docs/latest/framework/api-development/integration-services
  • https://abp.io/docs/latest/solution-templates/microservice/http-api-calls

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  icoretchi created one month ago

  I am doing exactly like Agent suggested, with a difference that I don't reference HttpApi.Client, I generated the ClientProxies but didn't help.

  Save Cancel
•

  0

  maliming created 24 days ago

  Support Team Fullstack Developer

  hi icoretchi

  Could you please share the code and the steps you took?

  Thanks.

  Save Cancel
•

  0

  icoretchi created 24 days ago

  Hi,

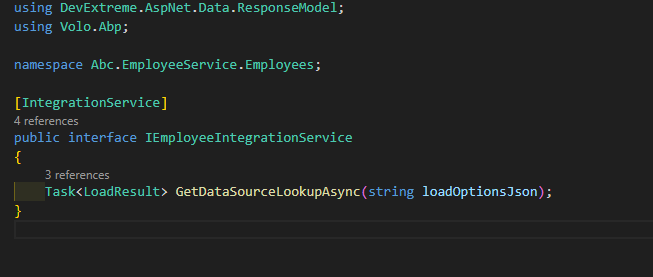

  1. Interface in provided service Abc.EmployeeService.Contracs project:
  2. Implementation in provided service Abc.EmplyeeService project
  3. Expose integration service in provided service:
  4. Reference provided integration service interface in consumer service Abc. AcquisitionService:
  5. Configured remote service url:
  6. Generated client service proxies in consumer service Abc.AcquisitionService:
  7. Registered client proxies in consumer service Abc.AcqusitionService:
  8. Using of the integration service in consumer service:

  Save Cancel
•

  0

  icoretchi created 24 days ago

  I've also added the integration controller. In general is not need it as I know, but I've implemented just in case:

  Save Cancel
•

  0

  maliming created 24 days ago

  Support Team Fullstack Developer

  hi

  Try to inherit from IApplicationService

  interface IEmployeeIntegrationService : IApplicationService




  Save Cancel
•

  0

  icoretchi created 24 days ago

  It's working. Thanks.

  Save Cancel
•

  0

  maliming created 24 days ago

  Support Team Fullstack Developer

  Great

  Save Cancel
