How to create angular ui by abp suite in microservice solution? #9718


User avatar
0
48949912 created
  • when use abp suite to create crud page, final i can't find the angular page,but we i create layed solution ,There is no such problem.
  • Steps to reproduce the issue:

16 Answer(s)
  • User Avatar
    0
    AI-Bot created
    Support Team ABP Agent
    • In ABP microservice solutions, ABP Suite does not currently support automatic Angular UI CRUD page generation as it does in layered monolithic solutions. This is a known limitation. When you use ABP Suite in a microservice solution, the generated CRUD UI pages may not appear in the Angular project, while in layered solutions, this works as expected.

    • This issue has been reported by other users and is on the ABP team's list to address. As a workaround, you can manually implement the Angular UI for your microservice entities or consider developing the CRUD pages in a layered solution and then adapting the code for your microservice architecture.

    • For more details and community discussion, see:


    This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  • User Avatar
    0
    48949912 created

    How to solve this problem?

  • User Avatar
    0
    48949912 created

    Anyone else can help me to sovle this problem?

  • User Avatar
    0
    EngincanV created
    Support Team .NET Developer

    [48949912] said: Anyone else can help me to sovle this problem?

    Hi, what's your problem exactly? ABP Suite generates CRUD pages for the Microservice Template. Actually, we even have a full Microservice Development Tutorial, which you can check at https://abp.io/docs/latest/tutorials/microservice?UI=NG&DB=EF

    Also, you may need to follow the instructions here: https://github.com/abpframework/abp/issues/20827#issuecomment-2624232973

  • User Avatar
    0
    48949912 created

    [EngincanV] said:

    [48949912] said: Anyone else can help me to sovle this problem?

    Hi, what's your problem exactly? ABP Suite generates CRUD pages for the Microservice Template. Actually, we even have a full Microservice Development Tutorial, which you can check at https://abp.io/docs/latest/tutorials/microservice?UI=NG&DB=EF

    Also, you may need to follow the instructions here: https://github.com/abpframework/abp/issues/20827#issuecomment-2624232973

    After Create Angular UI by ABP Suite, it throws this exception:

    2025-08-06 20:09:16.985 +08:00 [INF] 9/10 - AngularUiGenerateWithSchematicsCommand started... 2025-08-06 20:09:32.875 +08:00 [INF] Running the Angular Schematics command: node run-schematics.mjs "D:/Work/Program/imcsmsa/apps/angular/.suite/schematics/node_modules/.bin/ng" g ".suite/schematics/collection.json:entity" app-nolayers-pro imcsmsa.OrderingService "D:/Work/Program/imcsmsa/services/ordering/.suite/entities/Book.json" "D:/Work/Program/imcsmsa/apps/angular" 2025-08-06 20:09:39.125 +08:00 [INF] Angular Schematics command failed. D:\Work\Program\imcsmsa\apps\angular.suite\schematics\node_modules\execa\lib\error.js:60 error = new Error(message); ^

    Error: Command failed with exit code 1: .suite/schematics/node_modules/.bin/ng g .suite/schematics/collection.json:entity --template app-nolayers-pro --target imcsmsa.OrderingService --source D:/Work/Program/imcsmsa/services/ordering/.suite/entities/Book.json [Project Not Found] A project matching entity solution name or a default project does not exist in your Angular workspace. at makeError (D:\Work\Program\imcsmsa\apps\angular.suite\schematics\node_modules\execa\lib\error.js:60:11) at handlePromise (D:\Work\Program\imcsmsa\apps\angular.suite\schematics\node_modules\execa\index.js:118:26) at process.processTicksAndRejections (node:internal/process/task_queues:105:5) at async file:///D:/Work/Program/imcsmsa/apps/angular/.suite/schematics/run-schematics.mjs:6:20 { shortMessage: 'Command failed with exit code 1: .suite/schematics/node_modules/.bin/ng g .suite/schematics/collection.json:entity --template app-nolayers-pro --target imcsmsa.OrderingService --source D:/Work/Program/imcsmsa/services/ordering/.suite/entities/Book.json', command: '.suite/schematics/node_modules/.bin/ng g .suite/schematics/collection.json:entity --template app-nolayers-pro --target imcsmsa.OrderingService --source D:/Work/Program/imcsmsa/services/ordering/.suite/entities/Book.json', escapedCommand: '".suite/schematics/node_modules/.bin/ng" g ".suite/schematics/collection.json:entity" --template app-nolayers-pro --target imcsmsa.OrderingService --source "D:/Work/Program/imcsmsa/services/ordering/.suite/entities/Book.json"', exitCode: 1, signal: undefined, signalDescription: undefined, stdout: '', stderr: '\x1B[1m\x1B[31m[Project Not Found] A project matching entity solution name or a default project does not exist in your Angular workspace.\x1B[39m\x1B[22m', failed: true, timedOut: false, isCanceled: false, killed: false }

    Node.js v24.4.1

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Hello,

    I could not produce the same problem on my end. Can you share the ABP version you have used to create your application along with the suite version?

    If you prefer, you can send me a minimal reproducible example. Here is my e-mail address: sumeyye.kurtulus@volosoft.com

    Thank you for your cooperation.

  • User Avatar
    0
    48949912 created

    [sumeyye.kurtulus] said: Hello,

    I could not produce the same problem on my end. Can you share the ABP version you have used to create your application along with the suite version?

    If you prefer, you can send me a minimal reproducible example. Here is my e-mail address: sumeyye.kurtulus@volosoft.com

    Thank you for your cooperation.

    I have created two different types of solutions separately. ABP Suite Version is 9.2.3. After Create Angular UI by ABP Suite and Create same entity. The Layered Solution is succeed,but The Microservice Solution is failed.

    Layered Solution logs: 2025-08-07 11:58:36.807 +08:00 [INF] 10/11 - AngularUiGenerateWithSchematicsCommand started... 2025-08-07 11:58:36.808 +08:00 [INF] Running the Angular Schematics command: node run-schematics.mjs "E:/work/spctest/angular/.suite/schematics/node_modules/.bin/ng" g ".suite/schematics/collection.json:entity" app-pro spctest "E:/work/spctest/.suite/entities/Book.json" "E:/work/spctest/angular" 2025-08-07 11:58:38.979 +08:00 [INF] Angular Schematics command executed successfully. UPDATE src/app/books/book/providers/book-base.routes.ts (294 bytes) UPDATE src/app/books/book/components/book-detail.component.html (2408 bytes) UPDATE src/app/books/book/components/book.abstract.component.ts (1701 bytes) UPDATE src/app/books/book/components/book.component.html (8360 bytes) UPDATE src/app/books/book/services/book-detail.abstract.service.ts (1794 bytes) UPDATE src/app/books/book/services/book.abstract.service.ts (4119 bytes) UPDATE src/app/proxy/generate-proxy.json (38582 bytes) UPDATE src/app/proxy/books/book.service.ts (4106 bytes) UPDATE src/app/proxy/books/models.ts (657 bytes) UPDATE src/app/proxy/shared/models.ts (297 bytes) UPDATE src/app/proxy/books/index.ts (92 bytes) UPDATE src/app/proxy/shared/index.ts (26 bytes) UPDATE src/app/proxy/index.ts (96 bytes)

    2025-08-07 11:58:39.121 +08:00 [INF] 10/11 - AngularUiGenerateWithSchematicsCommand completed. | Duration: 2314 ms.

    Microservice Solution logs: 2025-08-07 13:46:39.784 +08:00 [INF] 9/10 - AngularUiGenerateWithSchematicsCommand started... 2025-08-07 13:46:39.786 +08:00 [INF] Running the Angular Schematics command: node run-schematics.mjs "E:/work/msatest/apps/angular/.suite/schematics/node_modules/.bin/ng" g ".suite/schematics/collection.json:entity" app-nolayers-pro msatest.OrderingService "E:/work/msatest/services/ordering/.suite/entities/Book.json" "E:/work/msatest/apps/angular" 2025-08-07 13:46:41.545 +08:00 [INF] Angular Schematics command failed. E:\work\msatest\apps\angular.suite\schematics\node_modules\execa\lib\error.js:60 error = new Error(message); ^

    Error: Command failed with exit code 1: .suite/schematics/node_modules/.bin/ng g .suite/schematics/collection.json:entity --template app-nolayers-pro --target msatest.OrderingService --source E:/work/msatest/services/ordering/.suite/entities/Book.json [Project Not Found] A project matching entity solution name or a default project does not exist in your Angular workspace. at makeError (E:\work\msatest\apps\angular.suite\schematics\node_modules\execa\lib\error.js:60:11) at handlePromise (E:\work\msatest\apps\angular.suite\schematics\node_modules\execa\index.js:118:26) at process.processTicksAndRejections (node:internal/process/task_queues:105:5) at async file:///E:/work/msatest/apps/angular/.suite/schematics/run-schematics.mjs:6:20 { shortMessage: 'Command failed with exit code 1: .suite/schematics/node_modules/.bin/ng g .suite/schematics/collection.json:entity --template app-nolayers-pro --target msatest.OrderingService --source E:/work/msatest/services/ordering/.suite/entities/Book.json', command: '.suite/schematics/node_modules/.bin/ng g .suite/schematics/collection.json:entity --template app-nolayers-pro --target msatest.OrderingService --source E:/work/msatest/services/ordering/.suite/entities/Book.json', escapedCommand: '".suite/schematics/node_modules/.bin/ng" g ".suite/schematics/collection.json:entity" --template app-nolayers-pro --target msatest.OrderingService --source "E:/work/msatest/services/ordering/.suite/entities/Book.json"', exitCode: 1, signal: undefined, signalDescription: undefined, stdout: '', stderr: '\x1B[1m\x1B[31m[Project Not Found] A project matching entity solution name or a default project does not exist in your Angular workspace.\x1B[39m\x1B[22m', failed: true, timedOut: false, isCanceled: false, killed: false }

    Node.js v24.5.0

    2025-08-07 13:46:41.553 +08:00 [INF] 9/10 - AngularUiGenerateWithSchematicsCommand completed. | Duration: 1769 ms.

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Thank you for providing extra details about your problem. However, I still cannot produce it on my end.

    Could you share a minimal reproducible example, so that I could assist you further? Here is my e-mail address: sumeyye.kurtulus@volosoft.com

  • User Avatar
    0
    48949912 created

    [sumeyye.kurtulus] said: sumeyye.kurtulus@volosoft.com

    I have share a simple example to you!, please check e-mail: sumeyye.kurtulus@volosoft.com

  • User Avatar
    0
    48949912 created

    [48949912] said:

    [sumeyye.kurtulus] said: sumeyye.kurtulus@volosoft.com

    I have share a simple example to you!, please check e-mail: sumeyye.kurtulus@volosoft.com

    Exceus me, I have send e-mail to you,but failed!

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    I see, could you try sending via google drive or any other cloud provider you prefer?

  • User Avatar
    0
    48949912 created

    [sumeyye.kurtulus] said: I see, could you try sending via google drive or any other cloud provider you prefer?

    OK, I have alreay upload example to the cloud , you can down from the link: https://limewire.com/d/fGrED#pRVxOaWo4q

    ABP Suite Version : V9.2.3 NodeJS : V24.5.0

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    Thank you for sharing a project. I have seen that the related library is missing that will correspond to the order service. I am not sure whether it failed to be generated while creating a service on studio, however you can generate the related library using this command npx ng g @abp/ng.schematics:create-lib

    The name should be ordering-service You should say No for Is secondary entrypoint?

    You can let me know if you need further assistance. Thank you for your cooperation.

  • User Avatar
    0
    48949912 created

    [sumeyye.kurtulus] said: Thank you for sharing a project. I have seen that the related library is missing that will correspond to the order service. I am not sure whether it failed to be generated while creating a service on studio, however you can generate the related library using this command npx ng g @abp/ng.schematics:create-lib

    The name should be ordering-service You should say No for Is secondary entrypoint?

    You can let me know if you need further assistance. Thank you for your cooperation.

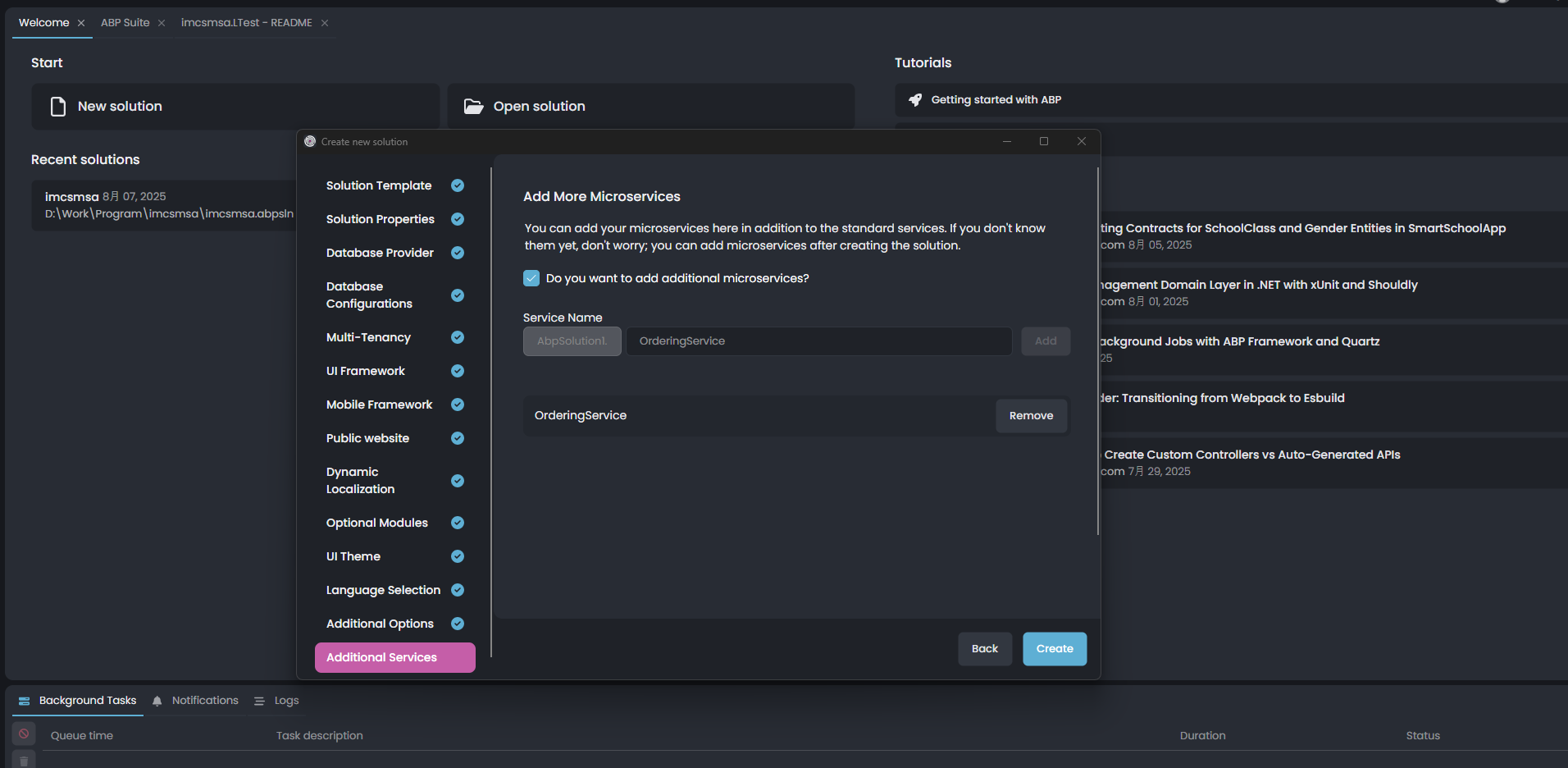

    Excuse me! I Add OrderingService when create microservice solution, not after create microservice solution.

  • User Avatar
    0
    48949912 created

    [48949912] said:

    [sumeyye.kurtulus] said: Thank you for sharing a project. I have seen that the related library is missing that will correspond to the order service. I am not sure whether it failed to be generated while creating a service on studio, however you can generate the related library using this command npx ng g @abp/ng.schematics:create-lib

    The name should be ordering-service You should say No for Is secondary entrypoint?

    You can let me know if you need further assistance. Thank you for your cooperation.

    Excuse me! I Add OrderingService when create microservice solution, not after create microservice solution.

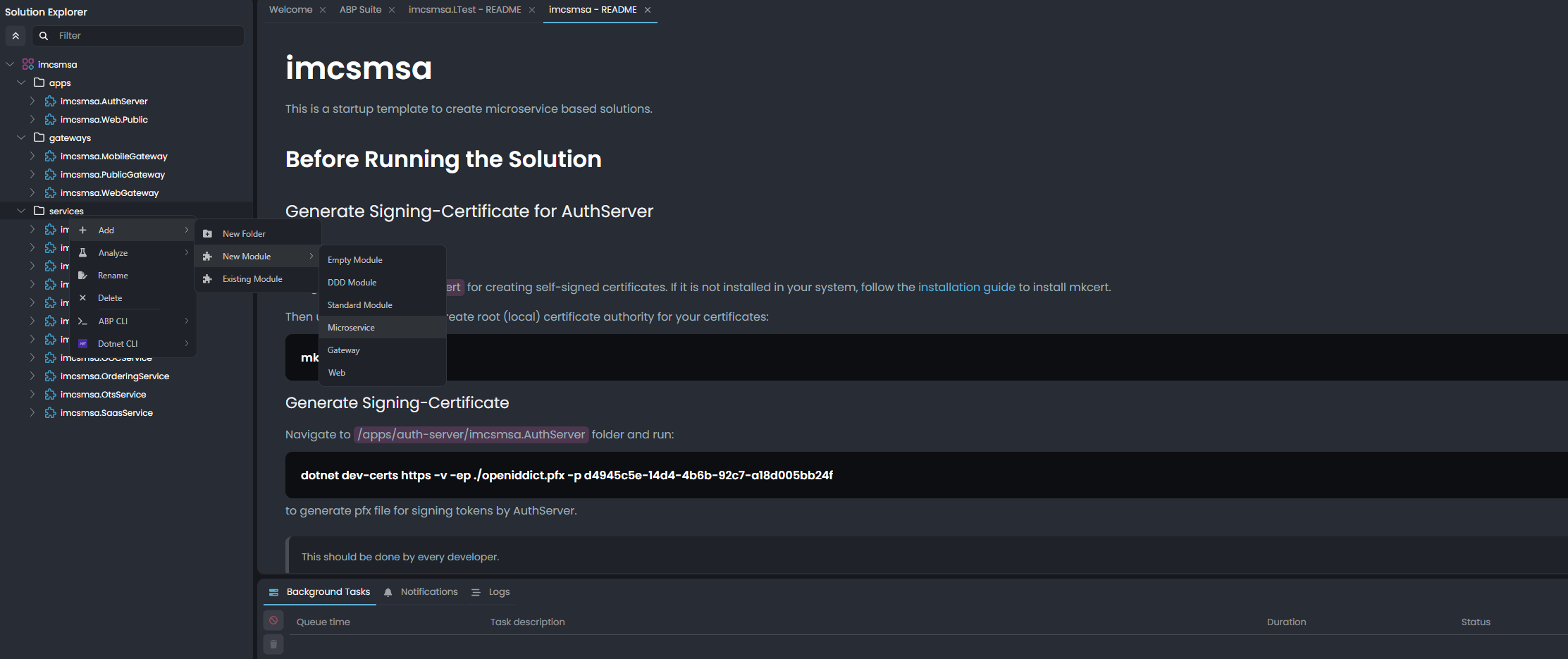

    Excuse me! I found that when I finished create microservice solution ,and then add a custom microservice. after add a custom microservice,then to create angular UI,It‘s succeed. what's the reason?

  • User Avatar
    0
    sumeyye.kurtulus created
    Support Team Angular Expert

    I have investigated the reason. However, I cannot produce the same problem on the latest studio version that is 1.1.2.

    I suspect that create-lib command would have failed somehow. You could try on this studio version. You can also check your studio ui logs that is under ~/.abp/studio/ui or %UserProfile%\.abp\studio\ui depending on your operating system
