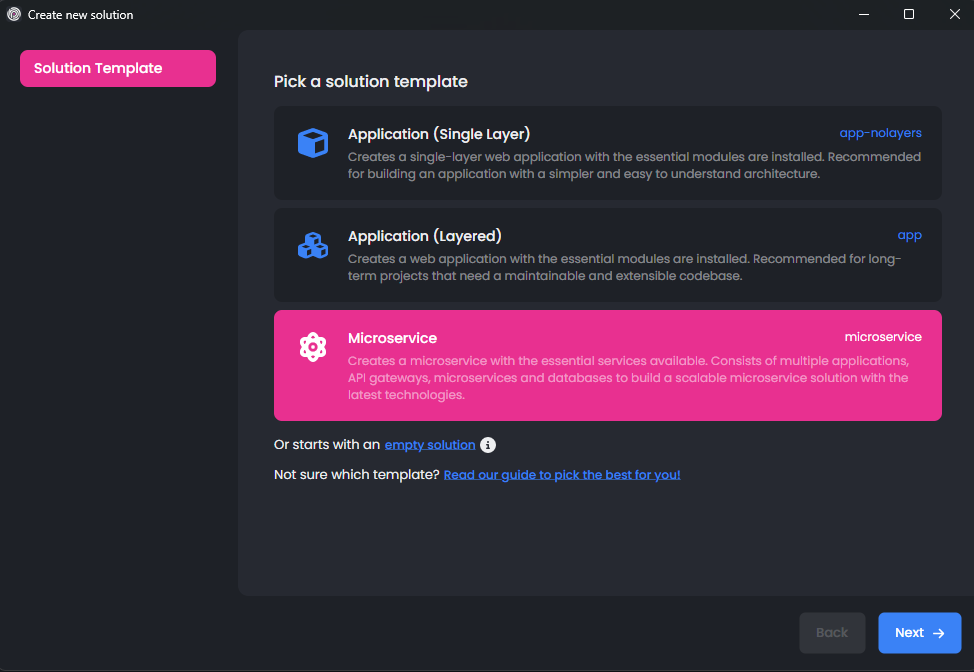

- Template: microservice
- Created ABP Studio Version: 1.3.2
- Current ABP Studio Version: 1.3.2

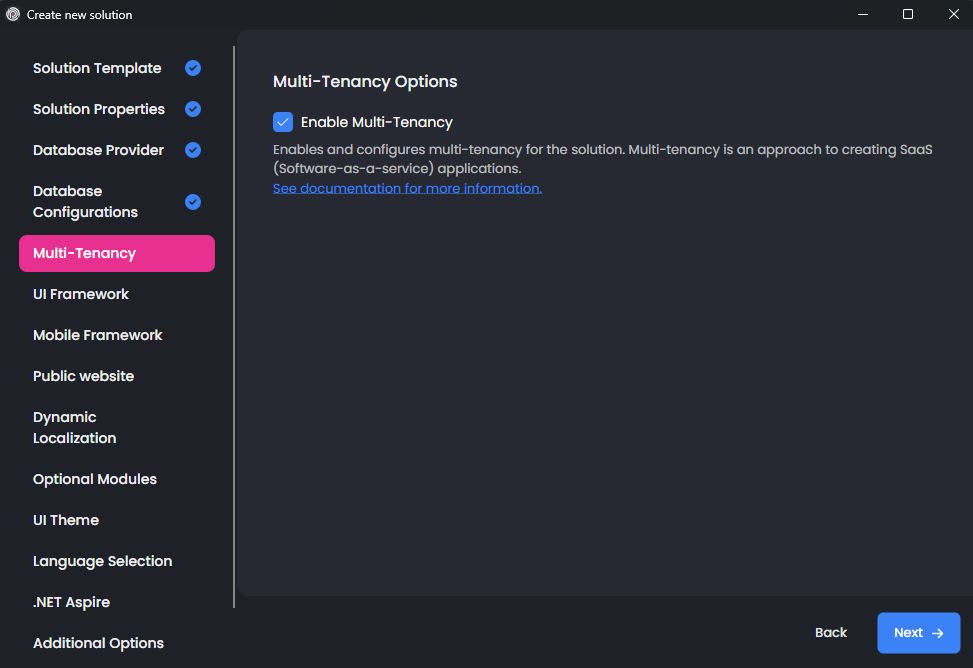

- Multi-Tenancy: Yes

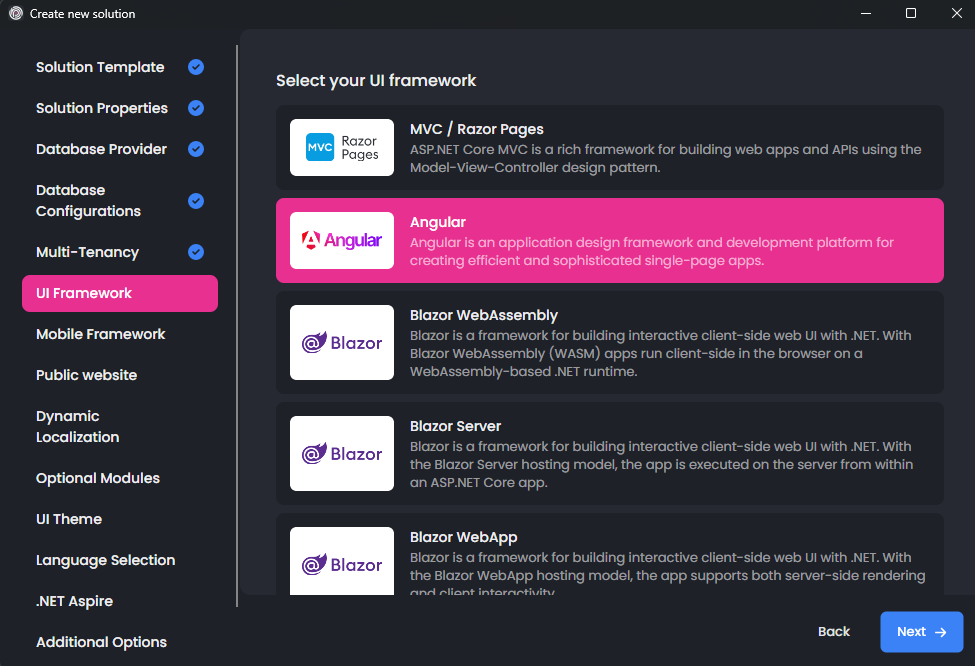

- UI Framework: angular
- Theme: leptonx
- Theme Style: system
- Theme Menu Placement: side
- Run Install Libs: Yes

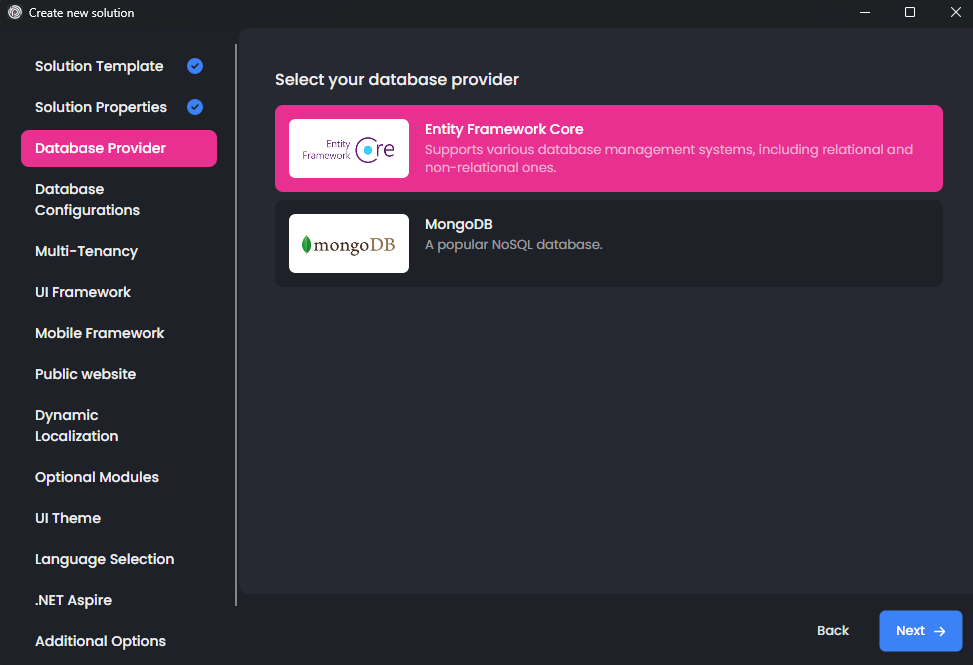

- Database Provider: ef

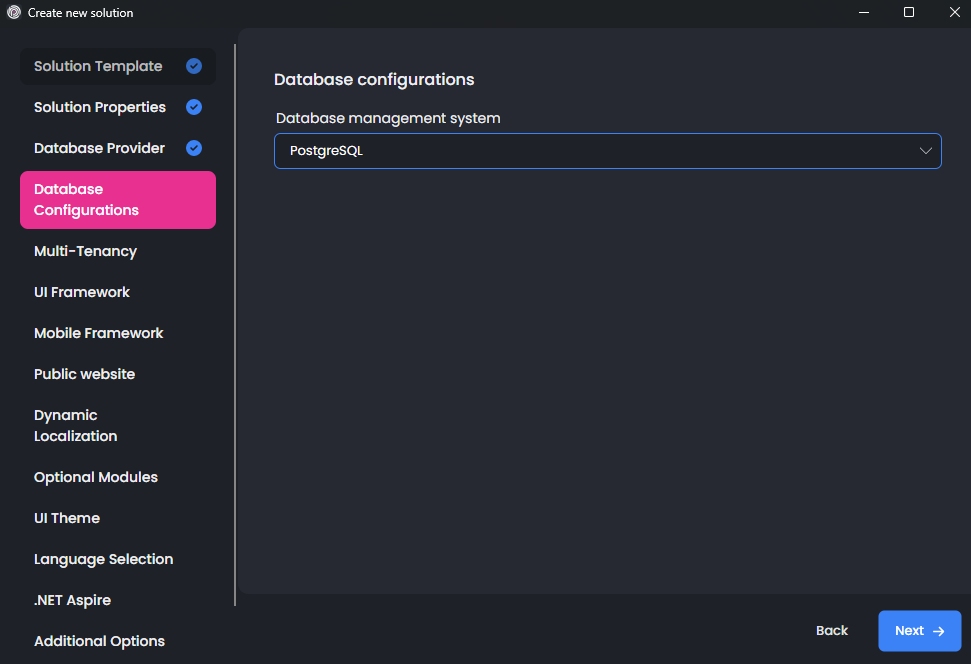

- Database Management System: postgresql
- Mobile Framework: react-native

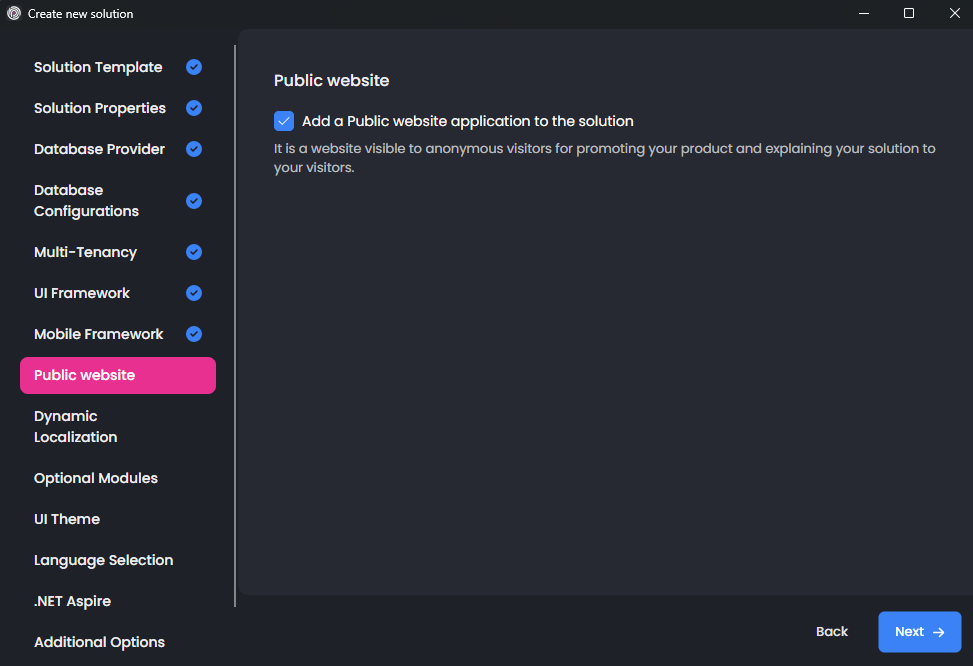

- Public Website: Yes
- Social Login: Yes
- Include Tests: Yes
- Dynamic Localization: Yes

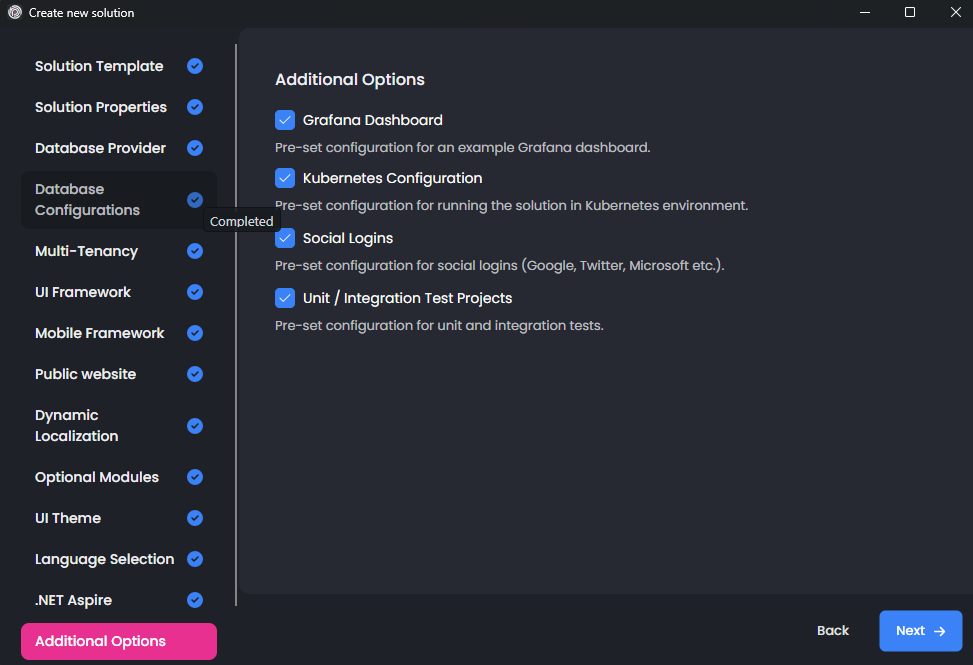

- Kubernetes Configuration: Yes
- Grafana Dashboard: Yes
- Use Local References: No
- Aspire: No

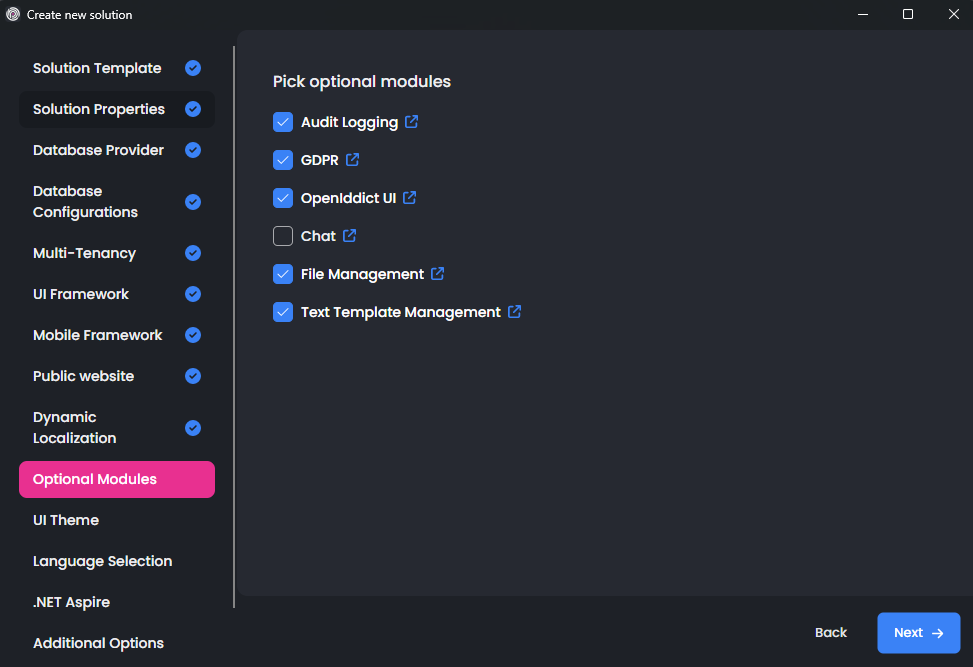

- Optional Modules:
- GDPR
- FileManagement
- TextTemplateManagement
- AuditLogging
- OpenIddictAdmin

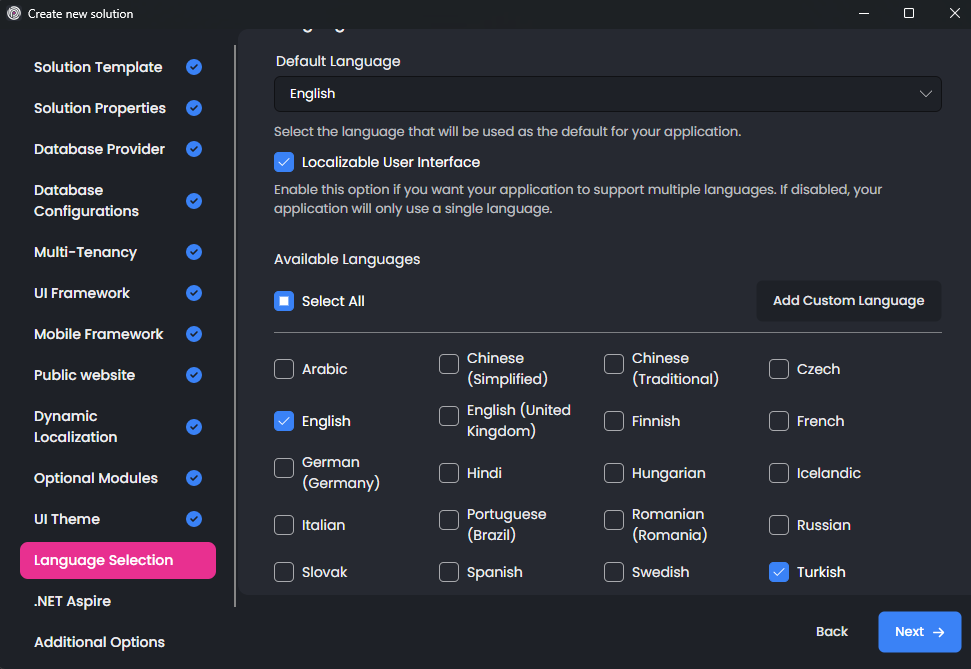

- Selected Languages: English, Turkish
- Default Language: English
- Create Command: abp new AbpSolution1 -t microservice --ui-framework angular --mobile react-native --database-provider ef --database-management-system postgresql --theme leptonx --skip-migrator --public-website --without-cms-kit --dont-run-bundling -no-language-management -file-management
Hello

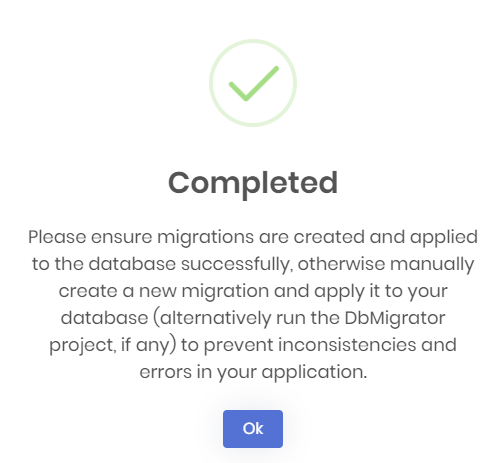

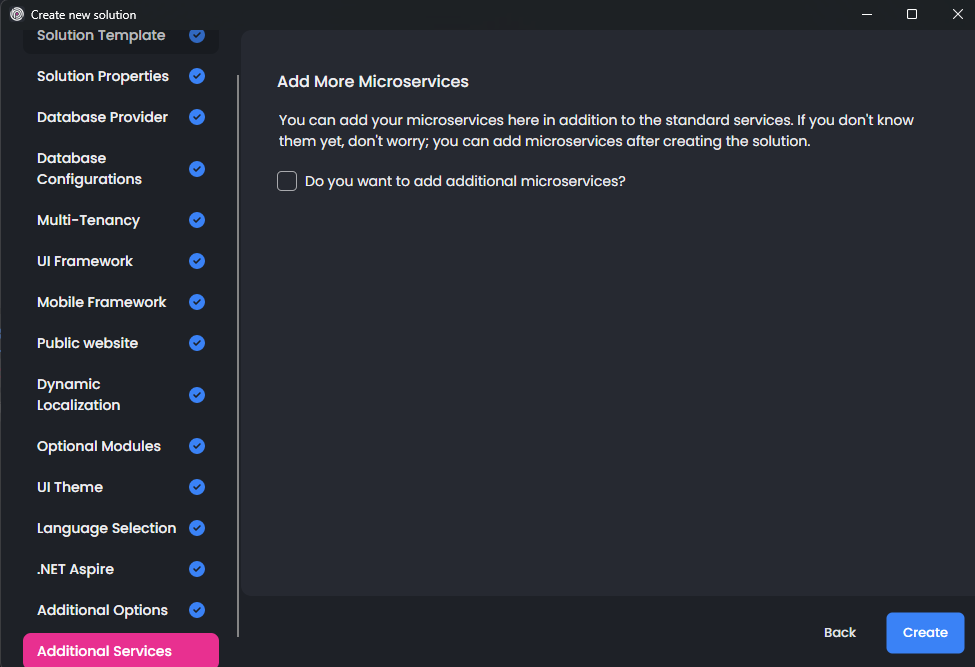

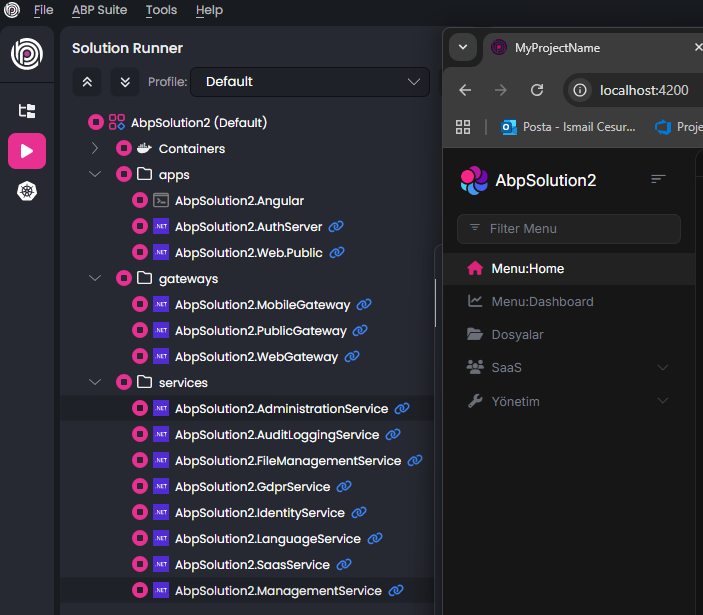

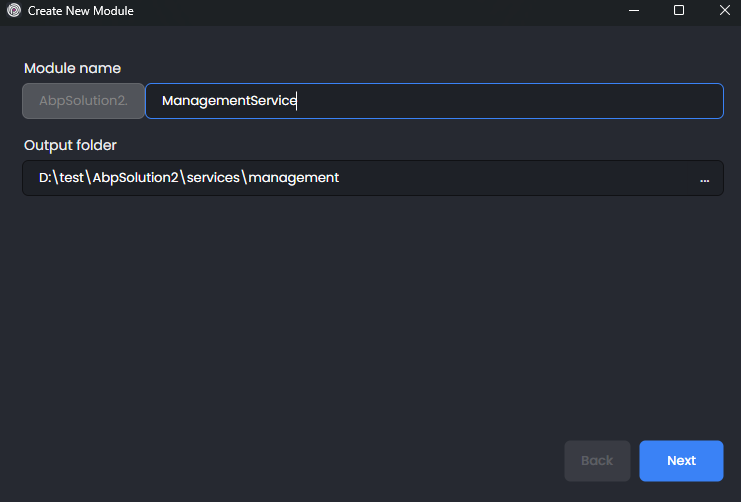

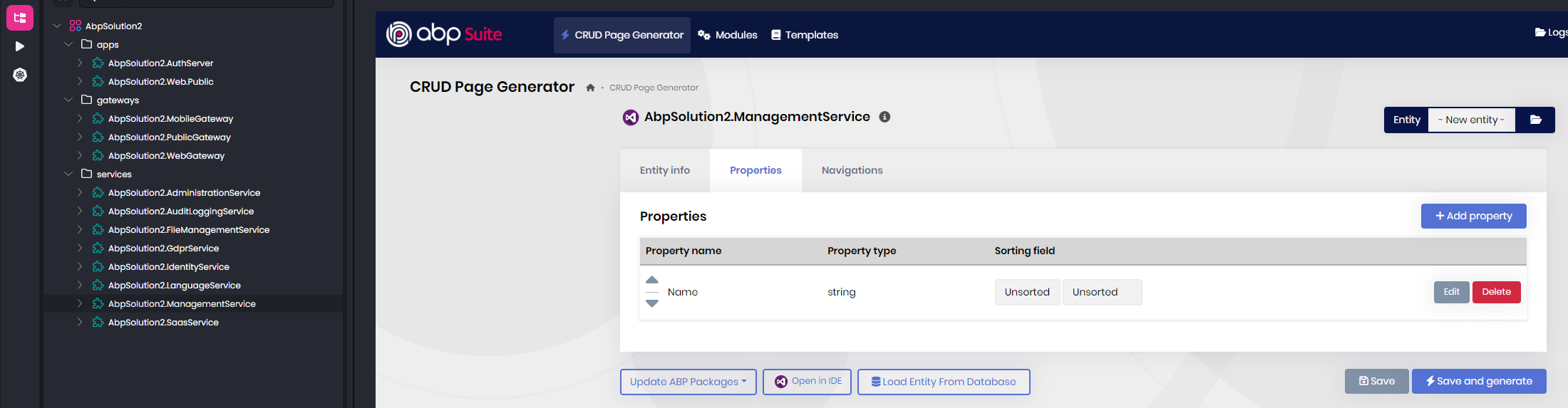

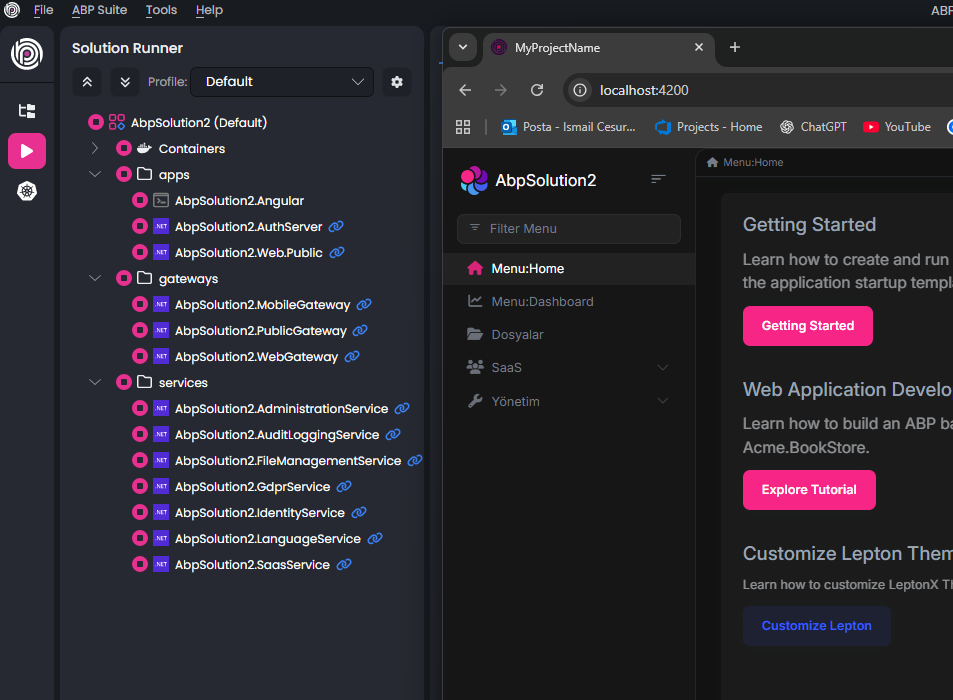

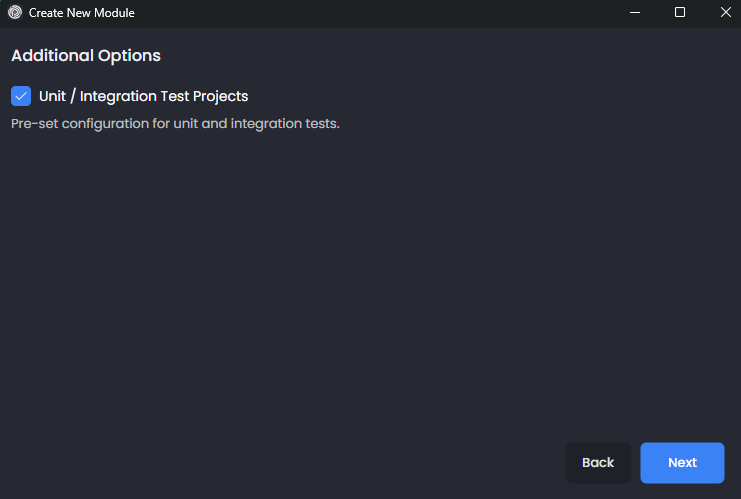

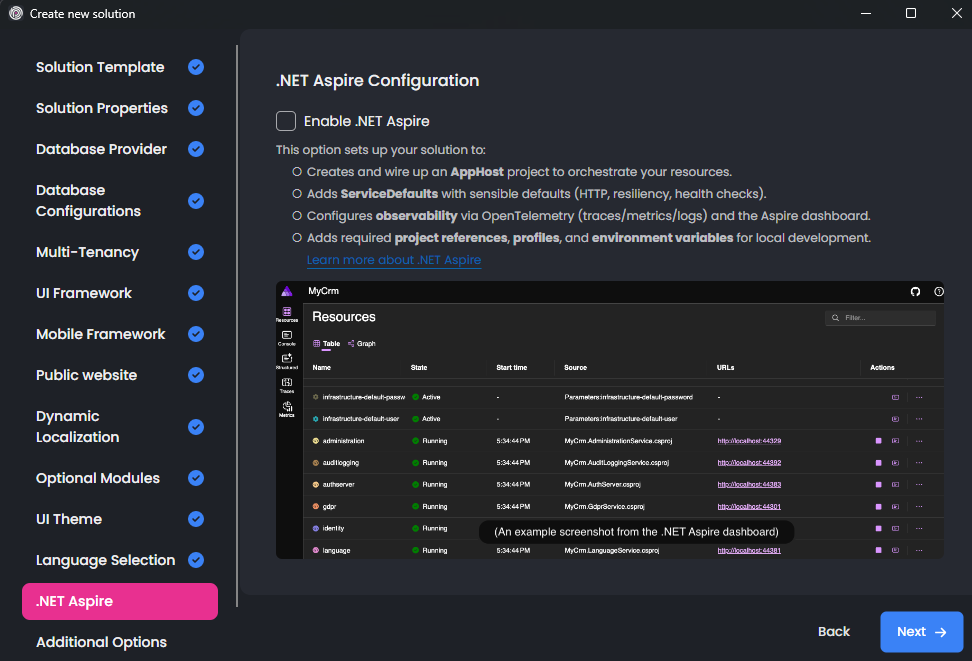

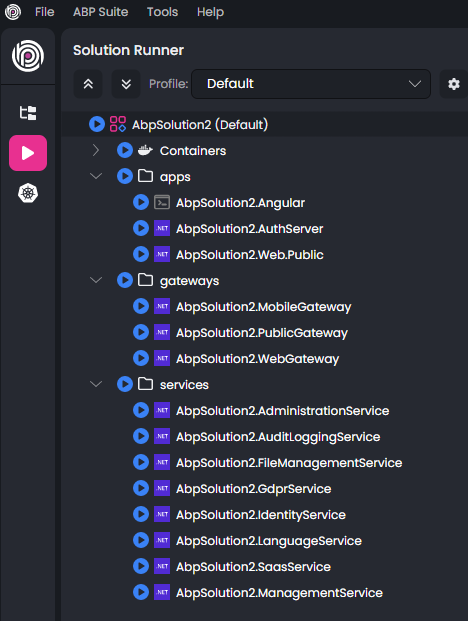

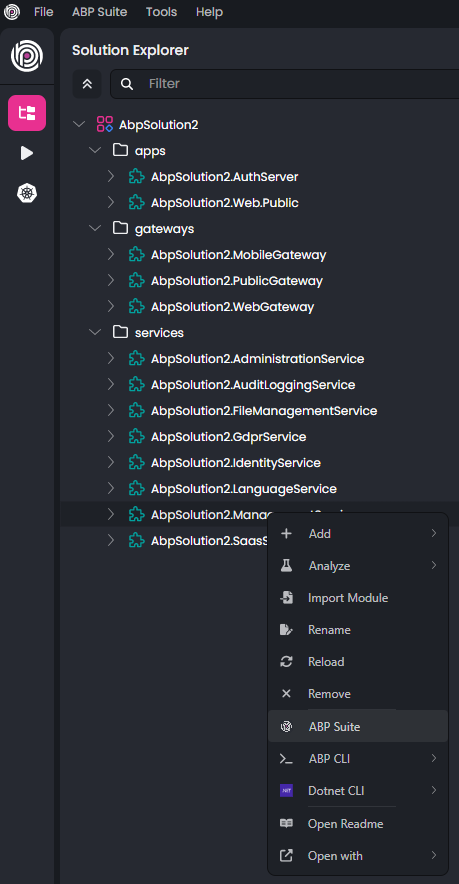

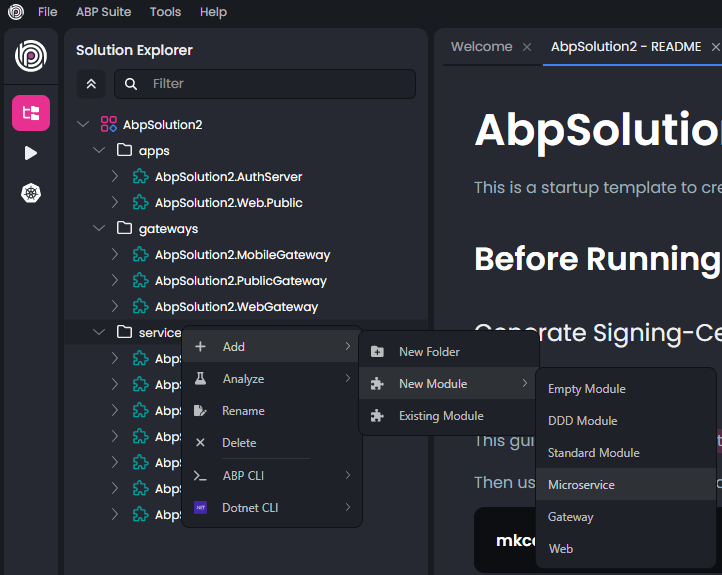

We are creating a new microservice project, then running it to ensure it works. Next, we add the ManagementService microservice to our project and build it to ensure it works. We then run our project to ensure it runs without errors. After that, we create the Products table in ManagementService via AbpSuite.

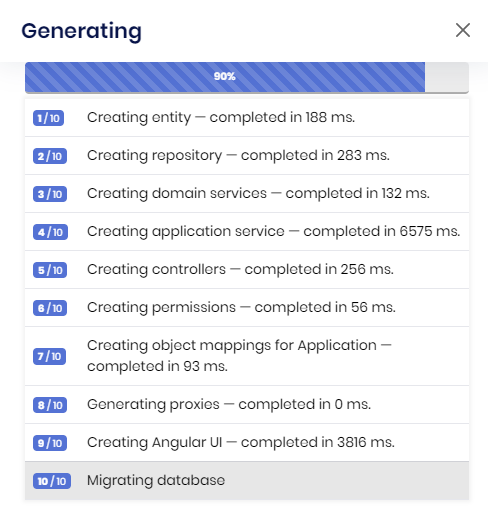

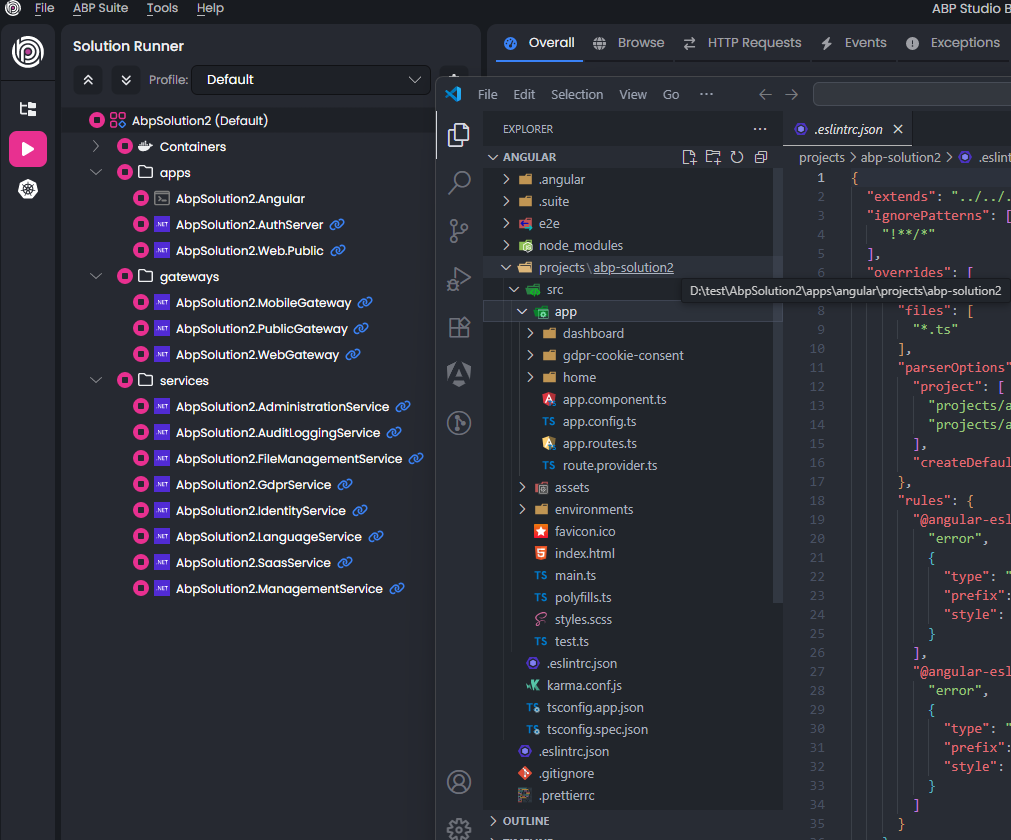

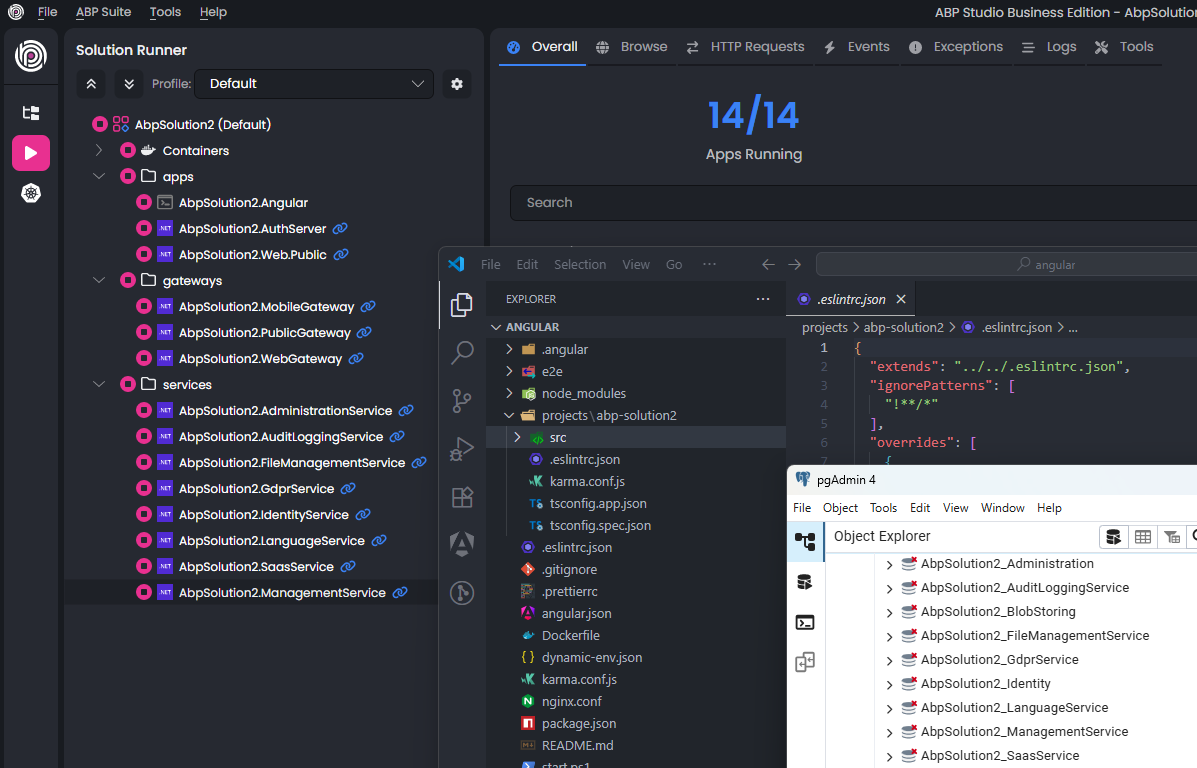

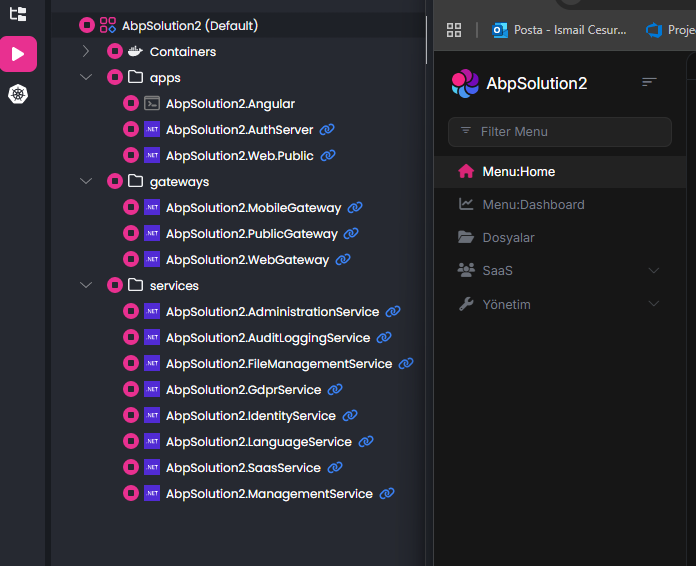

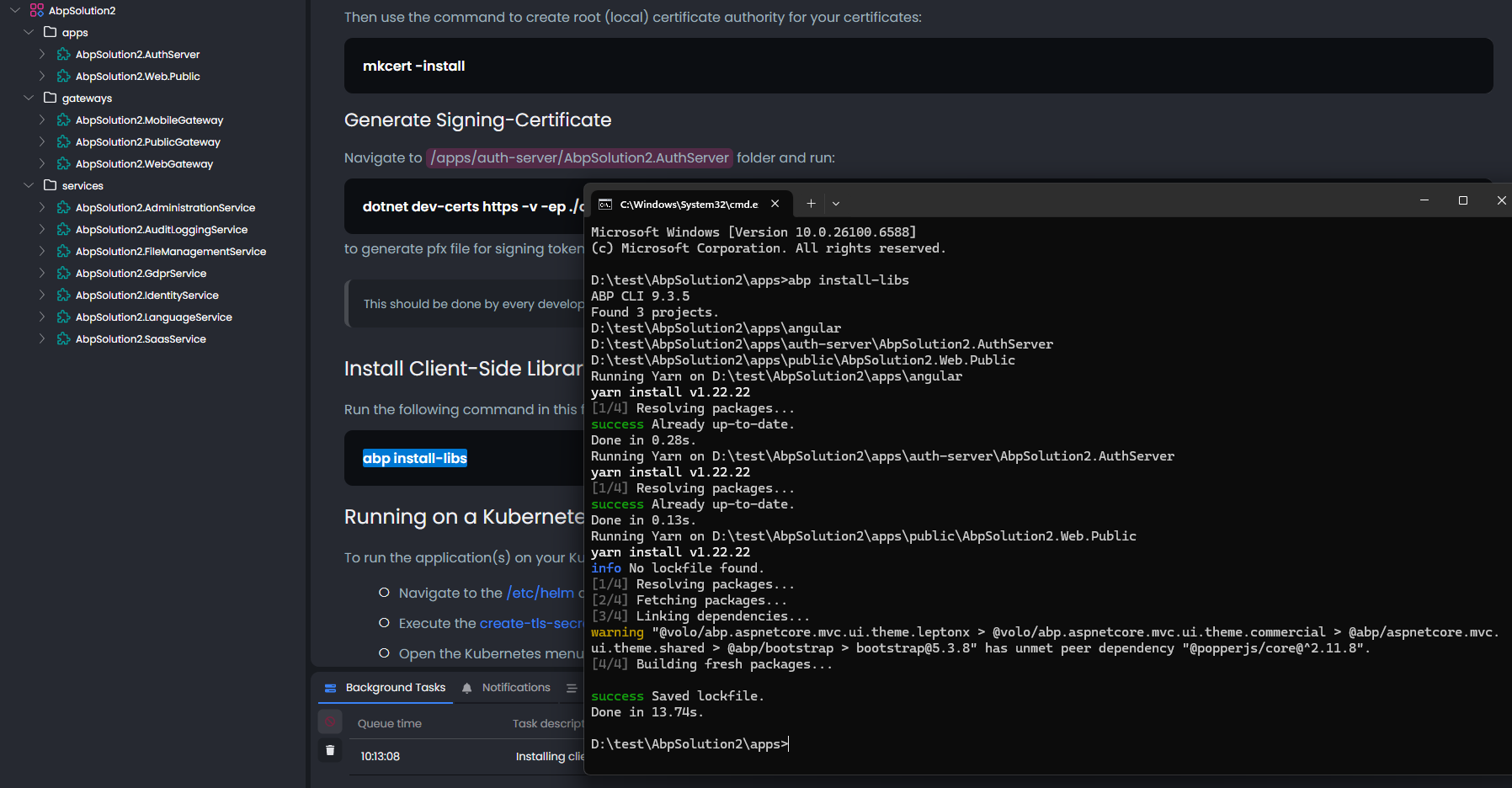

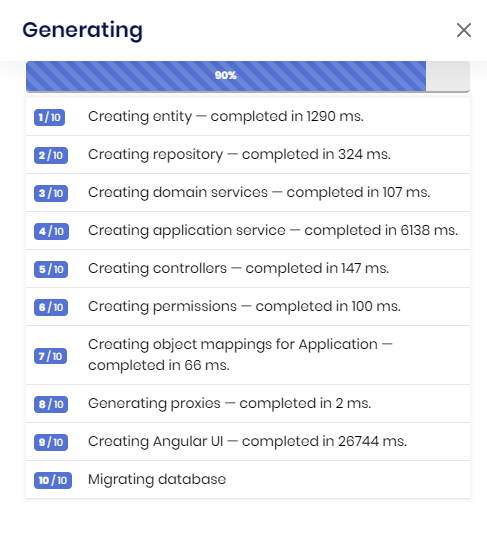

Here, we see that the Generating proxies section shows 0 ms. After checking, we see that files like entity appService have been created on the ManagementService backend side, but when we check the projects folder in Angular, we only see the abp -solution1 folder created during the project's initial stage. We did not see any folder or file related to management-service. Similarly, we did not see any files related to the products table we added via AbpSuite. Consequently, we have no access to any products table in the panel! I would like to mention that we also followed the steps in the readme files provided after creating the project, such as generate-proxy.
We did not encounter this issue in our samples a few updates ago. Could you please advise us on the areas we should check?
Thanks.
11 Answer(s)
-
0
- The issue where "Generating proxies" completes in 0 ms and no Angular proxy files are created for your new microservice (ManagementService) is typically caused by one of the following:
- The Angular project is not properly configured to recognize the new microservice for proxy generation.
- The ABP CLI is not targeting the correct Angular project or cannot resolve the backend API definition.
- The required configuration in
angular.json
,environment.ts
, ortsconfig.base.json
is missing or incorrect for the new service.
Steps to Check and Resolve:
Verify Angular Project Configuration:
- Ensure your
angular.json
includes the correct projects and that the default project is set if you have multiple Angular projects. - Make sure the
projects
folder in your Angular solution contains the expected structure for each microservice UI.
- Ensure your
Check
environment.ts
:- In your Angular app's
src/environments/environment.ts
, ensure theapis
section includes an entry for your new microservice, e.g.:
- In your Angular app's
apis: { default: { url: 'https://localhost:44300', rootNamespace: 'AbpSolution1' }, managementService: { url: 'https://localhost:44301', rootNamespace: 'ManagementService' } }
- The
rootNamespace
should match the backend namespace.
- Update
tsconfig.base.json
:- Add or update the proxy import paths:
"paths": { "@proxy": ["src/app/proxy/index.ts"], "@proxy/*": ["src/app/proxy/*"] }
- Run Proxy Generation Manually:
- Open a terminal in your Angular project root and run:
abp generate-proxy -t ng
- If you have multiple Angular projects, specify the project:
abp generate-proxy -t ng --project <your-angular-project-name>
- If prompted for backend module or API name, use the correct values (e.g.,
managementService
).
Check for Errors:
- If the command completes instantly or with errors, check for missing or misconfigured
@abp/ng.schematics
package, or missing backend API endpoints.
- If the command completes instantly or with errors, check for missing or misconfigured
Restart Backend and Angular Apps:
- Ensure all backend services are running and accessible before generating proxies.
Review Documentation and Known Issues:
- See the official docs and support threads for troubleshooting:
If the above steps do not resolve the issue, double-check that your backend ManagementService exposes its API definition endpoint and that the Angular app can reach it.
Sources:
- ABP Angular Service Proxies Documentation
- Service Proxies Troubleshooting
- Support Thread: Proxy Generation Issues
- Support Thread: Proxy Generation Error
This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.
-
0
hi
Could you please share the steps to reproduce the issue in a new template project?
Thanks.
-
0
-
0
-
0
Hello,
Thank you for reporting this problem. We will be fixing the related issue on the next patch release that you can follow the process through these links https://github.com/abpframework/abp/releases, https://abp.io/docs/latest/studio/release-notes
I can temporarily suggest a rollback to the browser build system. For this, you need to update the related parts in your
angular.json
as follows: (you can also check this documentation that would be helpful https://angular.dev/tools/cli/build-system-migration){ ... "projects": { "ticket9953": { "projectType": "application", "schematics": { ... }, "root": "projects/ticket9953", "sourceRoot": "projects/ticket9953/src", "prefix": "app", "architect": { "build": { "builder": "@angular-devkit/build-angular:browser", "options": { "outputPath": "dist/ticket9953", "index": "projects/ticket9953/src/index.html", "main": "projects/ticket9953/src/main.ts", "polyfills": "projects/ticket9953/src/polyfills.ts", ... }, "configurations": { ... "development": { "buildOptimizer": false, "optimization": false, "vendorChunk": true, "extractLicenses": false, "sourceMap": true, "namedChunks": true } }, ... }, "serve": { "builder": "@angular-devkit/build-angular:dev-server", ... }, "extract-i18n": { "builder": "@angular-devkit/build-angular:extract-i18n", ... }, "test": { "builder": "@angular-devkit/build-angular:karma", ... }, } }, }, }

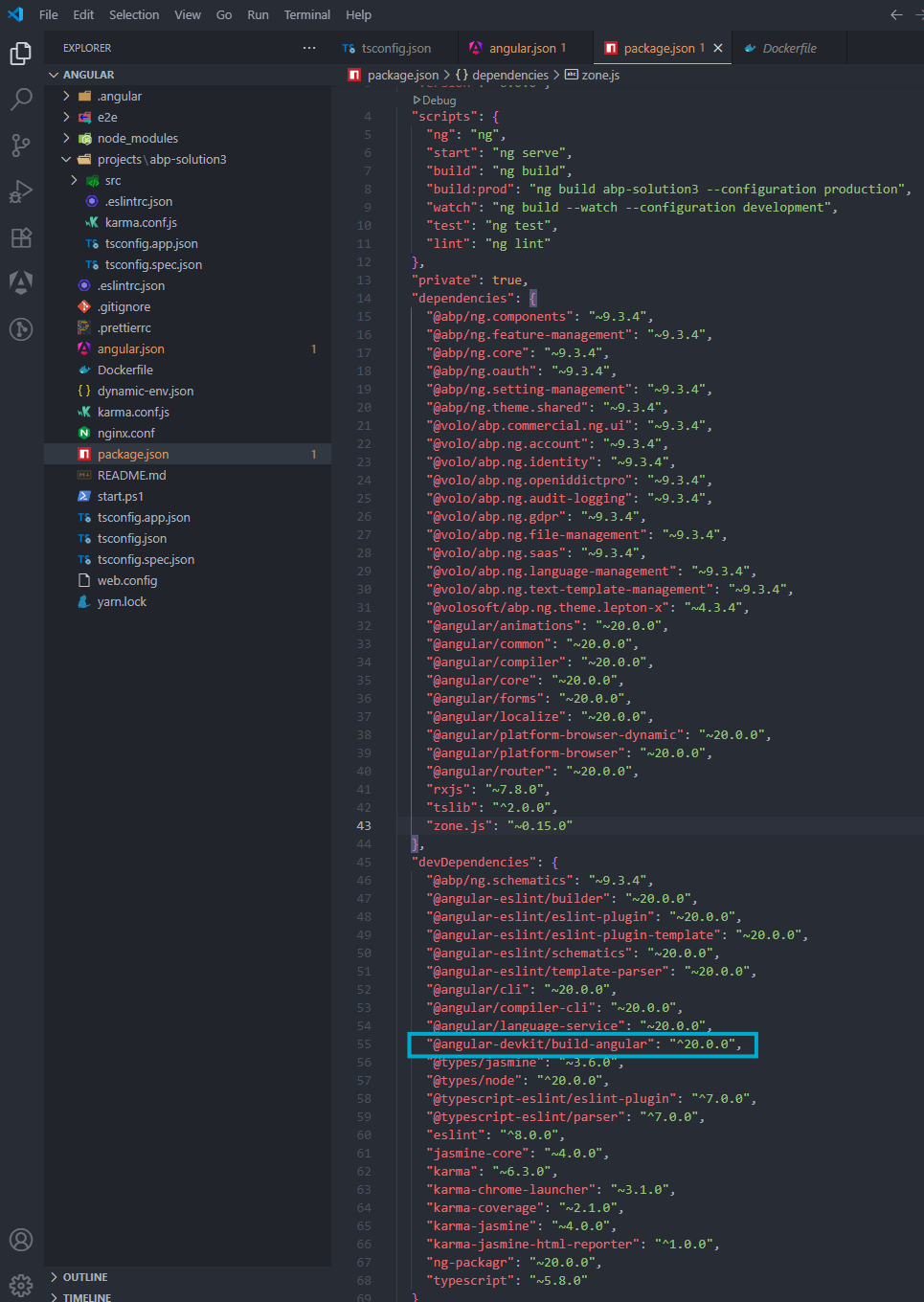

You need to replace
@angular/build
with@angular-devkit/build-angular
dependency in yourpackage.json
file.After reinstalling the packages in the root angular directory, you can create a library for your service using this command
npx ng g @abp/ng.schematics:create-lib --package-name management-service --is-secondary-entrypoint false --template-type standalone --override true
Then, you can use suite for creating more features.
I am also processing a refund for your ticket. You can let us know if you need further assistance. Thank you for your cooperation.
-
0

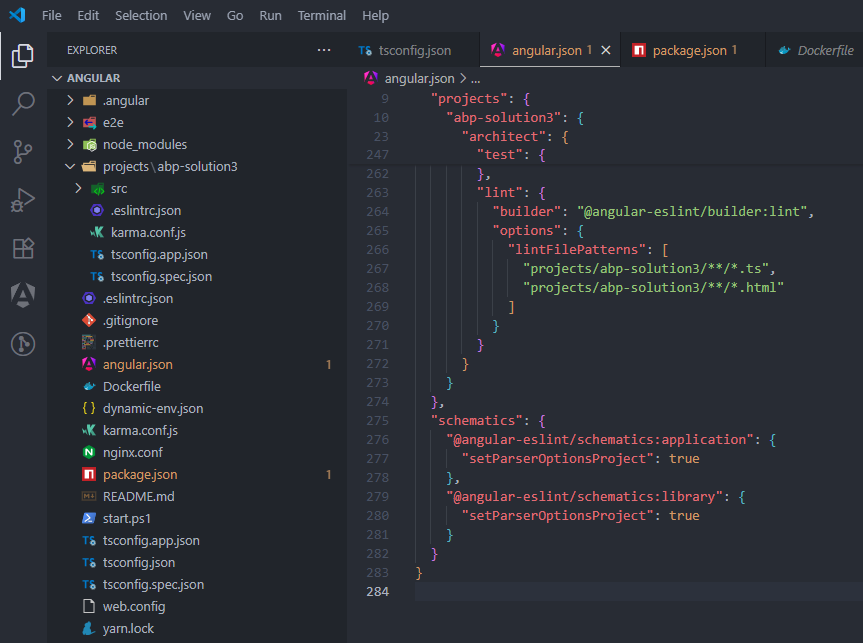

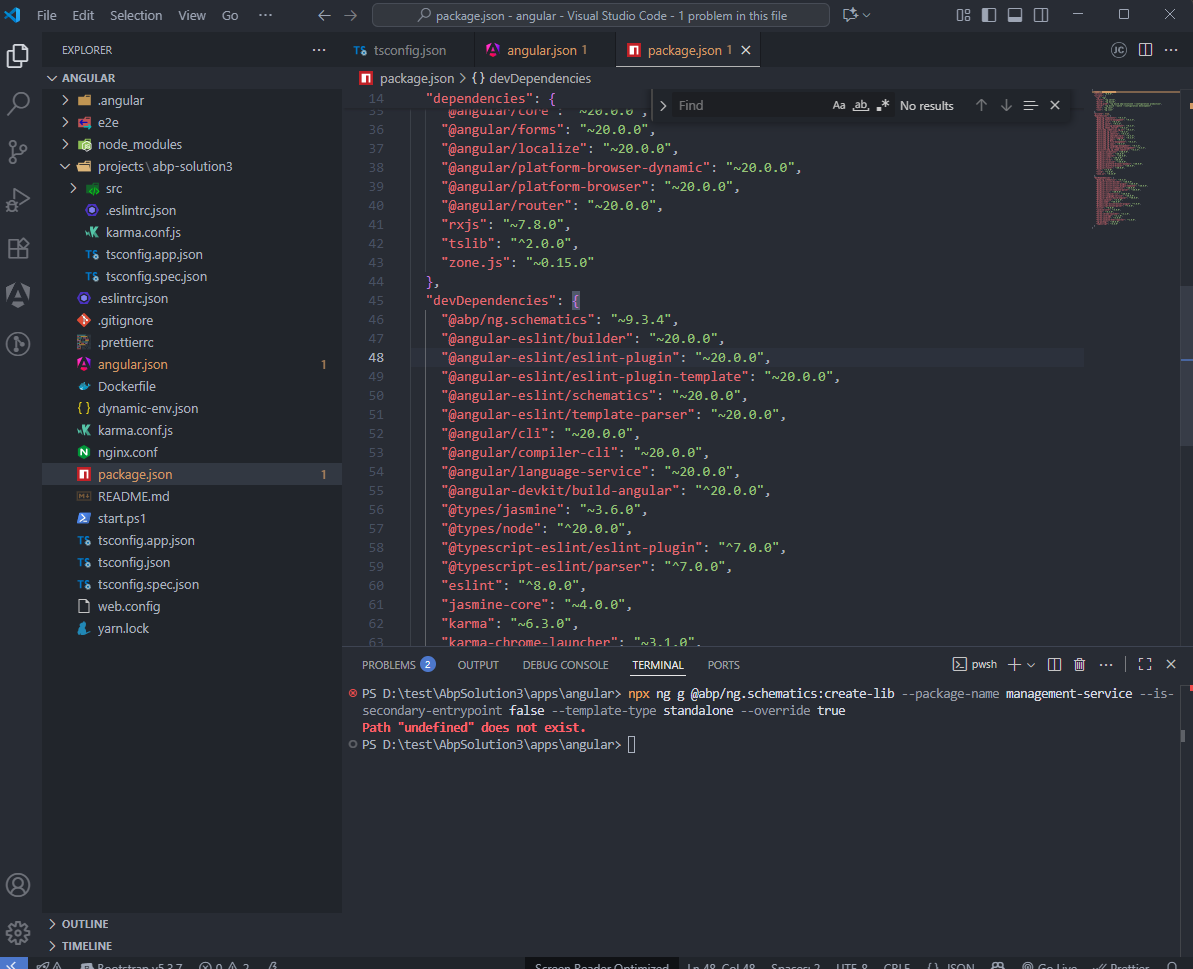

Hello, we have made the changes to angular.json and package.json as you requested.
Path "undefined" does not exist.
We are receiving the message.
Could I also get some information about the resolution date for this error? Since many of our projects are progressing on this structure, we don't want to experience problems in our projects.
-
0
I can suggest you to delete temporary files under main angular directory that are
node_modules
,yarn.lock
,.angular
etc. and then reinstall the packages.If this does not work, you can try keeping the application builder configurations and add the following property in
angular.json
:{ "projects": { "architect": { "build": { "options": { "browser": "projects/ticket9953/src/main.ts", }, }, } }, }, }
Could I also get some information about the resolution date for this error? Since many of our projects are progressing on this structure, we don't want to experience problems in our projects.
I understand your urgency. However, I cannot provide an exact time for the next release as we plan them frequently. You can follow this link https://abp.io/docs/latest/studio/release-notes
I hope this workaround works. You can let us know if your need further guidance.
-
0
Unfortunately, neither option worked. Do you have any other suggestions?
-
0
Thank you for checking both ways and responding.
I have used this command to test this issue,
abp new AbpSolution1 -t microservice --ui-framework angular --mobile react-native --database-provider ef --database-management-system postgresql --theme leptonx --skip-migrator --public-website --without-cms-kit --dont-run-bundling -no-language-management -file-management
. However, both ways worked on my side. Did the library creation command failed again? Or, is that another issue occured while generating the entity?If you prefer sending a minimal, reproducible example, I can also test it on my side. Here is my e-mail address: sumeyye.kurtulus@volosoft.com.
-
0
I sent you the sample project. Could it be due to a missing application that should be installed on the computer or an incompatible version?
-
0

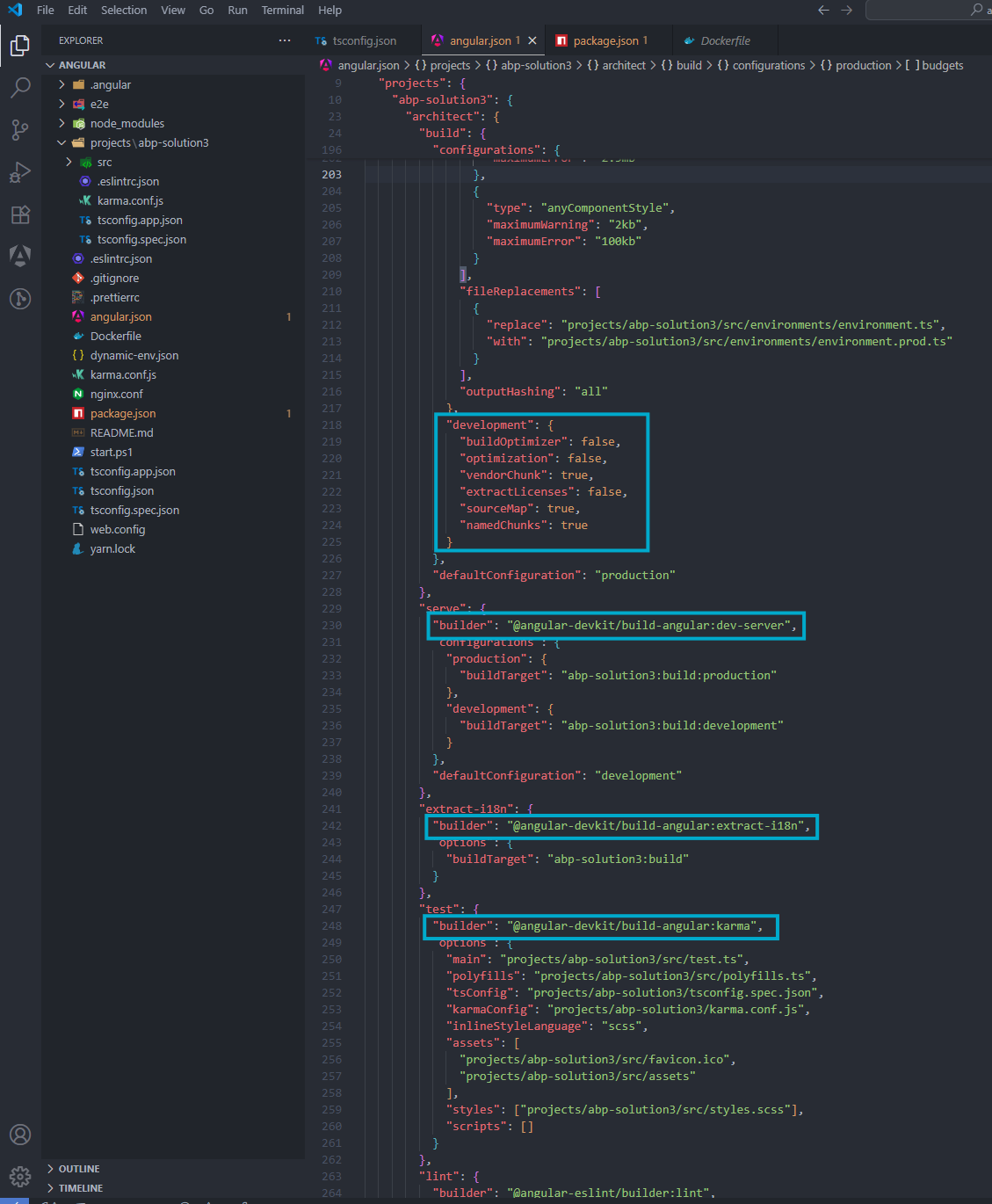

Thank you again for taking your time to send me a project. I have checked it and followed these steps:

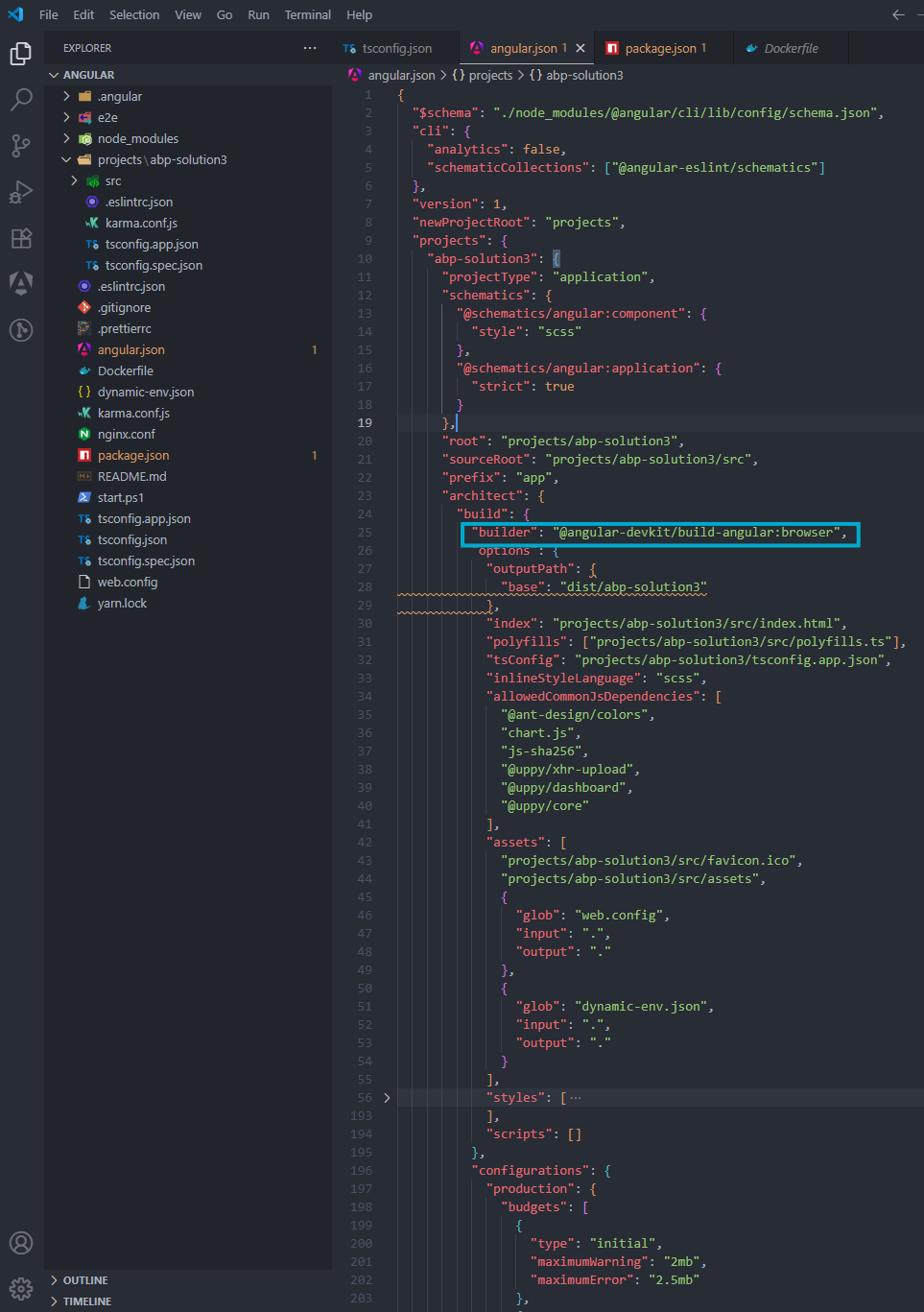

Rollbacked to application builder system by running this command under
apps > angular
directoryThen added this missing configuration in
angular.json
{ "projects": { "architect": { "build": { "options": { "browser": "projects/abp-solution3/src/main.ts", }, }, } }, }, }
I run this command under angular directory to add a library
npx ng g @abp/ng.schematics:create-lib --package-name management-service --is-secondary-entrypoint false --template-type standalone --override true
Here are my related package versions
➜ ~ npm -v :: 10.9.2 ➜ ~ node -v :: v22.16.0 ➜ ~ yarn -v :: 1.22.22
I am also sending the project back that may help you go through:
https://drive.google.com/file/d/10kVEyn2JBxq1ojRnDvjfeJqpfjtp8UPW/view?usp=sharing
