OAuth2 configuration #10152

10 Answer(s)

•

  0

  AI-Bot created 7 days ago

  Support Team ABP Agent

  1. Solution

  • What that settings page is for

    • The “OAuth Login Settings” under Identity > OAuth Management configures how your ABP application signs users in via an external OpenID Connect/OAuth2 identity provider (Authority). It is NOT for SMTP OAuth for sending/receiving emails. Those are two different things.
    • To use Microsoft 365 (Exchange Online) to send mail via SMTP with OAuth2, configure ABP’s emailing system with Microsoft’s OAuth endpoints and scopes for SMTP, not the Identity OAuth login settings.

  • A) Configure Microsoft 365 SMTP (OAuth2) for ABP Emailing

    1. Register an app in Azure AD (Entra ID)
       • Create “App registration”.
       • Authentication:
         • Add a Web redirect URI that your SMTP OAuth UI will use (depends on your SMTP/OAuth component or settings page URL; if you use a built-in UI, set the exact callback URL that UI requires).
       • Certificates & secrets: create a Client secret.
       • API permissions:
         • Add delegated permission: SMTP.Send (from Office 365 Exchange Online).
         • Also add OpenID Connect standard scopes: openid, profile, email, offline_access (for refresh tokens).
       • Grant admin consent.

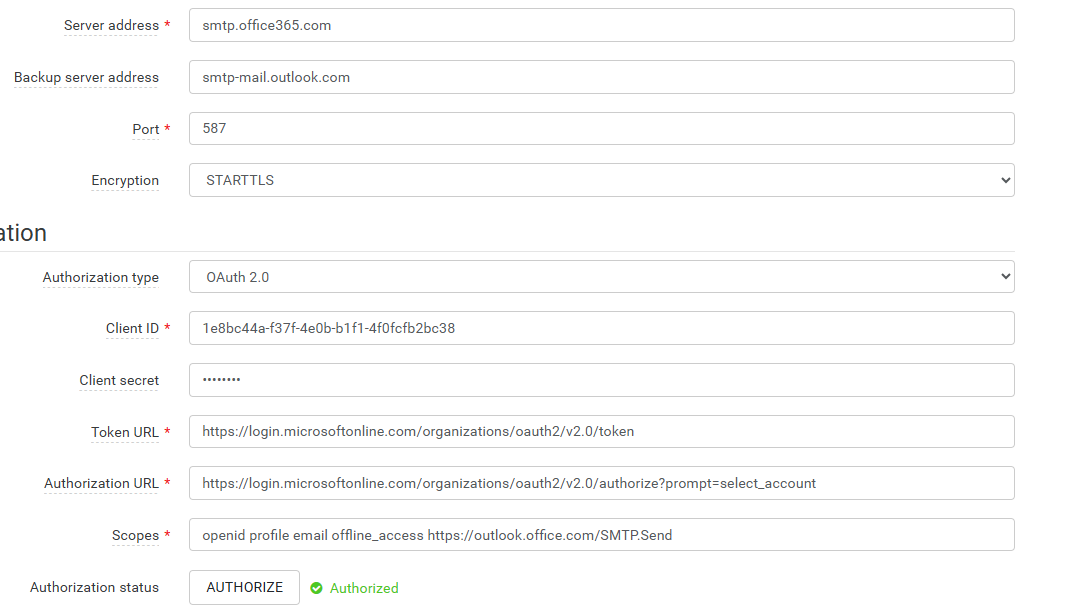

    2. SMTP server settings in ABP Emailing (e.g., in Settings UI or appsettings)
       • Server address: smtp.office365.com
       • Port: 587
       • Encryption: STARTTLS
    3. OAuth2 parameters (for Microsoft 365)
       • Client Id: the Application (client) ID from Azure app registration.
       • Client Secret: the client secret you created.
       • Authorization URL: https://login.microsoftonline.com/organizations/oauth2/v2.0/authorize
       • Token URL: https://login.microsoftonline.com/organizations/oauth2/v2.0/token
         • If your tenant is single-tenant, replace “organizations” with your Tenant ID or your tenant domain.
       • Scopes (space-separated): openid profile email offline_access https://outlook.office.com/SMTP.Send
       • Username: the mailbox address you will send from (e.g., no-reply@yourdomain.com). The account must be licensed and allowed to send with SMTP AUTH.
    4. Authorize/consent
       • Use the “Authorize” button in your SMTP OAuth config UI to complete the user consent/authorization and store the refresh token. Ensure you sign in with the mailbox account that will send emails, or with an admin performing admin consent for delegated flow.
    5. Test sending email from ABP (e.g., trigger a notification or use a test email feature if available).

  • B) What each field means (SMTP OAuth2 context)

    • Client Id: The Azure AD app’s Application (client) ID.
    • Client Secret: The secret created under Certificates & secrets for that app.
    • Authority/Authorization URL: Microsoft’s authorize endpoint where the user consents and an auth code is issued. Use the v2.0 endpoint shown above.
    • Token URL: Microsoft’s token endpoint that exchanges the auth code or refresh token for an access token for SMTP.
    • Scope: Required permissions the app requests. Include openid profile email offline_access plus the SMTP scope https://outlook.office.com/SMTP.Send for Exchange Online SMTP AUTH.
    • Yes, this is OAuth2: The SMTP authentication flow uses OAuth2 (Authorization Code + refresh tokens) to acquire access tokens that the SMTP client uses to send mail.

  • C) ABP Identity “OAuth Login Settings” (Authority, Client Id, Scope) are for user sign-in to your app, not for SMTP

    • If you also want your users to log into your ABP app with Microsoft Entra ID:
      • Authority: https://login.microsoftonline.com/{TenantId}/v2.0/
      • Client Id: your Azure AD app’s client ID for interactive login to your app
      • Client Secret: the secret of that app (if confidential client)
      • Scope: openid profile email offline_access plus your API’s scopes if you protect APIs
    • This does not configure emailing. Configure emailing separately as in section A.

  • D) ABP code/config pointers

    • Emailing: configure the IEmailSender options or the settings provider your solution uses. For SMTP with OAuth2, use STARTTLS on smtp.office365.com:587 and wire your OAuth token acquisition to the mail sender if your edition provides a UI; otherwise store and refresh tokens securely and set the SMTP auth to use the OAuth access token when sending.

  2. Sources

  • https://abp.io/docs/latest
  • https://abp.io/docs/latest/framework/infrastructure/emailing

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  maliming created 7 days ago

  Support Team Fullstack Developer

  hi

  How to configure OAuth2 in our application so that we can send and receive emails for Microsoft 365.

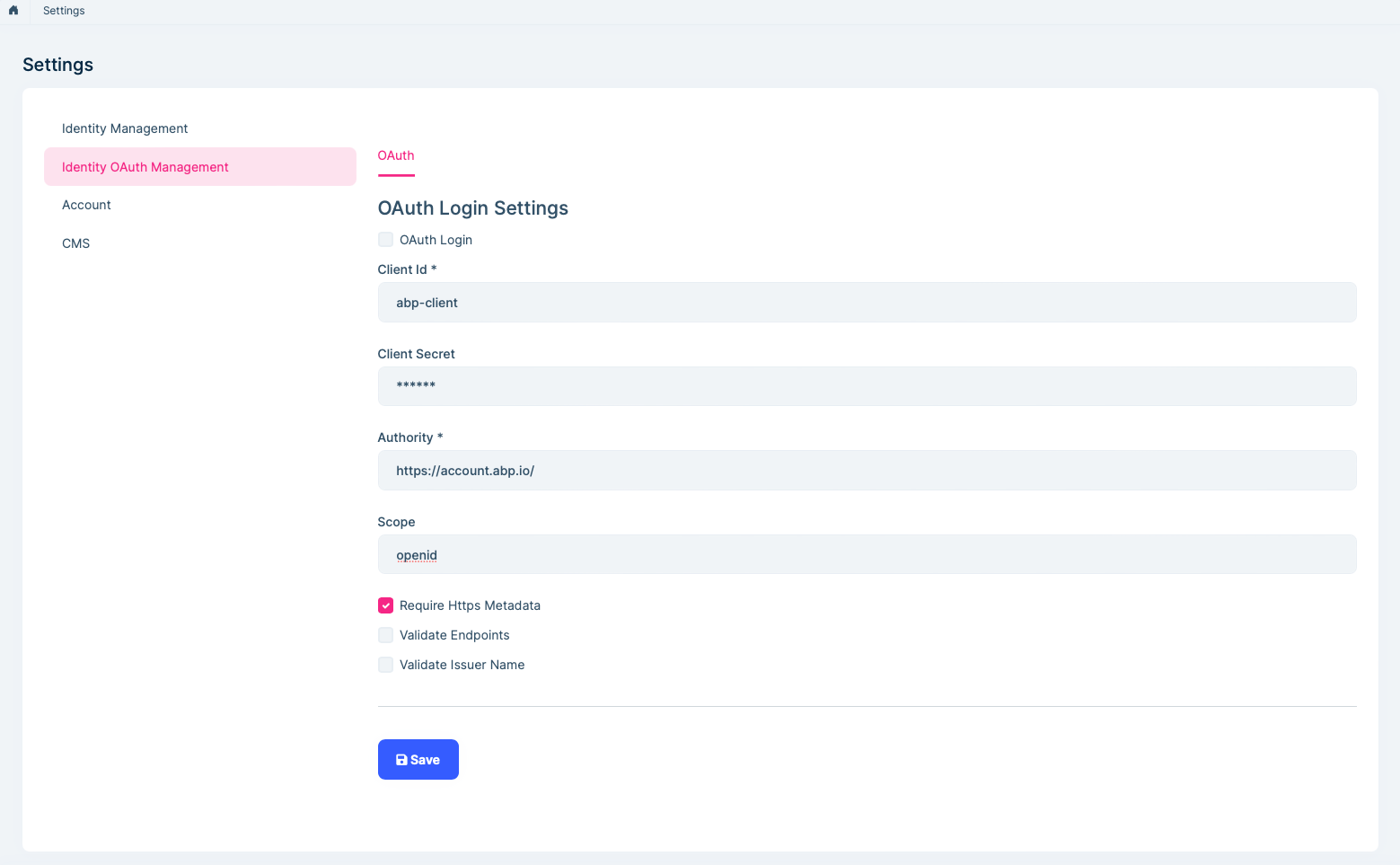

  The OAuth2 settings page is for External Login instead of sending/receiving emails

  See https://abp.io/docs/latest/modules/identity/oauth-login

  Thanks

  Save Cancel
•

  0

  Buckoge created 6 days ago

  Thank you. Perhaps it’s best if I describe our situation so you can advise us on the best way to proceed.

  We installed the application at the customer’s site and have access to a Windows Server 2016 machine and IIS. The server does not have internet access.

  In order to send emails from the application, the customer’s IT administrator asked that our application be registered as a user via OAuth2 so we can send mail.

  We need guidance on how to configure email OAuth2 authentication for Microsoft 365.

  It seems that the AI’s “Answer A” is what we need.

  What is the correct format for the callback (redirect) URL — we use all default values?

  Save Cancel
•

  0

  maliming created 6 days ago

  Support Team Fullstack Developer

  Hi

  customer’s IT administrator

  Do they have any documentation of sending emails via OAuth2?

  Thanks.

  Save Cancel
•

  0

  Buckoge created 3 days ago

  Hi, from

  customer’s IT administrator

  Tell them it's about OAuth2 Microsoft 365

  Thanks.

  Save Cancel
•

  0

  maliming created 3 days ago

  Support Team Fullstack Developer

  hi

  We haven't used OAuth2 Microsoft 365 before.

  Does Microsoft have any relevant documentation?

  Thanks.

  Save Cancel
•

  0

  Buckoge created 3 days ago

  Hi

  Here are links they've sent me for you to check:

  Authenticate an IMAP, POP or SMTP connection using OAuth

  How to connect to Office 365 with IMAP, Oauth2 and Client Credential Grant Flow

  Thanks

  Save Cancel
•

  0

  maliming created 2 days ago

  Support Team Fullstack Developer

  hi

  I see, you can follow the https://github.com/alkampfergit/DotNetCoreOauth2 to get an access token and to override the IEmailSender service to send the email.

  context.Services.Replace(ServiceDescriptor.Singleton<IEmailSender, YourOffice365EmailSender>());

  public class YourOffice365EmailSender : EmailSenderBase
  {
      public YourOffice365EmailSender(ICurrentTenant currentTenant, IEmailSenderConfiguration configuration, IBackgroundJobManager backgroundJobManager)
          : base(currentTenant, configuration, backgroundJobManager)
      {

      }

      protected override Task SendEmailAsync(MailMessage mail)
      {

          return Task.CompletedTask;
      }
  }



  Thanks.

  Save Cancel
•

  0

  Buckoge created 2 days ago

  Hi,

  Thanks, I'll try it.

  Save Cancel
•

  0

  maliming created 2 days ago

  Support Team Fullstack Developer

  Thanks. : )

  Save Cancel
