Rename hostapi from https://localhost:44320 to https://localhost:44320/api/auth #10185

0

sghorakavi@cpat.com created 10 months ago

The idea is not to use reverse proxy, can we rename host api server ?

0

AI-Bot created 10 months ago

Support Team ABP Agent

Solution You don’t need a reverse proxy to serve your HttpApi.Host under /api/auth, but you must consistently set a PathBase and align ALL generated URLs, route prefixes, and Swagger paths with it.

Goal: https://localhost:44320/api/auth should be the app’s base URL. Key rule: When you use app.UsePathBase("/api/auth"), every incoming request path and every generated URL must include /api/auth.

Apply these steps to your HttpApi.Host:

Set PathBase early in the pipeline

public override void OnApplicationInitialization(ApplicationInitializationContext context)
  {
      var app = context.GetApplicationBuilder();

      app.UsePathBase("/api/auth");

      app.UseRouting();
      app.UseStaticFiles();
      app.UseAbpStudioLink();
      app.UseAbpSecurityHeaders();
      app.UseCors();
      app.UseAuthentication();

      if (MultiTenancyConsts.IsEnabled)
      {
          app.UseMultiTenancy();
      }

      app.UseUnitOfWork();
      app.UseDynamicClaims();
      app.UseAuthorization();

      app.UseSwagger();

      app.UseAbpSwaggerUI(options =>
      {
          // Swagger endpoint MUST include the PathBase prefix
          options.SwaggerEndpoint("/api/auth/swagger/v1/swagger.json", "API");
          // And make Swagger UI itself available under /api/auth/swagger
          options.RoutePrefix = "api/auth/swagger";
      });

      app.UseConfiguredEndpoints();
  }

Make the app’s own “self” URL include the PathBase In your appsettings.json of HttpApi.Host:

{
    "App": {
      "SelfUrl": "https://localhost:44320/api/auth"
    }
  }

ABP uses App:SelfUrl for various generated links. If you keep it without the prefix, some URLs will be wrong.

Keep controller routes as-is You do NOT need to change [Route("api/...")] attributes or conventional controller prefixes. PathBase sits in front of the entire app, so /api/auth/api/values would be wrong. Correct request is /api/auth/api/values, which is “/api/auth” (PathBase) + “/api/values” (your controller route). Don’t double-prefix routes.
Swagger JSON endpoint path With PathBase, the JSON is served at /api/auth/swagger/v1/swagger.json. Ensure:
- app.UseSwagger() is after UsePathBase.
- SwaggerEndpoint uses the full path including /api/auth.
- If you view Swagger UI at https://localhost:44320/api/auth/swagger, the UI can fetch /api/auth/swagger/v1/swagger.json.
Anti-forgery and ABP Swagger UI script ABP’s Swagger integration injects abp.js to handle CSRF. With PathBase, the SetCsrfCookie endpoint will resolve correctly as long as App:SelfUrl and PathBase are consistent and the Swagger UI page is under the same PathBase.
If you also expose static assets under the same site Call app.UseStaticFiles() after UsePathBase so static files are served via /api/auth/… when requested from this host.
Common pitfalls that cause 404 in Swagger:
- PathBase set but SwaggerEndpoint missing the prefix. Correct: options.SwaggerEndpoint("/api/auth/swagger/v1/swagger.json", ...).
- Setting RoutePrefix to “swagger” while PathBase is “/api/auth”, then browsing https://localhost:44320/swagger (wrong). With RoutePrefix = "api/auth/swagger", browse https://localhost:44320/api/auth/swagger.
- Changing controller route prefixes to include “auth” while also using PathBase, which doubles the segment.

Optional (only if you must run the UI at root /swagger while API is under /api/auth):

Keep PathBase("/api/auth").
Set options.RoutePrefix = "swagger" and options.SwaggerEndpoint("/api/auth/swagger/v1/swagger.json", ...).
You will browse Swagger at https://localhost:44320/swagger, but the JSON still resolves under /api/auth/… This is valid if you prefer Swagger at root.

Sources

ABP Swagger integration (validated):
- https://abp.io/docs/latest
ABP Framework GitHub (for reference of Swagger integration and middleware ordering patterns) (validated):
- https://github.com/abpframework/abp

This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

0

maliming created 10 months ago

Support Team Fullstack Developer

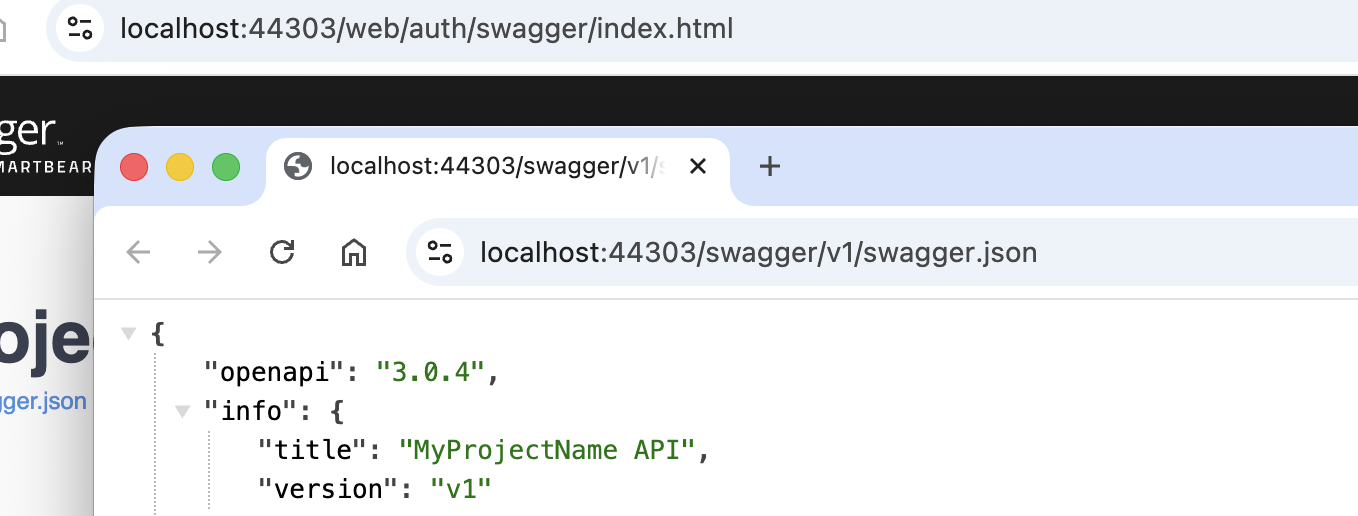

hi

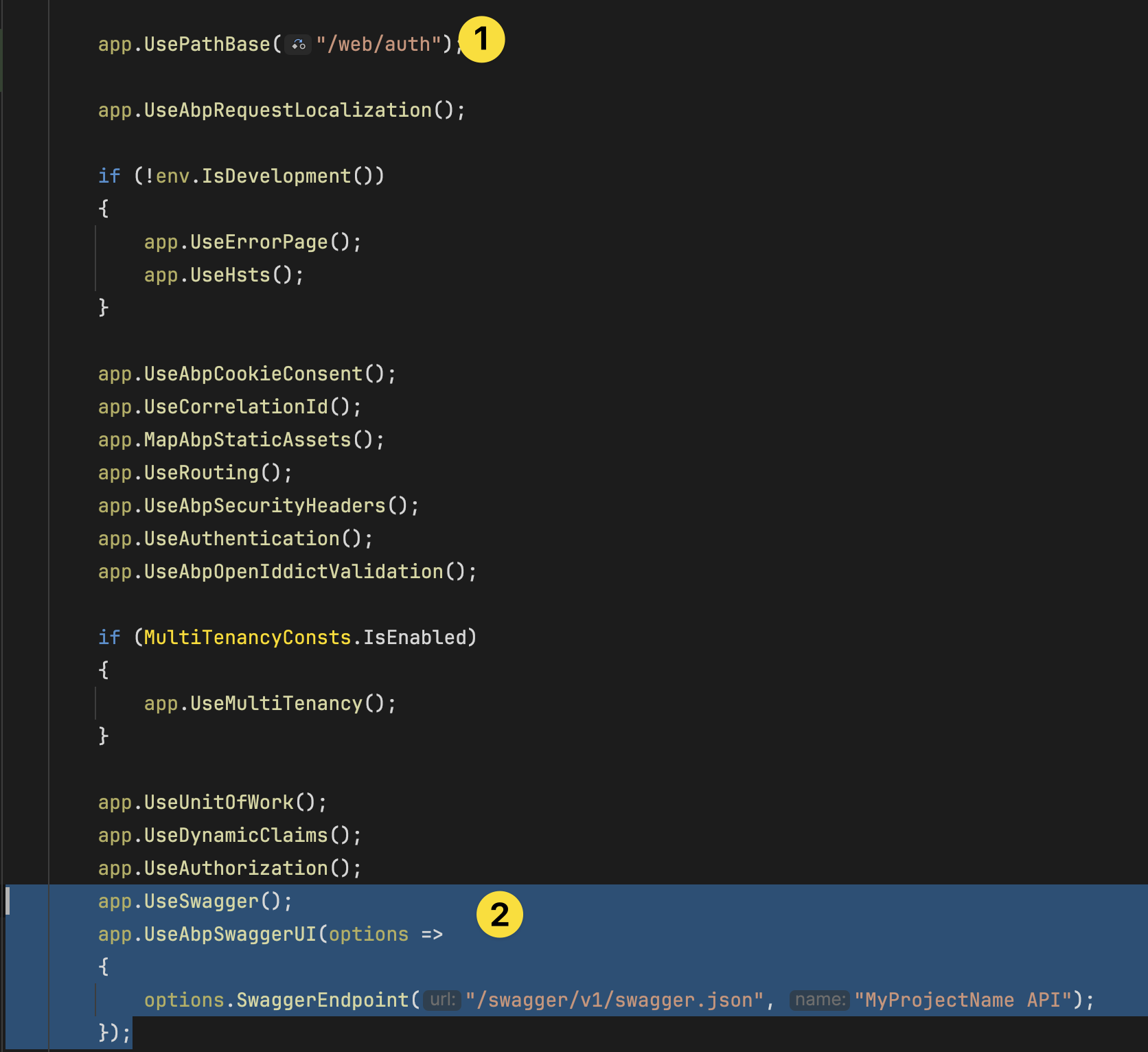

You don't need to change the Swagger endpoint.

It will support the UsePathBase.

0

sghorakavi@cpat.com created 10 months ago

Json looks fine but swagger UI is giving error :

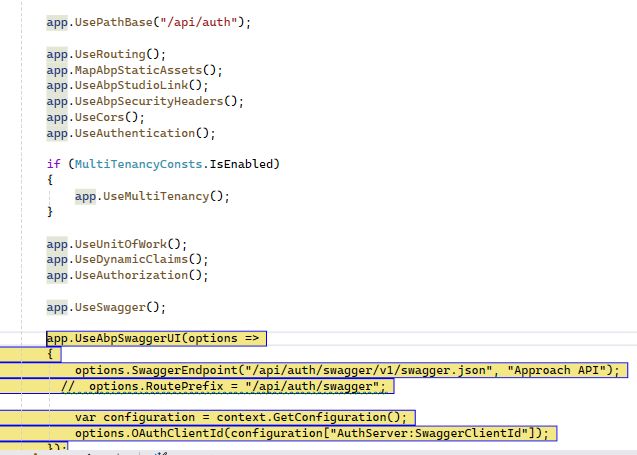

code from program.cs

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Can you share a template project to reproduce it?

liming.ma@volosoft.com

Thanks.

0

sghorakavi@cpat.com created 10 months ago

I cannot send via email due to project size. Please let me know which files you need in ABP MVC multi layer sample project and trying to change host api link from https://localhost:44320/ to https://localhost:44320/api/approach

0

sghorakavi@cpat.com created 10 months ago

[sghorakavi@cpat.com] said: I cannot send via email due to project size. Please let me know which files you need in ABP MVC multi layer sample project and trying to change host api link from https://localhost:44320/ to https://localhost:44320/api/approach

Program.cs using System; using System.Threading.Tasks; using Microsoft.AspNetCore.Builder; using Microsoft.Extensions.DependencyInjection; using Microsoft.Extensions.Hosting; using Serilog; using Serilog.Events;

namespace Approach;

public class Program { public async static Task Main(string[] args) { Log.Logger = new LoggerConfiguration() .WriteTo.Async(c => c.File("Logs/logs.txt")) .WriteTo.Async(c => c.Console()) .CreateBootstrapLogger();

try
    {
        Log.Information("Starting Approach.HttpApi.Host.");
        var builder = WebApplication.CreateBuilder(args);
        builder.Host
            .AddAppSettingsSecretsJson()
            .UseAutofac()
            .UseSerilog((context, services, loggerConfiguration) =>
            {
                loggerConfiguration
                #if DEBUG
                    .MinimumLevel.Debug()
                #else
                    .MinimumLevel.Information()
                #endif
                    .MinimumLevel.Override("Microsoft", LogEventLevel.Information)
                    .MinimumLevel.Override("Microsoft.EntityFrameworkCore", LogEventLevel.Warning)
                    .Enrich.FromLogContext()
                    .WriteTo.Async(c => c.File("Logs/logs.txt"))
                    .WriteTo.Async(c => c.Console())
                    .WriteTo.Async(c => c.AbpStudio(services));
            });
        await builder.AddApplicationAsync<ApproachHttpApiHostModule>();
       // builder.Services.AddEndpointsApiExplorer();
       // builder.Services.AddSwaggerGen();

        var app = builder.Build();
        ///
        app.Use(async (context, next) =>
        {
            if (context.Request.Path.Value?.Contains("_framework/aspnetcore-browser-refresh.js") == true)
            {
                context.Response.Redirect("/api/approach/_framework/aspnetcore-browser-refresh.js");
                return;
            }

            await next();
        });

        // standard ABP pipeline
        app.UseStaticFiles();






        await app.InitializeApplicationAsync();
        app.MapControllers();

        var apiRoot = builder.Configuration["App:ApiRoot"] ?? "";

        if (!string.IsNullOrWhiteSpace(apiRoot))
        {
            app.UsePathBase(apiRoot);
        }

        //app.UseSwagger();

        /*app.UseSwaggerUI(options =>
        {
            options.RoutePrefix = "api/approach/swagger";
            options.SwaggerEndpoint("/api/approach/swagger/v1/swagger.json", "Approach API");

        }); */

        await app.RunAsync();
        return 0;
    }
    catch (Exception ex)
    {
        if (ex is HostAbortedException)
        {
            throw;
        }

        Log.Fatal(ex, "Host terminated unexpectedly!");
        return 1;
    }
    finally
    {
        Log.CloseAndFlush();
    }
}

} ApproachHttpHostModule.cs using System; using System.Collections.Generic; using System.IO; using System.Linq; using Medallion.Threading; using Medallion.Threading.Redis; using Microsoft.AspNetCore.Authentication.JwtBearer; using Microsoft.AspNetCore.Authentication.Google; using Microsoft.AspNetCore.Authentication.MicrosoftAccount; using Microsoft.AspNetCore.Authentication.Twitter; using Microsoft.AspNetCore.Builder; using Microsoft.AspNetCore.Cors; using Microsoft.AspNetCore.DataProtection; using Microsoft.AspNetCore.Hosting; using Volo.Abp.PermissionManagement; using Microsoft.Extensions.Caching.StackExchangeRedis; using Microsoft.Extensions.Configuration; using Microsoft.Extensions.DependencyInjection; using Microsoft.Extensions.Hosting; using Approach.EntityFrameworkCore; using Approach.MultiTenancy; using StackExchange.Redis; using Microsoft.OpenApi.Models; using Approach.HealthChecks; using Volo.Abp.Caching.StackExchangeRedis; using Volo.Abp.DistributedLocking; using Volo.Abp; using Volo.Abp.Studio; using Volo.Abp.Account; using Volo.Abp.AspNetCore.Mvc; using Volo.Abp.AspNetCore.Mvc.UI.MultiTenancy; using Volo.Abp.AspNetCore.Mvc.UI.Theme.Shared; using Volo.Abp.AspNetCore.Serilog; using Volo.Abp.Autofac; using Volo.Abp.Caching; using Volo.Abp.Identity.AspNetCore; using Volo.Abp.Modularity; using Volo.Abp.Security.Claims; using Volo.Abp.Swashbuckle; using Volo.Abp.UI.Navigation.Urls; using Volo.Abp.VirtualFileSystem; using Volo.Abp.Studio.Client.AspNetCore; using Volo.Abp.AspNetCore.Authentication.JwtBearer; using Microsoft.IdentityModel.Tokens; using System.Text; using Volo.Abp.AspNetCore.Mvc.Libs;

namespace Approach;

[DependsOn( typeof(ApproachHttpApiModule), typeof(AbpAutofacModule), typeof(AbpStudioClientAspNetCoreModule), typeof(AbpCachingStackExchangeRedisModule), typeof(AbpDistributedLockingModule), typeof(AbpAspNetCoreMvcUiMultiTenancyModule), typeof(AbpIdentityAspNetCoreModule), typeof(ApproachApplicationModule), typeof(ApproachEntityFrameworkCoreModule), typeof(AbpSwashbuckleModule), typeof(AbpAspNetCoreSerilogModule) )] public class ApproachHttpApiHostModule : AbpModule { public override void ConfigureServices(ServiceConfigurationContext context) { var configuration = context.Services.GetConfiguration(); var hostingEnvironment = context.Services.GetHostingEnvironment();

if (!configuration.GetValue<bool>("App:DisablePII"))
    {
        Microsoft.IdentityModel.Logging.IdentityModelEventSource.ShowPII = true;
        Microsoft.IdentityModel.Logging.IdentityModelEventSource.LogCompleteSecurityArtifact = true;
    }

    ConfigureUrls(configuration);
    ConfigureConventionalControllers();
    ConfigureAuthentication(context, configuration);
    ConfigureSwagger(context, configuration);
    ConfigureCache(configuration);
    ConfigureVirtualFileSystem(context);
    ConfigureDataProtection(context, configuration, hostingEnvironment);
    ConfigureDistributedLocking(context, configuration);
    ConfigureCors(context, configuration);
    ConfigureExternalProviders(context);
    ConfigureHealthChecks(context);

    Configure<PermissionManagementOptions>(options =>
    {
        options.IsDynamicPermissionStoreEnabled = true;
    });

    Configure<AbpMvcLibsOptions>(options =>
    {
        options.CheckLibs = false;
    });
}

private void ConfigureHealthChecks(ServiceConfigurationContext context)
{
    context.Services.AddApproachHealthChecks();
}

private void ConfigureUrls(IConfiguration configuration)
{
    Configure<AppUrlOptions>(options =>
    {
    });
}

private void ConfigureCache(IConfiguration configuration)
{
    Configure<AbpDistributedCacheOptions>(options =>
    {
        options.KeyPrefix = "Approach:";
    });
}

private void ConfigureVirtualFileSystem(ServiceConfigurationContext context)
{
    var hostingEnvironment = context.Services.GetHostingEnvironment();

    if (hostingEnvironment.IsDevelopment())
    {
        Configure<AbpVirtualFileSystemOptions>(options =>
        {
            options.FileSets.ReplaceEmbeddedByPhysical<ApproachDomainSharedModule>(Path.Combine(hostingEnvironment.ContentRootPath, string.Format("..{0}..{0}src{0}Approach.Domain.Shared", Path.DirectorySeparatorChar)));
            options.FileSets.ReplaceEmbeddedByPhysical<ApproachDomainModule>(Path.Combine(hostingEnvironment.ContentRootPath, string.Format("..{0}..{0}src{0}Approach.Domain", Path.DirectorySeparatorChar)));
            options.FileSets.ReplaceEmbeddedByPhysical<ApproachApplicationContractsModule>(Path.Combine(hostingEnvironment.ContentRootPath, string.Format("..{0}..{0}src{0}Approach.Application.Contracts", Path.DirectorySeparatorChar)));
            options.FileSets.ReplaceEmbeddedByPhysical<ApproachApplicationModule>(Path.Combine(hostingEnvironment.ContentRootPath, string.Format("..{0}..{0}src{0}Approach.Application", Path.DirectorySeparatorChar)));
            options.FileSets.ReplaceEmbeddedByPhysical<ApproachHttpApiModule>(Path.Combine(hostingEnvironment.ContentRootPath, string.Format("..{0}..{0}src{0}Approach.HttpApi", Path.DirectorySeparatorChar)));
        });
    }
}

private void ConfigureConventionalControllers()
{
    Configure<AbpAspNetCoreMvcOptions>(options =>
    {
        options.ConventionalControllers.Create(typeof(ApproachApplicationModule).Assembly);
    });
}

/*private void ConfigureConventionalControllers()
{
    Configure<AbpAspNetCoreMvcOptions>(options =>
    {
        options.ConventionalControllers.Create(typeof(TMS_MVCApplicationModule).Assembly);
    });
} */

private void ConfigureAuthentication(ServiceConfigurationContext context, IConfiguration configuration)
{
    var key = Encoding.UTF8.GetBytes(configuration["LMSJWTKey"]);
    context.Services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
       .AddAbpJwtBearer(options =>
        {
            options.Authority = configuration["AuthServer:Authority"];
            options.RequireHttpsMetadata = configuration.GetValue<bool>("AuthServer:RequireHttpsMetadata");
            options.Audience = "Approach";
        })
         .AddJwtBearer("LMSAPI", options =>
         {
             options.TokenValidationParameters = new TokenValidationParameters
             {
                 ValidateIssuerSigningKey = true,
                 IssuerSigningKey = new SymmetricSecurityKey(key),
                 ValidateIssuer = false,
                 ValidateAudience = false
             };
         });

        context.Services.Configure<AbpClaimsPrincipalFactoryOptions>(options =>
        {
            options.IsDynamicClaimsEnabled = true;
        });
}

private static void ConfigureSwagger(ServiceConfigurationContext context, IConfiguration configuration)
{
    /* context.Services.AddAbpSwaggerGenWithOidc(
         configuration["AuthServer:Authority"]!,
         ["Approach"],
         [AbpSwaggerOidcFlows.AuthorizationCode],
         configuration["AuthServer:MetaAddress"],
         options =>
         {
             options.SwaggerDoc("v1", new OpenApiInfo { Title = "Approach API", Version = "v1" });
             options.DocInclusionPredicate((docName, description) => true);
             options.CustomSchemaIds(type => type.FullName);
         });*/
    context.Services.AddAbpSwaggerGenWithOidc(
 configuration["AuthServer:Authority"]!,
 new[] { "Approach" }, // API resource name(s)
 new[] { AbpSwaggerOidcFlows.AuthorizationCode }, // OIDC flow(s)
 configuration["AuthServer:MetaAddress"],
 options =>
 {
     options.SwaggerDoc("v1", new Microsoft.OpenApi.Models.OpenApiInfo
     {
         Title = "Approach API",
         Version = "v1"
     });
    /* options.AddSecurityDefinition("Bearer", new OpenApiSecurityScheme
     {
         Description = "Enter: Bearer {your JWT token}",
         Name = "Authorization",
         In = ParameterLocation.Header,
         Type = SecuritySchemeType.Http,
         Scheme = "bearer",
         BearerFormat = "JWT"
     });*/

     options.DocInclusionPredicate((docName, description) => true);
     options.CustomSchemaIds(type => type.FullName);
 });

}

private void ConfigureDataProtection(
    ServiceConfigurationContext context,
    IConfiguration configuration,
    IWebHostEnvironment hostingEnvironment)
{
    if (AbpStudioAnalyzeHelper.IsInAnalyzeMode)
    {
        return;
    }

    var dataProtectionBuilder = context.Services.AddDataProtection().SetApplicationName("Approach");
    if (!hostingEnvironment.IsDevelopment())
    {
        var redis = ConnectionMultiplexer.Connect(configuration["Redis:Configuration"]!);
        dataProtectionBuilder.PersistKeysToStackExchangeRedis(redis, "Approach-Protection-Keys");
    }
}

private void ConfigureDistributedLocking(
	ServiceConfigurationContext context,
	IConfiguration configuration)
{
    if (AbpStudioAnalyzeHelper.IsInAnalyzeMode)
    {
        return;
    }

    context.Services.AddSingleton<IDistributedLockProvider>(sp =>
    {
        var connection = ConnectionMultiplexer.Connect(configuration["Redis:Configuration"]!);
        return new RedisDistributedSynchronizationProvider(connection.GetDatabase());
    });
}

private void ConfigureCors(ServiceConfigurationContext context, IConfiguration configuration)
{
    context.Services.AddCors(options =>
    {
        options.AddDefaultPolicy(builder =>
        {
            builder
                .WithOrigins(
                    configuration["App:CorsOrigins"]?
                        .Split(",", StringSplitOptions.RemoveEmptyEntries)
                        .Select(o => o.Trim().RemovePostFix("/"))
                        .ToArray() ?? Array.Empty<string>()
                )
                .WithAbpExposedHeaders()
                .SetIsOriginAllowedToAllowWildcardSubdomains()
                .AllowAnyHeader()
                .AllowAnyMethod()
                .AllowCredentials();
        });
    });
}


private void ConfigureExternalProviders(ServiceConfigurationContext context)
{
    context.Services
        .AddDynamicExternalLoginProviderOptions<GoogleOptions>(
            GoogleDefaults.AuthenticationScheme,
            options =>
            {
                options.WithProperty(x => x.ClientId);
                options.WithProperty(x => x.ClientSecret, isSecret: true);
            }
        )
        .AddDynamicExternalLoginProviderOptions<MicrosoftAccountOptions>(
            MicrosoftAccountDefaults.AuthenticationScheme,
            options =>
            {
                options.WithProperty(x => x.ClientId);
                options.WithProperty(x => x.ClientSecret, isSecret: true);
            }
        )
        .AddDynamicExternalLoginProviderOptions<TwitterOptions>(
            TwitterDefaults.AuthenticationScheme,
            options =>
            {
                options.WithProperty(x => x.ConsumerKey);
                options.WithProperty(x => x.ConsumerSecret, isSecret: true);
            }
        );
}

public override void OnApplicationInitialization(ApplicationInitializationContext context)
{
    var app = context.GetApplicationBuilder();
    var env = context.GetEnvironment();

    app.UsePathBase("/api/approach");

    if (env.IsDevelopment())
    {
        app.UseDeveloperExceptionPage();
    }

    app.UseAbpRequestLocalization();
    app.UseRouting();
    app.MapAbpStaticAssets();
    app.UseAbpStudioLink();
    app.UseAbpSecurityHeaders();
    app.UseCors();
    app.UseAuthentication();

    if (MultiTenancyConsts.IsEnabled)
    {
        app.UseMultiTenancy();
    }

    app.UseUnitOfWork();
    app.UseDynamicClaims();
    app.UseAuthorization();

    app.UseSwagger();
    app.UseAbpSwaggerUI(options =>
    {
        options.SwaggerEndpoint("/api/approach/swagger/v1/swagger.json", "Approach API");
        //options.RoutePrefix = "api/approach/swagger";

        var configuration = context.GetConfiguration();
        options.OAuthClientId(configuration["AuthServer:SwaggerClientId"]);
    });
    app.UseAuditing();
    app.UseAbpSerilogEnrichers();
    app.UseConfiguredEndpoints();
}

}

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Can you share the project via https://wetransfer.com/

Run abp clean and zip the project.

Thanks.

0

sghorakavi@cpat.com created 10 months ago

Transferred file. Thank you, Sudha

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Can you add your test code to a new template project? It would be very simple to run it

Thanks

0

sghorakavi@cpat.com created 10 months ago

plsease compile the code and run https://localhost:44320/api/approach it goes to https://localhost:44320/api/approach/swagger/index.html and does not see json file. pls check

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

I can't access the https://pkgs.dev.azure.com/CPaT/_packaging/CPaT/nuget/v3/index.json

Can you add your code to a new template project?

Thanks.

0

sghorakavi@cpat.com created 10 months ago

Did you see any files under https://wetransfer.com/ ? Sudha

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

I can't build this project

0

sghorakavi@cpat.com created 10 months ago

We do not need that nuget package. The issue is in Hostapi. Can you compile that by itself ?

Approach.HttpApi.Host project can you run that ? Thank you,

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Still cant restore and build Approach.HttpApi.Host

Can you add the test Swagger code to a new project?

Thanks

0

sghorakavi@cpat.com created 10 months ago

created new project, pls check https://localhost:44390/api/approach

Uploading to that trasfer folder

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Can you upload it to wetransfer and share the download link again?

Thanks

0

sghorakavi@cpat.com created 10 months ago

DELETED

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

You shared too many files. : )

I run the src/Sample.HttpApi.Host and src/Sample.AuthServer projects, and the Swagger works without any problems.

0

sghorakavi@cpat.com created 10 months ago

Sorry about number of files. Question, is there any cache that will not allow me to launch my host swagger ?

I ran: abp clean, dotnet clean redis-cli flishall cleared all browser cache.

Did I miss anything else ? Thank you very much, Sudha

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Have you started the AuthServer project?

Can you share the API debug logs and the HAR file for your Swagger page?

https://abp.io/support/questions/8622/How-to-enable-Debug-logs-for-troubleshoot-problems https://abp.io/support/questions/8622/How-to-enable-Debug-logs-for-troubleshoot-problems#answer-3a1a1c4b-691e-3403-98b9-5f23fa024759

Thanks.

0

sghorakavi@cpat.com created 10 months ago

[maliming] said: hi

Have you started the AuthServer project?

Can you share the API debug logs and the HAR file for your Swagger page?

https://abp.io/support/questions/8622/How-to-enable-Debug-logs-for-troubleshoot-problems https://abp.io/support/questions/8622/How-to-enable-Debug-logs-for-troubleshoot-problems#answer-3a1a1c4b-691e-3403-98b9-5f23fa024759

Thanks.

Yes, started authserver. Sending you logs via email.

Thank you, Sudha

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

Thanks. You can share the logs via https://wetransfer.com/

0

maliming created 10 months ago

Support Team Fullstack Developer

hi

I got the har files, Can you share the debug logs?

Thanks.

Framework

Tools

Mobile

Startup Templates

UI

Modules

36 Answer(s)

ABP Live Training
Packages

Mastering
ABP Framework

Framework

Tools

Mobile

Startup Templates

UI

Modules

More

More

More

More

Rename hostapi from https://localhost:44320 to https://localhost:44320/api/auth #10185

36 Answer(s)

ABP Live TrainingPackages

MasteringABP Framework

ABP Live Training
Packages

Mastering
ABP Framework
