Time-out connecting to a service via interception o Microservices Solution #10203

1 Answer(s)

•

  0

  AI-Bot created 19 hours ago

  Support Team ABP Agent

  1. Solution Based on your screenshots and symptoms there are two separate issues:

  A) AuthServer discovery shows HTTP endpoints (Angular rejects them) B) ABP Studio interception cannot reach cluster services (timeouts to Postgres/Redis via WireGuard)

  Fix A – make discovery document fully HTTPS behind ingress/reverse proxy

  • Ensure the AuthServer publishes HTTPS URLs in the discovery document, even if Kestrel listens on HTTP behind an ingress. Add both settings below:
    • App settings: "AuthServer": { "Authority": "https://your-auth-host", "RequireHttpsMetadata": true }
    • Module configuration (set issuer and relax OpenIddict transport only if you must run plain HTTP internally):

  public override void PreConfigureServices(ServiceConfigurationContext context)
    {
        var configuration = context.Services.GetConfiguration();

        PreConfigure<OpenIddictServerBuilder>(builder =>
        {
            builder.SetIssuer(new Uri(configuration["AuthServer:Authority"]!));
        });
    }

    public override void ConfigureServices(ServiceConfigurationContext context)
    {
        var env = context.Services.GetHostingEnvironment();
        var configuration = context.Services.GetConfiguration();

        if (!env.IsDevelopment())
        {
            // Honor X-Forwarded-* to build correct HTTPS URLs and cookies
            context.Services.Configure<ForwardedHeadersOptions>(o =>
            {
                o.ForwardedHeaders = ForwardedHeaders.XForwardedFor
                                   | ForwardedHeaders.XForwardedProto
                                   | ForwardedHeaders.XForwardedHost;
                o.KnownNetworks.Clear();
                o.KnownProxies.Clear();
            });
        }

        // If you cannot keep RequireHttpsMetadata=true, add this to avoid OpenIddict rejecting HTTP (not recommended for production):
        if (!configuration.GetValue<bool>("AuthServer:RequireHttpsMetadata"))
        {
            Configure<OpenIddictServerAspNetCoreOptions>(options =>
            {
                options.DisableTransportSecurityRequirement = true;
            });
        }
    }

    public override void OnApplicationInitialization(ApplicationInitializationContext context)
    {
        var app = context.GetApplicationBuilder();
        var env = context.GetEnvironment();

        if (!env.IsDevelopment())
        {
            app.UseForwardedHeaders();
        }

        // Optional hard override if your proxy doesn’t forward scheme correctly:
        // app.Use((ctx, next) => { ctx.Request.Scheme = "https"; return next(); });

        app.UseRouting();
        app.UseAuthentication();
        app.UseAuthorization();
        app.UseConfiguredEndpoints();
    }


  • In your ingress/reverse proxy (nginx/ingress controller) forward these headers:
    • X-Forwarded-Proto $scheme
    • X-Forwarded-Host $host
    • X-Forwarded-For $proxy_add_x_forwarded_for
    • Host $host
  • Seed/ensure RedirectAllowedUrls, CorsOrigins and clients use the same public https origin as Authority.

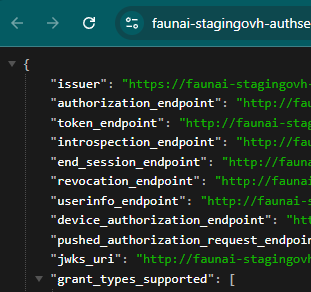

  • Verify the discovery document now shows https for all endpoints and jwks_uri.

  Fix B – ABP Studio interception timeouts to in-cluster services

  • ABP Studio’s tunnel relies on:
    • The VPN client connected (abp-wg-easy and abp-studio-proxy pods healthy)
    • Local hosts file entries for service DNS names
    • The cluster allowing access to ClusterIP services via the VPN CIDR
  • Checklist:

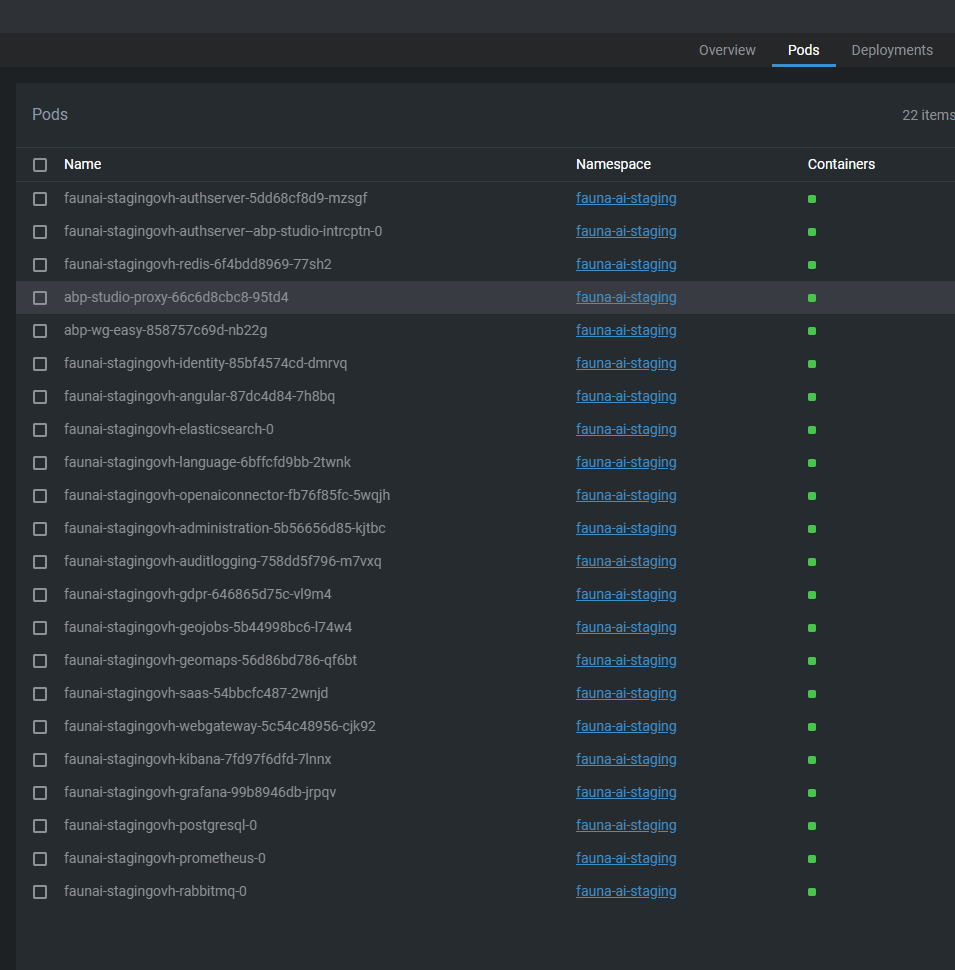

    • Confirm “Connected” state in Studio and abp-wg-easy-vpn + abp-studio-proxy pods are Running.

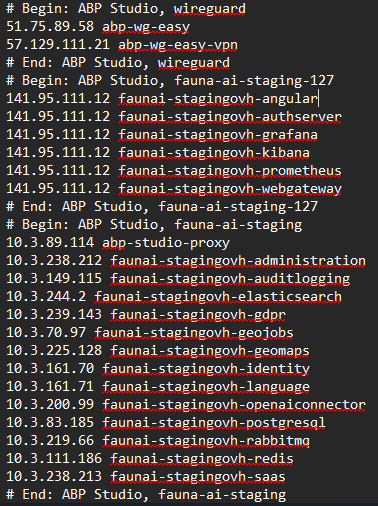

    • Ensure your OS hosts file contains the entries Studio added (your screenshot shows them). Do not override them with other entries.
    • Verify your local machine can resolve and ping ClusterIP addresses (e.g., nslookup fauna-ai-staging-postgresql then ping that IP). If ICMP is blocked, test TCP:

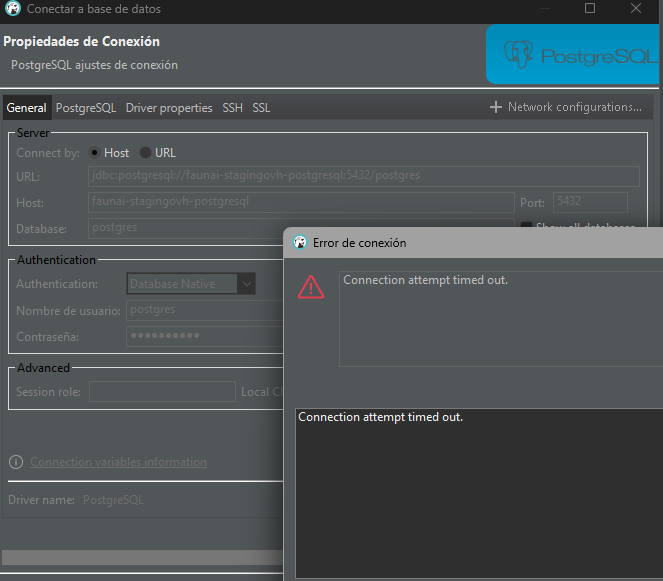

      • Test DB: psql or tcp ping via PowerShell: Test-NetConnection fauna-ai-staging-postgresql -Port 5432
      • Test Redis: Test-NetConnection fauna-ai-stagingovh-redis -Port 6379
    • If these time out:
      • Check your cluster network policies: allow traffic from the WireGuard VPN CIDR to service ClusterIPs/ports (5432, 6379, etc.).
      • Check firewall rules on the cluster nodes for the VPN interface.
      • Ensure no corporate VPN/split-tunnel is overriding the ABP WireGuard route to the cluster CIDR.
    • When intercepting a service, start your local service with Kestrel (not IIS Express) and let Studio inject environment variables so it uses in-cluster connection strings and Redis.
    • If you see “Authorization failed! Given policy has not granted.” while debugging intercepted apps, run the create-tls-secret.ps1 in etc/helm and restart the app.

  Notes specific to Angular and GW

  • Angular strict discovery validation requires all discovery URLs be https. After applying Fix A, Angular should stop rejecting the endpoints.
  • Make sure all microservices/gateway use ForwardedHeaders and that their RemoteServices.BaseUrl, AuthServer.Authority, and SelfUrl point to public https hosts (not internal service names) when serving browser traffic via the gateway.
  • For 127.0.0.1 client IPs in logs, enable ForwardedHeaders in every service/app so ABP can read the real client IP from X-Forwarded-For.

  2. Sources

  • ABP Studio – Kubernetes interception (includes TLS secret note and interception behavior)
    • https://abp.io/docs/latest/studio/kubernetes
  • Community thread (OpenIddict HTTPS behind proxy; issuer/authority and forwarded headers patterns)
    • https://abp.io/support/questions/4338
  • Community article: Kubernetes tunnel and interception with ABP Studio (explains VPN, hosts entries, interception)
    • https://abp.io/community/articles/h11utnq8

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.
