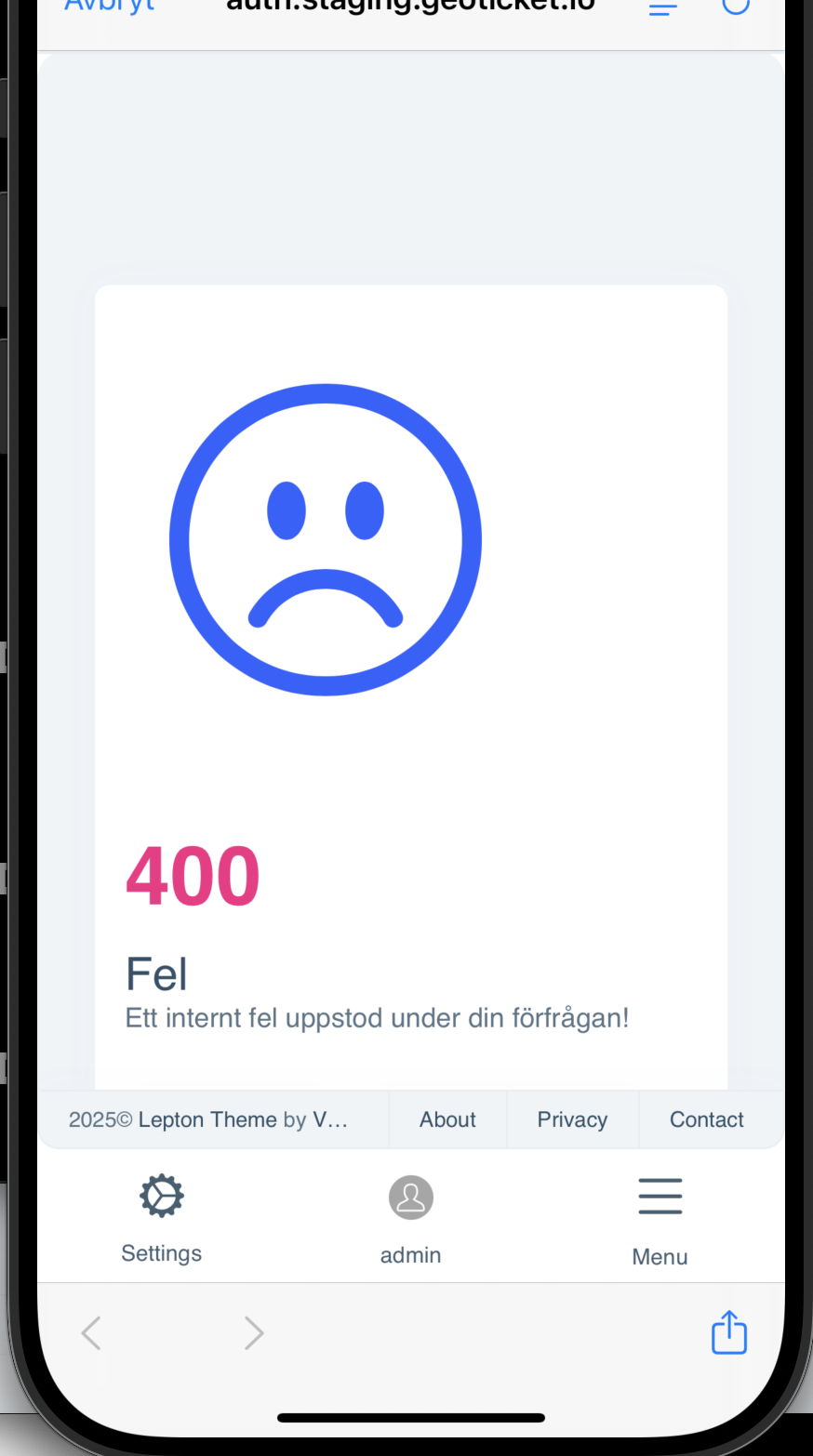

React Native 400 status code when try to Login #10247

1 Answer(s)

•

  0

  AI-Bot created 3 hours ago

  Support Team ABP Agent

  1. Solution A 400 at the end of the OpenID Connect login flow in the React Native (Expo) app almost always means one of these is misconfigured for the mobile client in your Auth Server (OpenIddict) and API host:

  • The client registration (redirect URI, post logout redirect URI, allowed grant types)
  • The RedirectAllowedUrls/CorsOrigins on your HttpApi.Host/AuthServer
  • The final callback scheme in the mobile app

  Checklist to fix:

  1. Register a dedicated mobile client in your Auth Server (OpenIddict) with Authorization Code + PKCE

  • In your XxxDomain/IdentityServer/IdentityServerDataSeedContributor (or the OpenIddict seeding equivalent in v9) add a mobile client like:

  // Mobile (React Native) client
    await CreateClientAsync(
        name: "MyApp_Mobile",
        scopes: new[] { "openid", "profile", "email", "offline_access", "MyService" },
        grantTypes: new[] { "authorization_code" },
        secret: null, // PKCE, public client
        requireClientSecret: false,
        redirectUri: "com.myapp.mobile://callback",
        postLogoutRedirectUri: "com.myapp.mobile://signout-callback",
        corsOrigins: new[] { "https://your-api-host", "https://your-auth-host" }
    );


  • Run DbMigrator (or your data seeder) so the client is created.

  2. Configure RedirectAllowedUrls and CORS on HttpApi.Host (and/or AuthServer)

  • In appsettings.json of your HttpApi.Host (and AuthServer if separated), include your custom scheme callback URI and any dev hosts you use:

  "App": {
      "SelfUrl": "https://api.staging.myproject.io",
      "CorsOrigins": "https://*.myproject.io,http://localhost:19006,exp://127.0.0.1:19000",
      "RedirectAllowedUrls": "com.myapp.mobile://callback,com.myapp.mobile://signout-callback"
    },
    "AuthServer": {
      "Authority": "https://auth.staging.myproject.io",
      "RequireHttpsMetadata": "true"
    }


  • Important: The custom scheme URLs (com.myapp.mobile://callback) must be present in RedirectAllowedUrls, otherwise OpenIddict will reject the authorization code redemption with 400.

  3. Make sure your Expo/React Native app uses the same client and redirect URI

  • In the generated React Native app config (AppConfig.ts or env), set:
    • issuer: https://auth.staging.myproject.io
    • clientId: MyApp_Mobile
    • redirectUri: com.myapp.mobile://callback
    • scopes: openid profile email offline_access [and your API scope]
    • use PKCE and no client secret (public client)

  4. Configure native URL scheme on iOS/Android

  • iOS: Add CFBundleURLSchemes including com.myapp.mobile
  • Android: Set the intent filter (or appAuthRedirectScheme if using react-native-app-auth) to com.myapp.mobile
  • Expo: In app.json/app.config, define scheme: "com.myapp.mobile"

  5. Multi-tenancy header (if applicable)

  • If you use multi-tenancy and the mobile user is not in host, ensure the Abp-TenantId or domain-based tenant resolution matches the login you try. Mismatch can also result in unexpected auth errors.

  6. Clear cookies/session and retry

  • A stale session in the in-app browser can cause “Unprotect ticket failed” in logs. Close the in-app browser, revoke the app session, then retry.

  7. Verify SSL/cert trust on simulator/device

  • If the device/simulator does not trust your staging certificate, the token exchange can fail. Ensure full chain is trusted.

  Why 400 appears:

  • OpenIddict returns 400 when redirect_uri does not match the registered client, when the client is not allowed for the requested flow, or when PKCE/verification fails. The “Unprotect ticket failed” in your logs indicates an invalid/expired/foreign cookie or state in the front-channel, but the final cause for the mobile error is almost always a redirect URI mismatch or missing RedirectAllowedUrls entry.

  Quick minimal set you can copy:

  • Seed client:

  await CreateClientAsync(
      name: "MyApp_Mobile",
      scopes: new[] { "openid", "profile", "email", "offline_access", "MyService" },
      grantTypes: new[] { "authorization_code" },
      requireClientSecret: false,
      redirectUri: "com.myapp.mobile://callback",
      postLogoutRedirectUri: "com.myapp.mobile://signout-callback",
      corsOrigins: new[] { "https://auth.staging.myproject.io", "https://api.staging.myproject.io" }
    );


  • HttpApi.Host appsettings.json:

  "App": {
      "CorsOrigins": "https://*.myproject.io,http://localhost:19006,exp://127.0.0.1:19000",
      "RedirectAllowedUrls": "com.myapp.mobile://callback,com.myapp.mobile://signout-callback"
    }


  • React Native (Expo) OAuth config:

  export const oAuthConfig = {
      issuer: 'https://auth.staging.myproject.io',
      clientId: 'MyApp_Mobile',
      redirectUri: 'com.myapp.mobile://callback',
      scopes: ['openid', 'profile', 'email', 'offline_access', 'MyService'],
    };


  If you apply the above, the React Native login should complete and the token exchange should return 200 with tokens instead of 400.

  2. Sources

  • ABP Support thread explaining 401/login redirect behaviors and headers:
    • https://abp.io/support/questions/3281
  • ABP Community guides showing mobile client registration, grant types, redirect URIs and host settings patterns (use as reference for allowed redirects/CORS and mobile client definition):
    • https://abp.io/support/questions/1989
    • https://abp.io/support/questions/3339

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.
