We need a meeting to take sample abp mvc layered project using pathbased routing #10387

7 Answer(s)

•

  0

  AI-Bot created 3 days ago

  Support Team ABP Agent

  • What you want is PathBase / virtual directory hosting for each app in a tiered MVC solution:

    • AuthServer: https://localhost:44318/auth
    • HttpApi.Host: https://localhost:44392/portal/api
    • Web (MVC UI): https://localhost:44374/portal

  • In ABP (including v9.3.6), the reliable way to do this is:

    1. Set PathBase (ASP.NET Core UsePathBase) for each application.
    2. Ensure ABP-generated URLs are correct by setting SelfUrl (and the relevant remote service base URLs) to include the same base path.
    3. Update OpenIddict client redirect/logout URLs (seed data / DbMigrator / appsettings) to include /portal/... and /auth/....
    4. Make sure cookies work with these base paths (cookie path considerations).

  1) AuthServer at /auth

  In AuthServer (YourProject.AuthServer) add PathBase early in the pipeline:

  // in OnApplicationInitialization / Program.cs pipeline
  app.UsePathBase("/auth");


  Then set AuthServer self URL accordingly in appsettings.json:

  "App": {
    "SelfUrl": "https://localhost:44318/auth"
  }


  Also ensure the OIDC issuer/authority used by clients points to:

  • https://localhost:44318/auth

  2) HttpApi.Host at /portal/api

  In HttpApi.Host add:

  app.UsePathBase("/portal/api");


  Set:

  "App": {
    "SelfUrl": "https://localhost:44392/portal/api"
  }


  If your MVC UI calls this API via remote services, set the remote service base URL (commonly in Web project) to include /portal/api.

  3) MVC Web at /portal

  In Web (MVC UI) add:

  app.UsePathBase("/portal");


  Set:

  "App": {
    "SelfUrl": "https://localhost:44374/portal"
  }


  And update the AuthServer authority used by Web:

  "AuthServer": {
    "Authority": "https://localhost:44318/auth",
    "RequireHttpsMetadata": "false"
  }


  4) Update OpenIddict client redirect URIs (critical)

  Because you changed the base paths, the redirect endpoints change too:

  • Web redirect URI becomes:
    • https://localhost:44374/portal/signin-oidc
  • Web post logout redirect becomes:
    • https://localhost:44374/portal/signout-callback-oidc
  • Swagger redirect (if used on API) becomes:
    • https://localhost:44392/portal/api/swagger/oauth2-redirect.html

  So you must update your OpenIddict application/client configuration in the database (or via ABP data seeding / DbMigrator configuration) to use the new URLs.

  5) Notes about “meeting”

  For non-technical requests like arranging a meeting, please contact us at:

  • https://abp.io/contact

  ---

  (sources)

  • https://abp.io/docs/latest/solution-templates/layered-web-application/solution-structure
  • https://abp.io/support/questions/1048
  • https://abp.io/contact

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  sghorakavi@cpat.com created 3 days ago

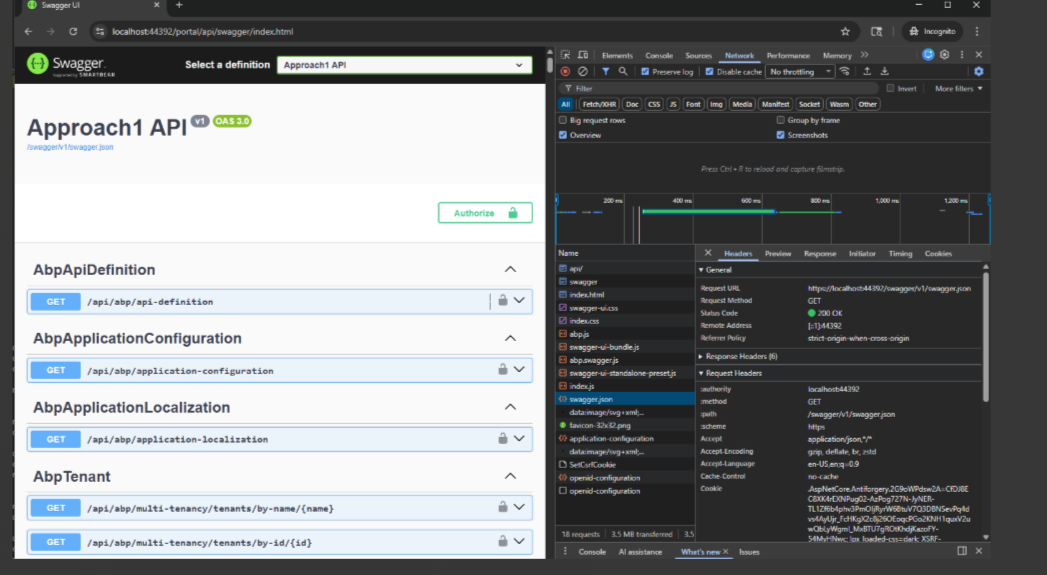

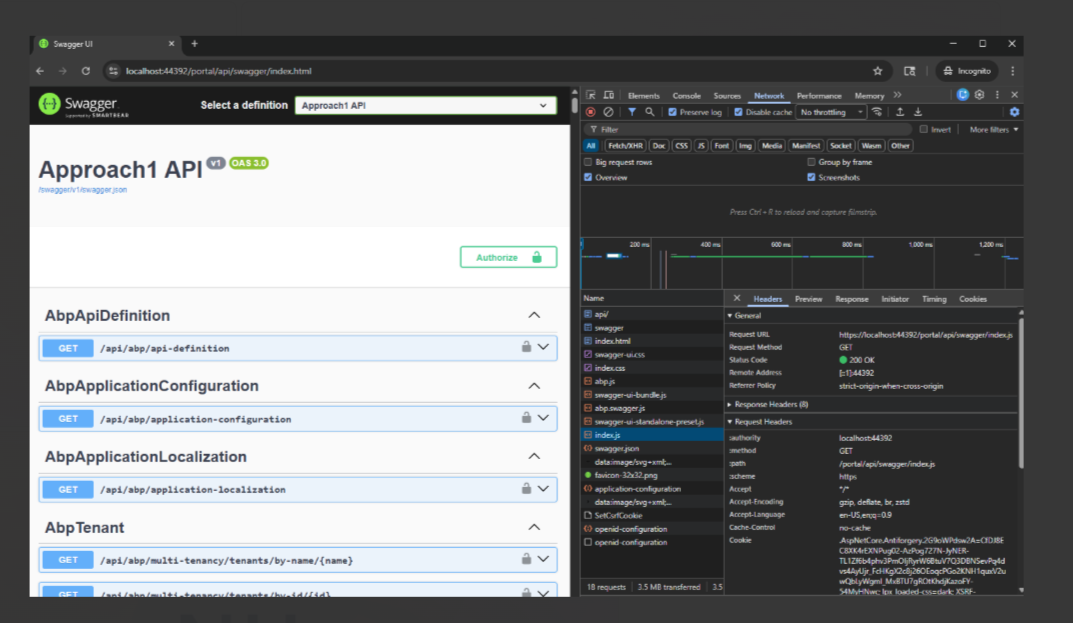

  the swagger.json file path is incorrect from https://localhost:44392/portal/api => opens https://localhost:44392/swagger/v1/swagger.json

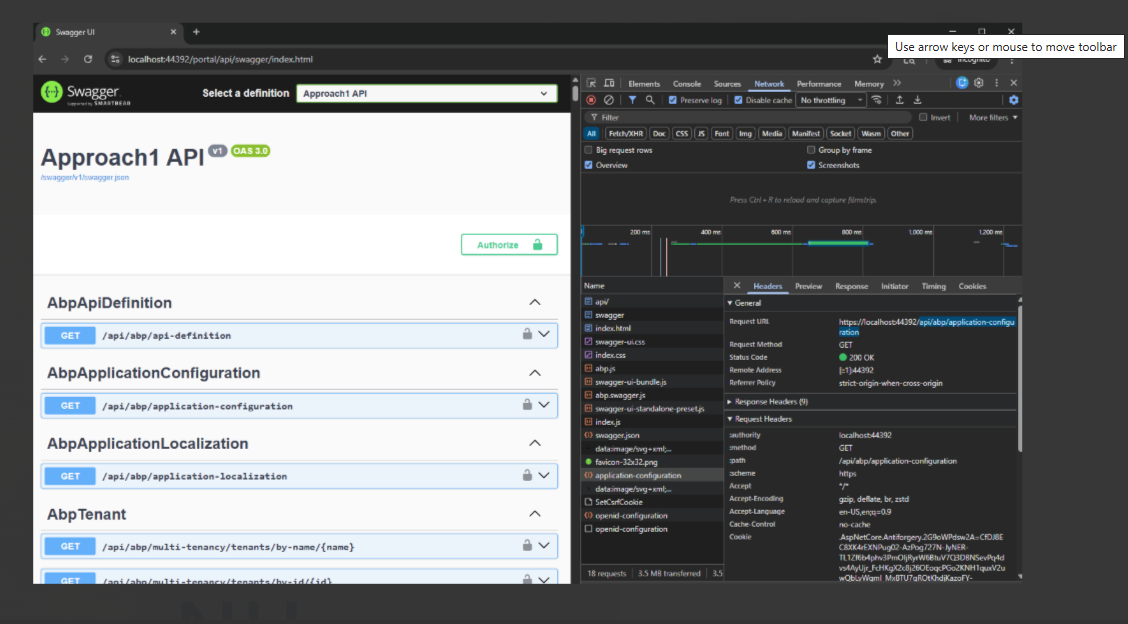

  swagger.json and application-configuration are not using the correct paths, they should be prefixed with /portal/api/







  <br>

  Save Cancel
•

  1

  maliming created 2 days ago

  Support Team Fullstack Developer

  hi

  Can you try to set the abp.appPath?

  Please relace myscript with script

  app.UseAbpSwaggerUI(options =>
  {
      options.SwaggerEndpoint("/mytest/swagger/v1/swagger.json", "Test MyProjectName API");

      var builder = new StringBuilder(options.HeadContent);
      builder.AppendLine($"<myscript>abp.appPath = '/mytest/';</myscript>");
      options.HeadContent = builder.ToString();

  });


  Thanks.

  Save Cancel
•

  0

  sghorakavi@cpat.com created 2 days ago

  [maliming] said: hi

  Can you try to set the abp.appPath?

  Please relace myscript with script

  app.UseAbpSwaggerUI(options =>
  {
      options.SwaggerEndpoint("/mytest/swagger/v1/swagger.json", "Test MyProjectName API");

      var builder = new StringBuilder(options.HeadContent);
      builder.AppendLine($"<myscript>abp.appPath = '/mytest/';</myscript>");
      options.HeadContent = builder.ToString();

  });


  Thanks.

  Thank you, Can you pls send me sample script ?

  Here is our code now

  app.UseSwagger();
   app.UseAbpSwaggerUI(options =>
   {
       options.SwaggerEndpoint("/swagger/v1/swagger.json", "Approach API");

       var configuration = context.GetConfiguration();
       options.OAuthClientId(configuration["AuthServer:SwaggerClientId"]);
   });


  We use app.UsePathBase("/portal/api"); in the program.cs

  Save Cancel
•

  0

  maliming created yesterday

  Support Team Fullstack Developer

  hi

  You can try code below:

  app.UseSwagger();
  app.UseAbpSwaggerUI(options =>
  {
      options.SwaggerEndpoint("/portal/api/swagger/v1/swagger.json", "Approach API");

      var builder = new StringBuilder(options.HeadContent);
      builder.AppendLine($"<myscript>abp.appPath = '/portal/api/';</myscript>");
      options.HeadContent = builder.ToString();

      var configuration = context.GetConfiguration();
      options.OAuthClientId(configuration["AuthServer:SwaggerClientId"]);
  });


  Thanks.

  Save Cancel
•

  0

  sghorakavi@cpat.com created yesterday

  [maliming] said: hi

  You can try code below:

  app.UseSwagger();
  app.UseAbpSwaggerUI(options =>
  {
      options.SwaggerEndpoint("/portal/api/swagger/v1/swagger.json", "Approach API");

      var builder = new StringBuilder(options.HeadContent);
      builder.AppendLine($"<myscript>abp.appPath = '/portal/api/';</myscript>");
      options.HeadContent = builder.ToString();

      var configuration = context.GetConfiguration();
      options.OAuthClientId(configuration["AuthServer:SwaggerClientId"]);
  });


  Thanks.

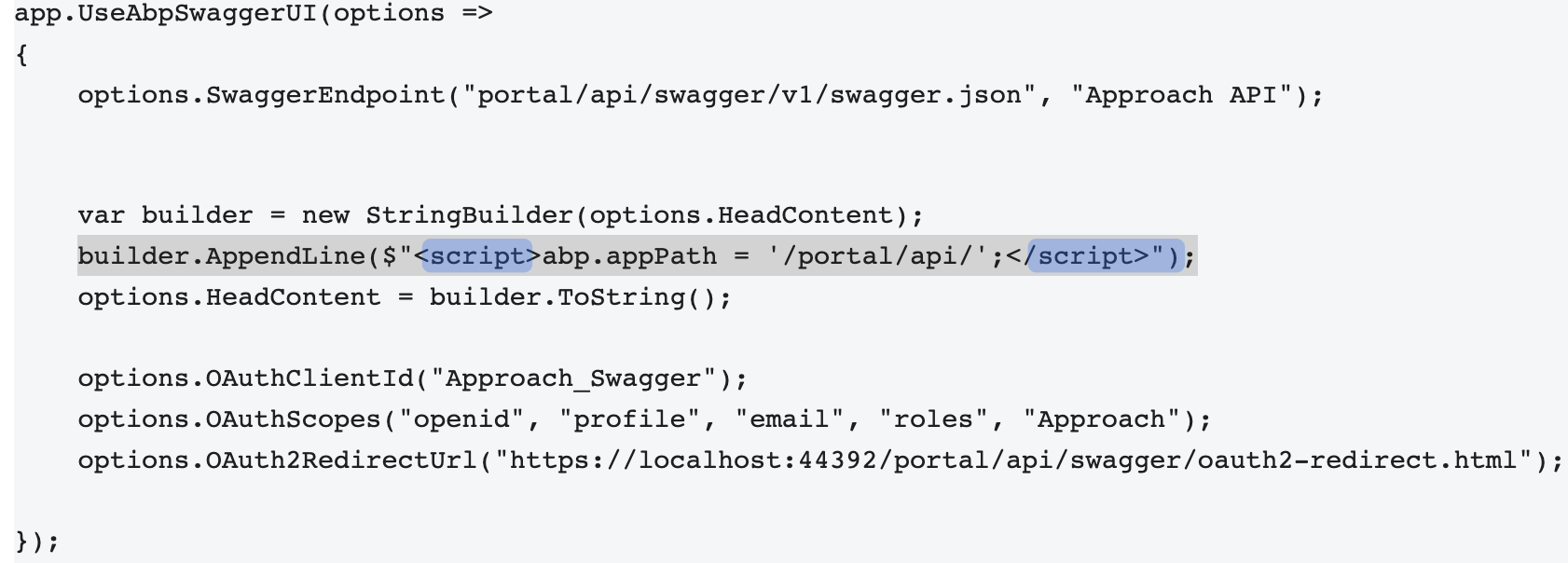

  Testing with `app.UseAbpSwaggerUI(options => { options.SwaggerEndpoint("portal/api/swagger/v1/swagger.json", "Approach API");

  var builder = new StringBuilder(options.HeadContent);
  builder.AppendLine($"<myscript>abp.appPath = '/portal/api/';</myscript>");
  options.HeadContent = builder.ToString();

  options.OAuthClientId("Approach_Swagger");
  options.OAuthScopes("openid", "profile", "email", "roles", "Approach");
  options.OAuth2RedirectUrl("https://localhost:44392/portal/api/swagger/oauth2-redirect.html");


  });` will send you update soon

  Save Cancel
•

  0

  maliming created 17 hours ago

  Support Team Fullstack Developer

  hi

  Please replace myscript with script



  Thanks.

  Save Cancel
