OpenIdConnect redirection issue #8731

SharmaAtul created one month ago

ABP Framework version: v9.0.2
UI Type: MVC
Database System: EF Core (SQL Server)
**Tiered (for MVC) or Auth Server Separated: yes
Exception message and full stack trace: I am back and forward on redirect URL after authenticating with Microsoft Azure AD
Steps to reproduce the issue: I have added my configuration for OpenIdConnect and after that I am facing that issue. Also I am attaching video for reference as well. Video https://jmp.sh/jrphAyUq

These are the logs

2025-01-31 16:46:27.271 +05:30 [INF] Request starting HTTP/2 GET https://localhost:44362/Identity/OrganizationUnits - null null 2025-01-31 16:46:27.274 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessRequestContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ResolveRequestUri. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.AspNetCore.OpenIddictServerAspNetCoreHandlers+ResolveRequestUri. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.OpenIddictServerHandlers+InferEndpointType. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by Volo.Abp.Account.Web.Pages.Account.OpenIddictImpersonateInferEndpointType. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.AspNetCore.OpenIddictServerAspNetCoreHandlers+ValidateTransportSecurityRequirement. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.AspNetCore.OpenIddictServerAspNetCoreHandlers+ValidateHostHeader. 2025-01-31 16:46:27.287 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ValidateHostHeader. 2025-01-31 16:46:27.287 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.OpenIddictValidationHandlers+EvaluateValidatedTokens. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ExtractAccessTokenFromAuthorizationHeader. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ExtractAccessTokenFromBodyForm. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ExtractAccessTokenFromQueryString. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.OpenIddictValidationHandlers+ValidateRequiredTokens. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was marked as rejected by OpenIddict.Validation.OpenIddictValidationHandlers+ValidateRequiredTokens. 2025-01-31 16:46:27.288 +05:30 [DBG] AuthenticationScheme: OpenIddict.Validation.AspNetCore was not authenticated. 2025-01-31 16:46:27.295 +05:30 [INF] Authorization failed. These requirements were not met: PermissionRequirement: AbpIdentity.OrganizationUnits 2025-01-31 16:46:27.296 +05:30 [INF] AuthenticationScheme: OpenIdConnect was challenged. 2025-01-31 16:46:27.300 +05:30 [INF] Request finished HTTP/2 GET https://localhost:44362/Identity/OrganizationUnits - 302 null null 29.4896ms

Go to accepted answer

maliming created one month ago

Support Team Fullstack Developer

Thanks. If your project is complicated, you can test your code in a template project and share the template source code.

SharmaAtul created one month ago

Thanks. If your project is complicated, you can test your code in a template project and share the template source code.

I purchased the mvc project from the ABP.IO.

maliming created one month ago

Support Team Fullstack Developer

Ok, waiting for your project. Thanks

SharmaAtul created one month ago

Ok I have sent you an email with project. As project size was larger after compress so you will get google drive link for download in the email.

maliming created one month ago

Support Team Fullstack Developer

Your project works for me.

SharmaAtul created one month ago

but why it is not showing to me? Is it available only for Host?

SharmaAtul created one month ago

Also what are the changes you applied?

maliming created one month ago

Support Team Fullstack Developer

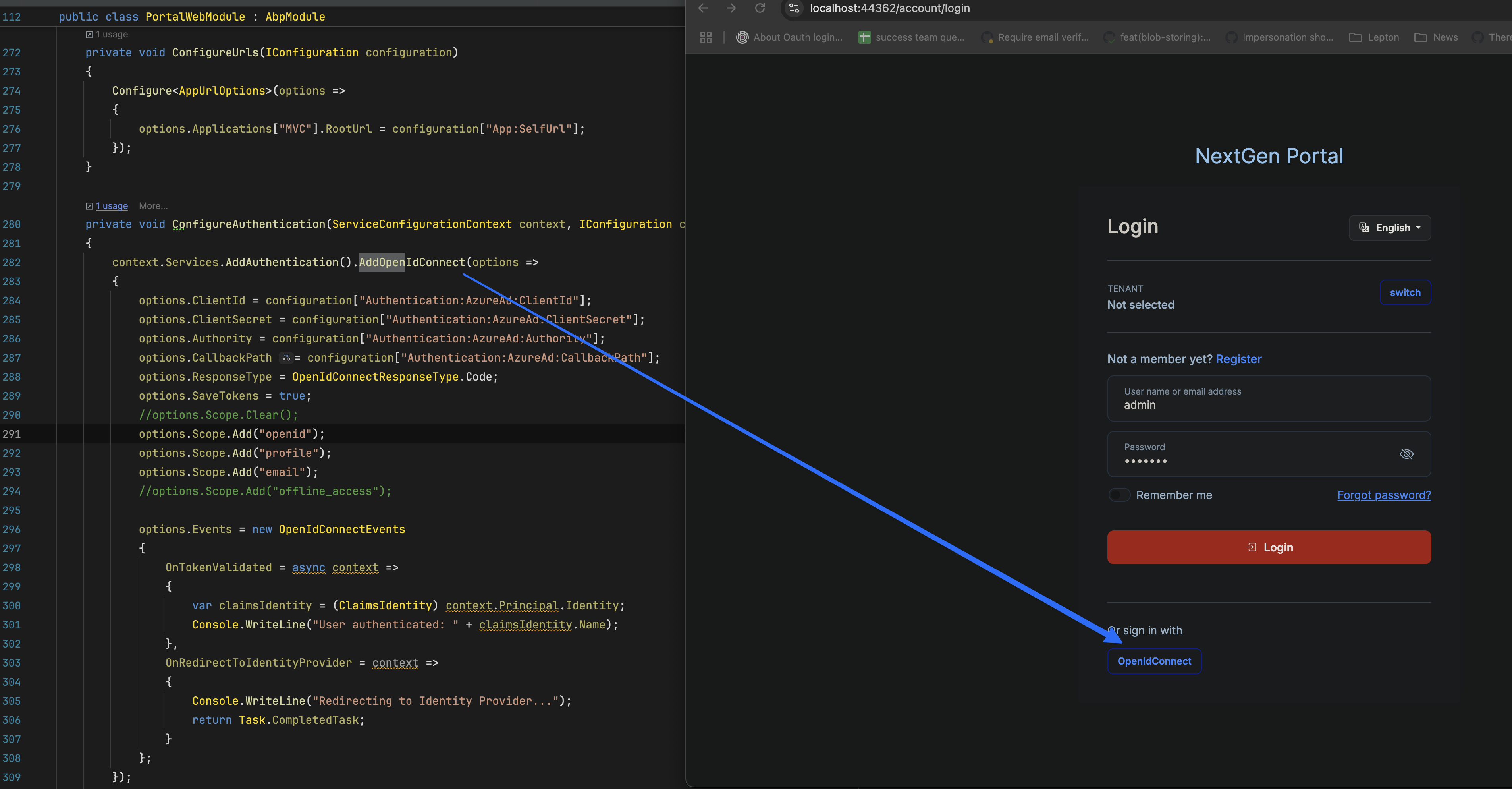

The code of ConfigureAuthentication

private void ConfigureAuthentication(ServiceConfigurationContext context, IConfiguration configuration)
{
    context.Services.AddAuthentication().AddOpenIdConnect(options =>
    {
        options.ClientId = configuration["Authentication:AzureAd:ClientId"];
        options.ClientSecret = configuration["Authentication:AzureAd:ClientSecret"];
        options.Authority = configuration["Authentication:AzureAd:Authority"];
        options.CallbackPath = configuration["Authentication:AzureAd:CallbackPath"];
        options.ResponseType = OpenIdConnectResponseType.Code;
        options.SaveTokens = true;
        //options.Scope.Clear();
        options.Scope.Add("openid");
        options.Scope.Add("profile");
        options.Scope.Add("email");
        //options.Scope.Add("offline_access");

        options.Events = new OpenIdConnectEvents
        {
            OnTokenValidated = async context =>
            {
                var claimsIdentity = (ClaimsIdentity) context.Principal.Identity;
                Console.WriteLine("User authenticated: " + claimsIdentity.Name);
            },
            OnRedirectToIdentityProvider = context =>
            {
                Console.WriteLine("Redirecting to Identity Provider...");
                return Task.CompletedTask;
            }
        };
    });

    // Add authentication using Azure AD
    //context.Services.AddAuthentication(options =>
    //{
    //    options.DefaultScheme = CookieAuthenticationDefaults.AuthenticationScheme;
    //    options.DefaultChallengeScheme = OpenIdConnectDefaults.AuthenticationScheme;
    //})
    //.AddOpenIdConnect(options =>
    //{
    //    options.ClientId = configuration["Authentication:AzureAd:ClientId"];
    //    options.ClientSecret = configuration["Authentication:AzureAd:ClientSecret"];
    //    options.Authority = configuration["Authentication:AzureAd:Authority"];
    //    options.CallbackPath = configuration["Authentication:AzureAd:CallbackPath"];
    //    options.ResponseType = OpenIdConnectResponseType.Code;
    //    options.SaveTokens = true;
    //    //options.Scope.Clear();
    //    options.Scope.Add("openid");
    //    options.Scope.Add("profile");
    //    options.Scope.Add("email");
    //    //options.Scope.Add("offline_access");

    //    options.Events = new OpenIdConnectEvents
    //    {
    //        OnTokenValidated = async context =>
    //        {
    //            var claimsIdentity = (ClaimsIdentity)context.Principal.Identity;
    //            Console.WriteLine("User authenticated: " + claimsIdentity.Name);
    //        },
    //        OnRedirectToIdentityProvider = context =>
    //        {
    //            Console.WriteLine("Redirecting to Identity Provider...");
    //            return Task.CompletedTask;
    //        }
    //    };
    //})
    //.AddCookie(CookieAuthenticationDefaults.AuthenticationScheme, options =>
    //{
    //    options.Cookie.HttpOnly = true;
    //    options.Cookie.SameSite = SameSiteMode.Strict;  // Adjust based on your requirements

    //    options.Events = new CookieAuthenticationEvents
    //    {
    //        OnSigningIn = context =>
    //        {
    //            Console.WriteLine("Signing in user...");
    //            return Task.CompletedTask;
    //        },
    //        OnSignedIn = context =>
    //        {
    //            Console.WriteLine("User signed in: " + context.Principal.Identity.Name);
    //            return Task.CompletedTask;
    //        },
    //        OnSigningOut = context =>
    //        {
    //            Console.WriteLine("Signing out user...");
    //            return Task.CompletedTask;
    //        }
    //    };
    //});

    context.Services.ForwardIdentityAuthenticationForBearer(OpenIddictValidationAspNetCoreDefaults.AuthenticationScheme);
    context.Services.Configure<AbpClaimsPrincipalFactoryOptions>(options =>
    {
        options.IsDynamicClaimsEnabled = true;
    });
}

SharmaAtul created one month ago

Ok let me try with the code you provided.

SharmaAtul created one month ago

Ok it worked for me as well. After that when i clicked on the OpenIdConnect then I got this

maliming created one month ago

Support Team Fullstack Developer

Please share a test user of https://login.microsoftonline.com/

SharmaAtul created one month ago

Please share a test user of https://login.microsoftonline.com/ Username : sharma.atul19@outlook.com Password : atul8outlook

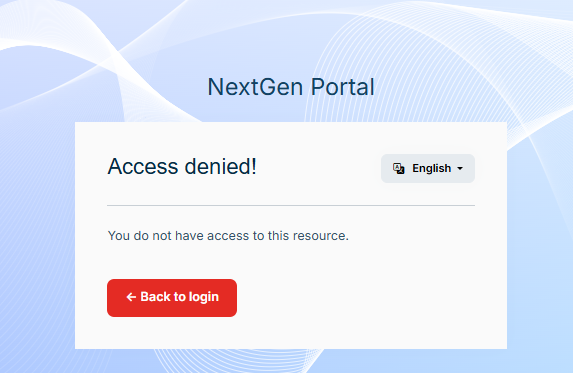

Also when I got the access denied page and click on the Back to login then host selection will be hidden.

maliming created one month ago

Support Team Fullstack Developer

On your mobile device, approve request CBOC1

Please create a new test user.

Thanks.

SharmaAtul created one month ago

Are you getting any error with the user provided?

maliming created one month ago

Support Team Fullstack Developer

no. I'm trying to log in by Microsoft account, Please create a new test user.

I will test your account with your app tomorrow

Thanks.

SharmaAtul created one month ago

Ok I will share the details and Also If I register a user with OpenIdConnect then what will be the default role?

Also, how to set default role to the user?

maliming created one month ago

Support Team Fullstack Developer

If the role is set as default. The new user will have all of default roles.

Please share your test user with liming.ma@volosoft.com

SharmaAtul created one month ago

Hi, I have added a user in our AD with the email liming.ma@volosoft.com, kindly check and confirm if you have received the invitation.

maliming created one month ago

Support Team Fullstack Developer

See the video: https://streamable.com/6uxolk

I can sign in by microsoft account and get username and email then register a new user.

maliming created one month ago

Support Team Fullstack Developer

If you want to change the default user roles.

You can change the code of RegisterExternalUserAsync method of modules/Volo.Abp.Account.Pro/src/Volo.Abp.Account.Pro.Public.Web/Pages/Account/Register.cshtml.cs

SharmaAtul created one month ago

Ok I will check and let you know.

Thanks.

maliming created one month ago

Support Team Fullstack Developer

SharmaAtul created one month ago

Ok it is working now for me.

Also, Instead of going to login page, select tenant and click on openIdConnect, I want to directly open the Microsoft login screen and how we will use tenant selection screen?

maliming created one month ago

Support Team Fullstack Developer

Replace MyTenant with your tenant name.

__tenant=MyTenant

public async Task<IActionResult> OnGetAsync()
{
    if (!CurrentUser.IsAuthenticated)
    {
        var provider = "OpenIdConnect";
        var redirectUrl = "/Account/Login?handler=ExternalLoginCallback&__tenant=MyTenant";
        var properties = SignInManager.ConfigureExternalAuthenticationProperties(provider, redirectUrl);
        properties.Items["scheme"] = provider;
        return Challenge(properties, provider);
    }

    return Page();
}
