Open Closed

OpenIdConnect redirection issue #8731

User avatar
0
SharmaAtul created
  • ABP Framework version: v9.0.2
  • UI Type: MVC
  • Database System: EF Core (SQL Server)
  • **Tiered (for MVC) or Auth Server Separated: yes
  • Exception message and full stack trace: I am back and forward on redirect URL after authenticating with Microsoft Azure AD

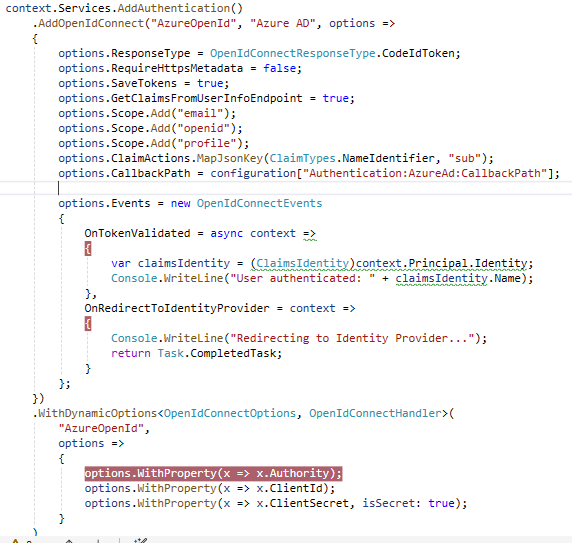

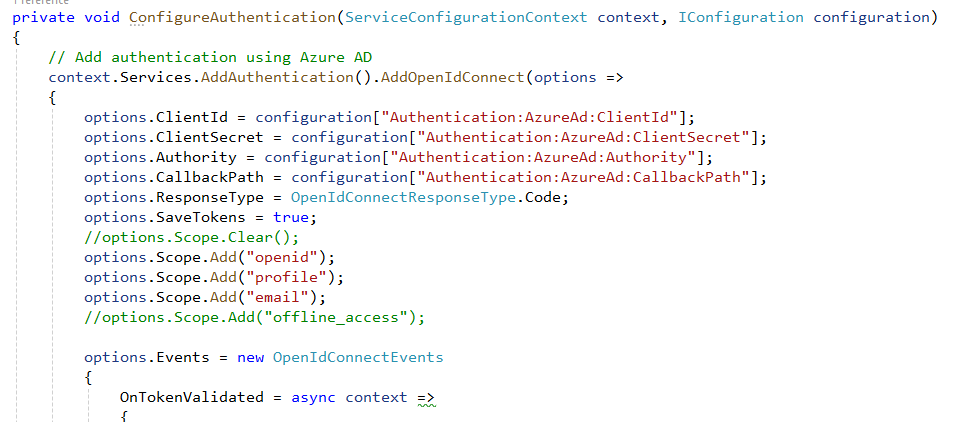

  • Steps to reproduce the issue: I have added my configuration for OpenIdConnect and after that I am facing that issue. Also I am attaching video for reference as well. Video https://jmp.sh/jrphAyUq

These are the logs

2025-01-31 16:46:27.271 +05:30 [INF] Request starting HTTP/2 GET https://localhost:44362/Identity/OrganizationUnits - null null 2025-01-31 16:46:27.274 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessRequestContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ResolveRequestUri. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.AspNetCore.OpenIddictServerAspNetCoreHandlers+ResolveRequestUri. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.OpenIddictServerHandlers+InferEndpointType. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by Volo.Abp.Account.Web.Pages.Account.OpenIddictImpersonateInferEndpointType. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.AspNetCore.OpenIddictServerAspNetCoreHandlers+ValidateTransportSecurityRequirement. 2025-01-31 16:46:27.275 +05:30 [DBG] The event OpenIddict.Server.OpenIddictServerEvents+ProcessRequestContext was successfully processed by OpenIddict.Server.AspNetCore.OpenIddictServerAspNetCoreHandlers+ValidateHostHeader. 2025-01-31 16:46:27.287 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ValidateHostHeader. 2025-01-31 16:46:27.287 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.OpenIddictValidationHandlers+EvaluateValidatedTokens. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ExtractAccessTokenFromAuthorizationHeader. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ExtractAccessTokenFromBodyForm. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.AspNetCore.OpenIddictValidationAspNetCoreHandlers+ExtractAccessTokenFromQueryString. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was successfully processed by OpenIddict.Validation.OpenIddictValidationHandlers+ValidateRequiredTokens. 2025-01-31 16:46:27.288 +05:30 [DBG] The event OpenIddict.Validation.OpenIddictValidationEvents+ProcessAuthenticationContext was marked as rejected by OpenIddict.Validation.OpenIddictValidationHandlers+ValidateRequiredTokens. 2025-01-31 16:46:27.288 +05:30 [DBG] AuthenticationScheme: OpenIddict.Validation.AspNetCore was not authenticated. 2025-01-31 16:46:27.295 +05:30 [INF] Authorization failed. These requirements were not met: PermissionRequirement: AbpIdentity.OrganizationUnits 2025-01-31 16:46:27.296 +05:30 [INF] AuthenticationScheme: OpenIdConnect was challenged. 2025-01-31 16:46:27.300 +05:30 [INF] Request finished HTTP/2 GET https://localhost:44362/Identity/OrganizationUnits - 302 null null 29.4896ms

Go to accepted answer
115 Answer(s)
  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    I dont get it. Can you explain it more?

  • User Avatar
    0
    SharmaAtul created

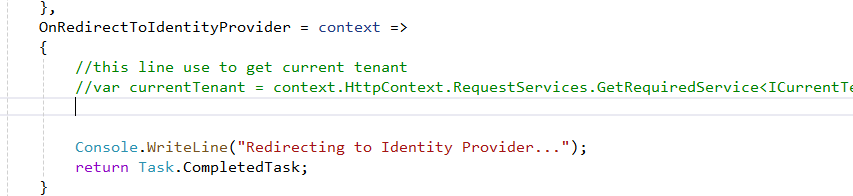

    Here in this method, I need to apply tenant specific Azure AD credentials like ClientId, ClientSecret etc.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    Add a new External Login and change the Authority, ClientId, ClientSecret etc., in the host and tenants.

    The social/External login system is compatible with the multi-tenancy. Each tenant can configure their own provider settings if your application is multi-tenant.

    https://abp.io/docs/latest/modules/account-pro#install-a-new-external-login

  • User Avatar
    0
    SharmaAtul created

    I want to manage with OpenIdConnect.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    It doesn’t support change client id at runtime,that’s why we add the https://abp.io/docs/latest/modules/account-pro#install-a-new-external-login feature.

  • User Avatar
    0
    SharmaAtul created

    how can i add and enable the OpenIdConnect as ExternalLogin?

  • User Avatar
    0
    SharmaAtul created

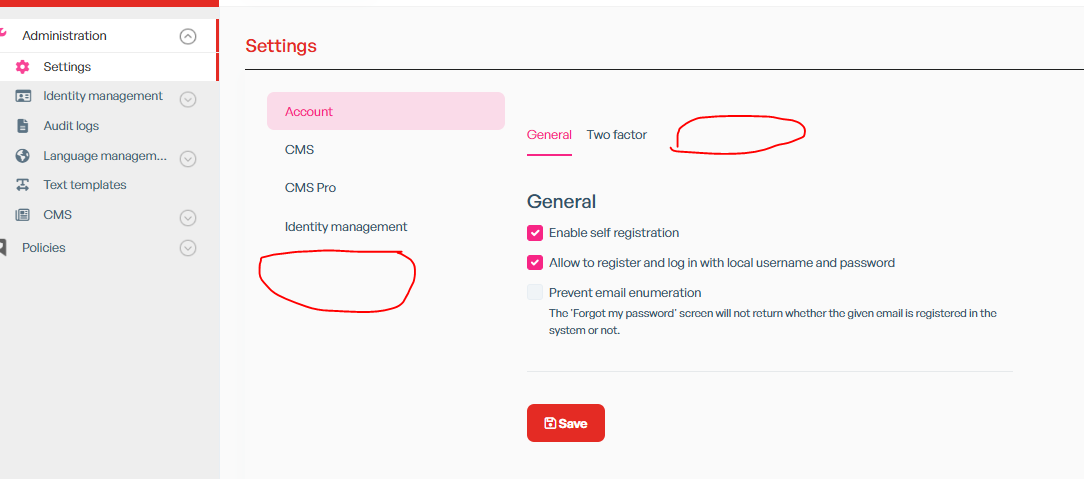

    I am logged in with Default tenant and it is not showing External Provider tab to configure the credentials like mentioned in the provided link? https://abp.io/docs/latest/modules/account-pro#install-a-new-external-login

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    Enable host Google login

    Then override Google setting in a tenant

  • User Avatar
    0
    SharmaAtul created

    Hi, I override the setting and after that I am getting this error

    SecurityTokenInvalidIssuerException: IDX10204: Unable to validate issuer. validationParameters.ValidIssuer is null or whitespace AND validationParameters.ValidIssuers is null or empty.

    Am i missing anything?

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    If you changed the Authority You can use a wildcard domain as Issuer

    {0} can be any tenant name.

    https://github.com/abpframework/abp-samples/blob/f46dabd078361ebb564708cce28fe8a8b7a60494/DomainTenantResolver/OpenIddict/MVC-TIERED/src/Acme.BookStore.Web/BookStoreWebModule.cs#L179-L184

    https://github.com/maliming//Owl.TokenWildcardIssuerValidator

  • User Avatar
    0
    SharmaAtul created

    As you know we are setting authority from the tenant external provider. So How do i set it?

    I can not do the hardcode values as we have dynamic paramaters.

    Please suggest solution accordingly.

  • User Avatar
    0
    SharmaAtul created

    Do i need to set my local url in ValidIssuers?

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    I can not do the hardcode values as we have dynamic parameters.

    The OpenIdConnectOptions option is IOptionsMonitor<OpenIdConnectOptions>

    You can add a custom implementation to get value from the database. Read the value of the tenant.

    or you can set TokenValidationParameters.ValidateIssuer to false

    https://learn.microsoft.com/en-us/dotnet/api/microsoft.identitymodel.tokens.tokenvalidationparameters.validateissuer?view=msal-web-dotnet-latest

  • User Avatar
    0
    SharmaAtul created

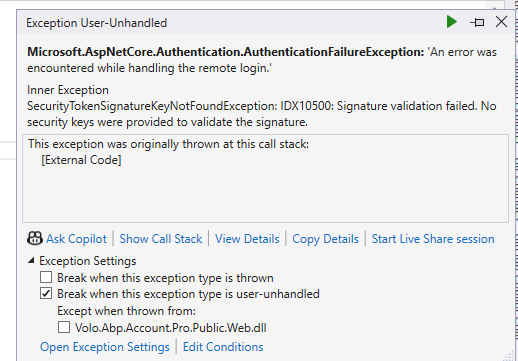

    I am getting this error now

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    Also set public bool ValidateAudience { get; set; } to false

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    If you can reproduce it, please share all HTTP request info recorded by Chrome.

    Thanks.

  • User Avatar
    0
    SharmaAtul created

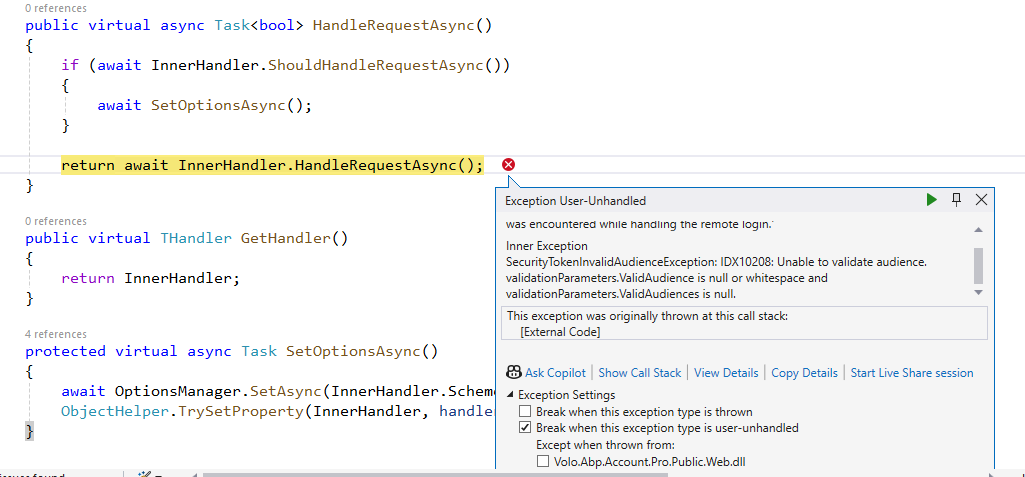

    Now I am getting this error

  • User Avatar
    0
    SharmaAtul created

    Can you please try at your end with ExternalProvider and if it is working then share your code here?

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    Can you share your test project?

    liming.ma@volosoft.com

    I will download and check it. Thanks.

  • User Avatar
    0
    SharmaAtul created

    I already shared with you, Please check your email.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    I have the NextGenPortal project.

    Please share two configurations for the External provider. Host and tenant

    Thanks.

  • User Avatar
    0
    SharmaAtul created

    I have just enabled the Azure Open Id configuration from host and override in Tenant Tenant Configurations Authority : https://login.microsoftonline.com/b9eb6473-28b2-46c1-9f80-c90c9298253b ClientId : aa3735b8-1b81-43b4-a38c-7b454ae4bb87 ClientSecret : wvG8Q~le8BW0EX-FdHsaGtUQ7ZHPxJBkMdAgva9s

    If you need then you can use same credentials for host as well.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    I can log in successfully by microsoft in host and tenant with the below configuration

    Authority : https://login.microsoftonline.com/b9eb6473-28b2-46c1-9f80-c90c9298253b
ClientId : aa3735b8-1b81-43b4-a38c-7b454ae4bb87
ClientSecret : wvG8Q~le8BW0EX-FdHsaGtUQ7ZHPxJBkMdAgva9s

    What is your GitHub username? I will invite you to test the project repos.

    https://github.com/maliming/NextGenPortal

  • User Avatar
    0
    SharmaAtul created

    My github account is https://github.com/alpeshkalena

    Also do we need to set same credentials for Host and Tenant?

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    https://github.com/maliming/NextGenPortal/invitations

    Also do we need to set same credentials for Host and Tenant?

    You can set different azure openid configuration for Host and Tenant
