ABP 9 Upgrade - login screen 409 error #9298

DominaTang created one month ago

When we test the ABP 9.1.1 upgrade code, when login via MFA (Phone), sometimes we get 409 error, but nobody else using the same account to login

26 Answer(s)

0

maliming created one month ago
Support Team Fullstack Developer

hi

Can you share the debug logs? liming.ma@volosoft.com

https://abp.io/support/questions/8622/How-to-enable-Debug-logs-for-troubleshoot-problems

Thanks.
0

DominaTang created one month ago

We disabled File Log when deployed to site. I noticed this happens after the site has a new deployment. Is it possible related to new feature of session management?

maliming created one month ago

Support Team Fullstack Developer

Do you have ConfigureDataProtection method in your module?

Please enable and share debug logs. It will contain the error detail info.

Thanks.

private void ConfigureDataProtection(ServiceConfigurationContext context, IConfiguration configuration, IConnectionMultiplexer redis)
{
    context.Services
        .AddDataProtection()
        .SetApplicationName(configuration["DataProtection:ApplicationName"]!)
        .PersistKeysToStackExchangeRedis(redis, configuration["DataProtection:Keys"]);
}

0

DominaTang created one month ago

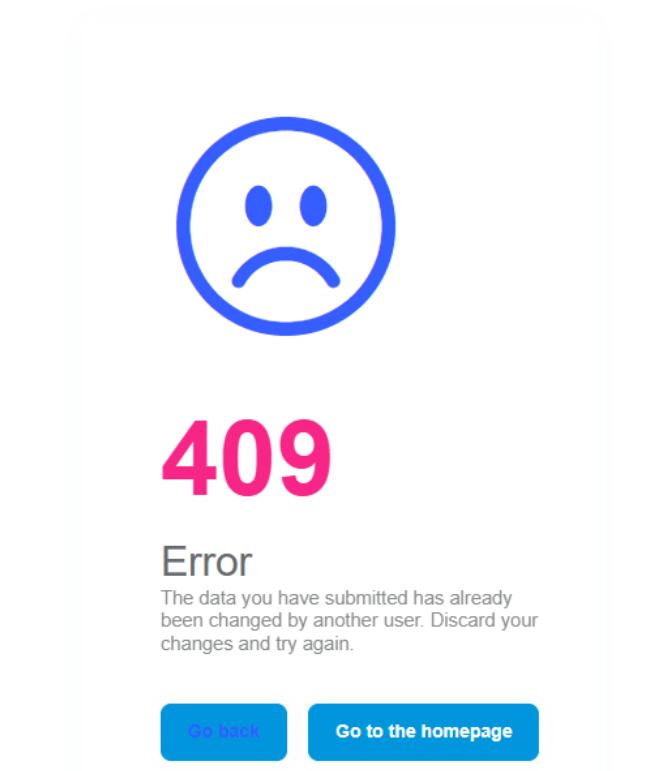

We do have DataProtection Enabled. For each deployment Redis container would be cleared or not? From ABP Audit log, the code try to access /connect/authorize URL and the exception is: [ { "code": null, "message": "The data you have submitted has already been changed by another user. Discard your changes and try again.", "details": null, "data": null, "validationErrors": null }, { "code": null, "message": "The data you have submitted has already been changed by another user. Discard your changes and try again.", "details": null, "data": null, "validationErrors": null } ]
0

maliming created one month ago
Support Team Fullstack Developer

hi

For each deployment Redis container would be cleared or not?

You can check your deployment setting.

Is your Redis running in a container or on a physical machine?

Thanks.

maliming created one month ago

Support Team Fullstack Developer

Check the full logs see:

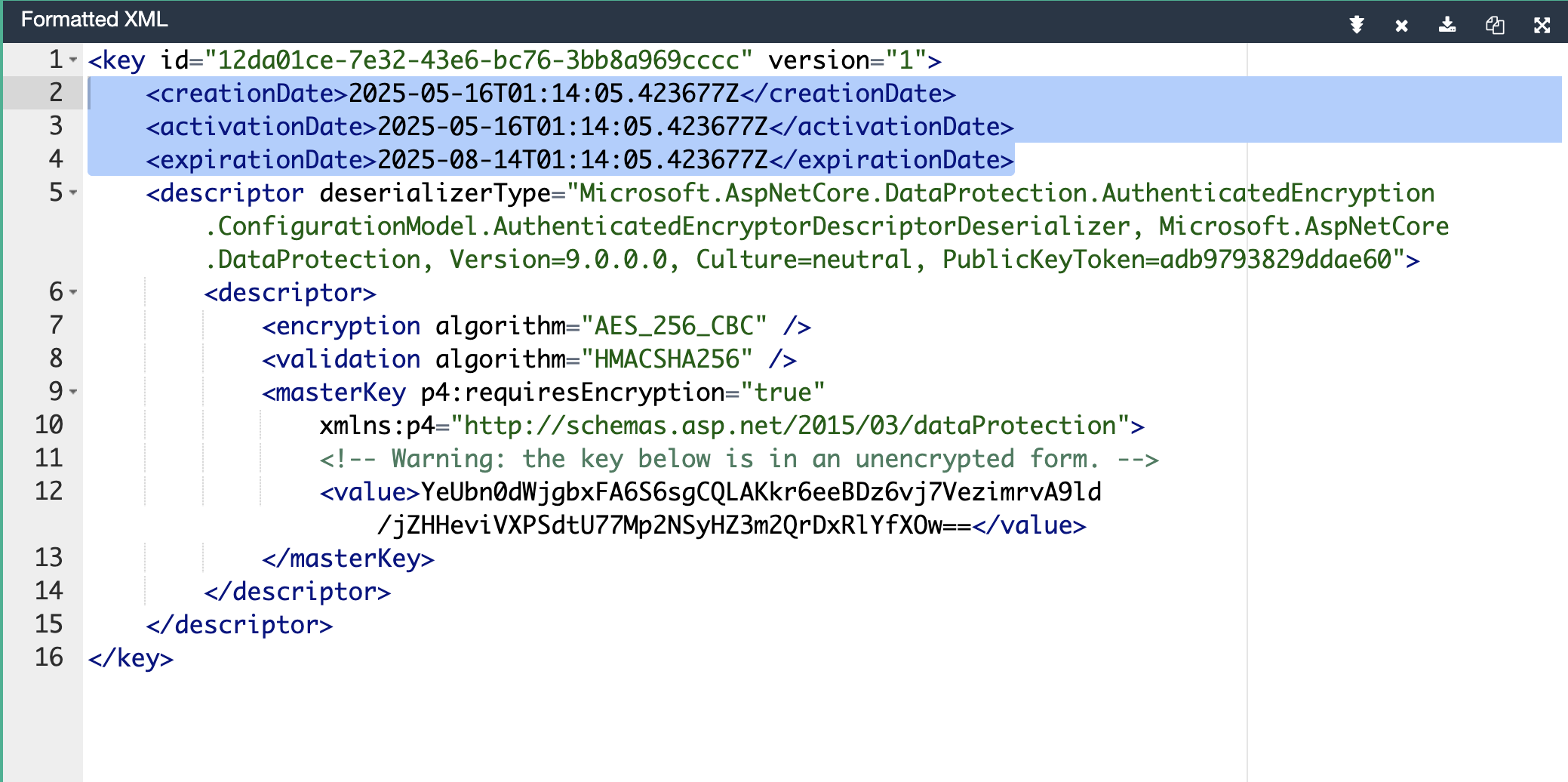

If the redis was cleared, the log will show Creating key for every deployment.

[INF] Creating key {12da01ce-7e32-43e6-bc76-3bb8a969cccc} with creation date 2025-05-16 01:14:05Z, activation date 2025-05-16 01:14:05Z, and expiration date 2025-08-14 01:14:05Z.
[WRN] No XML encryptor configured. Key {12da01ce-7e32-43e6-bc76-3bb8a969cccc} may be persisted to storage in unencrypted form.

0

DominaTang created one month ago

You mean every deployment, the Redis Cache should be cleared? How to enforce it in CI/CD pipeline? (Micro Services to Kubernetes)
0

maliming created one month ago
Support Team Fullstack Developer

hi

the Redis Cache should be cleared

No. Redis should not be cleared after every new deployment. Otherwise, the previous encryption/keys will be invalid.

https://abp.io/support/questions/9298/ABP-9-Upgrade---login-screen-409-error#answer-3a19e8d7-17da-d8d3-adf3-218e523e9630
0

DominaTang created one month ago

This ticket could be closed. Restart the container works. But the root cause should be we put wrong Auth server Url in yarp settings.
0

maliming created one month ago
Support Team Fullstack Developer

Great
0

DominaTang created 25 days ago

This error comes back again. After yesterday's deployment, there is no 409 error. And this noon, I access QA site again (no new deployment) since that. Is it because of something regarding to session expired
0

DominaTang created 25 days ago

Here is from log: [20:16:42 INF] Executed action method Volo.Abp.OpenIddict.Controllers.AuthorizeController.HandleAsync (Volo.Abp.OpenIddict.AspNetCore), returned result Microsoft.AspNetCore.Mvc.SignInResult in 83.8041ms. [20:16:42 INF] Executing SignInResult with authentication scheme (OpenIddict.Server.AspNetCore) and the following principal: System.Security.Claims.ClaimsPrincipal. [20:16:42 WRN] There is an entry which is not saved due to concurrency exception: OpenIddictAuthorization {Id: 8b3fde63-5710-65fd-c036-3a135d4249bc} Modified FK {ApplicationId: 55abca09-b50d-399f-246c-3a0cbf31440d}

[20:16:42 INF] Executed action Volo.Abp.OpenIddict.Controllers.AuthorizeController.HandleAsync (Volo.Abp.OpenIddict.AspNetCore) in 120.0721ms [20:16:42 INF] Executed endpoint 'Volo.Abp.OpenIddict.Controllers.AuthorizeController.HandleAsync (Volo.Abp.OpenIddict.AspNetCore)' [20:16:42 WRN] There is an entry which is not saved due to concurrency exception: OpenIddictAuthorization {Id: 8b3fde63-5710-65fd-c036-3a135d4249bc} Modified FK {ApplicationId: 55abca09-b50d-399f-246c-3a0cbf31440d}

[20:16:42 ERR] An unhandled exception has occurred while executing the request. Volo.Abp.Data.AbpDbConcurrencyException: The database operation was expected to affect 1 row(s), but actually affected 0 row(s); data may have been modified or deleted since entities were loaded. See https://go.microsoft.com/fwlink/?LinkId=527962 for information on understanding and handling optimistic concurrency exceptions. ---> Microsoft.EntityFrameworkCore.DbUpdateConcurrencyException: The database operation was expected to affect 1 row
0

maliming created 25 days ago
Support Team Fullstack Developer

hi

Please share full debug logs.

Are you sure all your packages are 9.1.1? You can try to upgrade to the latest 9.1.3 https://www.nuget.org/packages/Volo.Abp.Cli/9.1.3

Thanks.
0

DominaTang created 25 days ago

hi

Please share full debug logs.

Are you sure all your packages are 9.1.1? You can try to upgrade to the latest 9.1.3 https://www.nuget.org/packages/Volo.Abp.Cli/9.1.3

Thanks.

I couldn't upgrade to 9.1.2, create a separate ticket here: https://abp.io/support/questions/9348/ABP-9-upgrade

Here is part of package.json "@abp/ng.components": "~9.1.1", "@abp/ng.core": "~9.1.1", "@abp/ng.oauth": "~9.1.1", "@abp/ng.setting-management": "~9.1.1", "@abp/ng.theme.shared": "~9.1.1", "@abp/ng.feature-management": "~9.1.1", "@volo/abp.commercial.ng.ui": "~9.1.1", "@volo/abp.ng.account": "~9.1.1", "@volo/abp.ng.audit-logging": "~9.1.1", "@volo/abp.ng.identity": "~9.1.1", "@volo/abp.ng.language-management": "~9.1.1", "@volo/abp.ng.openiddictpro": "~9.1.1", "@volo/abp.ng.saas": "~9.1.1", "@volo/abp.ng.text-template-management": "~9.1.1", "@volosoft/abp.ng.theme.lepton-x": "~4.1.1", "@angular/animations": "~19.1.0", "@angular/cdk": "~19.1.0", "@angular/common": "~19.1.0", "@angular/compiler": "~19.1.0", "@angular/core": "~19.1.0", "@angular/forms": "~19.1.0", "@angular/localize": "~19.1.0", "@angular/material": "~19.1.0", "@angular/material-date-fns-adapter": "~19.1.0", "@angular/platform-browser": "~19.1.0", "@angular/platform-browser-dynamic": "~19.1.0", "@angular/router": "~19.1.0",
0

maliming created 24 days ago
Support Team Fullstack Developer

hi

What are the versions of NuGet packages? Please check it in all csproj files.

The exception will be fixed >= 9.1.1.

Thanks.
0

DominaTang created 21 days ago

I upgrade the front-end code to exactly version of '9.1.3', I also update backend to 9.1.3. The 409 still happens. Is there a way to swallow this 409 error either from front-end or backend?
0

maliming created 21 days ago
Support Team Fullstack Developer

hi

Is the AbpDbConcurrencyException fixed?

Please share the full debug logs.txt again for 409 error.

Thanks.
0

DominaTang created 21 days ago

After upgrade to 9.1.3, the error is still there. It happens when make connect/authorize Url, I did Url decoding and Html decoding to the Url, it looks like this, I feel like the Url is extremely long and duplicate connect https://ca.authserver.host/connect/authorize?response_type=code&client_id=Angular&state=azU5cEs1Sk9Ua2JTcm1aVHlzaExiWjZrQXpqNUhxUVNNQUpsNDc1NXlKN2VR;/home/es-search?code=FbCK06zR-ZE3xt7LplqKFuOFVxuwjbgnqJobXC4z2v4&state=QVViSjhnd1VGWGFGQ3JjRFo3aExxTEZfdjNhR1VkTGp6MzBnYjhacTV3Rmp6;%252Fhome%252Fsearch%253Fcode%253DfVFNO5CT4ozUXn3SWbWF3Yx_vRmv8z8g9luGtz-jOCM%2526state%253DMzY3N2ZRV2F3UGNtNTlkbXQ1NWtyNUtTeXFKMlRpRXV1b1dWd3djWUwxdzdK%253B%2525252Fhome%2525252Fes-search%2526iss%253Dhttps%253A%25252F%25252Fca.authserver.host%25252F%2526culture%253Den%2526ui-culture%253Den&iss=https:%2F%2Fca.authserver.host%2F&culture=en&ui-culture=en&redirect_uri=https://ca.ess-portal.host/&scope=offline_accessopenidprofileemailphoneAccountServiceIdentityServiceAdministrationServiceSaasServiceEntityServiceSearchServiceLookupServiceAuditServiceDashboardService&code_challenge=cl1auIiaHiVaQMiBpDPk2OMIAccR0P9wJa2mOZMdG5w&code_challenge_method=S256&nonce=azU5cEs1Sk9Ua2JTcm1aVHlzaExiWjZrQXpqNUhxUVNNQUpsNDc1NXlKN2VR&culture=en&ui-culture=en&returnUrl=/home/search?code=FbCK06zR-ZE3xt7LplqKFuOFVxuwjbgnqJobXC4z2v4&state=QVViSjhnd1VGWGFGQ3JjRFo3aExxTEZfdjNhR1VkTGp6MzBnYjhacTV3Rmp6;%2Fhome%2Fes-search%3Fcode%3DfVFNO5CT4ozUXn3SWbWF3Yx_vRmv8z8g9luGtz-jOCM%26state%3DMzY3N2ZRV2F3UGNtNTlkbXQ1NWtyNUtTeXFKMlRpRXV1b1dWd3djWUwxdzdK%3B%25252Fhome%25252Fes-search%26iss%3Dhttps%3A%252F%252Fca.authserver.host%252F%26culture%3Den%26ui-culture%3Den&iss=https://ca.authserver.host/&culture=en&ui-culture=en
0

DominaTang created 21 days ago

Even a success login, the home search page flash 2+ times, looks like go to auth server again and back to home page
0

DominaTang created 20 days ago

I tested with QA team against our QA site, we noticed when we click submit security code at the same time, it's much easy to reproduce. This issue becomes our upgrade blocker. Could we have a session to debug?
0

DominaTang created 20 days ago

Or is there a way in auth server we create some controller method, which Url could match connect/authorize and the code call base.authorize and try catch 409 to swallow this error
0

maliming created 20 days ago
Support Team Fullstack Developer

hi

Can you share your project source code?

I will download and check the code.

You can remove the environment code so I can reproduce it on my local.

liming.ma@volosoft.com

Thanks.

maliming created 20 days ago

Support Team Fullstack Developer

And can you try to add MyAbpEfCoreNavigationHelper to your EF Core project.

using Microsoft.EntityFrameworkCore.ChangeTracking;
using Volo.Abp.DependencyInjection;
using Volo.Abp.EntityFrameworkCore.ChangeTrackers;
using Volo.Abp.OpenIddict.Tokens;

namespace Pusula.Training.HealthCare.EntityFrameworkCore;

[Dependency(ReplaceServices = true)]
[ExposeServices(typeof(AbpEfCoreNavigationHelper))]
public class MyAbpEfCoreNavigationHelper : AbpEfCoreNavigationHelper
{
    public override void ChangeTracker_Tracked(object? sender, EntityTrackedEventArgs e)
    {
        if (e.Entry.Entity.GetType() == typeof(OpenIddictToken))
        {
            return;
        }

        base.ChangeTracker_Tracked(sender, e);
    }

    public override void ChangeTracker_StateChanged(object? sender, EntityStateChangedEventArgs e)
    {
        if (e.Entry.Entity.GetType() == typeof(OpenIddictToken))
        {
            return;
        }

        base.ChangeTracker_StateChanged(sender, e);
    }
}

0

DominaTang created 19 days ago

From exception log, it is OpenIddictAuthorizations table has concurrency issue. I replace above code MyAbpEfCoreNavigationHelper with it; After deployment, the URL bounce between home page and auth server several times, then successfully locate to home page. Then I try the login again, the app throw 400 error instead of the 409
0

DominaTang created 19 days ago

[maliming] said: hi

Can you share your project source code?

I will download and check the code.

You can remove the environment code so I can reproduce it on my local.

liming.ma@volosoft.com

Thanks.

I heard another project in company using ABP 9 also met 409 error. It's bit hard to reproduce it at local. Occasionally it happens, but very easy to met 409 at QA site.
