This content was blocked and must be served over HTTPS. #9714

carl.hallqvist created 3 months ago

Why am I getting the following error in the browser (Chrome and Safari) when calling my Blazor web app?

[Warning] [blocked] The page at https://staging.mydomain.io/ requested insecure content from http://auth.staging.mydomain.io/connect/authorize?client_id=Blazor&redirect_uri=https%3A%2F%2Fstaging.mydomain.io%2Fauthentication%2Flogin-callback&response_type=code&scope=openid%20profile%20roles%20email%20phone%20AuthServer%20IdentityService%20AdministrationService%20SaasService%20AuditLoggingService%20GdprService%20LanguageService%20ChatService%20CustomerService%20TicketService%20DocumentService%20InvoiceService&state=c81ecdee975347efbec0130e23432ee0&code_challenge=o7sBN0mlemkSHHOvWYE_wZhJ9i9d6RB1vRhsHac39oA&code_challenge_method=S256&prompt=none&response_mode=query. This content was blocked and must be served over HTTPS.

Which variable is responsible for generating http://auth.staging.mydomain.io/connect (i.e., why is it using http:// instead of https://)?

What works: Logging in directly via auth.staging.mydomain.io Using https://gateway-web.staging.mydomain.io and running Swagger against the services' endpoints.

It’s a microservice solution created with ABP 9.0.4, and only minimal changes have been made to the Helm charts compared to the ABP generator output.

Thanks in advance.

AI-Bot created 3 months ago

Support Team ABP Agent

The error occurs because your Blazor web app (served over HTTPS) is attempting to request an insecure (HTTP) URL for the authorization endpoint: http://auth.staging.mydomain.io/connect/authorize. Modern browsers block this "mixed content" for security reasons.

The variable responsible for generating the authorization endpoint URL is typically the Authority setting in your configuration files (such as appsettings.json or environment variables) for the Blazor app and any microservices that interact with the AuthServer. If this is set to use http:// instead of https://, the generated URLs will be insecure.

To resolve this:

Check your Blazor app's appsettings.json (or relevant environment config) and ensure the AuthServer:Authority is set to https://auth.staging.mydomain.io.

"AuthServer": {
     "Authority": "https://auth.staging.mydomain.io",
     ...
   }

Also verify the RedirectUri, PostLogoutRedirectUri, and any other URLs related to authentication are using https://.
If you are using Kubernetes/Helm, ensure that your environment variables and Helm values files do not override the authority with an http:// value.
If you have a gateway or reverse proxy, make sure it is configured to forward the original scheme (X-Forwarded-Proto header) so the app can detect HTTPS correctly.

After making these changes, the authorization endpoint will be generated with https://, and the browser will no longer block the request.

No verified source available for this specific query. This approach aligns with common ABP conventions and standard ASP.NET Core authentication configuration.

This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

carl.hallqvist created 3 months ago

Thanks,

I was using the Blazor App pod shell and checked:

<cb6484-7rsrx:/app# cat wwwroot/appsettings.json
{
"App": {
    "SelfUrl": "https://staging.mydomain.io"
},
"AuthServer": {
    "Authority": "https://auth.staging.mydomain.io",
    "ClientId": "Blazor",
    "ResponseType": "code"
},
"RemoteServices": {
    "Default": {
    "BaseUrl": "https://gateway-web.staging.mydomain.io"
    }
},
"AbpCli": {
    "Bundle": {
    "Mode": "BundleAndMinify", /* Options: None, Bundle, BundleAndMinify */
    "Name": "global"
    }
}
root@geoticket-blazor-574bcb6484-7rsrx:/app#

I have checked, but no http:/ links .
Yes, I am using Nginx reverse proxy. Can you show me a working example here? Thanks :-)

maliming created 2 months ago

Support Team Fullstack Developer

Blazor App also has an appsettings.json file.

YourProject.Blazor => appsettings.json YourProject.Blazor.Client => wwwroot/appsettings.json

Can you check it?

Thanks.

carl.hallqvist created 3 months ago

In my pod shell there is only one appsettings.json as far as I can see:

root@myapplication-blazor-574bcb6484-7rsrx:/# find ./ -name appsettings.json
./app/wwwroot/appsettings.json

I also tried to create a new solution using 9.2.2 using ABP CLI. Following app settings.json is found.

$ find ./ -name appsettings.json
./gateways/web/MyApplication.WebGateway/appsettings.json
./gateways/public/MyApplication.PublicGateway/appsettings.json
./gateways/mobile/MyApplication.MobileGateway/appsettings.json
./apps/auth-server/MyApplication.AuthServer/appsettings.json
./apps/public/MyApplication.Web.Public/appsettings.json
./apps/blazor/MyApplication.Blazor.Client/wwwroot/appsettings.json
./services/identity/MyApplication.IdentityService/appsettings.json
./services/chat/MyApplication.ChatService/appsettings.json
./services/file-management/MyApplication.FileManagementService/appsettings.json
./services/language/MyApplication.LanguageService/appsettings.json
./services/gdpr/MyApplication.GdprService/appsettings.json
./services/administration/MyApplication.AdministrationService/appsettings.json
./services/saas/MyApplication.SaasService/appsettings.json
./services/audit-logging/MyApplication.AuditLoggingService/appsettings.json
./services/customer/MyApplication.CustomerService/appsettings.json

Any more ideas? Thanks :-)

maliming created 3 months ago

Support Team Fullstack Developer

Can you share your project Solution Configuration?

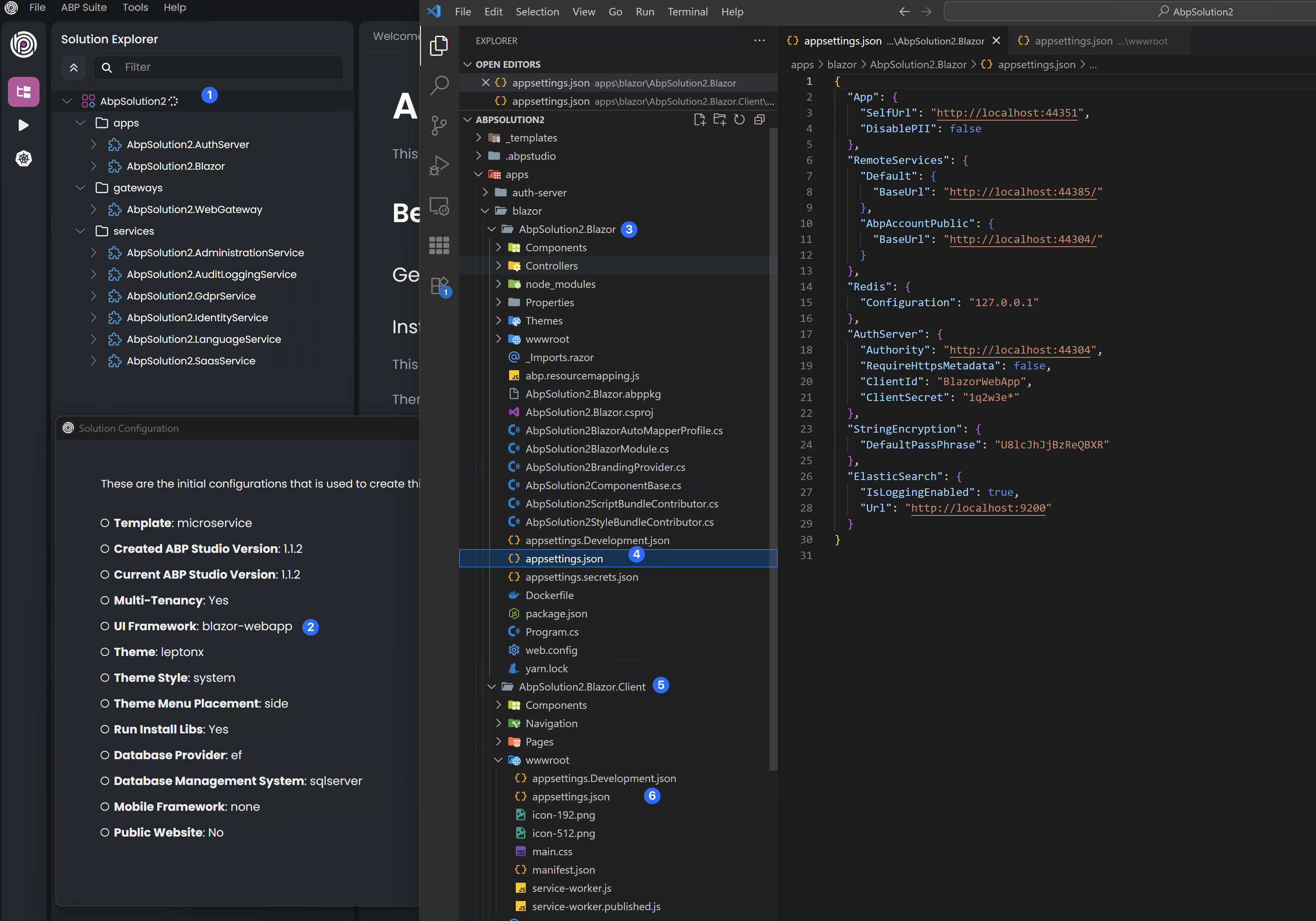

The Blazor project should be like that:

./apps/blazor/MyApplication.Blazor/appsettings.json ./apps/blazor/MyApplication.Blazor.Client/wwwroot/appsettings.json

carl.hallqvist created 3 months ago

I was created a new project using latest ABP Studio in Windows, with version 9.2.3 and this is what I got:

{
  "id": "2cdc3cc3-5ca6-428f-a66c-eede50197ccd",
  "template": "microservice",
  "versions": {
    "LeptonX": "4.2.3",
    "AbpFramework": "9.2.3",
    "AbpCommercial": "9.2.3",
    "AbpStudio": "1.1.2",
    "TargetDotnetFramework": "net9.0"
  },
  "folders": {
    "items": {
      "services": {},
      "apps": {},
      "gateways": {}
    }
  },
  "runProfiles": {
    "Default": {
      "path": "etc/abp-studio/run-profiles/Default.abprun.json"
    }
  },
  "modules": {
    "MyApplication.AdministrationService": {
      "path": "services/administration/MyApplication.AdministrationService.abpmdl",
      "folder": "services"
    },
    "MyApplication.IdentityService": {
      "path": "services/identity/MyApplication.IdentityService.abpmdl",
      "folder": "services"
    },
    "MyApplication.Web.Public": {
      "path": "apps/public/MyApplication.Web.Public.abpmdl",
      "folder": "apps"
    },
    "MyApplication.PublicGateway": {
      "path": "gateways/public/MyApplication.PublicGateway.abpmdl",
      "folder": "gateways"
    },
    "MyApplication.SaasService": {
      "path": "services/saas/MyApplication.SaasService.abpmdl",
      "folder": "services"
    },
    "MyApplication.ChatService": {
      "path": "services/chat/MyApplication.ChatService.abpmdl",
      "folder": "services"
    },
    "MyApplication.AuditLoggingService": {
      "path": "services/audit-logging/MyApplication.AuditLoggingService.abpmdl",
      "folder": "services"
    },
    "MyApplication.GdprService": {
      "path": "services/gdpr/MyApplication.GdprService.abpmdl",
      "folder": "services"
    },
    "MyApplication.LanguageService": {
      "path": "services/language/MyApplication.LanguageService.abpmdl",
      "folder": "services"
    },
    "MyApplication.Blazor": {
      "path": "apps/blazor/MyApplication.Blazor.abpmdl",
      "folder": "apps"
    },
    "MyApplication.MobileGateway": {
      "path": "gateways/mobile/MyApplication.MobileGateway.abpmdl",
      "folder": "gateways"
    },
    "MyApplication.AuthServer": {
      "path": "apps/auth-server/MyApplication.AuthServer.abpmdl",
      "folder": "apps"
    },
    "MyApplication.WebGateway": {
      "path": "gateways/web/MyApplication.WebGateway.abpmdl",
      "folder": "gateways"
    },
    "MyApplication.DocumentService": {
      "path": "services/document/MyApplication.DocumentService.abpmdl",
      "folder": "services"
    },
    "MyApplication.TicketService": {
      "path": "services/ticket/MyApplication.TicketService.abpmdl",
      "folder": "services"
    },
    "MyApplication.InvoiceService": {
      "path": "services/invoice/MyApplication.InvoiceService.abpmdl",
      "folder": "services"
    },
    "MyApplication.CustomerService": {
      "path": "services/customer/MyApplication.CustomerService.abpmdl",
      "folder": "services"
    }
  },
  "k8sProfiles": {
    "local": {
      "path": "etc/abp-studio/k8s-profiles/local.abpk8s.json"
    }
  },
  "commands": {
    "helmBuildDotnetImage": {
      "triggerTargets": [
        "HELM_CHARTS_ROOT",
        "HELM_MAIN_CHART",
        "HELM_SUB_CHART"
      ],
      "executionTargets": [
        "HELM_MAIN_CHART",
        "HELM_SUB_CHART"
      ],
      "displayName": "Build Docker Image(s)",
      "workingDirectory": "etc/helm",
      "terminalCommand": "./build-image.ps1 -ProjectPath {{metadata.projectPath}} -ImageName {{metadata.imageName}} -ProjectType {{metadata.projectType}}",
      "condition": "{{metadata.projectPath != null && metadata.imageName != null && metadata.projectType != null}}"
    },
    "helmInstallChart": {
      "triggerTargets": [
        "HELM_CHARTS_ROOT",
        "HELM_MAIN_CHART"
      ],
      "executionTargets": [
        "HELM_MAIN_CHART"
      ],
      "displayName": "Install Chart(s)",
      "workingDirectory": "etc/helm",
      "terminalCommand": "./install.ps1 -ChartName {{chart.name}} -Namespace {{profile.namespace}} -ReleaseName {{chart.name}}-{{profile.name}} -DotnetEnvironment {{metadata.dotnetEnvironment}} {{~if metadata.k8ssuffix}} -User {{metadata.k8ssuffix}}{{end}}",
      "requireConfirmation": "true",
      "confirmationText": "Are you sure to install the chart(s) for the profile {{ profile.name }}?"
    },
    "helmUninstallChart": {
      "triggerTargets": [
        "HELM_CHARTS_ROOT",
        "HELM_MAIN_CHART"
      ],
      "executionTargets": [
        "HELM_MAIN_CHART"
      ],
      "displayName": "Uninstall Chart(s)",
      "workingDirectory": "etc/helm",
      "terminalCommand": "./uninstall.ps1 -Namespace {{profile.namespace}} -ReleaseName {{chart.name}}-{{profile.name}} {{~if metadata.k8ssuffix}} -User {{metadata.k8ssuffix}}{{end}}",
      "requireConfirmation": "true",
      "confirmationText": "Are you sure to uninstall the chart(s) for the profile {{profile.name}}?"
    },
    "kubernetesRedeploy": {
      "triggerTargets": [
        "KUBERNETES_SERVICE"
      ],
      "executionTargets": [
        "KUBERNETES_SERVICE"
      ],
      "displayName": "Redeploy",
      "workingDirectory": "etc/helm",
      "terminalCommand": "./build-image.ps1 -ProjectPath {{chart.metadata.projectPath}} -ImageName {{chart.metadata.imageName}} -ProjectType {{chart.metadata.projectType}} &&& ./install.ps1 -ChartName {{mainChart.name}} -Namespace {{profile.namespace}} -ReleaseName {{mainChart.name}}-{{profile.name}} -DotnetEnvironment {{mainChart.metadata.dotnetEnvironment}} {{~if metadata.k8ssuffix}} -User {{metadata.k8ssuffix}}{{end}}",
      "requireConfirmation": "true",
      "confirmationText": "Are you sure to redeploy the related chart '{{chart.name}}' for the service '{{name}}'?",
      "condition": "{{chart != null && chart.metadata.projectPath != null && chart.metadata.imageName != null && chart.metadata.projectType != null}}"
    },
    "createTlsSecret": {
      "triggerTargets": [
        "HELM_CHARTS_ROOT"
      ],
      "executionTargets": [
        "HELM_CHARTS_ROOT"
      ],
      "displayName": "Create Self-Signed TLS secret",
      "workingDirectory": "etc/helm",
      "terminalCommand": "./create-tls-secrets.ps1 -Namespace {{profile.namespace}} {{~if metadata.k8ssuffix}} -User {{metadata.k8ssuffix}}{{end}}"
    }
  },
  "helm": {
    "charts": {
      "myapplication": {
        "name": "myapplication",
        "path": "etc/helm/myapplication",
        "charts": {
          "administration": {
            "name": "administration",
            "path": "etc/helm/myapplication/charts/administration",
            "metadata": {
              "projectPath": "../../services/administration/MyApplication.AdministrationService/MyApplication.AdministrationService.csproj",
              "imageName": "myapplication/administration",
              "projectType": "dotnet"
            },
            "services": [
              ".*-administration$"
            ]
          },
          "auditlogging": {
            "name": "auditlogging",
            "path": "etc/helm/myapplication/charts/auditlogging",
            "metadata": {
              "projectPath": "../../services/audit-logging/MyApplication.AuditLoggingService/MyApplication.AuditLoggingService.csproj",
              "imageName": "myapplication/auditlogging",
              "projectType": "dotnet"
            },
            "services": [
              ".*-auditlogging$"
            ]
          },
          "authserver": {
            "name": "authserver",
            "path": "etc/helm/myapplication/charts/authserver",
            "metadata": {
              "projectPath": "../../apps/auth-server/MyApplication.AuthServer/MyApplication.AuthServer.csproj",
              "imageName": "myapplication/authserver",
              "projectType": "dotnet"
            },
            "services": [
              ".*-authserver$"
            ]
          },
          "blazor": {
            "name": "blazor",
            "path": "etc/helm/myapplication/charts/blazor",
            "metadata": {
              "projectPath": "../../apps/blazor/MyApplication.Blazor/MyApplication.Blazor.csproj",
              "imageName": "myapplication/blazor",
              "projectType": "dotnet"
            },
            "services": [
              ".*-blazor$"
            ]
          },
       ........
    ],
    "defaultLanguage": "English",
    "createCommand": "abp new MyApplication -t microservice --ui-framework blazor --mobile react-native --database-provider ef --database-management-system postgresql --theme leptonx --skip-migrator  --public-website --without-cms-kit --dont-run-bundling -no-file-management -no-language-management -chat"
  }
}

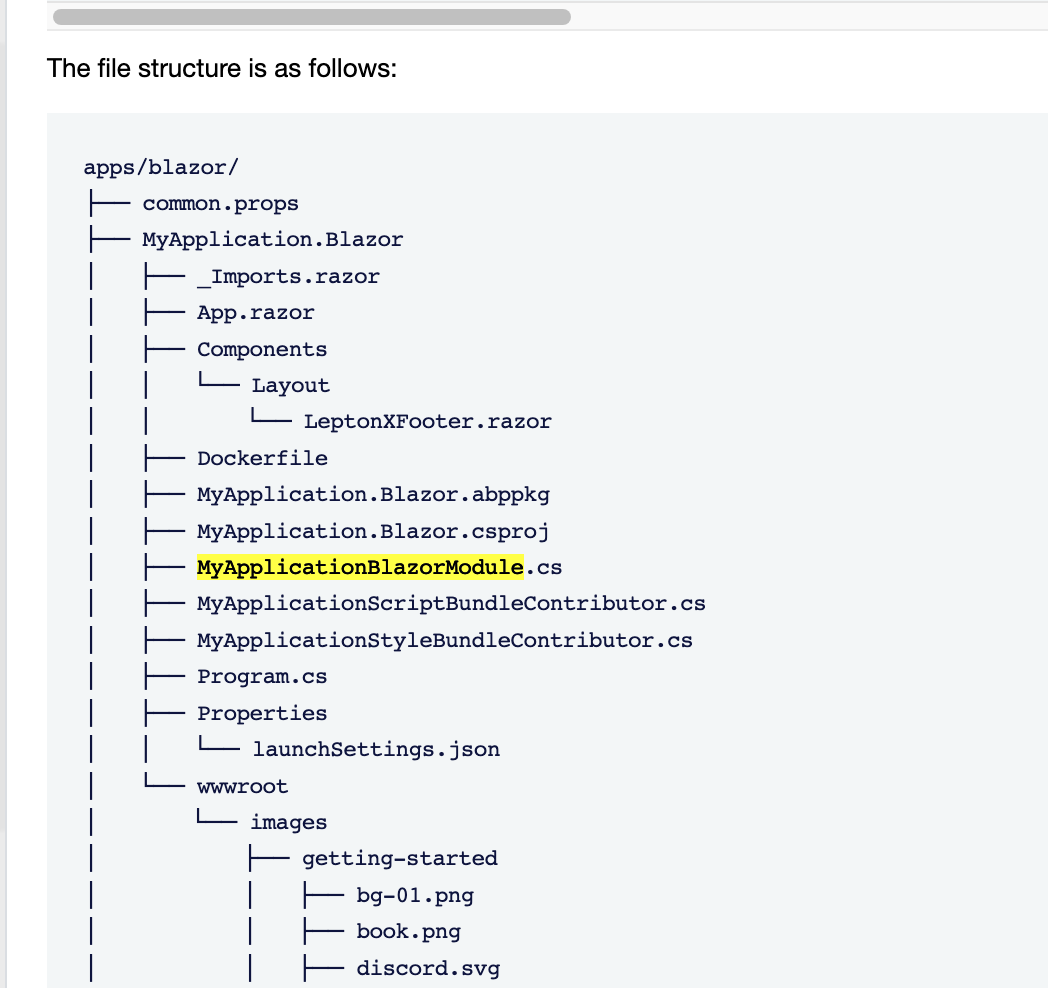

The file structure is as follows:

apps/blazor/
├── common.props
├── MyApplication.Blazor
│   ├── _Imports.razor
│   ├── App.razor
│   ├── Components
│   │   └── Layout
│   │       └── LeptonXFooter.razor
│   ├── Dockerfile
│   ├── MyApplication.Blazor.abppkg
│   ├── MyApplication.Blazor.csproj
│   ├── MyApplicationBlazorModule.cs
│   ├── MyApplicationScriptBundleContributor.cs
│   ├── MyApplicationStyleBundleContributor.cs
│   ├── Program.cs
│   ├── Properties
│   │   └── launchSettings.json
│   └── wwwroot
│       └── images
│           ├── getting-started
│           │   ├── bg-01.png
│           │   ├── book.png
│           │   ├── discord.svg
│           │   ├── img-blog.png
│           │   ├── img-community.png
│           │   ├── img-support.png
│           │   ├── instagram.svg
│           │   ├── stack-overflow.svg
│           │   ├── x-white.svg
│           │   └── youtube.svg
│           └── logo
│               └── leptonx
│                   ├── icon.svg
│                   ├── logo-dark.svg
│                   └── logo-light.svg
├── MyApplication.Blazor.abpmdl
├── MyApplication.Blazor.Client
│   ├── _Imports.razor
│   ├── Components
│   │   └── Layout
│   │       └── LeptonXFooter.razor
│   ├── MyApplication.Blazor.Client.abppkg
│   ├── MyApplication.Blazor.Client.csproj
│   ├── MyApplicationBlazorAutoMapperProfile.cs
│   ├── MyApplicationBlazorClientModule.cs
│   ├── MyApplicationBrandingProvider.cs
│   ├── MyApplicationComponentBase.cs
│   ├── Navigation
│   │   ├── MyApplicationMenuContributor.cs
│   │   └── MyApplicationMenus.cs
│   ├── Pages
│   │   ├── HostDashboard.razor
│   │   ├── HostDashboard.razor.cs
│   │   ├── Index.razor
│   │   ├── Index.razor.cs
│   │   ├── Index.razor.css
│   │   ├── TenantDashboard.razor
│   │   └── TenantDashboard.razor.cs
│   ├── Program.cs
│   ├── Properties
│   │   └── launchSettings.json
│   ├── Routes.razor
│   └── wwwroot
│       ├── appsettings.Development.json
│       ├── appsettings.json
│       ├── favicon.ico
│       ├── images
│       │   └── logo
│       └── main.css
└── MyApplication.Blazor.sln

I am not sure if I follow you... Hope you got some information of the above information. Please let me know if there is something else that can get some ideas.

Thanks in advance :-)

maliming created 3 months ago

Support Team Fullstack Developer

Thanks

Can you confirm the appsettings.Development.json doesn't contain http

appsettings.Development.json
appsettings.json

Please also share the code of MyApplicationBlazorModule and MyApplicationBlazorClientModule

liming.ma@volosoft.com

Thanks.

carl.hallqvist created 3 months ago

Hi Liming :-)

There is no content in appsettings.Development.json

I don't have MyApplicationBlazorModule . I guess it has to do with the hybrid Blazor mode. We only have a Blazor WebAssembly as a client application only.

However MyApplicationBlazorClientModule is present. I mailed it to you so you can check it out.

Thanks.

maliming created 3 months ago

Support Team Fullstack Developer

The MyApplicationBlazorModule file exists.

btw, do you have an online website? I can check it.

Thanks.

maliming created 3 months ago

Support Team Fullstack Developer

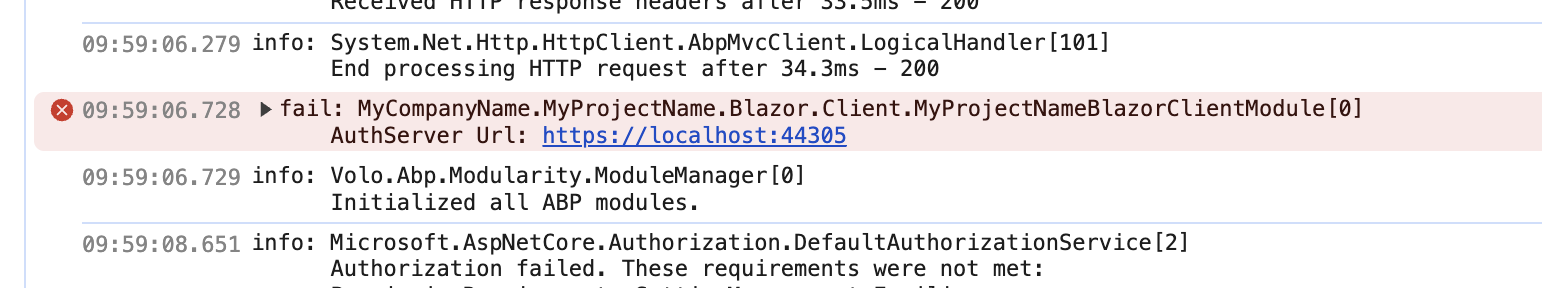

Can you add some code here to output AuthServerUrl from appsettings.json?

public override void OnApplicationInitialization(ApplicationInitializationContext context)
{
    var logger = context.ServiceProvider.GetRequiredService<ILogger<MyProjectNameBlazorClientModule>>();

    var oidcOptions = context.ServiceProvider.GetRequiredService<IOptions<RemoteAuthenticationOptions<OidcProviderOptions>>>();
    logger.LogError("AuthServer Url: {AuthServerUrl}", oidcOptions.Value.ProviderOptions.Authority);
}

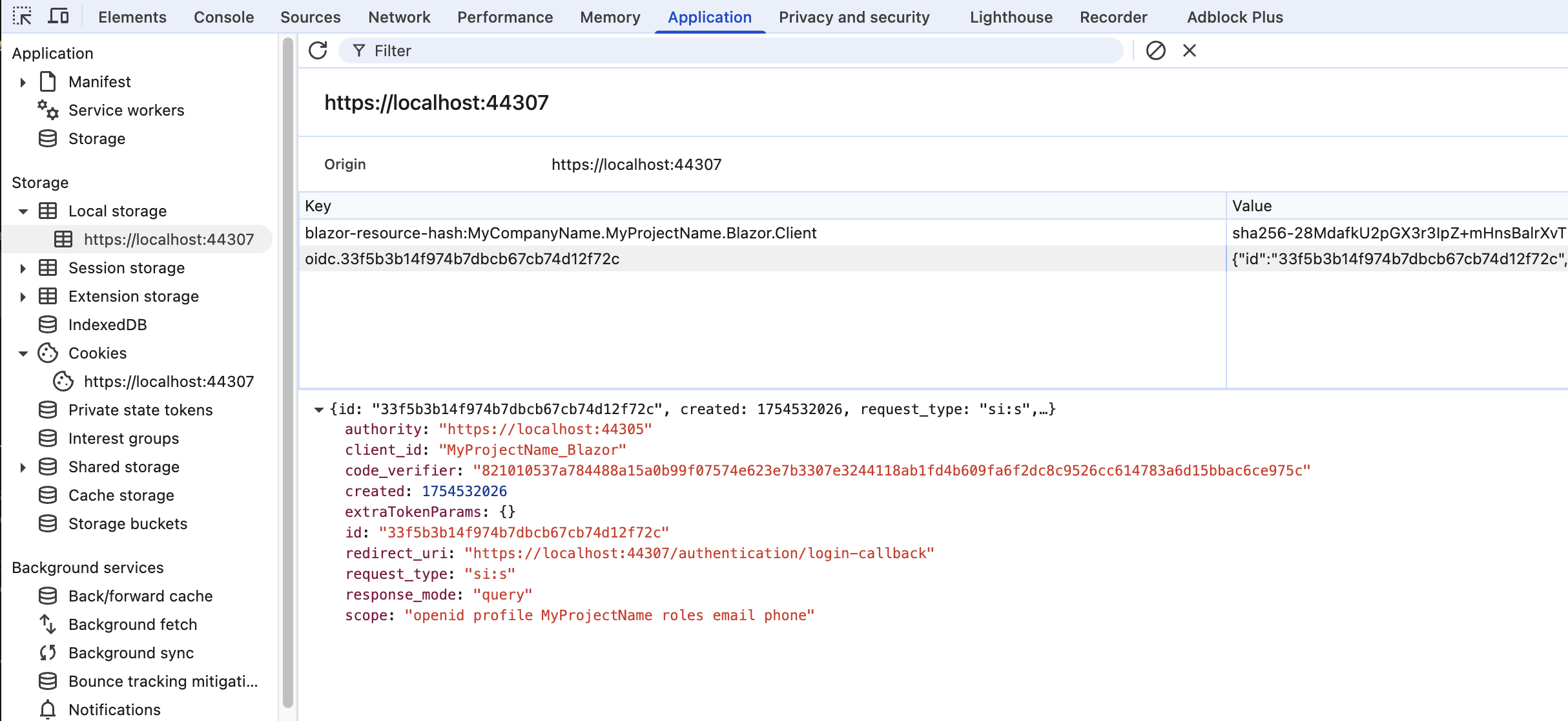

Also check the info from local storage

Thanks

carl.hallqvist created 2 months ago

Hi,

Just to keep the ticket alive, I replied by mail.

Thanks

maliming created 2 months ago

Support Team Fullstack Developer

maliming created 2 months ago

Support Team Fullstack Developer

I replied by mail.

I haven't received the mail.

carl.hallqvist created 2 months ago

Sorry, my bad. Replied to the no-reply address. Now you should have it :-)

maliming created 2 months ago

Support Team Fullstack Developer

ok, I will check it. Thanks.

Question details

ABP Version (vX.X.X)

Database Management System

Tiered (MVC) or Auth Server Separated (Angular)

Boost Your Development

ABP Live Training
Packages

See Trainings

The Official Guide

Mastering
ABP Framework

Learn More

Framework

Tools

Startup Templates

UI Themes

Mobile

Modules

15 Answer(s)

ABP Live Training
Packages

Mastering
ABP Framework

Framework

Tools

Startup Templates

UI Themes

Mobile

Modules

More

More

More

More

This content was blocked and must be served over HTTPS. #9714

15 Answer(s)

ABP Live TrainingPackages

MasteringABP Framework

ABP Live Training
Packages

Mastering
ABP Framework
