A bug After Upgrage Solution from V9.2.3 to V9.3.1 #9779


User avatar
0
48949912 created

Check the docs before asking a question: https://abp.io/docs/latest Check the samples to see the basic tasks: https://abp.io/docs/latest/samples The exact solution to your question may have been answered before, and please first use the search on the homepage.

Provide us with the following info: 🧐 Hint: If you are using the ABP Studio, you can see all the information about your solution from the configuration window, which opens when you right-click on the solution and click on the Solution Configuration button.

  • Exception message and full stack trace:
  • 2025-08-17 23:53:56.436 +08:00 [DBG] PermissionStore.GetCacheItemAsync: pn:C,pk:Angular,n:AbpIdentity.OrganizationUnits 2025-08-17 23:53:56.436 +08:00 [DBG] Found in the cache: pn:C,pk:Angular,n:AbpIdentity.OrganizationUnits 2025-08-17 23:53:56.454 +08:00 [ERR] ---------- RemoteServiceErrorInfo ---------- { "code": null, "message": "对不起,在处理您的请求期间产生了一个服务器内部错误!!", "details": null, "data": null, "validationErrors": null }

2025-08-17 23:53:56.454 +08:00 [ERR] Object reference not set to an instance of an object. System.NullReferenceException: Object reference not set to an instance of an object. at Microsoft.EntityFrameworkCore.Query.ExpressionExtensions.InferTypeMapping(SqlExpression[] expressions) at MySql.EntityFrameworkCore.Query.Internal.MySQLSqlExpressionFactory.ApplyTypeMappingOnCollate(MySQLCollateExpression collateExpression) at MySql.EntityFrameworkCore.Query.Internal.MySQLSqlExpressionFactory.ApplyNewTypeMapping(SqlExpression sqlExpression, RelationalTypeMapping typeMapping) at MySql.EntityFrameworkCore.Query.Internal.MySQLSqlExpressionFactory.Collate(SqlExpression valueExpression, String charset, String collation) at MySql.EntityFrameworkCore.Query.Expressions.Internal.MySQLStringComparisonMethodTranslator.Utf8Bin(SqlExpression value) at MySql.EntityFrameworkCore.Query.Expressions.Internal.MySQLStringComparisonMethodTranslator.<>c__DisplayClass11_0.b__0() at MySql.EntityFrameworkCore.Query.Expressions.Internal.MySQLStringComparisonMethodTranslator.CreateExpressionForCaseSensitivity(StringComparison cmp, Func1 ifCaseSensitive, Func1 ifCaseInsensitive) at MySql.EntityFrameworkCore.Query.Expressions.Internal.MySQLStringComparisonMethodTranslator.MakeStartsWithExpression(SqlExpression target, SqlExpression prefix, SqlExpression stringComparison) at MySql.EntityFrameworkCore.Query.Internal.MySQLStringMethodTranslator.Translate(SqlExpression instance, MethodInfo method, IReadOnlyList1 arguments, IDiagnosticsLogger1 logger) at Microsoft.EntityFrameworkCore.Query.RelationalMethodCallTranslatorProvider.<>c__DisplayClass7_0.b__0(IMethodCallTranslator t) at System.Linq.Enumerable.IteratorSelectIterator2.MoveNext() at System.Linq.Enumerable.TryGetFirst[TSource](IEnumerable1 source, Func2 predicate, Boolean& found) at System.Linq.Enumerable.FirstOrDefault[TSource](IEnumerable1 source, Func2 predicate) at Microsoft.EntityFrameworkCore.Query.RelationalMethodCallTranslatorProvider.Translate(IModel model, SqlExpression instance, MethodInfo method, IReadOnlyList1 arguments, IDiagnosticsLogger1 logger) at Microsoft.EntityFrameworkCore.Query.RelationalSqlTranslatingExpressionVisitor.VisitMethodCall(MethodCallExpression methodCallExpression) at Microsoft.EntityFrameworkCore.Query.RelationalSqlTranslatingExpressionVisitor.TranslateInternal(Expression expression, Boolean applyDefaultTypeMapping) at Microsoft.EntityFrameworkCore.Query.RelationalSqlTranslatingExpressionVisitor.Translate(Expression expression, Boolean applyDefaultTypeMapping) at Microsoft.EntityFrameworkCore.Query.RelationalQueryableMethodTranslatingExpressionVisitor.TranslateExpression(Expression expression, Boolean applyDefaultTypeMapping) at Microsoft.EntityFrameworkCore.Query.RelationalQueryableMethodTranslatingExpressionVisitor.TranslateLambdaExpression(ShapedQueryExpression shapedQueryExpression, LambdaExpression lambdaExpression) at Microsoft.EntityFrameworkCore.Query.RelationalQueryableMethodTranslatingExpressionVisitor.TranslateWhere(ShapedQueryExpression source, LambdaExpression predicate) at Microsoft.EntityFrameworkCore.Query.QueryableMethodTranslatingExpressionVisitor.VisitMethodCall(MethodCallExpression methodCallExpression) at Microsoft.EntityFrameworkCore.Query.RelationalQueryableMethodTranslatingExpressionVisitor.VisitMethodCall(MethodCallExpression methodCallExpression) at Microsoft.EntityFrameworkCore.Query.QueryableMethodTranslatingExpressionVisitor.VisitMethodCall(MethodCallExpression methodCallExpression) at Microsoft.EntityFrameworkCore.Query.RelationalQueryableMethodTranslatingExpressionVisitor.VisitMethodCall(MethodCallExpression methodCallExpression) at Microsoft.EntityFrameworkCore.Query.QueryableMethodTranslatingExpressionVisitor.Translate(Expression expression) at Microsoft.EntityFrameworkCore.Query.QueryCompilationContext.CreateQueryExecutorExpression[TResult](Expression query) at Microsoft.EntityFrameworkCore.Query.QueryCompilationContext.CreateQueryExecutor[TResult](Expression query) at Microsoft.EntityFrameworkCore.Storage.Database.CompileQuery[TResult](Expression query, Boolean async) at Microsoft.EntityFrameworkCore.Query.Internal.QueryCompiler.CompileQueryCore[TResult](IDatabase database, Expression query, IModel model, Boolean async) at Microsoft.EntityFrameworkCore.Query.Internal.QueryCompiler.<>c__DisplayClass11_01.b__0() at Microsoft.EntityFrameworkCore.Query.Internal.CompiledQueryCache.GetOrAddQuery[TResult](Object cacheKey, Func1 compiler) at Microsoft.EntityFrameworkCore.Query.Internal.QueryCompiler.ExecuteCore[TResult](Expression query, Boolean async, CancellationToken cancellationToken) at Microsoft.EntityFrameworkCore.Query.Internal.QueryCompiler.ExecuteAsync[TResult](Expression query, CancellationToken cancellationToken) at Volo.Abp.EntityFrameworkCore.AbpEntityQueryProvider.ExecuteAsync[TResult](Expression expression, CancellationToken cancellationToken) at Microsoft.EntityFrameworkCore.Query.Internal.EntityQueryable1.GetAsyncEnumerator(CancellationToken cancellationToken) at System.Runtime.CompilerServices.ConfiguredCancelableAsyncEnumerable1.GetAsyncEnumerator() at Microsoft.EntityFrameworkCore.EntityFrameworkQueryableExtensions.ToListAsync[TSource](IQueryable1 source, CancellationToken cancellationToken) at Volo.Abp.Identity.EntityFrameworkCore.EfCoreOrganizationUnitRepository.CreateGetMembersFilteredQueryAsync(OrganizationUnit organizationUnit, String filter, Boolean includeChildren) at Volo.Abp.Identity.EntityFrameworkCore.EfCoreOrganizationUnitRepository.GetMembersCountAsync(OrganizationUnit organizationUnit, String filter, Boolean includeChildren, CancellationToken cancellationToken) at Castle.DynamicProxy.AsyncInterceptorBase.ProceedAsynchronous[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo) at Volo.Abp.Castle.DynamicProxy.CastleAbpMethodInvocationAdapterWithReturnValue1.ProceedAsync() at Volo.Abp.Uow.UnitOfWorkInterceptor.InterceptAsync(IAbpMethodInvocation invocation) at Volo.Abp.Castle.DynamicProxy.CastleAsyncAbpInterceptorAdapter1.InterceptAsync[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo, Func3 proceed) at Volo.Abp.Identity.OrganizationUnitAppService.b9QEddYmM4(OrganizationUnit , Dictionary2 ) at Volo.Abp.Identity.OrganizationUnitAppService.UWpEBQ7wWD(OrganizationUnit ) at Volo.Abp.Identity.OrganizationUnitAppService.CreateAsync(OrganizationUnitCreateDto input) at Castle.DynamicProxy.AsyncInterceptorBase.ProceedAsynchronous[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo) at Volo.Abp.Castle.DynamicProxy.CastleAbpMethodInvocationAdapterWithReturnValue1.ProceedAsync() at Volo.Abp.GlobalFeatures.GlobalFeatureInterceptor.InterceptAsync(IAbpMethodInvocation invocation) at Volo.Abp.Castle.DynamicProxy.CastleAsyncAbpInterceptorAdapter1.InterceptAsync[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo, Func3 proceed) at Castle.DynamicProxy.AsyncInterceptorBase.ProceedAsynchronous[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo) at Volo.Abp.Castle.DynamicProxy.CastleAbpMethodInvocationAdapterWithReturnValue1.ProceedAsync() at Volo.Abp.Authorization.AuthorizationInterceptor.InterceptAsync(IAbpMethodInvocation invocation) at Volo.Abp.Castle.DynamicProxy.CastleAsyncAbpInterceptorAdapter1.InterceptAsync[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo, Func3 proceed) at Castle.DynamicProxy.AsyncInterceptorBase.ProceedAsynchronous[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo) at Volo.Abp.Castle.DynamicProxy.CastleAbpMethodInvocationAdapterWithReturnValue1.ProceedAsync() at Volo.Abp.Validation.ValidationInterceptor.InterceptAsync(IAbpMethodInvocation invocation) at Volo.Abp.Castle.DynamicProxy.CastleAsyncAbpInterceptorAdapter1.InterceptAsync[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo, Func3 proceed) at Castle.DynamicProxy.AsyncInterceptorBase.ProceedAsynchronous[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo) at Volo.Abp.Castle.DynamicProxy.CastleAbpMethodInvocationAdapterWithReturnValue1.ProceedAsync() at Volo.Abp.Auditing.AuditingInterceptor.ProceedByLoggingAsync(IAbpMethodInvocation invocation, AbpAuditingOptions options, IAuditingHelper auditingHelper, IAuditLogScope auditLogScope) at Volo.Abp.Auditing.AuditingInterceptor.InterceptAsync(IAbpMethodInvocation invocation) at Volo.Abp.Castle.DynamicProxy.CastleAsyncAbpInterceptorAdapter1.InterceptAsync[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo, Func3 proceed) at Castle.DynamicProxy.AsyncInterceptorBase.ProceedAsynchronous[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo) at Volo.Abp.Castle.DynamicProxy.CastleAbpMethodInvocationAdapterWithReturnValue1.ProceedAsync() at Volo.Abp.Uow.UnitOfWorkInterceptor.InterceptAsync(IAbpMethodInvocation invocation) at Volo.Abp.Castle.DynamicProxy.CastleAsyncAbpInterceptorAdapter1.InterceptAsync[TResult](IInvocation invocation, IInvocationProceedInfo proceedInfo, Func3 proceed) at lambda_method3767(Closure, Object) at Microsoft.AspNetCore.Mvc.Infrastructure.ActionMethodExecutor.AwaitableObjectResultExecutor.Execute(ActionContext actionContext, IActionResultTypeMapper mapper, ObjectMethodExecutor executor, Object controller, Object[] arguments) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.<InvokeActionMethodAsync>g__Awaited|12_0(ControllerActionInvoker invoker, ValueTask1 actionResultValueTask) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.g__Awaited|10_0(ControllerActionInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.Rethrow(ActionExecutedContextSealed context) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.Next(State& next, Scope& scope, Object& state, Boolean& isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ControllerActionInvoker.g__Awaited|13_0(ControllerActionInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) at Microsoft.AspNetCore.Mvc.Infrastructure.ResourceInvoker.g__Awaited|26_0(ResourceInvoker invoker, Task lastTask, State next, Scope scope, Object state, Boolean isCompleted) 2025-08-17 23:53:56.454 +08:00 [INF] Executing ObjectResult, writing value of type 'Volo.Abp.Http.RemoteServiceErrorResponse'. 2025-08-17 23:53:56.454 +08:00 [INF] Executed action Volo.Abp.Identity.OrganizationUnitController.CreateAsync (Volo.Abp.Identity.Pro.HttpApi) in 23.6803ms

  • Steps to reproduce the issue:

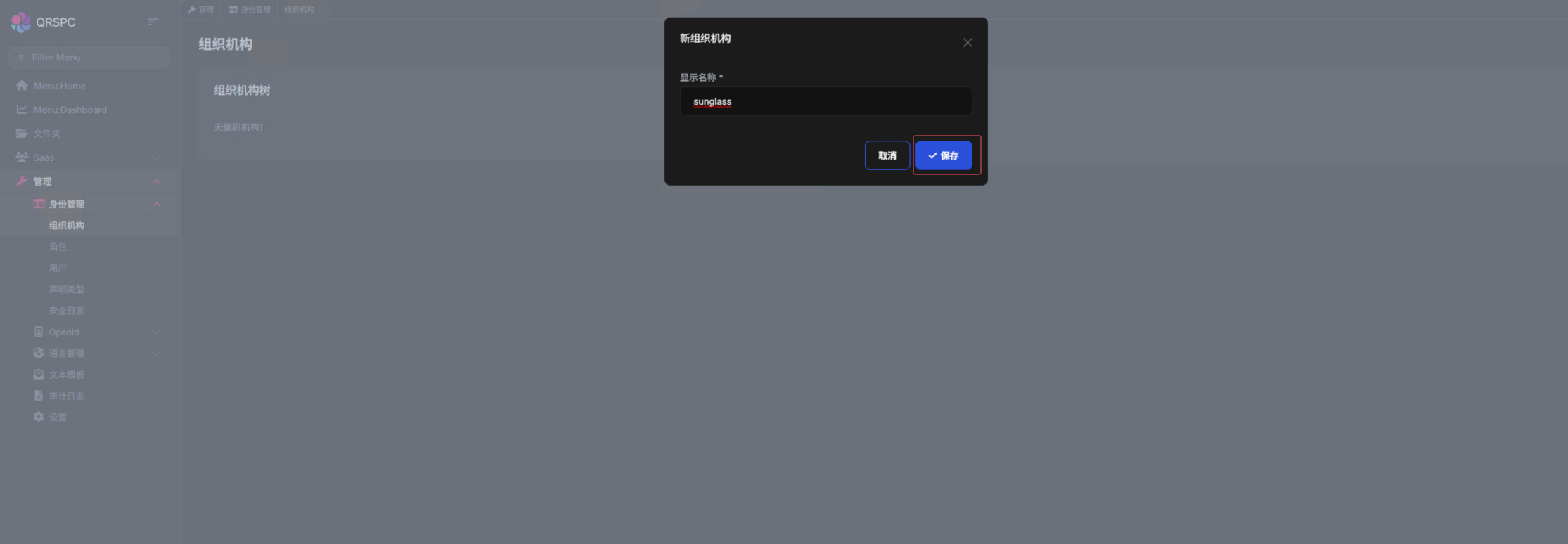

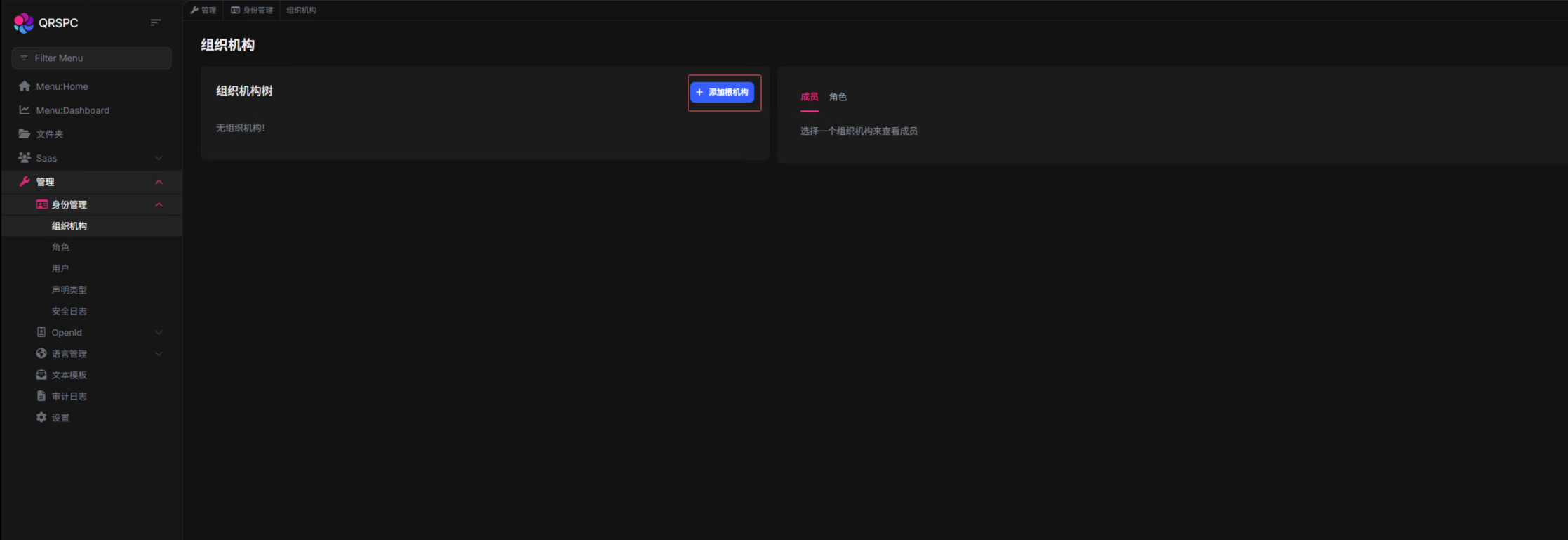

  • 1:add root organization:
  • 2:save organization:
  • 3:error message:

19 Answer(s)
  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    Can you share your test project?

    liming.ma@volosoft.com

    Thanks.

  • User Avatar
    0
    48949912 created

    [maliming] said: hi

    Can you share your test project?

    liming.ma@volosoft.com

    Thanks.

    Excuse me. You can down test project from the link:https://limewire.com/d/C51ZC#qWDI6DGCnZ.

  • User Avatar
    0
    AI-Bot created
    Support Team ABP Agent

    This is a known issue when using ABP v9.3.1 with MySQL after upgrading from v9.2.3, specifically when creating an Organization Unit. The stack trace shows a NullReferenceException in the MySQL EF Core provider, related to string comparison/collation handling in queries.

    Cause

    • The ABP Identity module (OrganizationUnit) uses string comparison methods (like StartsWith, Contains, etc.) in its queries.
    • In v9.3.1, changes in ABP or the MySQL EF Core provider (Pomelo.EntityFrameworkCore.MySql or MySql.EntityFrameworkCore) can cause a NullReferenceException if the database or provider is not configured with the correct collation or charset, or if the provider has a bug in its string comparison translation.

    Solution / Workarounds

    1. Update MySQL EF Core Provider

      • Ensure you are using the latest compatible version of your MySQL EF Core provider (e.g., Pomelo.EntityFrameworkCore.MySql or MySql.EntityFrameworkCore).
      • Check the ABP documentation for the recommended provider and version for v9.3.1.
    2. Check Database Collation

      • Make sure your MySQL database and tables use a supported collation (e.g., utf8mb4_general_ci or utf8mb4_unicode_ci).
      • Avoid mixing collations or charsets.
    3. Review Connection String

      • Add or update the CharSet and Collation in your connection string, for example:
    Server=localhost;Database=YourDb;User=xxx;Password=xxx;CharSet=utf8mb4;Collation=utf8mb4_unicode_ci;

    1. Check for ABP/EF Core Breaking Changes

      • Review the ABP and EF Core release notes for any breaking changes related to string comparison or MySQL support.
    2. Downgrade as a Temporary Fix

      • If urgent, you can temporarily downgrade to v9.2.3 until a fix or patch is available.
    3. Report to ABP Support

      • If the above steps do not resolve the issue, report it to ABP support with your stack trace and provider version.

    Sources:

    This issue is related to the MySQL provider's handling of string comparison in EF Core queries. Upgrading the provider or adjusting your database collation usually resolves it.


    This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    9.3 will use MySql.EntityFrameworkCore by default.

    You can switch it to Pomelo MySQL

    See https://abp.io/docs/latest/framework/data/entity-framework-core/mysql#use-pomelo-provider

  • User Avatar
    0
    48949912 created

    [maliming] said: hi

    9.3 will use MySql.EntityFrameworkCore by default.

    You can switch it to Pomelo MySQL

    See https://abp.io/docs/latest/framework/data/entity-framework-core/mysql#use-pomelo-provider

    Thanks a lot! I will try to replace soon.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    ok, I will try to find the reason. It seems the MySql.EntityFrameworkCore has some problems.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    This is a MySQL problem.

    https://bugs.mysql.com/bug.php?id=118460

  • User Avatar
    0
    48949912 created

    [48949912] said:

    [maliming] said: hi

    9.3 will use MySql.EntityFrameworkCore by default.

    You can switch it to Pomelo MySQL

    See https://abp.io/docs/latest/framework/data/entity-framework-core/mysql#use-pomelo-provider

    Thanks a lot! I will try to replace soon.

    Thanks a lot! After switch it to Pomelo MySQL,the problem resolved.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    Great

  • User Avatar
    0
    48949912 created

    [maliming] said: Great

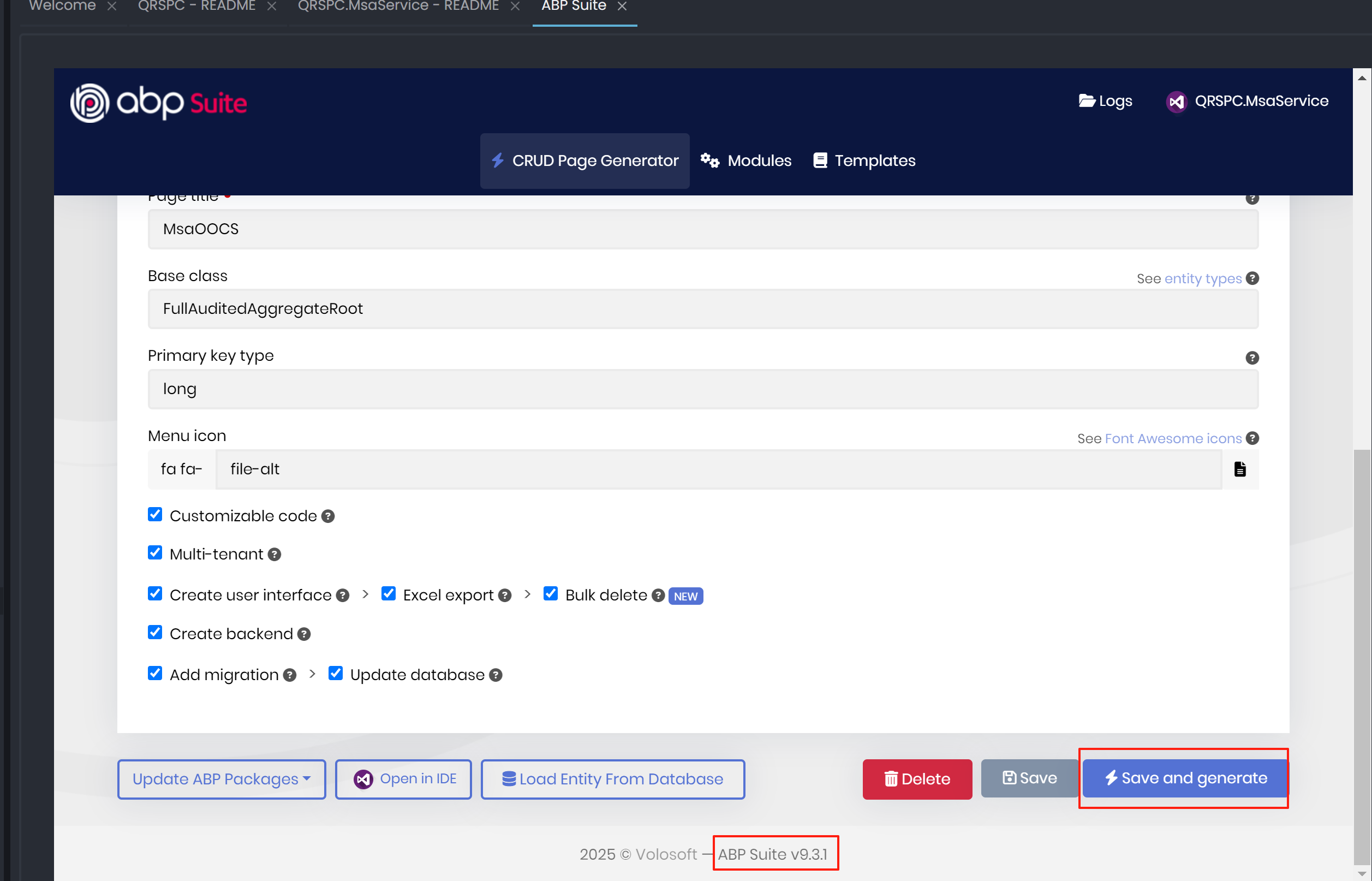

    I found another bug: First add a new entity and save/generate by ABP Suite V9.3.1 Then it gives error like this It auto add using namespce "using QRSPC.MsaService.Services.Dtos.Shared",but the correct is "using QRSPC.MsaService.Shared",you can see in the green square. The ABP Suie V9.2.3 is no such issue.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    I will forward to our suite team.

    Thanks.

  • User Avatar
    0
    48949912 created

    [maliming] said: I will forward to our suite team.

    Thanks.

    Excuse me! How to Resolve this problem?

  • User Avatar
    0
    EngincanV created
    Support Team .NET Developer

    [48949912] said:

    [maliming] said: I will forward to our suite team.

    Thanks.

    Excuse me! How to Resolve this problem?

    Hi, the problem you stated is a known problem and we will fix it soon. In the meantime, the only possible solution is to fix it in the generated code. So, manually delete the related line in your automapper class for now.

  • User Avatar
    0
    48949912 created

    [EngincanV] said:

    [48949912] said:

    [maliming] said:
    I will forward to our suite team.

    Thanks.

    Excuse me!
    How to Resolve this problem?

    Hi, the problem you stated is a known problem and we will fix it soon. In the meantime, the only possible solution is to fix it in the generated code. So, manually delete the related line in your automapper class for now.

    Excuse me! How long will it take to fix? The project is urgent. Manual modification is possible, but it's a bit tedious and will require extra time.

  • User Avatar
    0
    EngincanV created
    Support Team .NET Developer

    [48949912] said:

    [EngincanV] said:

    [48949912] said:

    [maliming] said:
    I will forward to our suite team.

    Thanks.

    Excuse me!
    How to Resolve this problem?

    Hi, the problem you stated is a known problem and we will fix it soon. In the meantime, the only possible solution is to fix it in the generated code. So, manually delete the related line in your automapper class for now.

    Excuse me! How long will it take to fix? The project is urgent. Manual modification is possible, but it's a bit tedious and will require extra time.

    We have an open issue for this problem and will try to fix it asap, but unfortunately, we can't give an exact time for now.

  • User Avatar
    0
    48949912 created

    [EngincanV] said:

    [48949912] said:

    [EngincanV] said:

    [48949912] said:

    [maliming] said:
    I will forward to our suite team.

    Thanks.

    Excuse me!
    How to Resolve this problem?

    Hi, the problem you stated is a known problem and we will fix it soon. In the meantime, the only possible solution is to fix it in the generated code. So, manually delete the related line in your automapper class for now.

    Excuse me!
    How long will it take to fix? The project is urgent. Manual modification is possible, but it's a bit tedious and will require extra time.

    We have an open issue for this problem and will try to fix it asap, but unfortunately, we can't give an exact time for now.

    Could this issue be resolved within this week? It's significantly impacting usability.

  • User Avatar
    0
    maliming created
    Support Team Fullstack Developer

    hi

    We will release it asap.

    Thanks.

  • User Avatar
    0
    48949912 created

    [maliming] said: hi

    We will release it asap.

    Thanks.

    Thanks a lost!
