Missing _framework folder when publish and deploy to docker with V10 #10202

9 Answer(s)

•

  0

  AI-Bot created yesterday

  Support Team ABP Agent

  1. Solution

  • Root cause

    • In Blazor Server, the “_framework” folder is part of the static web assets (Blazor runtime files) served by ASP.NET Core from the published output. If your Docker image doesn’t contain the published output of the Blazor Server project at the correct path and/or the container serves a different working directory, the “_framework” files won’t be found, causing login/UI to fail.

  • Fix: publish and copy the correct output into the runtime image

    1. Publish the Blazor Server project for Release inside the Docker build and copy the publish directory into the final image:

  # Build & publish
    FROM mcr.microsoft.com/dotnet/sdk:10.0 AS build
    WORKDIR /src
    COPY . .
    RUN dotnet restore
    RUN dotnet publish ./src/YourCompany.YourApp.Blazor/YourCompany.YourApp.Blazor.csproj -c Release -o /app/publish

    # Runtime
    FROM mcr.microsoft.com/dotnet/aspnet:10.0 AS final
    WORKDIR /app
    COPY --from=build /app/publish .
    ENTRYPOINT ["dotnet", "YourCompany.YourApp.Blazor.dll"]


  • Important: Ensure the DLL name matches your Blazor Server project DLL.
  • Do not copy bin/… directly unless it’s the publish folder. The publish folder must include the static web assets used to serve “_framework”.

  2. If you already publish outside Docker, copy the exact publish directory:

  FROM mcr.microsoft.com/dotnet/aspnet:10.0 AS final
    WORKDIR /app
    COPY ./src/YourCompany.YourApp.Blazor/bin/Release/net10.0/publish/ .
    ENTRYPOINT ["dotnet", "YourCompany.YourApp.Blazor.dll"]

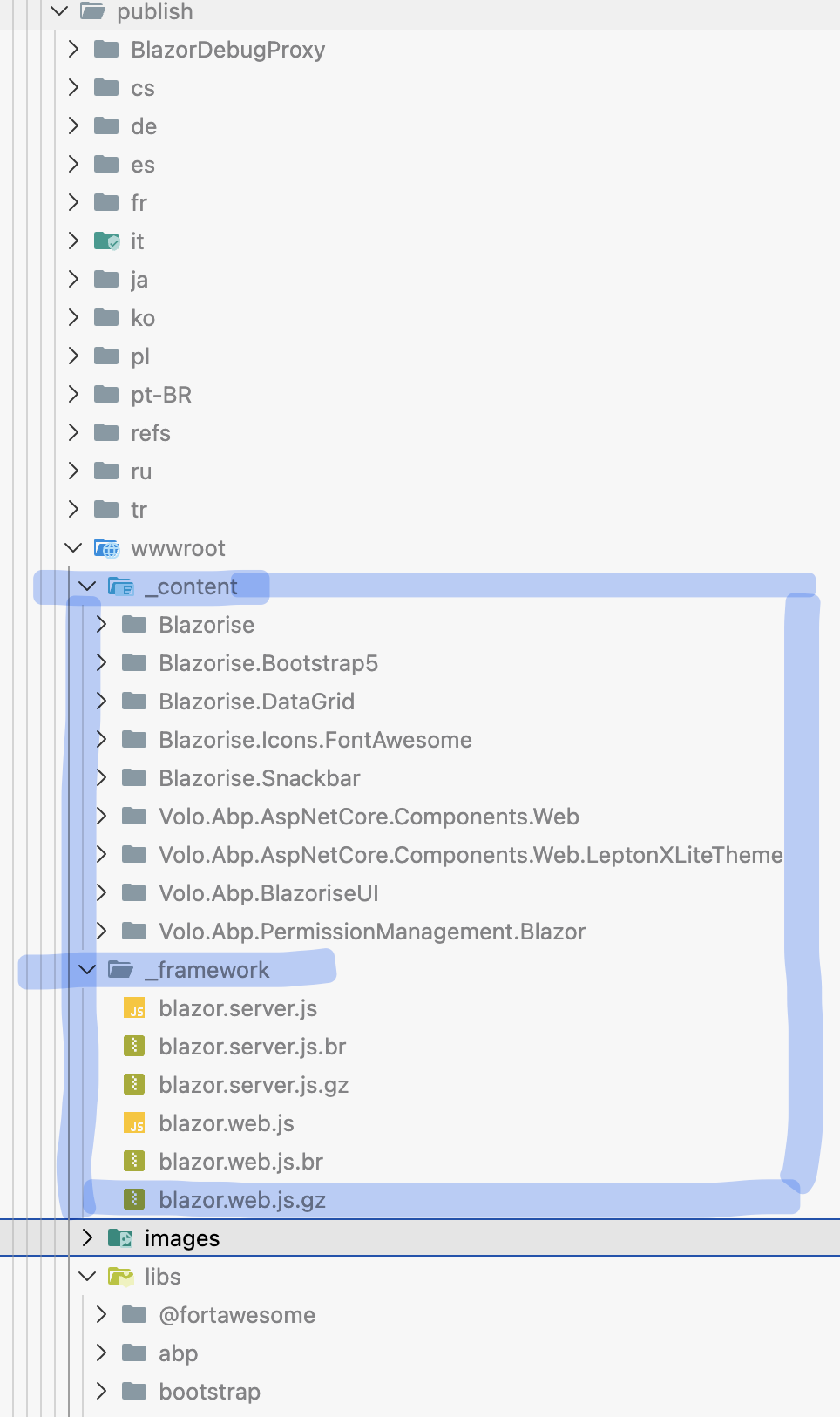

  • Verify that the path exists locally and contains the “_framework” under wwwroot/_framework or in static web assets folders included by the publish output.

  • Additional checks

    • Ensure you run dotnet publish (not just build). Publish produces the static web assets and manifest required for Blazor.
    • Make sure the container’s WORKDIR matches where you copied the publish output, and you are starting the correct DLL.
    • If you front the container with Nginx/Apache, confirm static files are not blocked and requests to “/_framework/*” are forwarded to Kestrel or served by the same app container without being intercepted.
    • If you turned on trimming (PublishTrimmed) or single-file publish, try disabling trimming for Blazor Server or ensure proper trim settings—aggressive trimming can remove files needed by the Blazor runtime.

  • ABP-specific note

    • The ABP Blazor Server app in a tiered solution is a single web app hosting both UI and the OpenIddict server by default. Use a multi-stage Dockerfile and copy from the publish output as shown above. ABP’s sample Dockerfile for Blazor Server also assumes copying from bin/Release/net10.0/publish into the aspnet base image.

  2. Sources

  • ASP.NET Core Blazor static files fundamentals (how Blazor serves “_framework”):
    • https://learn.microsoft.com/aspnet/core/blazor/fundamentals/static-files
  • ABP layered solution deployment to Docker (Blazor Server sample Dockerfile and steps):
    • https://abp.io/docs/10.0//solution-templates/layered-web-application/deployment/deployment-docker-compose
  • ABP v10 migration and .NET 10 note:
    • https://abp.io/docs/10.0//release-info/migration-guides/abp-10-0

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  maliming created yesterday

  Support Team Fullstack Developer

  hi

  Did you use dotnet publish command to publish your blazor project to docker?

  Thanks.

  Save Cancel
•

  0

  hanntd created yesterday

  Sure Maliming, it is working well for v9.x just issue when upgraded to v10. My current docker file, even i tried on docker local still the same:

  # ============================================
  # HQSOFT.Xspire.Blazor - Standard Dockerfile
  # Optimized for BuildKit caching with parallel builds
  # With DevExpress License support
  # ============================================

  # ----------------------------
  # Build stage - restore and compile
  # ----------------------------
  FROM mcr.microsoft.com/dotnet/sdk:10.0 AS build

  # DevExpress License Build Argument
  # This is passed from GitLab CI/CD via --build-arg
  ARG DevExpress_License

  # Set DevExpress License as environment variable (exact casing required)
  # This makes the license available during dotnet build/publish
  ENV DevExpress_License=${DevExpress_License}

  # Set environment for build performance
  ENV DOTNET_CLI_TELEMETRY_OPTOUT=1 \
      DOTNET_SKIP_FIRST_TIME_EXPERIENCE=1 \
      DOTNET_SYSTEM_GLOBALIZATION_INVARIANT=1 \
      NUGET_HTTP_TIMEOUT=180

  WORKDIR /src

  # Copy solution and project files first (for better layer caching)
  COPY ["HQSOFT.Xspire.sln", "./"]
  COPY ["NuGet.Config", "./"]
  COPY ["common.props", "./"]

  # Copy all project files for restore
  COPY ["src/HQSOFT.Xspire.Blazor/HQSOFT.Xspire.Blazor.csproj", "src/HQSOFT.Xspire.Blazor/"]
  COPY ["src/HQSOFT.Xspire.Application/HQSOFT.Xspire.Application.csproj", "src/HQSOFT.Xspire.Application/"]
  COPY ["src/HQSOFT.Xspire.Application.Contracts/HQSOFT.Xspire.Application.Contracts.csproj", "src/HQSOFT.Xspire.Application.Contracts/"]
  COPY ["src/HQSOFT.Xspire.Domain/HQSOFT.Xspire.Domain.csproj", "src/HQSOFT.Xspire.Domain/"]
  COPY ["src/HQSOFT.Xspire.Domain.Shared/HQSOFT.Xspire.Domain.Shared.csproj", "src/HQSOFT.Xspire.Domain.Shared/"]
  COPY ["src/HQSOFT.Xspire.EntityFrameworkCore/HQSOFT.Xspire.EntityFrameworkCore.csproj", "src/HQSOFT.Xspire.EntityFrameworkCore/"]
  COPY ["src/HQSOFT.Xspire.HttpApi.Client/HQSOFT.Xspire.HttpApi.Client.csproj", "src/HQSOFT.Xspire.HttpApi.Client/"]

  # Copy module project files
  COPY ["modules/", "modules/"]

  # Restore dependencies (this layer is cached if project files don't change)
  RUN dotnet restore "src/HQSOFT.Xspire.Blazor/HQSOFT.Xspire.Blazor.csproj" \
      -r linux-x64 \
      --verbosity quiet

  # Copy all source code
  COPY ["src/", "src/"]

  # Build the project (cached if source code doesn't change)
  # DevExpress License is available via environment variable
  RUN dotnet build "src/HQSOFT.Xspire.Blazor/HQSOFT.Xspire.Blazor.csproj" \
      -c Release \
      -r linux-x64 \
      --no-restore \
      --disable-build-servers \
      --verbosity quiet \
      /p:WarningLevel=0 \
      /consoleLoggerParameters:ErrorsOnly

  # ----------------------------
  # Publish stage
  # ----------------------------
  FROM build AS publish
  # DevExpress License remains available in this stage from build stage
  RUN dotnet publish "src/HQSOFT.Xspire.Blazor/HQSOFT.Xspire.Blazor.csproj" \
      -c Release \
      -r linux-x64 \
      -o /app/publish \
      --no-restore \
      --verbosity quiet \
      /p:WarningLevel=0 \
      /consoleLoggerParameters:ErrorsOnly \
      /p:CopyStaticWebAssets=true \
      /p:IncludeStaticWebAssets=true

  # ----------------------------
  # Runtime stage
  # ----------------------------
  FROM mcr.microsoft.com/dotnet/aspnet:10.0 AS final

  # Set timezone
  ENV TZ=Asia/Ho_Chi_Minh
  RUN ln -snf /usr/share/zoneinfo/$TZ /etc/localtime && echo $TZ > /etc/timezone

  # Configure ASP.NET Core
  ENV ASPNETCORE_URLS=http://+:8080 \
      ASPNETCORE_FORWARDEDHEADERS_ENABLED=true \
      UseHttpsRedirection=true \
      ASPNETCORE_PATHBASE=""

  WORKDIR /app

  # Install runtime dependencies for reporting and fonts
  RUN apt-get update && apt-get install -y \
      libfontconfig1 \
      fontconfig \
      libicu-dev \
      libfreetype6 \
      libjpeg-turbo8 \
      libpng16-16 \
      libgif7 \
      libx11-6 \
      libxcb1 \
      libxext6 \
      libgl1 \
      wget \
      --no-install-recommends && \
      rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/* && \
      mkdir -p /usr/share/fonts/truetype/msttcorefonts && \
      wget -q https://github.com/web-platform-tests/wpt/raw/master/fonts/Ahem.ttf -O /usr/share/fonts/truetype/Ahem.ttf && \
      fc-cache -f

  # Create application directories
  RUN mkdir -p /app/Logs /app/Reports && \
      chmod 755 /app/Logs /app/Reports

  # Set shared library path
  ENV LD_LIBRARY_PATH=/usr/lib/x86_64-linux-gnu:/usr/lib:/app

  # Copy published application
  COPY --from=publish /app/publish .

  # Copy Reports folder if it exists (using RUN with mount for optional copy)
  RUN --mount=type=bind,from=build,source=/src/src/HQSOFT.Xspire.Blazor/Reports,target=/tmp/reports \
      if [ -d /tmp/reports ]; then cp -r /tmp/reports/* /app/Reports/ || true; fi

  # Health check
  HEALTHCHECK --interval=30s --timeout=10s --start-period=60s --retries=5 \
      CMD wget -q --spider http://localhost:8080/health-status || exit 1

  EXPOSE 8080

  # Run the application
  ENTRYPOINT ["dotnet", "HQSOFT.Xspire.Blazor.dll"]


  Save Cancel
•

  0

  maliming created yesterday

  Support Team Fullstack Developer

  hi、

  I think this is unrelated to the ABP framework and might be related to your environment. You can try testing by publishing a Microsoft Blazor project to see if that works.



  Thanks.

  Save Cancel
•

  0

  hanntd created yesterday

  as i said before i try to publish on local machine ok, the issue only happened when publish to docker during docker build. even you publish to docker on local machine or on the server has the same issue

  Save Cancel
•

  0

  maliming created yesterday

  Support Team Fullstack Developer

  hi

  I will test it in localy docker.

  Save Cancel
•

  0

  maliming created 18 hours ago

  Support Team Fullstack Developer

  hi

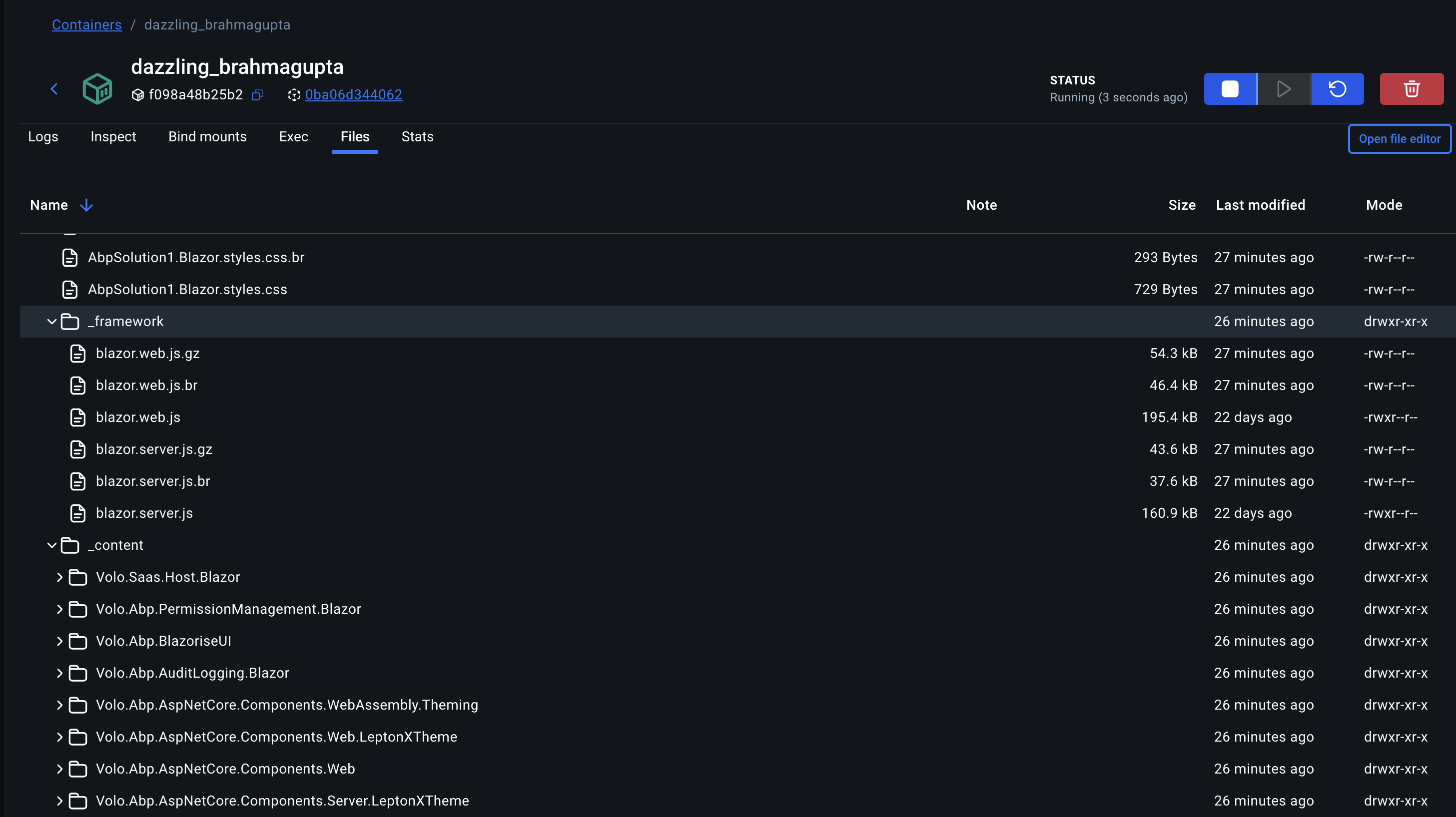

  I test a project in Docker Desktop, and it works.

  FROM mcr.microsoft.com/dotnet/sdk:10.0 AS build
  WORKDIR /app

  COPY . .

  WORKDIR /app/src/AbpSolution1.Blazor
  RUN dotnet dev-certs https -v -ep openiddict.pfx -p df97f7cd-f499-4977-9c9c-6beeb4da13f8
  RUN chmod 644 openiddict.pfx
  RUN dotnet build -c Release -o /app/build
  RUN dotnet publish -c Release -o /app/publish

  FROM mcr.microsoft.com/dotnet/aspnet:10.0 AS runtime

  RUN useradd --create-home appuser || true
  USER appuser

  WORKDIR /app

  ENV ASPNETCORE_URLS=http://+:8080

  COPY --from=build /app/publish .

  EXPOSE 8080

  ENTRYPOINT ["dotnet", "AbpSolution1.Blazor.dll"]




  Save Cancel
•

  0

  hanntd created 3 hours ago

  Thanks, i have resolved my issue, i remove "-r linux-x64" in dotnet restore/build/publish now it worked.

  Save Cancel
•

  0

  maliming created 2 hours ago

  Support Team Fullstack Developer

  Great : )
