Routes To be between Logo and Nav Items (LeptonX Side Menu) #10233

13 Answer(s)

•

  0

  AI-Bot created 21 days ago

  Support Team ABP Agent

  1. Solution

  • In LeptonX Angular, the header is composed of replaceable building blocks. To place your route menu (top navigation) between the company logo (lpx-header-top) and the right user toolbar (lpx-right-menu), create a custom layout that reorders these blocks, then use it instead of the built-in layout.

  Steps:

  1. Create a custom layout component and register it

  • Generate a layout component (e.g., AppCustomTopLayoutComponent) and mark it as a layout replacement.
  • Import LeptonX layout/component modules you will use.

  // app.module.ts
  import { NgModule } from '@angular/core';
  import { BrowserModule } from '@angular/platform-browser';

  // LeptonX modules you will need in the template
  import { LpxTopMenuLayoutModule, LpxSideMenuLayoutModule } from '@volosoft/ngx-lepton-x/layouts';
  import {
    LpxNavbarModule,
    LpxBrandLogoModule,
    LpxTopbarModule,
    LpxTopbarContentModule,
    LpxToolbarContainerModule,
    LpxAvatarModule,
    LpxSettingsModule,
    LpxBreadcrumbModule,
    LpxFooterModule
  } from '@volosoft/ngx-lepton-x/components';
  import { LpxResponsiveModule } from '@volo/ngx-lepton-x.core';

  import { AppCustomTopLayoutComponent } from './layouts/app-custom-top-layout.component';

  @NgModule({
    declarations: [AppCustomTopLayoutComponent],
    imports: [
      BrowserModule,
      // Import the LeptonX modules (pick what you actually use)
      LpxTopMenuLayoutModule,
      LpxSideMenuLayoutModule,
      LpxNavbarModule,
      LpxBrandLogoModule,
      LpxTopbarModule,
      LpxTopbarContentModule,
      LpxToolbarContainerModule,
      LpxAvatarModule,
      LpxSettingsModule,
      LpxBreadcrumbModule,
      LpxFooterModule,
      LpxResponsiveModule
    ],
    bootstrap: [/* ... */]
  })
  export class AppModule {}


  2. Build the custom header composition with “menu between logo and user toolbar”

  • In your custom layout template, place lpx-navbar (your routes/top menu) between lpx-brand-logo and the right-side toolbar container.

  <!-- app-custom-top-layout.component.html -->
  <div id="lpx-wrapper">
    <div class="lpx-content-container">
      <div class="lpx-topbar-container">
        <div class="lpx-topbar">
          <!-- Left: Logo -->
          <div class="lpx-header-top">
            <lpx-brand-logo></lpx-brand-logo>
          </div>

          <!-- Center: Routes (Top Menu Navbar) -->
          <div class="lpx-top-menu-navbar">
            <lpx-navbar></lpx-navbar>
          </div>

          <!-- Right: User/Settings toolbar -->
          <div class="lpx-right-menu">
            <lpx-toolbar-container></lpx-toolbar-container>
            <lpx-avatar></lpx-avatar>
            <lpx-settings></lpx-settings>
          </div>
        </div>
      </div>

      <!-- Optional: Breadcrumb under header -->
      <div class="lpx-breadcrumb-container">
        <lpx-breadcrumb></lpx-breadcrumb>
      </div>

      <!-- Page content -->
      <div class="lpx-content-wrapper">
        <div class="lpx-content">
          <router-outlet></router-outlet>
        </div>
      </div>

      <div class="lpx-footbar-container">
        <lpx-footer></lpx-footer>
      </div>
    </div>

    <!-- Mobile navbar if needed -->
    <lpx-mobile-navbar *lpxResponsive="'all md-none'"></lpx-mobile-navbar>
  </div>


  3. Make this layout active

  • Use Angular Component Replacement to replace the default layout with your custom one, or route specific pages to use it.

  Example (replace main layout globally):

  // app-routing.module.ts (example)
  const routes: Routes = [
    {
      path: '',
      component: AppCustomTopLayoutComponent,
      children: [
        // your app routes here
      ],
    },
  ];


  4. If you were using the packaged Top Menu layout already

  • Ensure you use the top-menu style assets and module:
    • In angular.json, set style to top-menu (instead of side-menu).
    • In app.module.ts, use TopMenuLayoutModule if you need its styles.
  • Then still compose your own header order as shown above to get “logo | routes | right toolbar”.

  Notes:

  • The key is composing LeptonX components manually in a custom layout and ordering them: brand logo (left), navbar (center), toolbar/avatar/settings (right).
  • This approach follows ABP’s “Component Replacement” and LeptonX customization guidance.

  2. Sources

  • Validated:
    • https://github.com/abpframework/abp
    • https://abp.io/support/questions/5558
    • https://abp.io/support/questions/4358

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  sumeyye.kurtulus created 21 days ago

  Support Team Angular Expert

  Hello,

  You can achieve this by replacing the top navbar and the navbar components by utilizing this feature: https://abp.io/docs/latest/framework/ui/angular/component-replacement

  Here are the keys and the components that you need to implement:

  import { TopMenuNavbarComponent } from '@volosoft/ngx-lepton-x/layouts';

  @Component({
    selector: 'app-my-top-navbar',
    imports: [TopMenuNavbarComponent],
    template: `<lpx-top-menu-navbar />`,
  })
  export class MyTopNavbar {}


  @Component({
    selector: 'app-my-navbar',
    imports: [],
    template: ``,
  })
  export class MyNavbar {}


  You may need this style override

  //angular/src/styles.scss
  :root .lpx-header-top {
    justify-content: space-between;
  }


  Lastly, you need to replace the related components

  import { eThemeLeptonXComponents } from '@volosoft/abp.ng.theme.lepton-x';
  import { MyNavbar } from './my-navbar/my-navbar';
  import { MyTopNavbar } from './my-top-navbar/my-top-navbar';

  //...

  export class AppComponent {
    private replaceComponent = inject(ReplaceableComponentsService);
    constructor() {
      this.replaceComponent.add({
        component: MyTopNavbar,
        key: eThemeLeptonXComponents.TopNavbar,
      });
      this.replaceComponent.add({
        component: MyNavbar,
        key: eThemeLeptonXComponents.Navbar,
      });
    }
  }



  Save Cancel
•

  0

  f.alrijjal created 21 days ago

  Hello Sumeyye Kurtulus,

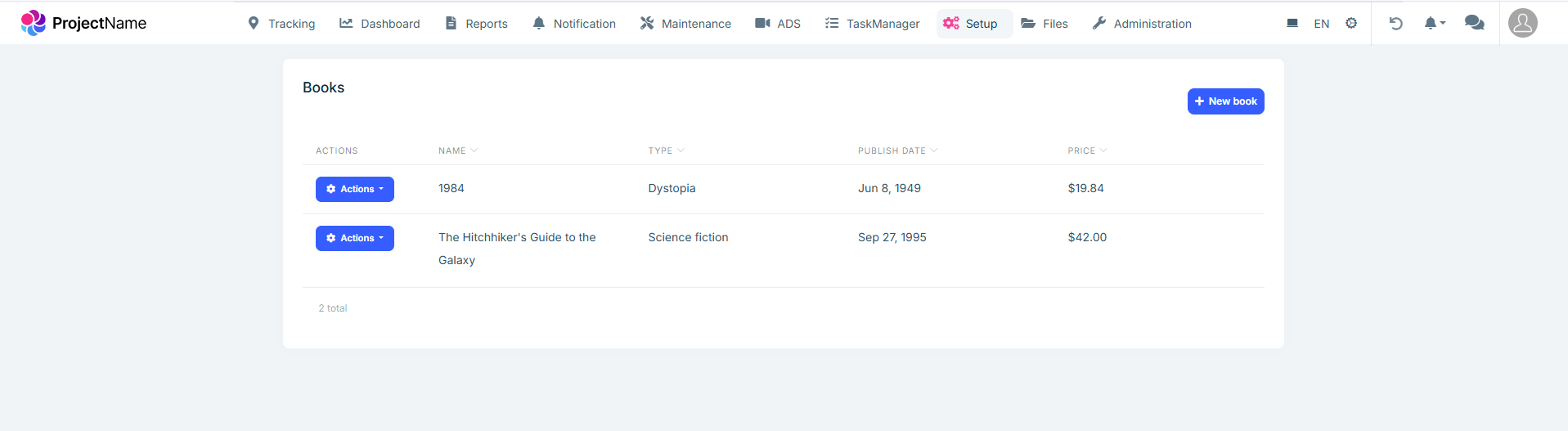

  Thank you for your reply, it's worked, but I found below style issue below, noting that I worked on a new, fresh ABP project. Furthermore i put my code changes int for your review



  Please advise

  import { Component, inject } from '@angular/core'; import { GdprCookieConsentComponent } from '@volo/abp.ng.gdpr/config'; import { DynamicLayoutComponent, ReplaceableComponentsService } from '@abp/ng.core'; import { LoaderBarComponent } from '@abp/ng.theme.shared'; import { eThemeLeptonXComponents } from '@volosoft/abp.ng.theme.lepton-x'; import { TopMenuNavbarComponent } from '@volosoft/ngx-lepton-x/layouts'; import { CustomMenu } from './layouts/custom-menu/custom-menu'; @Component({ selector: 'app-root', template: <abp-loader-bar /> <abp-dynamic-layout /> <abp-gdpr-cookie-consent />, imports: [LoaderBarComponent, DynamicLayoutComponent, GdprCookieConsentComponent], }) export class AppComponent { private replaceComponent = inject(ReplaceableComponentsService); constructor() { this.replaceComponent.add({ component: TopMenuNavbarComponent, key: eThemeLeptonXComponents.TopNavbar, });

  this.replaceComponent.add({
    component: CustomMenu,
    key: eThemeLeptonXComponents.Navbar,
  });

  this.replaceComponent.add({
    component: CustomMenu,
    key: eThemeLeptonXComponents.Breadcrumb,
  });


  } }

  import { Component } from '@angular/core';

  @Component({ selector: 'app-custom-menu',

  template: '',

  }) export class CustomMenu {

  }

  /* You can add global styles to this file, and also import other style files */

  :root .lpx-theme-dark { .abp-support { background-image: url('/assets/images/getting-started/abp-support-white.svg'); } .abp-community { background-image: url('/assets/images/getting-started/abp-community-white.svg'); } .abp-blog { background-image: url('/assets/images/getting-started/abp-blog-white.svg'); } .logo-x { background-image: url('/assets/images/getting-started/x-white.svg'); } }

  :root { --lpx-theme-light-bg: url('/assets/images/login/login-bg-img-light.svg'); --lpx-theme-dim-bg: url('/assets/images/login/login-bg-img-dim.svg'); --lpx-theme-dark-bg: url('/assets/images/login/login-bg-img-dark.svg');

  --lpx-logo-url: var(--lpx-logo-icon, url('/assets/images/logo/icon.svg')); --lpx-logo: var(--lpx-logo-icon);

  .abp-logo { background-repeat: no-repeat; }

  .abp-support { width: 178px; height: 30px; background-image: url('/assets/images/getting-started/abp-support.svg'); }

  .abp-community { width: 215px; height: 30px; background-image: url('/assets/images/getting-started/abp-community.svg'); }

  .abp-blog { width: 142px; height: 30px; background-image: url('/assets/images/getting-started/abp-blog.svg'); }

  .logo-x { width: 20px; height: 20px; background-image: url('/assets/images/getting-started/x.svg'); } } :root .lpx-header-top { justify-content: space-between; }

  Save Cancel
•

  0

  sumeyye.kurtulus created 21 days ago

  Support Team Angular Expert

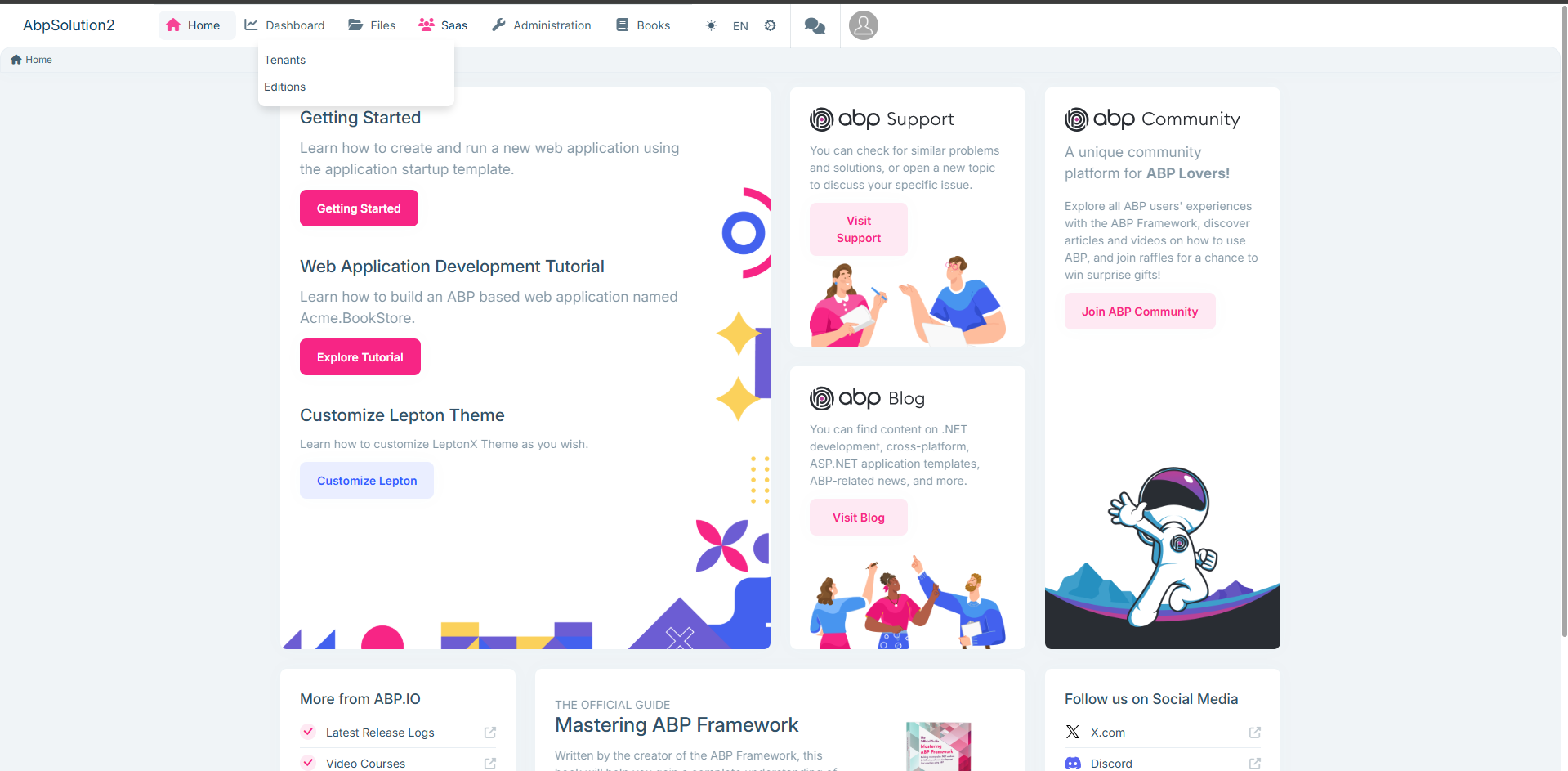

  Thank you for the detailed reply. May I also know how I could produce the same problem and whether it is a temporary overlay problem?



  It seems working on my side

  Thank you for your cooperation.

  Save Cancel
•

  0

  f.alrijjal created 17 days ago

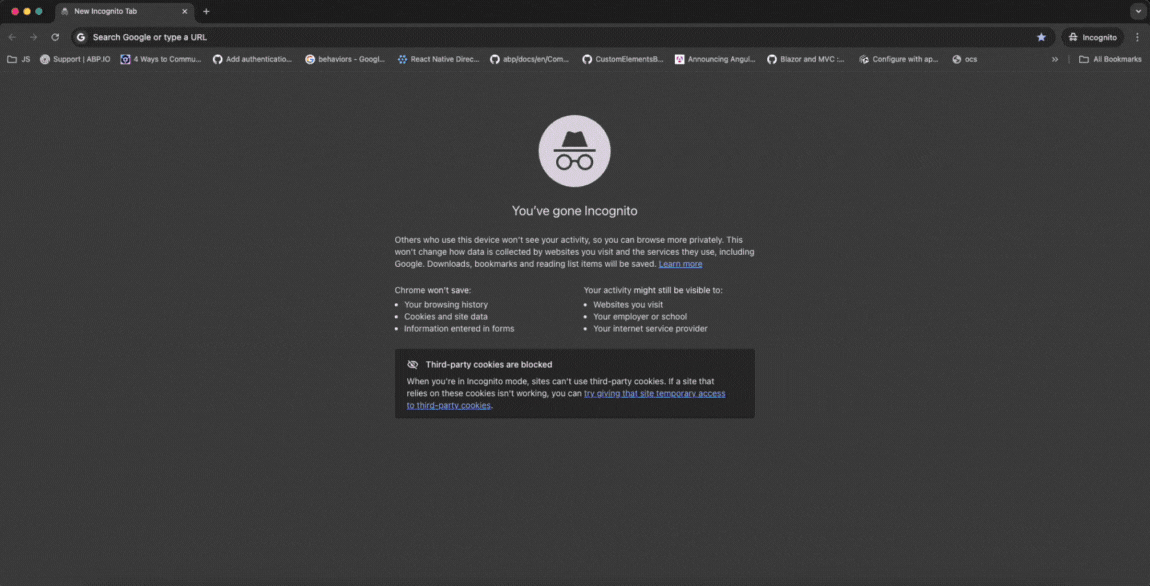

  It's occurred only first time do ctr+f5 its will raise one time then all good



  Save Cancel
•

  0

  sumeyye.kurtulus created 16 days ago

  Support Team Angular Expert

  Thank you for specifying the problem again. This seems like a simple override issue. Could you try putting the css rule at the top of the file?

  Save Cancel
•

  0

  f.alrijjal created 15 days ago

  Hello Summeyye,

  Thank you for your reply,

  which file you mean? i need to put the css on top?

  Save Cancel
•

  0

  sumeyye.kurtulus created 15 days ago

  Support Team Angular Expert

  Hello, You can put it in the styles.scss file.

  Save Cancel
•

  0

  f.alrijjal created 15 days ago

  You only shared below CSS rule with me, is thier any CSS?

  //angular/src/styles.scss :root .lpx-header-top { justify-content: space-between; }

  Save Cancel
•

  0

  sumeyye.kurtulus created 13 days ago

  Support Team Angular Expert

  Yes, I mean this file /angular/src/styles.scss. Could you try putting the rule at the top of this file? Thank you for your cooperation.

  Save Cancel
•

  0

  f.alrijjal created 11 days ago

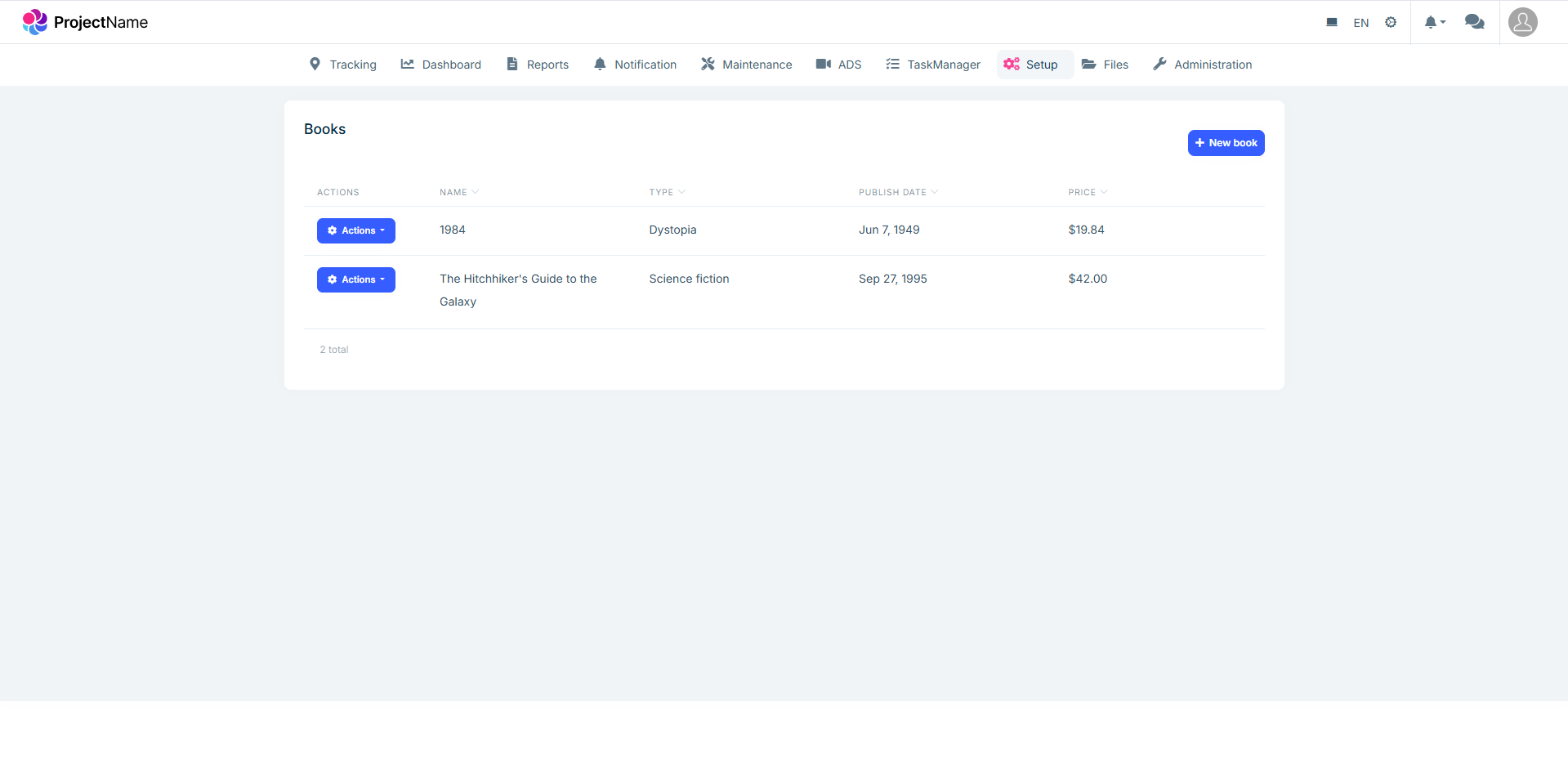

  Thank for the update , I added below at top of my file /angular/src/styles.scss but first load the but still the design not correct

  //angular/src/styles.scss :root .lpx-header-top { justify-content: space-between; }

  Save Cancel
•

  0

  sumeyye.kurtulus created 10 days ago

  Support Team Angular Expert

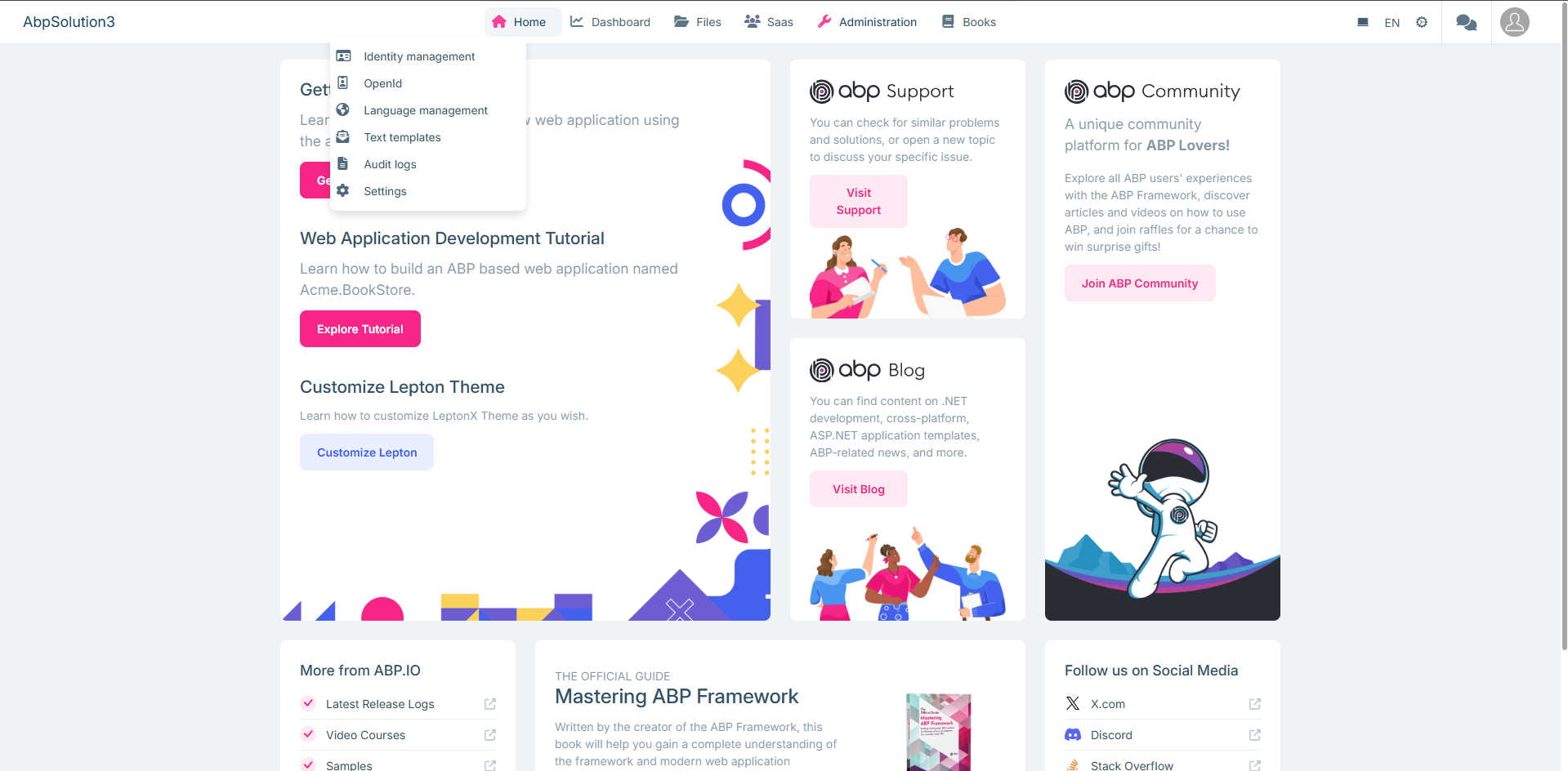

  This may be because of the dropdown positioning styles. Could you try these final adjustments?

  // angular/src/styles.scss

  .lpx-header-top {
    justify-content: space-between;
  }

  .lpx-menu-dropdown {
    position: fixed; /* Changed from absolute */
    /* Add initial position off-screen or matching expected position */
    top: -9999px;
    left: -9999px;
  }


  Save Cancel
•

  0

  f.alrijjal created 9 days ago

  Thank you, this worked
