Issue with Domain-Based Tenant Resolver Login (Angular + OpenIddict) #10261

1 Answer(s)

•

  0

  AI-Bot created 12 hours ago

  Support Team ABP Agent

  1. Solution

  I’ll separate the answer into:

  1. How host (Super Admin) login should work with domain-based tenant resolution.
  2. How to fix the Angular + OpenIddict “redirect_uri is not valid for this client” error for tenant domains.

  ---

  1. Host (Super Admin) login with domain-based tenant resolver

  Goal:

  • Host (Super Admin) should log in on the host domain (no tenant in domain).
  • Tenant users should log in on their tenant subdomain.

  With:

  Configure<AbpTenantResolveOptions>(options =>
  {
      options.AddDomainTenantResolver("{0}.multitenancydemo.local");
  });


  ABP behaves as:

  • multitenancydemo.local → no tenant → Host context (CurrentTenant.IsAvailable == false).
  • test.multitenancydemo.local → tenant test.

  This is correct and does not prevent host login. If:

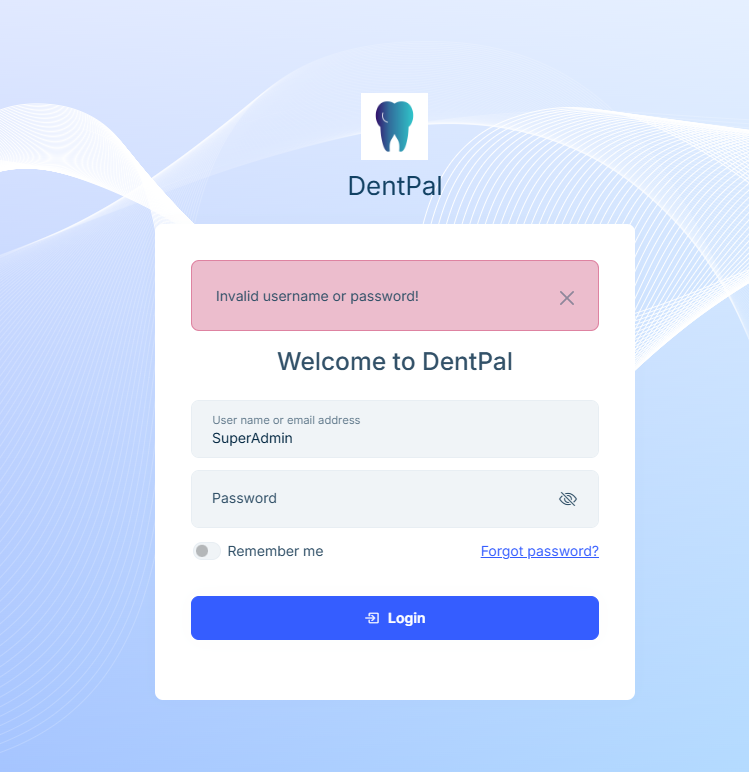

  • Wrong password shows “Invalid username or password”
  • Correct password makes the page “stick” or loop

  then the usual root cause is OpenIddict client configuration / redirect URIs, not the user itself.

  For host login to work:

  1. Make sure the host domain is registered as a redirect URI & CORS origin for the Angular app client.

     In OpenIddict (ABP 9+), this is done by the data seed (usually in YourProjectNameDomainDataSeedContributor, via OpenIddictApplicationManager).
     You must ensure your Angular client (e.g. DentPal_App) has:

  Redirect URIs:
       - http://multitenancydemo.local:4200     (host)
       - http://{0}.multitenancydemo.local:4200 (tenants via wildcard)

     Post Logout Redirect URIs:
       - same pattern as above
     CORS origins:
       - http://multitenancydemo.local:4200
       - http://*.multitenancydemo.local:4200 (or each tenant explicitly)


  In the blog/sample this is done by seeding with RootUrl = "http://{0}.multitenancydemo.local:4200".
  You must add another entry (or additional redirect URI) for the host root URL:

  await CreateApplicationAsync(
         name: "DentPal_App",
         type: OpenIddictConstants.ClientTypes.Public,
         consentType: OpenIddictConstants.ConsentTypes.Explicit,
         displayName: "DentPal Angular Application",
         secret: null,
         grantTypes: new[] { OpenIddictConstants.GrantTypes.AuthorizationCode, OpenIddictConstants.GrantTypes.RefreshToken },
         scopes: new[] { "DentPal", OpenIddictConstants.Scopes.OfflineAccess, OpenIddictConstants.Scopes.Email, OpenIddictConstants.Scopes.Profile, OpenIddictConstants.Scopes.Roles },
         redirectUri: "http://{0}.multitenancydemo.local:4200",              // tenants
         extraRedirectUris: new[]
         {
             "http://multitenancydemo.local:4200"                            // host
         },
         postLogoutRedirectUri: "http://{0}.multitenancydemo.local:4200",
         extraPostLogoutRedirectUris: new[]
         {
             "http://multitenancydemo.local:4200"
         },
         clientUri: null,
         permissions: ...);


  (Exact method name/signature may differ, but the idea is: client has both wildcard and host URLs.)

  2. Angular environment for the host domain must match that host URL.

     For the host Angular app (where Super Admin logs in):

  const hostBaseUrl = 'http://multitenancydemo.local:4200';

     export const environment = {
       production: false,
       application: {
         baseUrl: hostBaseUrl,
         name: 'DentPal',
       },
       oAuthConfig: {
         issuer: 'http://multitenancydemo.local:44397', // your HttpApi.Host/OpenIddict endpoint
         redirectUri: hostBaseUrl,
         clientId: 'DentPal_App',
         responseType: 'code',
         scope: 'offline_access DentPal',
         requireHttps: false
       },
       apis: {
         default: {
           url: 'http://multitenancydemo.local:44397',
           rootNamespace: 'DentPal',
         },
       },
     };


  If the host Angular also uses {0}.multitenancydemo.local as baseUrl / redirectUri while you are on multitenancydemo.local, the generated redirect_uri won’t match OpenIddict’s registered URIs and the login flow gets stuck/loops.

  3. Confirm AppUrlOptions configuration doesn’t crash.

     If you override AppUrlOptions (e.g. in HttpApiHostModule.ConfigureServices) like:

  Configure<AppUrlOptions>(options =>
     {
         options.Applications["MVC"].RootUrl = configuration["App:SelfUrl"];
         options.Applications["Angular"].RootUrl = configuration["App:AngularUrl"];
     });


  make sure App:AngularUrl exists in appsettings.json and is not null (otherwise you can get hidden 500s that appear as “stuck login”).

  ---

  2. Tenant login from Angular – OpenIddict “redirect_uri is not valid for this client”

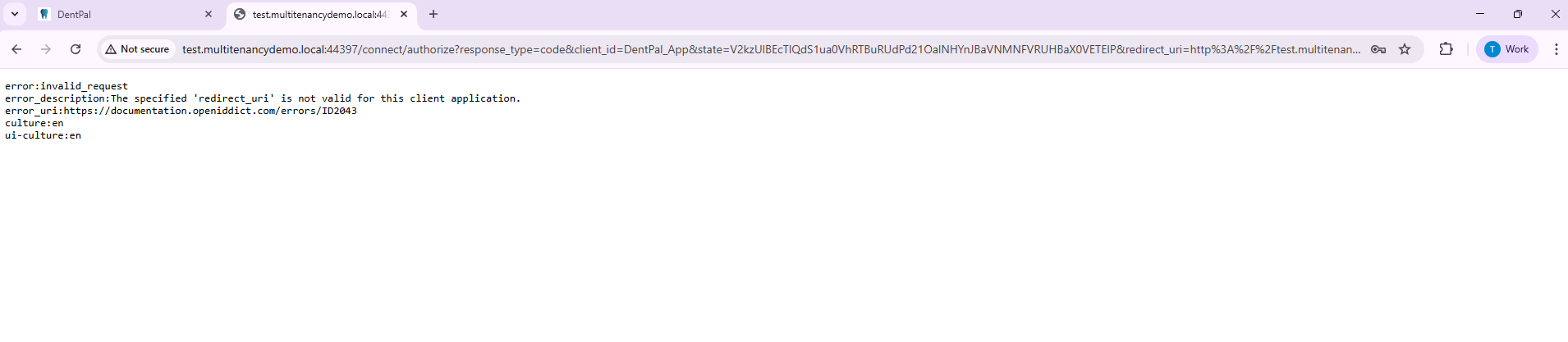

  Your screenshot shows:

  error_description: The specified 'redirect_uri' is not valid for this client application.

  The URL in the bar is something like:

  .../connect/authorize?client_id=DentPal_App&redirect_uri=http%3A%2F%2Ftest.multitenancydemo.local%3A4200...


  This means:

  • Angular uses redirectUri = 'http://{0}.multitenancydemo.local:4200'.
  • Running at http://test.multitenancydemo.local:4200 correctly produces redirect_uri=http://test.multitenancydemo.local:4200.
  • But OpenIddict’s client DentPal_App does not have this redirect URI registered (only the non-tenant URL, or only another domain).

  To fix it for all tenants:

  1. Enable wildcard domain support for OpenIddict (as in the article):

     In YourProjectNameHttpApiHostModule.PreConfigureServices:

  using Volo.Abp.OpenIddict.WildcardDomains;

     public override void PreConfigureServices(ServiceConfigurationContext context)
     {
     #if DEBUG
         PreConfigure<OpenIddictServerBuilder>(options =>
         {
             options.UseAspNetCore().DisableTransportSecurityRequirement();
         });
     #endif

         PreConfigure<AbpOpenIddictWildcardDomainOptions>(options =>
         {
             options.EnableWildcardDomainSupport = true;
             options.WildcardDomainsFormat.Add("http://{0}.multitenancydemo.local:4200");
         });
     }


  This lets OpenIddict treat http://{0}.multitenancydemo.local:4200 as a wildcard redirect URI pattern.

  2. Seed the OpenIddict client with the wildcard RootUrl.

     In your DbMigrator appsettings.json (or wherever you seed applications):

  "OpenIddict": {
       "Applications": {
         "DentPal_App": {
           "ClientId": "DentPal_App",
           "RootUrl": "http://{0}.multitenancydemo.local:4200",
           "Scopes": "DentPal offline_access",
           "ClientType": "Public"
         }
       }
     }


  Or equivalent C# seeding where RootUrl = "http://{0}.multitenancydemo.local:4200".

  Then run the DbMigrator again so the OpenIddictApps / OpenIddictRedirectUris tables are updated.

  3. Angular tenant environment must use the same pattern.

     For the tenant-specific Angular app (the one accessed via http://{tenant}.multitenancydemo.local:4200):

  const tenantBaseUrl = 'http://{0}.multitenancydemo.local:4200';

     export const environment = {
       production: false,
       application: {
         baseUrl: tenantBaseUrl,
         name: 'DentPal',
       },
       oAuthConfig: {
         issuer: 'http://multitenancydemo.local:44397',   // same auth server (host) or shared auth
         redirectUri: tenantBaseUrl,                       // the {0} pattern
         clientId: 'DentPal_App',
         responseType: 'code',
         scope: 'offline_access DentPal',
         requireHttps: false
       },
       apis: {
         default: {
           url: 'http://multitenancydemo.local:44397',     // API host; tenant is resolved via domain resolver on backend
           rootNamespace: 'DentPal',
         },
       },
     };


  When the app runs at http://test.multitenancydemo.local:4200, the {0} placeholder resolves to test, and the generated redirect_uri will be:

  http://test.multitenancydemo.local:4200


  which matches the wildcard pattern allowed by AbpOpenIddictWildcardDomainOptions + RootUrl.

  4. Tenant resolution configuration (already done, just confirm).

     In HttpApiHostModule:

  using Volo.Abp.MultiTenancy;

     public override void ConfigureServices(ServiceConfigurationContext context)
     {
         var configuration = context.Services.GetConfiguration();

         Configure<AbpTenantResolveOptions>(options =>
         {
             options.AddDomainTenantResolver("{0}.multitenancydemo.local");
         });
     }


  No extra config is needed on Angular for tenant resolution; ABP Angular will automatically send the correct __tenant header based on the baseUrl/domain.

  ---

  3. Known requirements / limitations for ABP 9.0.4 in this setup

  With ABP 9.0.4 + Angular + OpenIddict + domain-based resolver:

  1. Redirect URIs must exactly match what OpenIddict knows.

     • Use wildcard support (AbpOpenIddictWildcardDomainOptions) rather than trying to store https://*.domain in DB (OpenIddict will reject *).

  2. You typically need both:

     • Wildcard tenant RootUrl (http://{0}.multitenancydemo.local:4200),
     • Explicit host RootUrl (http://multitenancydemo.local:4200) for Super Admin.

  3. If Angular is configured to auto-login in a component (like calling navigateToLogin() on component init), this can create loops if any mismatch exists. For debugging, keep auto-login disabled and trigger login only via a button until everything works.

  4. Changing the host admin’s username to SuperAdmin is fine and not related, as long as:

     • The user is a host user (no TenantId),
     • You are logging in from the host domain.

  ---

  2. Sources

  • Domain-based tenant resolver with Angular + OpenIddict (the blog you followed; includes wildcard configuration and sample repo):

    • https://abp.io/community/articles/how-to-use-domainbased-tenant-resolver-in-abp-with-angular-and-openiddict-v9y8da7v
    • https://github.com/mahmut-gundogdu/ABP-Domain-based-Tenant-Example

  • ABP multi-tenancy docs (domain/subdomain resolver & {0} placeholder):

    • https://abp.io/docs/latest/framework/architecture/multi-tenancy/index

  ---
