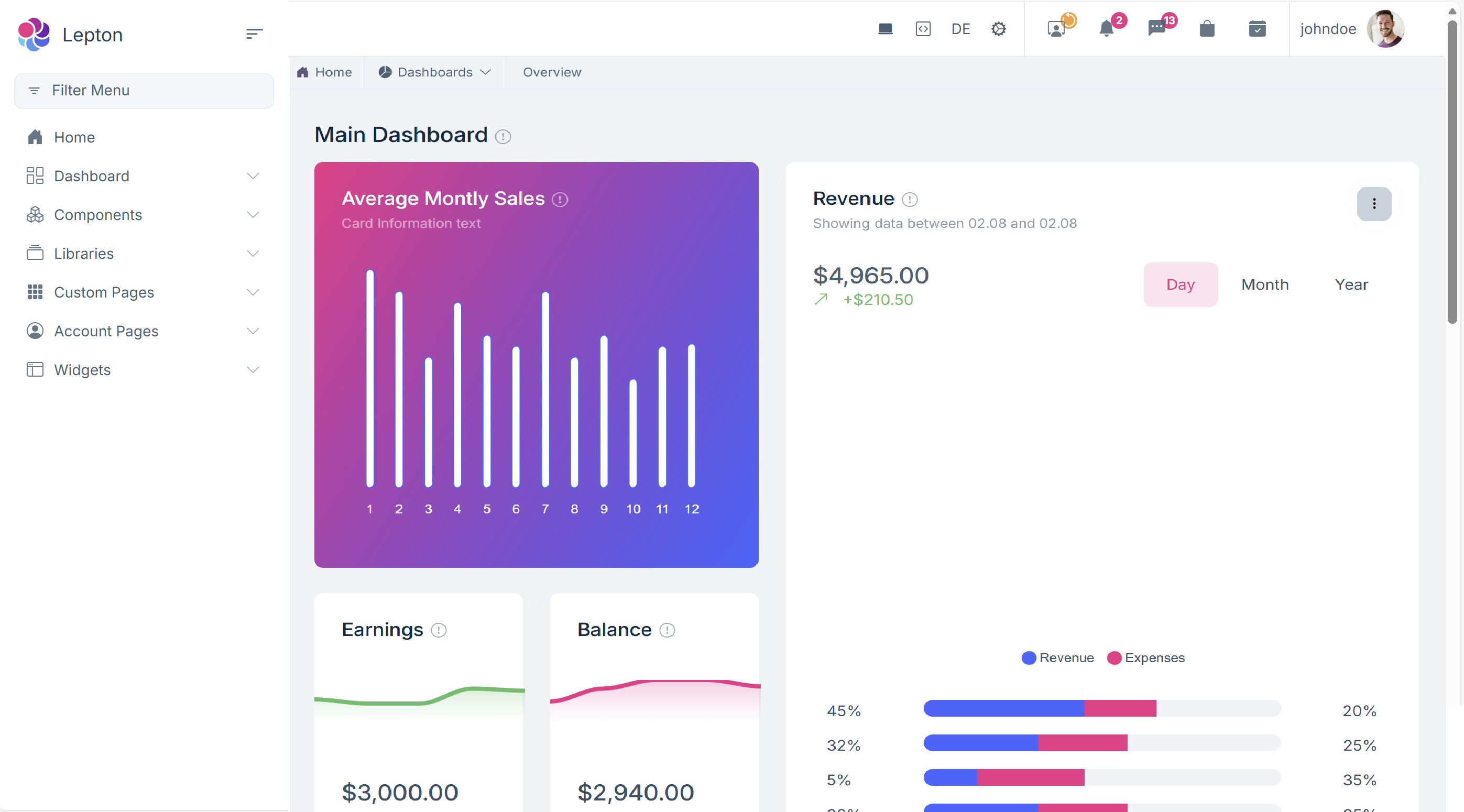

How to custom to have Main Toolbar on the top and Navigation Menu on the left side. #10262

3 Answer(s)

•

  0

  AI-Bot created 7 hours ago

  Support Team ABP Agent

  1. Solution

  • LeptonX currently provides fixed layout combinations:
    • Side menu layout → main toolbar is rendered on the right side.
    • Top menu layout → both menu and toolbar are on the top.
  • There is no built‑in configuration to keep:
    • navigation menu on the left (side menu layout)
      and at the same time
    • main toolbar on the top, like the old Lepton theme / desktop apps.

  To get that layout in ABP v10 you must implement your own custom layout based on LeptonX:

  1. Copy an existing LeptonX layout

     • For MVC: copy the LeptonX _Layout (side‑menu layout) and its related partials from the theme package into your app’s Pages (or Views) and register it as your layout.
     • For Angular: create your own layout components that wrap the LeptonX side‑menu layout.

  2. Move the toolbar rendering to the top header

     • Keep the side navigation markup as is.
     • Move the markup / component that renders LeptonXToolbars.Main into the top header area of your custom layout.
     • The toolbar system itself is independent; you can render LeptonXToolbars.Main wherever you want inside your custom layout.

  3. Use component / layout replacement

     • MVC: override LeptonX layout views with your own copies (same paths) so they are used instead of the packaged ones.
     • Angular: create your own layout component and configure it via Component Replacement so it replaces the standard LeptonX layout component.

  There is no simpler config switch; this requires a custom layout implementation.

  2. Sources

  • LeptonX Angular Q&A confirming that “toolbar at top + side menu” layout is not supported and requires a custom layout / component replacement:
    https://abp.io/support/questions/3746
  • LeptonX MVC customization & toolbar docs (for understanding how layouts and toolbars are rendered and how to move them):
    https://abp.io/docs/10.0/ui-themes/lepton-x/mvc
  • Angular component replacement (if you are on Angular UI):
    https://abp.io/en/abp/latest/UI/Angular/Component-Replacement

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.

  Save Cancel
•

  0

  hanntd created an hour ago

  I'm using LeptonX theme for blazor server, I saw the old Lepton them can support as my requirement, we will custom LeptonX to support my requirement or we back to use the old Lepton version? Which is best solution for future maintenance, upgrading, extending... thanks,

  Save Cancel
•

  0

  AI-Bot created an hour ago

  Support Team ABP Agent

  1. Solution

  For long‑term maintenance and upgrades, it is better to stay on LeptonX and customize it, rather than going back to the old Lepton theme.

  Reasons to prefer LeptonX:

  • LeptonX is the current, actively developed commercial theme and gets new features (see the release notes showing new LeptonX features such as mobile toolbars, fluid layout, etc.).
  • New ABP versions and Commercial features are designed and tested primarily with LeptonX.
  • The layout you want (side menu + top toolbar) is not a built‑in option in LeptonX, but it is achievable by:
    • copying the LeptonX Blazor layout (MainLayout.razor and related components) into your solution, and
    • moving the toolbar rendering (the component that renders LeptonXToolbars.Main) into a top header area while keeping the navigation menu on the left.
  • This is a one‑time customization and will be easier to maintain on a theme that continues to evolve, compared to reverting to Lepton, which does not receive the same new capabilities LeptonX does.

  When would going back to Lepton make sense?

  • Only if you need a very quick solution and do not plan to invest in custom layout work, and you are comfortable staying on a layout that is no longer the main focus of new feature development.
  • Even in that case, you should expect to handle more manual work during future upgrades if Lepton diverges from new features available in LeptonX.

  Recommended approach

  1. Keep LeptonX Blazor Server.
  2. Create a custom layout based on LeptonX:
     • Copy the LeptonX MainLayout.razor (and any related layout components) into your app.
     • Place the navigation menu region on the left as it is in the side‑menu layout.
     • Move the main toolbar rendering to a top header row.
  3. Keep this layout in your own project so you control the markup; LeptonX upgrades will then typically affect styling and components, not your overall layout structure.

  This way you get the UX your users want plus the benefits of the newer, actively enhanced LeptonX theme.

  2. Sources

  • LeptonX Blazor theme documentation (current theme and customization entry point):
    https://abp.io/docs/latest/ui-themes/lepton-x/blazor
  • General LeptonX theme documentation (shows it as the new, feature‑rich theme and lists new features like fluid layout and mobile toolbars):
    https://abp.io/docs/latest/ui-themes/lepton-x
  • Legacy Lepton theme docs (for comparison / fallback only):
    https://abp.io/docs/latest/ui-themes/lepton

  ---

  This response was generated by AI. If it didn’t solve your problem, feel free to post a new answer — our support team will jump in to help you soon.
