Chat Module (Pro)

You must have an ABP Team or a higher license to use this module.

This module implements real time messaging between users for an application.

See the module description page for an overview of the module features.

To download the source-code of the Chat module, you can use ABP Suite or you can use the ABP CLI with the following command:

abp get-source Volo.Chat

How to Install

Chat module is not installed in the startup templates. So, it needs to be installed manually. There are two ways of installing a module into your application.

Installation

1. Using ABP Suite

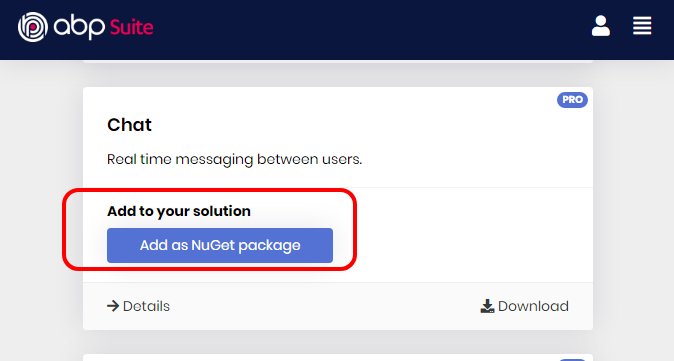

ABP Suite allows adding a module to a solution using Add to your solution option in modules list.

2. Manual Installation

If you modified your solution structure, adding module using ABP Suite might not work for you. In such cases, chat module can be added to a solution manually.

In order to do that, add packages listed below to matching project on your solution. For example, Volo.Chat.Application package to your {ProjectName}.Application.csproj like below;

<PackageReference Include="Volo.Chat.Application" Version="x.x.x" />

After adding the package reference, open the module class of the project (eg: {ProjectName}ApplicationModule) and add the below code to the DependsOn attribute.

[DependsOn(
  //...
  typeof(ChatApplicationModule)
)]

If you are using Blazor Web App, you need to add the Volo.Chat.Blazor.WebAssembly package to the {ProjectName}.Blazor.Client.csproj project and ad the Volo.Chat.Blazor.Server package to the {ProjectName}.Blazor.csproj project.

The Volo.Chat.SignalR package must be added according to your project structure:

• Mvc
  • Tiered: {ProjectName}.HttpApi.Host project.
• Blazor Server
  • Unified Backend: {ProjectName}.Blazor.
  • Separated Auth Server: {ProjectName}.HttpApi.Host project.
• Blazor WebAssembly: {ProjectName}.HttpApi.Host project.
• Blazor Web App
  • Unified Backend: {ProjectName}.Blazor.
  • Separated Auth Server: {ProjectName}.HttpApi.Host project.
• Angular: {ProjectName}.HttpApi.Host project.

If database provider of your project is EntityFrameworkCore, use modelBuilder.ConfigureChat() to configure database tables in your project's DbContext.

Configuration

SignalR Access Token Configuration for Angular and Blazor WebAssembly Projects

See Microsoft SignalR Authentication and Authorization and Microsoft SignalR Security documentations.

In standard web APIs, bearer tokens are sent in an HTTP header. However, SignalR is unable to set these headers in browsers when using some transports. When using WebSockets and Server-Sent Events, the token is transmitted as a query string parameter. To support this on the server, additional configuration is required.

Here is a sample configuration for this:

app.Use(async (httpContext, next) =>
{
    var accessToken = httpContext.Request.Query["access_token"];

    var path = httpContext.Request.Path;
    if (!string.IsNullOrEmpty(accessToken) &&
        (path.StartsWithSegments("/signalr-hubs/chat")))
    {
        httpContext.Request.Headers["Authorization"] = "Bearer " + accessToken;
    }

    await next();
});

Adding Distributed Event Bus for distributed architecture projects

When Web & API tiers are separated, it is impossible to directly send a server-to-client message from the HTTP API. This is also true for a microservice architected application. Chat Module uses the distributed event bus to deliver the message from API application to the web application, then to the client.

If your project has such an architecture (example: MVC + tiered option), then you need a Distributed Event Bus. See related ABP documentation to understand Distributed Event Bus system in ABP. Also see RabbitMQ Integration documentation if your choice is to use RabbitMQ.

Packages

This module follows the module development best practices guide and consists of several NuGet and NPM packages. See the guide if you want to understand the packages and relations between them.

You can visit Chat module package list page to see list of packages related with this module.

User interface

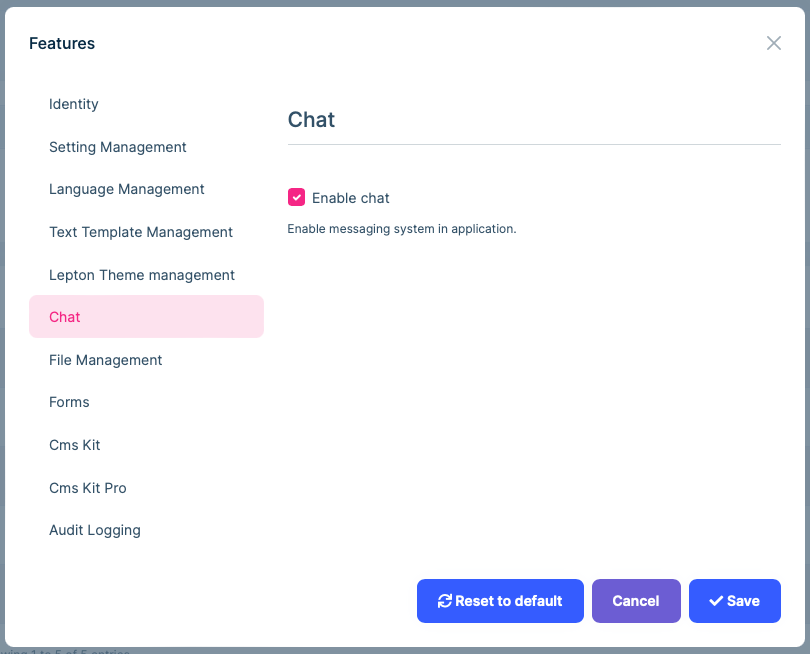

Manage chat feature

Chat module defines the chat feature, you need to enable the chat feature to use chat.

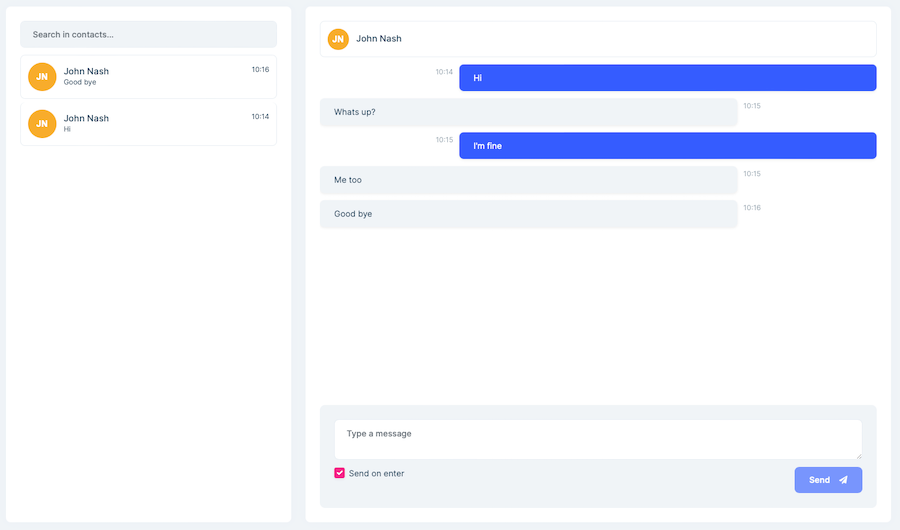

Chat page

This is the page that users send messages to each other.

Chat icon on navigation bar

An icon that shows unread message count of the user and leads to chat page when clicked is added to navigation menu.

Internals

Domain layer

Entities and aggregate roots

• Message (aggregate root): Represents a chat message. Implements IMultiTenant.
  • Text: Message content.
  • IsAllRead: Message read information.
  • ReadTime: Message read time information.
• ChatUser (aggregate root): Represents a chat user. Implements IUser and IUpdateUserData interfaces.
• UserMessage: is created for each side (sender and receiver) of a message. Implements IMultiTenant and IAggregateRoot interfaces.
  • ChatMessageId: Id of related Message.
  • UserId: Id of related ChatUser.
  • TargetUserId: Id of other related ChatUser.
  • Side: States that if it is a send message or received message.
  • IsRead: Read information.
  • ReadTime: Read time information.
• Conversation: is created for each side of a conversation between users. Implements IMultiTenant and IAggregateRoot interfaces.
  • UserId: Id of related ChatUser.
  • TargetUserId: Id of other related ChatUser.
  • LastMessageSide: States the side of the latest message (send or received).
  • LastMessage: Content of the last message in the conversation.
  • LastMessageDate: Date of the last message in the conversation.
  • UnreadMessageCount: Count of unread messages in the conversation.

Repositories

This module follows the Repository Best Practices & Conventions guide.

Following custom repositories are defined for this module:

• IConversationRepository
• IUserMessageRepository
• IChatUserRepository
• IMessageRepository

Domain Services

• MessagingManager

Application layer

Application services

• ConversationAppService (implements IConversationAppService): Used to send messages, get conversation between users and mark a conversation as read.
• SettingsAppService (implements ISettingsAppService): Used to save chat settings.
• ContactAppService (implements IContactAppService): Used to get list of contacts and total unread message count of a user.
• DistributedEventBusRealTimeChatMessageSender (implements IRealTimeChatMessageSender): Used to publish chat messages to distributed event bus.
• SignalRRealTimeChatMessageSender (implements IRealTimeChatMessageSender): Used to send messages to target SignalR client.

Database providers

Common

Table / collection prefix & schema

All tables/collections use the Chat prefix by default. Set static properties on the ChatDbProperties class if you need to change the table prefix or set a schema name (if supported by your database provider).

Connection string

This module uses Chat for the connection string name. If you don't define a connection string with this name, it fallbacks to the Default connection string.

See the connection strings documentation for details.

Entity Framework Core

Tables

• ChatUsers
• ChatMessages
• ChatUserMessages
• ChatConversations

MongoDB

Collections

• ChatUsers
• ChatMessages
• ChatUserMessages
• ChatConversations

Angular UI

Installation

In order to configure the application to use the ChatModule, you first need to import ChatConfigModule from @volo/abp.ng.chat/config to root module. ChatConfigModule has a static forRoot method which you should call for a proper configuration.

// app.module.ts
import { ChatConfigModule } from '@volo/abp.ng.chat/config';

@NgModule({
  imports: [
    // other imports
    ChatConfigModule.forRoot(),
    // other imports
  ],
  // ...
})
export class AppModule {}

The ChatModule should be imported and lazy-loaded in your routing module. It has a static forLazy method for configuration. It is available for import from @volo/abp.ng.chat.

// app-routing.module.ts
const routes: Routes = [
  // other route definitions
  {
    path: 'chat',
    loadChildren: () =>
      import('@volo/abp.ng.chat').then(m => m.ChatModule.forLazy(/* options here */)),
  },
];

@NgModule(/* AppRoutingModule metadata */)
export class AppRoutingModule {}

Services / Models

Chat module services and models are generated via generate-proxy command of the ABP CLI. If you need the module's proxies, you can run the following command in the Angular project directory:

abp generate-proxy --module chat

Remote Endpoint URL

The Chat module remote endpoint URLs can be configured in the environment files.

export const environment = {
  // other configurations
  apis: {
    default: {
      url: 'default url here',
    },
    Chat: {
      url: 'Chat remote url here',
      signalRUrl: 'Chat signalR remote url here',
    },
    // other api configurations
  },
};

The Chat module remote URL configurations shown above are optional.

If you don't set the signalRUrl, Chat.url will be used as fallback. If you don't set the Chat property, the default.url will be used as fallback.

Blazor WebAssembly UI

Remote Endpoint URL

The Chat module remote endpoint URLs can be configured via the ChatBlazorWebAssemblyOptions.

Configure<ChatBlazorWebAssemblyOptions>(options =>
{
    options.SignalrUrl = builder.Configuration["RemoteServices:Chat:BaseUrl"];
});

"RemoteServices": {
  "Default": {
    "BaseUrl": "Default url here"
  },
  "Chat": {
    "BaseUrl": "Chat remote url here"
  }
},

If you don't set the BaseUrl, the Default.BaseUrl will be used as fallback.

Distributed Events

This module defines an event for messaging. It is published when a new message is sent from a user to another user, with an Event Transfer Object type of ChatMessageEto. See the standard distributed events for more information about distributed events.
