Entity Filters

Every CRUD page includes some sort of inputs to filter the listed data. Some of the inputs are common among all of the entities like the Search box. In addition, every entity has its own advanced filters depending on its fields. To reduce the amount of code written on every CRUD page, the Angular UI of ABP Commercial introduces a new type of component called abp-advanced-entity-filters

Setup

The components are in the @volo/abp.commercial.ng.ui package, which is included in the ABP templates. So, as long as your project is a product of these templates and unless you delete the package, you have access to the entity filter components.

Advanced entity filters are composed of several components: AdvancedEntityFiltersComponent, AdvancedEntityFiltersToggleComponent, AdvancedEntityFiltersFormComponent, and AdvancedEntityFiltersAboveSearchComponent. You can use these components directly by importing them into your standalone components.

Usage

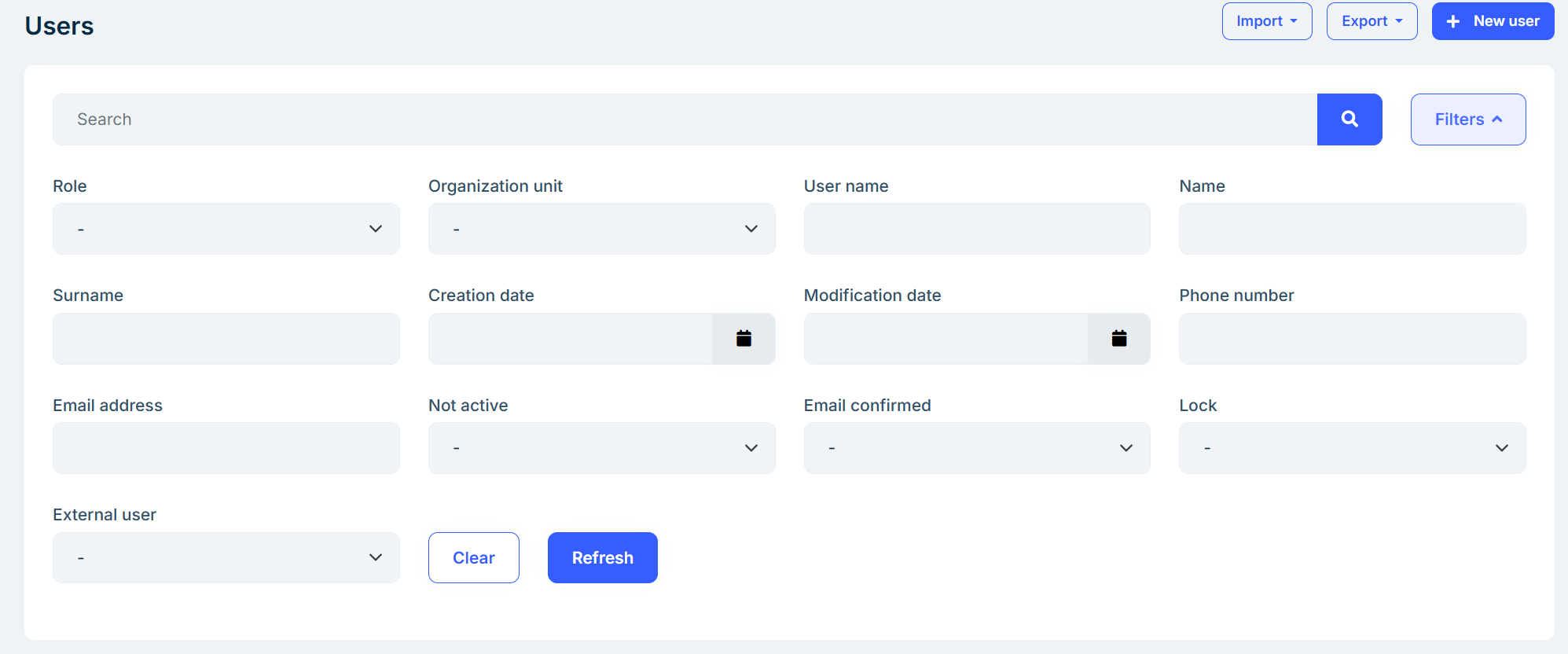

Let's take a look at the Users page from the Identity module.

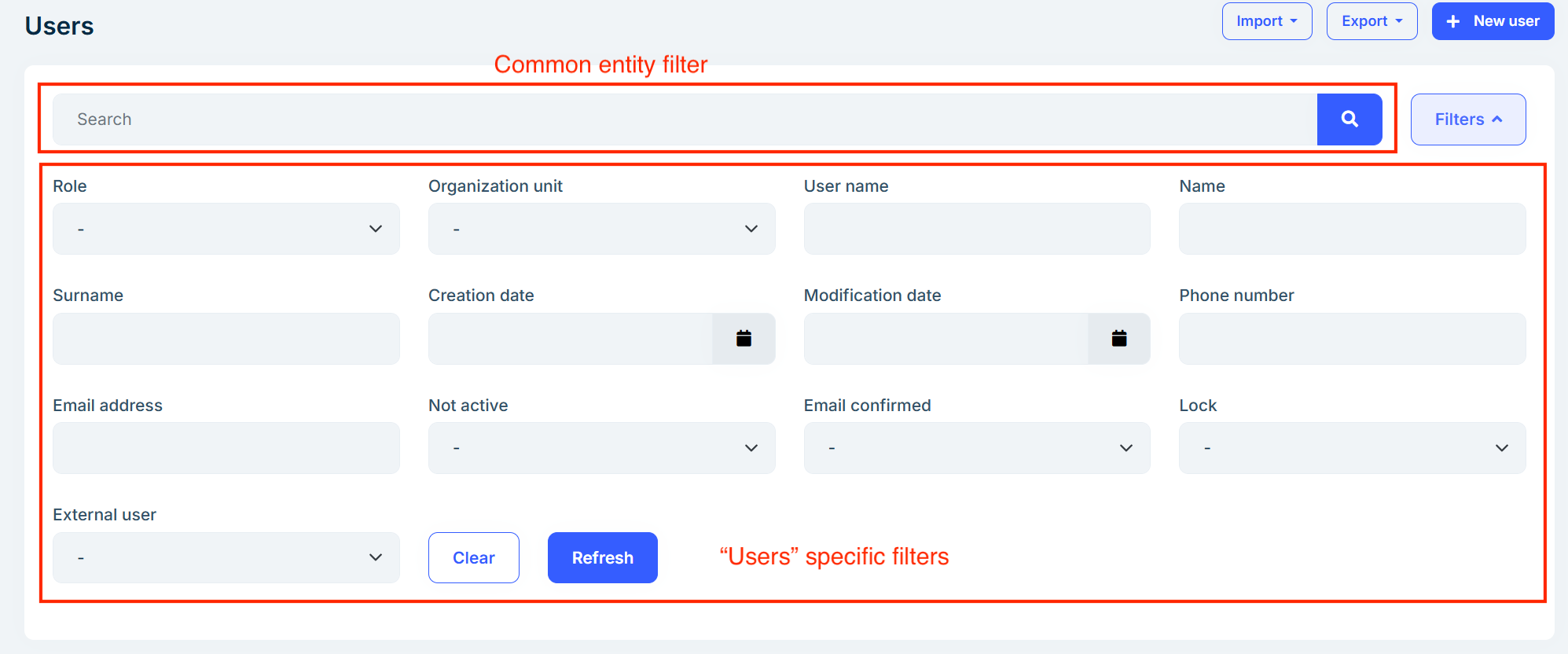

As shown in the screenshot, abp-advanced-entity-filters usually contain two parts, an entity filter (common among entities), i.e. abp-entity-filter, and entity-specific filters which are encapsulated within the abp-advanced-entity-filters-form component. You will need to add AdvancedEntityFiltersComponent and AdvancedEntityFiltersFormComponent to your components' imports array to be able to use them.

users.component.html

<abp-advanced-entity-filters [list]="list" localizationSourceName="AbpIdentity">
  <abp-advanced-entity-filters-form>
    <form #filterForm (keyup.enter)="list.get()">
      <div class="row">
        <!-- Form elements are omitted -->

        <div class="col-12 col-sm-auto align-self-end mb-3">
          <div class="row">
            <div class="col-6 col-sm-auto d-grid">
              <button
                type="button"
                class="btn btn-outline-primary"
                (click)="clearFilters()"
              >
                <span>{{ 'AbpUi::Clear' | abpLocalization }}</span>
              </button>
            </div>
            <div class="col-6 col-sm-auto d-grid">
              <button
                type="button"
                class="btn btn-primary"
                (click)="list.get()"
              >
                <span>{{ 'AbpUi::Refresh' | abpLocalization }}</span>
              </button>
            </div>
          </div>
        </div>
      </div>
    </form>
  </abp-advanced-entity-filters-form>
</abp-advanced-entity-filters>

The abp-advanced-entity-filters already contains the abp-entity-filter component so you do not need to pass it. However, the abp-entity-filter component needs an instance of ListService which is usually stored in the list field of the page. You can also change the placeholder of the component via entityFilterPlaceholder input which is passed into the abpLocalization pipe so that it uses the translated text. The default is 'AbpUi::PagerSearch'

E.g

<abp-advanced-entity-filters
  [list]="list"
  entityFilterPlaceholder="AbpUi::PagerSearch"
>
  <!-- ... -->
</abp-advanced-entity-filters>

Inputs

• list: an instance of ListService
• entityFilterPlaceholder: the placeholder of abp-entity-filter component. Default: 'AbpUi::PagerSearch'
• localizationSourceName: the localization source of the current page. E.g: AbpIdentity

Inner components

Some entities are simple and do not require any filter other than the abp-entity-filter. In this case, you can simply use the abp-advanced-entity-filters without anything in between.

E.g.

Let's remove form from the Users page

<abp-advanced-entity-filters [list]="list" localizationSourceName="AbpIdentity" />

If your component needs other filters, you can pass your own form within the abp-advanced-entity-filters-form component. This will render your form as well as a toggle (abp-advanced-entity-filters-toggle) to show and hide the form

E.g.

<abp-advanced-entity-filters [list]="list" localizationSourceName="AbpIdentity">
  <abp-advanced-entity-filters-form>
    <form>
      <!-- Content is omitted for sake of simplicity -->
    </form>
  </abp-advanced-entity-filters-form>
</abp-advanced-entity-filters>

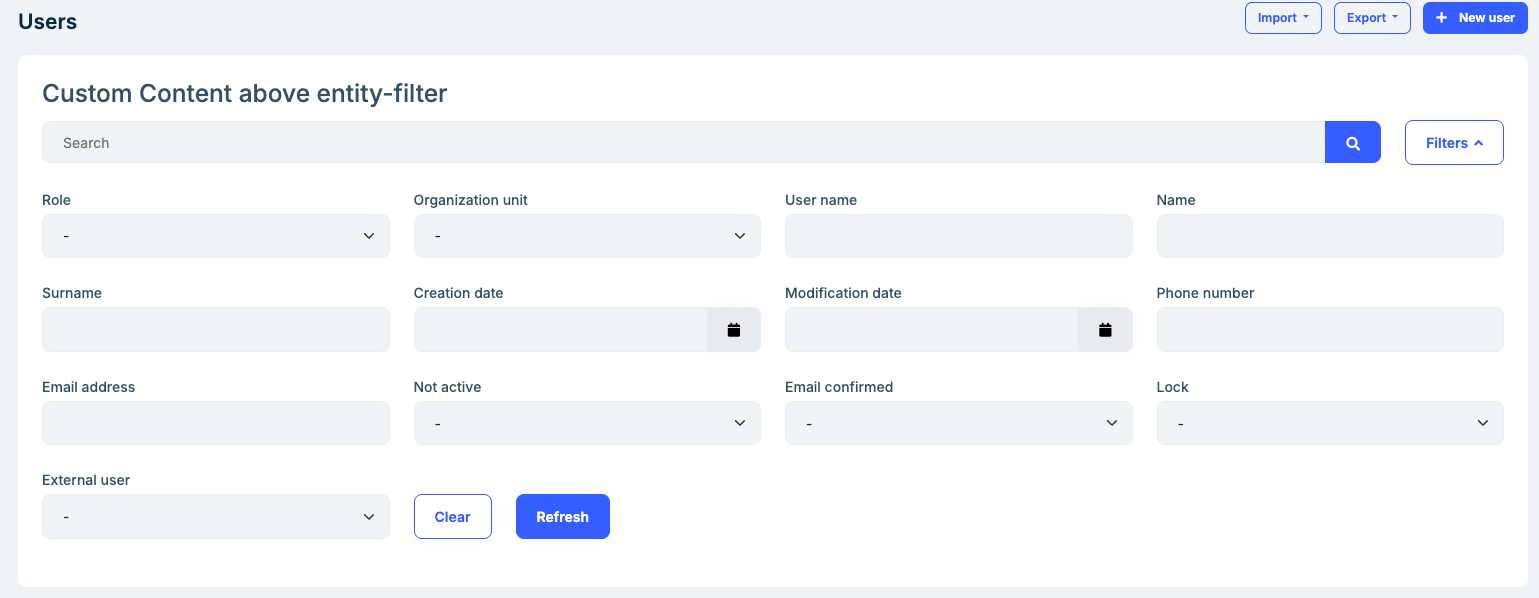

Last but not least, if you need to render some content above the abp-entity-filter component, you can use the abp-advanced-entity-filters-above-search. This time, you will need to add AdvancedEntityFiltersComponent, AdvancedEntityFiltersFormComponent, and AdvancedEntityFiltersAboveSearchComponent to the imports' array of your component.

E.g.

<abp-advanced-entity-filters [list]="list" localizationSourceName="AbpIdentity">
  <abp-advanced-entity-filters-above-search>
    <h3>Custom Content above entity-filter</h3>
  </abp-advanced-entity-filters-above-search>

  <abp-advanced-entity-filters-form>
    <form>
      <!-- Content is omitted for sake of simplicity -->
    </form>
  </abp-advanced-entity-filters-form>
</abp-advanced-entity-filters>
