OpenIddict Module (Pro)

You must have an ABP Team or a higher license to use this module.

This module provides integration and management functionality for the OpenIddict library;

• Built on the OpenIddict-core library.
• Manage Application and API scopes in the system.
• Set permissions for clients.

See the module description page for an overview of the module features.

How to Install

OpenIddict is pre-installed in the startup templates from version 6.0.0-rc1. So, no need to manually install it. You can also migrate your existing application by following the Migrating to OpenIddict Step by Step Guide.

Packages

This module follows the module development best practices guide and consists of several NuGet and NPM packages. See the guide if you want to understand the packages and relations between them.

You can visit Identity module package list page to see list of packages related with this module.

User Interface

Menu Items

The OpenIddict module adds the following items to the "Main" menu, under the "Administration" menu item:

• Applications: Application management page.
• Scopes: Scope management page.

OpenIddictProMenus class has the constants for the menu item names.

Pages

Application Management

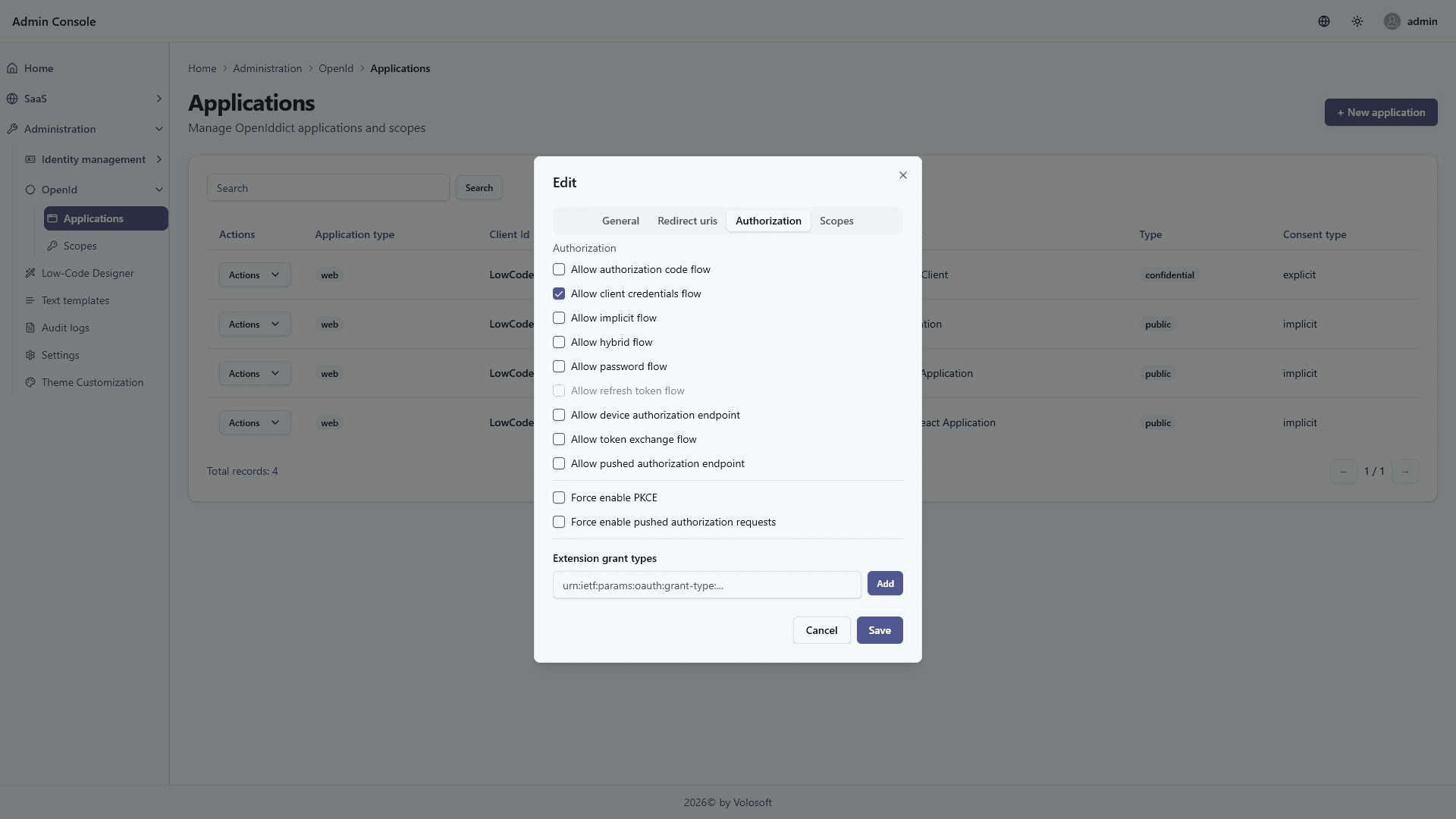

Applications page is used to manage OpenIddict applications. An application represent hosted applications that can request tokens from your authentication server.

You can create new application or edit existing applications in this page:

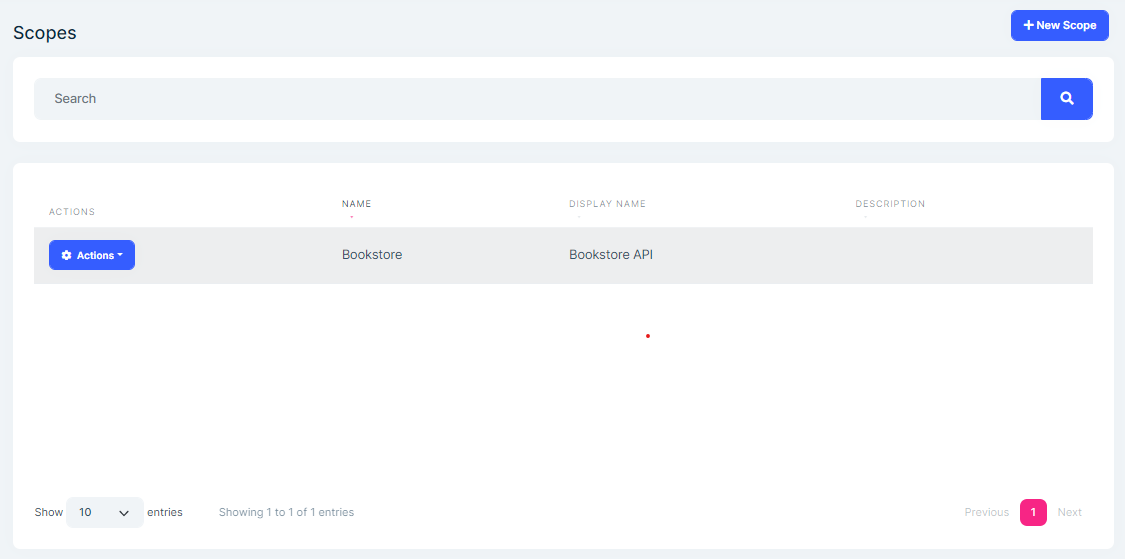

API Scope Management

OpenIddict module allows to manage API scope. To allow applications to request access tokens for APIs, you need to define API scopes.

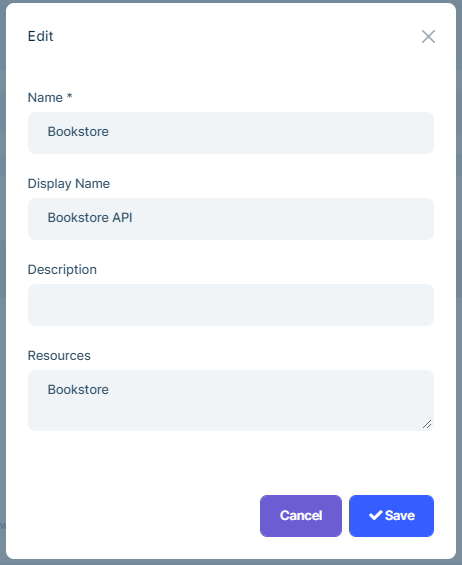

You can create a new API resource or edit an existing API resource in this page:

Data Seed

This module adds some initial data (see the data seed system) to the database when you run the .DbMigrator application:

• Creates standard identity resources which are role, profile, phone, openid, email and address.
• Creates applications.
• Creates API scopes.

You can delete or edit created applications in the application management page.

Options

OpenIddictBuilder

OpenIddictBuilder can be configured in the PreConfigureServices method of your OpenIddict module.

Example:

public override void PreConfigureServices(ServiceConfigurationContext context)
{
	PreConfigure<OpenIddictBuilder>(builder =>
	{
    	//Set options here...
	});
}

OpenIddictBuilder contains various extension methods to configure the OpenIddict services:

• AddServer() registers the OpenIddict token server services in the DI container. Contains OpenIddictServerBuilder configurations.
• AddCore() registers the OpenIddict core services in the DI container. Contains OpenIddictCoreBuilder configurations.
• AddValidation() registers the OpenIddict token validation services in the DI container. Contains OpenIddictValidationBuilder configurations.

OpenIddictCoreBuilder

OpenIddictCoreBuilder contains extension methods to configure the OpenIddict core services.

Example:

public override void PreConfigureServices(ServiceConfigurationContext context)
{
	PreConfigure<OpenIddictCoreBuilder>(builder =>
	{
    	//Set options here...
	});
}

These services contain:

• Adding ApplicationStore, AuthorizationStore, ScopeStore, TokenStore.
• Replacing ApplicationManager, AuthorizationManager, ScopeManager, TokenManager.
• Replacing ApplicationStoreResolver, AuthorizationStoreResolver, ScopeStoreResolver, TokenStoreResolver.
• Setting DefaultApplicationEntity, DefaultAuthorizationEntity, DefaultScopeEntity, DefaultTokenEntity.

OpenIddictServerBuilder

OpenIddictServerBuilder contains extension methods to configure OpenIddict server services.

Example:

public override void PreConfigureServices(ServiceConfigurationContext context)
{
	PreConfigure<OpenIddictServerBuilder>(builder =>
	{
    	//Set options here...
	});
}

These services contain:

• Registering claims, scopes.
• Setting the Issuer URI that is used as the base address for the endpoint URIs returned from the discovery endpoint.
• Adding development signing keys, encryption/signing keys, credentials, and certificates.
• Adding/removing event handlers.
• Enabling/disabling grant types.
• Setting authentication server endpoint URIs.

OpenIddictValidationBuilder

OpenIddictValidationBuilder contains extension methods to configure OpenIddict validation services.

Example:

public override void PreConfigureServices(ServiceConfigurationContext context)
{
	PreConfigure<OpenIddictValidationBuilder>(builder =>
	{
    	//Set options here...
	});
}

These services contain:

• AddAudiances() for resource servers.
• SetIssuer() URI that is used to determine the actual location of the OAuth 2.0/OpenID Connect configuration document when using provider discovery.
• SetConfiguration() to configure OpenIdConnectConfiguration.
• UseIntrospection() to use introspection instead of local/direct validation.
• Adding encryption key, credentials, and certificates.
• Adding/removing event handlers.
• SetClientId() to set the client identifier client_id when communicating with the remote authorization server (e.g for introspection).
• SetClientSecret() to set the identifier client_secret when communicating with the remote authorization server (e.g for introspection).
• EnableAuthorizationEntryValidation() to enable authorization validation to ensure the access token is still valid by making a database call for each API request. Note: This may have a negative impact on performance and can only be used with an OpenIddict-based authorization server.
• EnableTokenEntryValidation() to enable authorization validation to ensure the access token is still valid by making a database call for each API request. Note: This may have a negative impact on performance and it is required when the OpenIddict server is configured to use reference tokens.
• UseLocalServer() to register the OpenIddict validation/server integration services.
• UseAspNetCore() to register the OpenIddict validation services for ASP.NET Core in the DI container.

Internals

Domain Layer

Aggregates

OpenIddictApplication

OpenIddictApplications represent the applications that can request tokens from your OpenIddict Server.

• OpenIddictApplications (aggregate root): Represents an OpenIddict application.
  • ClientId (string): The client identifier associated with the current application.
  • ClientSecret (string): The client secret associated with the current application. Maybe hashed or encrypted for security reasons.
  • ConsentType (string): The consent type associated with the current application.
  • DisplayName (string): The display name associated with the current application.
  • DisplayNames (string): The localized display names associated with the current application serialized as a JSON object.
  • Permissions (string): The permissions associated with the current application, serialized as a JSON array.
  • PostLogoutRedirectUris (string): The logout callback URLs associated with the current application, serialized as a JSON array.
  • Properties (string): The additional properties associated with the current application serialized as a JSON object or null.
  • RedirectUris (string): The callback URLs associated with the current application, serialized as a JSON array.
  • Requirements (string): The requirements associated with the current application
  • Type (string): The application type associated with the current application.
  • ClientUri (string): URI to further information about client.
  • LogoUri (string): URI to client logo.

OpenIddictAuthorization

OpenIddictAuthorizations are used to keep the allowed scopes, authorization flow types.

• OpenIddictAuthorization (aggregate root): Represents an OpenIddict authorization.

  • ApplicationId (Guid?): The application associated with the current authorization.

  • Properties (string): The additional properties associated with the current authorization serialized as a JSON object or null.

  • Scopes (string): The scopes associated with the current authorization, serialized as a JSON array.

  • Status (string): The status of the current authorization.

  • Subject (string): The subject associated with the current authorization.

  • Type (string): The type of the current authorization.

OpenIddictScope

OpenIddictScopes are used to keep the scopes of resources.

• OpenIddictScope (aggregate root): Represents an OpenIddict scope.

  • Description (string): The public description associated with the current scope.

  • Descriptions (string): The localized public descriptions associated with the current scope, serialized as a JSON object.

  • DisplayName (string): The display name associated with the current scope.

  • DisplayNames (string): The localized display names associated with the current scope serialized as a JSON object.

  • Name (string): The unique name associated with the current scope.

  • Properties (string): The additional properties associated with the current scope serialized as a JSON object or null.

  • Resources (string): The resources associated with the current scope, serialized as a JSON array.

OpenIddictToken

OpenIddictTokens are used to persist the application tokens.

• OpenIddictToken (aggregate root): Represents an OpenIddict token.

  • ApplicationId (Guid?): The application associated with the current token.

  • AuthorizationId (Guid?): The application associated with the current token.

  • CreationDate (DateTime?): The UTC creation date of the current token.

  • ExpirationDate (DateTime?): The UTC expiration date of the current token.

  • Payload (string): The payload of the current token, if applicable. Only used for reference tokens and may be encrypted for security reasons.

  • Properties (string): The additional properties associated with the current token serialized as a JSON object or null.

  • RedemptionDate (DateTime?): The UTC redemption date of the current token.

  • Status (string): The status of the current authorization.

  • ReferenceId (string): The reference identifier associated with the current token, if applicable. Only used for reference tokens and may be hashed or encrypted for security reasons.

  • Status (string): The status of the current token.

  • Subject (string): The subject associated with the current token.

  • Type (string): The type of the current token.

Stores

This module implements OpenIddict stores:

• IAbpOpenIdApplicationStore
• IOpenIddictAuthorizationStore
• IOpenIddictScopeStore
• IOpenIddictTokenStore

Repositories

The following custom repositories are defined in this module:

• IOpenIddictApplicationRepository
• IOpenIddictAuthorizationRepository
• IOpenIddictScopeRepository
• IOpenIddictTokenRepository

Domain Services

This module doesn't contain any domain service but overrides the service below:

• AbpApplicationManager used to populate/get AbpApplicationDescriptor information that contains ClientUri and LogoUri.

Settings

This module doesn't define any settings.

Application Layer

Application Services

• ApplicationAppService (implements IApplicationAppService): Implements the use cases of the application management UI.
• ScopeAppService (implement IScopeAppService): Implements the use cases of the API scope management UI.

Database Providers

Common

Table/Collection Prefix & Schema

All tables/collections use the OpenIddict prefix by default. Set static properties on the AbpOpenIddictDbProperties class if you need to change the table prefix or set a schema name (if supported by your database provider).

Connection String

This module uses AbpOpenIddict for the connection string name. If you don't define a connection string with this name, it fallbacks to the Default connection string.

See the connection strings documentation for details.

Entity Framework Core

Tables

• OpenIddictApplications
• OpenIddictAuthorizations
• OpenIddictScopes
• OpenIddictTokens

MongoDB

Collections

• OpenIddictApplications
• OpenIddictAuthorizations
• OpenIddictScopes
• OpenIddictTokens

Permissions

See the AbpOpenIddictProPermissions class members for all permissions defined for this module.

ASP.NET Core Module

This module integrates ASP NET Core, with built-in MVC controllers for four protocols. It uses OpenIddict's Pass-through mode.

AuthorizeController -> connect/authorize
TokenController     -> connect/token
LogoutController    -> connect/logout
UserInfoController  -> connect/userinfo

AbpOpenIddictAspNetCoreOptions

AbpOpenIddictAspNetCoreOptions can be configured in the PreConfigureServices method of your OpenIddict module.

Example:

PreConfigure<AbpOpenIddictAspNetCoreOptions>(options =>
{
    //Set options here...
});

AbpOpenIddictAspNetCoreOptions properties:

• UpdateAbpClaimTypes(default: true): Updates AbpClaimTypes to be compatible with the Openiddict claims.
• AddDevelopmentEncryptionAndSigningCertificate(default: true): Registers (and generates if necessary) a user-specific development encryption/development signing certificate.

Automatically Removing Orphaned Tokens/Authorizations

The background task that automatically removes orphaned tokens/authorizations. This can be configured by TokenCleanupOptions to manage it.

TokenCleanupOptions can be configured in the PreConfigureServices method of your OpenIddict module.

Example:

PreConfigure<TokenCleanupOptions>(options =>
{
    //Set options here...
});

TokenCleanupOptions properties:

• IsCleanupEnabled (default: true): Enable/disable token clean up.
• CleanupPeriod (default: 3,600,000 ms): Setting clean up period.
• DisableAuthorizationPruning: Setting a boolean indicating whether authorizations pruning should be disabled.
• DisableTokenPruning: Setting a boolean indicating whether token pruning should be disabled.
• MinimumAuthorizationLifespan (default: 14 days): Setting the minimum lifespan authorizations must have to be pruned. Cannot be less than 10 minutes.
• MinimumTokenLifespan (default: 14 days): Setting the minimum lifespan tokens must have to be pruned. Cannot be less than 10 minutes.

Updating Claims In Access_token and Id_token

Claims Principal Factory can be used to add/remove claims to the ClaimsPrincipal.

The AbpDefaultOpenIddictClaimDestinationsProvider service will add Name, Email, and Role types of Claims to access_token and id_token, other claims are only added to access_token by default, and remove the SecurityStampClaimType secret claim of Identity.

Create a service that inherits from IAbpOpenIddictClaimDestinationsProvider and add it to DI to fully control the destinations of claims.

public class MyClaimDestinationsProvider : IAbpOpenIddictClaimDestinationsProvider, ITransientDependency
{
    public virtual Task SetDestinationsAsync(AbpOpenIddictClaimDestinationsProviderContext context)
    {
		// ...
        return Task.CompletedTask;
    }
}

Configure<AbpOpenIddictClaimDestinationsOptions>(options =>
{
    options.ClaimDestinationsProvider.Add<MyClaimDestinationsProvider>();
});

For detailed information, please refer to: OpenIddict claim destinations

Disable AccessToken Encryption

ABP disables the access token encryption by default for compatibility, it can be enabled manually if needed.

public override void PreConfigureServices(ServiceConfigurationContext context)
{
    PreConfigure<OpenIddictServerBuilder>(builder =>
    {
        builder.Configure(options => options.DisableAccessTokenEncryption = false);
    });
}

Disable Transport Security Requirement

By default, OpenIddict requires the use of HTTPS for all endpoints. You can disable it if it's needed. You just need to configure the OpenIddictServerAspNetCoreOptions and set DisableTransportSecurityRequirement as true:

Configure<OpenIddictServerAspNetCoreOptions>(options =>
{
    options.DisableTransportSecurityRequirement = true;
});

https://documentation.openiddict.com/configuration/token-formats.html#disabling-jwt-access-token-encryption

Request/Response Process

The OpenIddict.Server.AspNetCore adds an authentication scheme(Name: OpenIddict.Server.AspNetCore, handler: OpenIddictServerAspNetCoreHandler) and implements the IAuthenticationRequestHandler interface.

It will be executed first in AuthenticationMiddleware and can short-circuit the current request. Otherwise, DefaultAuthenticateScheme will be called and continue to execute the pipeline.

OpenIddictServerAspNetCoreHandler will call various built-in handlers (handling requests and responses), And the handler will process according to the context or skip logic that has nothing to do with it.

Example of a token request:

POST /connect/token HTTP/1.1
Content-Type: application/x-www-form-urlencoded

    grant_type=password&
    client_id=AbpApp&
    client_secret=1q2w3e*&
    username=admin&
    password=1q2w3E*&
    scope=AbpAPI offline_access

This request will be processed by various handlers. They will confirm the endpoint type of the request, check HTTP/HTTPS, verify that the request parameters (client. scope, etc) are valid and exist in the database, etc. Various protocol checks. And build a OpenIddictRequest object, If there are any errors, the response content may be set and directly short-circuit the current request.

If everything is ok, the request will go to our processing controller(eg TokenController), we can get an OpenIddictRequest from the HTTP request at this time. The rest will be based on this object.

Check the username and password in the request. If it is correct create a ClaimsPrincipal object and return a SignInResult, which uses the OpenIddict.Validation.AspNetCore authentication scheme name, will calls OpenIddictServerAspNetCoreHandler for processing.

OpenIddictServerAspNetCoreHandler do some checks to generate json and replace the http response content.

The ForbidResult ChallengeResult are all the above types of processing.

If you need to customize OpenIddict, you need to replace/delete/add new handlers and make it execute in the correct order.

Please refer to: https://documentation.openiddict.com/guides/index.html#events-model

PKCE

https://documentation.openiddict.com/configuration/proof-key-for-code-exchange.html

Setting Tokens Lifetime

Update PreConfigureServices method of AuthServerModule (or HttpApiHostModule if you don't have tiered/separate-authserver) file:

PreConfigure<OpenIddictServerBuilder>(builder =>
{
    builder.SetAuthorizationCodeLifetime(TimeSpan.FromMinutes(30));
    builder.SetAccessTokenLifetime(TimeSpan.FromMinutes(30));
    builder.SetIdentityTokenLifetime(TimeSpan.FromMinutes(30));
    builder.SetRefreshTokenLifetime(TimeSpan.FromDays(14));
});

Refresh Token

To use refresh token, it must be supported by OpenIddictServer and the refresh_token must be requested by the application.

Configuring OpenIddictServer

There are two ways to allow an application to use the refresh_token.

• From OpenIddictDataSeedContributor, add OpenIddictConstants.GrantTypes.RefreshToken to grant types in CreateApplicationAsync method:

  await CreateApplicationAsync(
      ...
      grantTypes: new List<string> //Hybrid flow
      {
          OpenIddictConstants.GrantTypes.AuthorizationCode,
          OpenIddictConstants.GrantTypes.Implicit,
          OpenIddictConstants.GrantTypes.RefreshToken,
      },
      ...


  Note: You need to re-create this client if you have generated the database already.

• Or from OpenIddict Management UI, edit your application and Allow Refresh Token Flow:

Note: Angular application is already configured to use refresh_token.

Configuring Application:

You need to request the offline_access scope to be able to receive refresh_token.

In Razor/MVC, Blazor-Server applications, add options.Scope.Add("offline_access"); to OpenIdConnect options. These application templates are using cookie authentication by default and has default cookie expire options set as:

.AddCookie("Cookies", options =>
{
    options.ExpireTimeSpan = TimeSpan.FromDays(365);
})

Cookie ExpireTimeSpan will ignore access_token expiration and expired access_token will still be valid if it is set to higher value than the refresh_token lifetime. It is recommended to keep Cookie ExpireTimeSpan and the Refresh Token lifetime same, hence the new token will be persisted in the cookie.

In Blazor wasm applications, add options.ProviderOptions.DefaultScopes.Add("offline_access"); to AddOidcAuthentication options.

In Angular applications, add offline_access to oAuthConfig scopes in environment.ts file. (Angular applications already have this configuration).

Migrating Guide

Migrating from IdentityServer to OpenIddict Step by Step Guide
