Module Startup Template

This template can be used to create a reusable application module based on the module development best practices & conventions. It is also suitable for creating microservices (with or without UI).

How to Start With?

You can use the ABP CLI to create a new project using this startup template. Alternatively, you can generate a CLI command from the Get Started page. CLI approach is used here.

First, install the ABP CLI if you haven't installed before:

dotnet tool install -g Volo.Abp.Studio.Cli

Then use the abp new command in an empty folder to create a new solution:

abp new-module Acme.BookStore

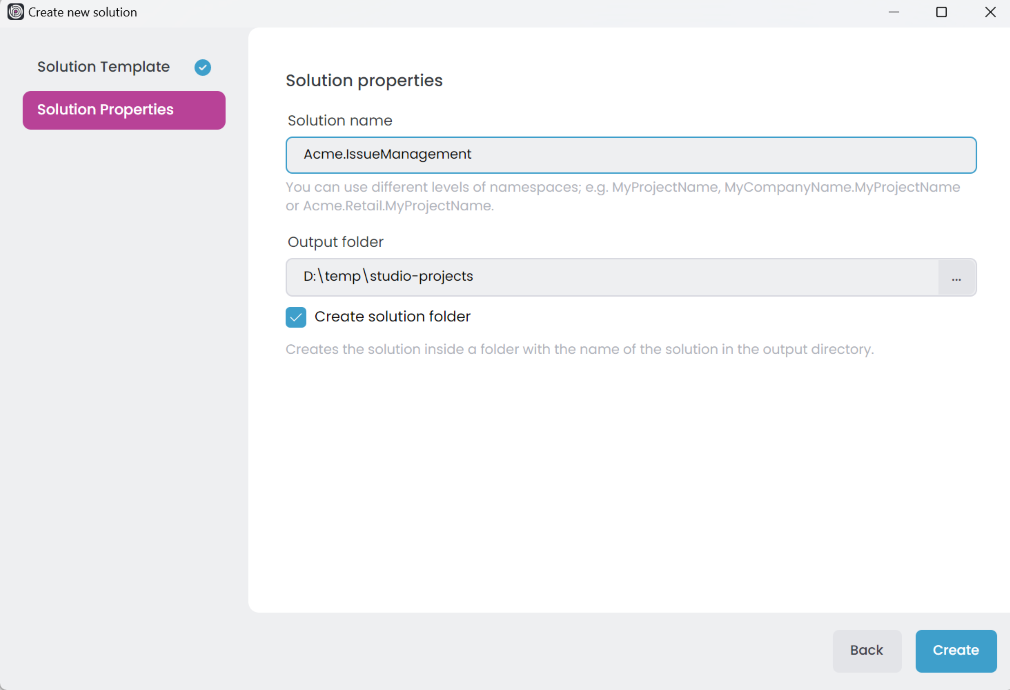

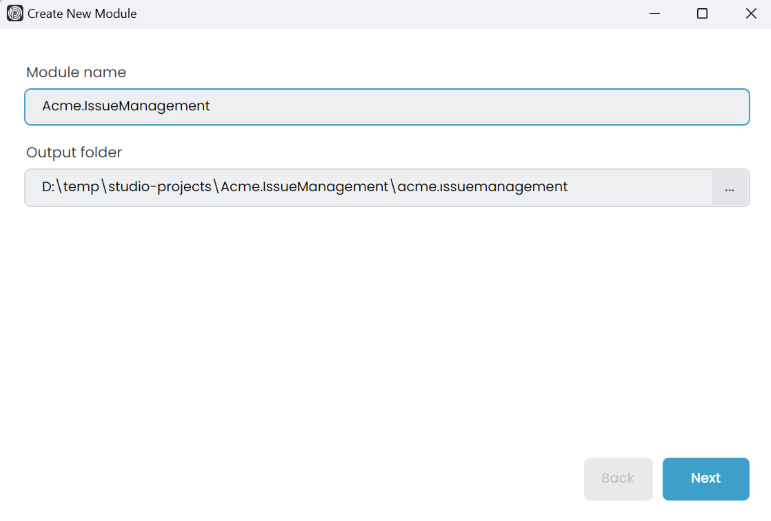

• Acme.IssueManagement is the solution name, like YourCompany.YourProduct. You can use single level, two-levels or three-levels naming.

Specifying the User Interface

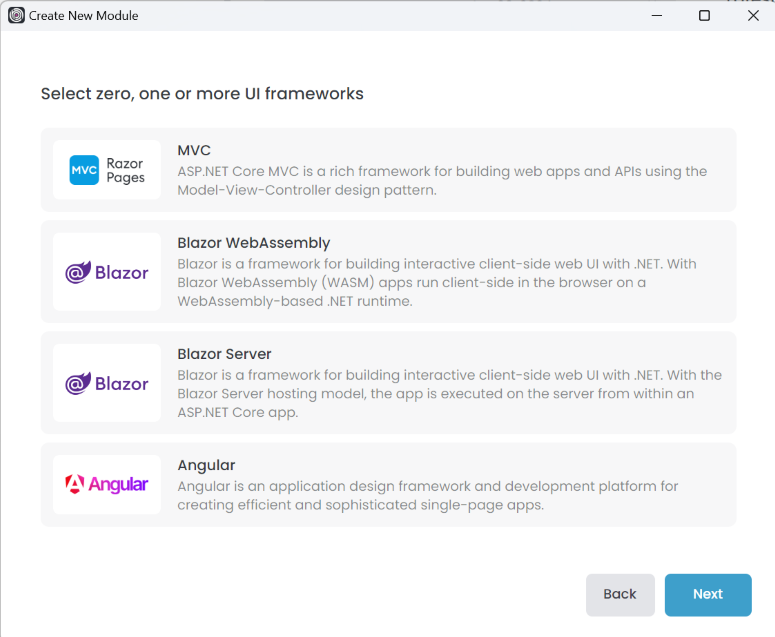

The template comes without a user interface by default. You can use the mvc, blazor, blazor-server, or angular options to include any of these UI layers. You can also combine them. For example, you can use mvc,angular to include both MVC and Angular UI. To create a module without a user interface, don't specify any value.

abp new-module Acme.IssueManagement -u mvc,angular

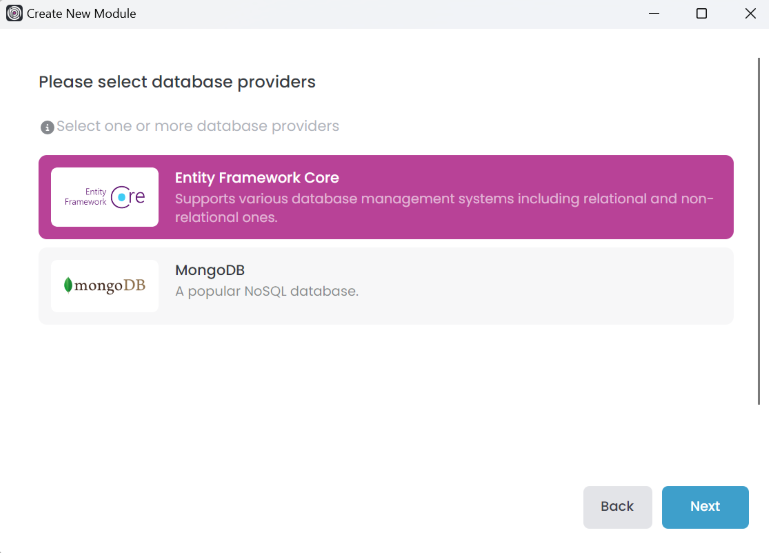

Specifying the Database Provider

The template comes with the EntityFrameworkCore database provider by default. You can use the ef or mongodb options to include either of these providers. You can also combine them. For example, you can use ef,mongodb to include both EntityFrameworkCore and MongoDB.

abp new-module Acme.IssueManagement -d ef,mongodb

Solution Structure

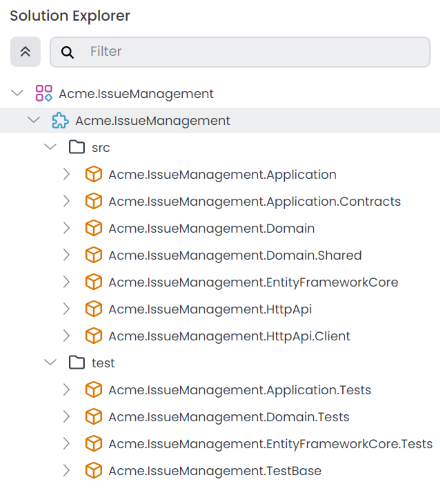

Based on the options you've specified, you will get a slightly different solution structure. If you don't specify any option, you will have a solution like shown below:

Projects are organized as src andtest folders:

• src folder contains the actual module which is layered based on DDD principles.
• test folder contains unit & integration tests.

The diagram below shows the layers & project dependencies of the module:

Each section below will explain the related project & its dependencies.

.Domain.Shared Project

This project contains constants, enums and other objects these are actually a part of the domain layer, but needed to be used by all layers/projects in the solution.

An IssueType enum and an IssueConsts class (which may have some constant fields for the Issue entity, like MaxTitleLength) are good candidates for this project.

• This project has no dependency to other projects in the solution. All other projects depend on this directly or indirectly.

.Domain Project

This is the domain layer of the solution. It mainly contains entities, aggregate roots, domain services, value types, repository interfaces and other domain objects.

An Issue entity, an IssueManager domain service and an IIssueRepository interface are good candidates for this project.

• Depends on the .Domain.Shared because it uses constants, enums and other objects defined in that project.

.Application.Contracts Project

This project mainly contains application service interfaces and Data Transfer Objects (DTO) of the application layer. It does exists to separate interface & implementation of the application layer. In this way, the interface project can be shared to the clients as a contract package.

An IIssueAppService interface and an IssueCreationDto class are good candidates for this project.

• Depends on the .Domain.Shared because it may use constants, enums and other shared objects of this project in the application service interfaces and DTOs.

.Application Project

This project contains the application service implementations of the interfaces defined in the .Application.Contracts project.

An IssueAppService class is a good candidate for this project.

• Depends on the .Application.Contracts project to be able to implement the interfaces and use the DTOs.
• Depends on the .Domain project to be able to use domain objects (entities, repository interfaces... etc.) to perform the application logic.

.EntityFrameworkCore Project

This is the integration project for EF Core. It defines the DbContext and implements repository interfaces defined in the .Domain project.

• Depends on the .Domain project to be able to reference to entities and repository interfaces.

You can delete this project if you don't want to support EF Core for your module.

.MongoDB Project

This is the integration project for MongoDB.

• Depends on the .Domain project to be able to reference to entities and repository interfaces.

You can delete this project if you don't want to support MongoDB for your module.

Test Projects

The solution has multiple test projects, one for each layer:

• .Domain.Tests is used to test the domain layer.
• .Application.Tests is used to test the application layer.
• .EntityFrameworkCore.Tests is used to test EF Core configuration and custom repositories.
• .MongoDB.Tests is used to test MongoDB configuration and custom repositories.
• .TestBase is a base (shared) project for all tests.

Test projects are prepared for integration testing;

• It is fully integrated to ABP and all services in your application.
• It uses SQLite in-memory database for EF Core. For MongoDB, it uses the EphemeralMongo library.
• Authorization is disabled, so any application service can be easily used in tests.

You can still create unit tests for your classes which will be harder to write (because you will need to prepare mock/fake objects), but faster to run (because it only tests a single class and skips all initialization process).

Domain & Application tests are using EF Core. If you remove EF Core integration or you want to use MongoDB for testing these layers, you should manually change project references & module dependencies.

Host Project

The solution doesn't have a host application to run your module. However, you can create a single-layer or layered application and import the created module into the host application.

UI

Angular UI

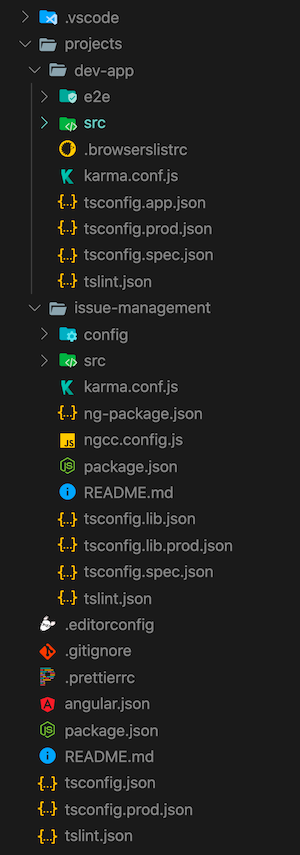

The solution will have a folder called angular in it. This is where the Angular client-side code is located. When you open that folder in an IDE, the folder structure will look like below:

• angular/projects/issue-management folder contains the Angular module project.
• angular/projects/dev-app folder contains a development application that runs your module.

The server-side is similar to the solution described above. After you create a Host application, the API and the Angular demo application consume it.

How to Run the Angular Development App

For module development, you will need the dev-app project up and running. So, here is how we can start the development server.

First, we need to install dependencies:

1. Open your terminal at the root folder, i.e. angular.
2. Run yarn or npm install.

The dependencies will be installed and some of them are ABP modules published as NPM packages. To see all ABP packages, you can run the following command in the angular folder:

yarn list --pattern abp

There is no equivalent of this command in npm.

The module you will develop depends on two of these ABP packages: @abp/ng.core and @abp/ng.theme.shared. Rest of the ABP modules are included in package.json because of the dev-app project.

Once all dependencies are installed, follow the steps below to serve your development app:

1. Make sure Host application project is up and running.
2. Change the environment.ts file in the angular/projects/dev-app/src/environments folder to match your Host application URL.
3. Open your terminal at the root folder, i.e. angular.
4. Run yarn start or npm start.

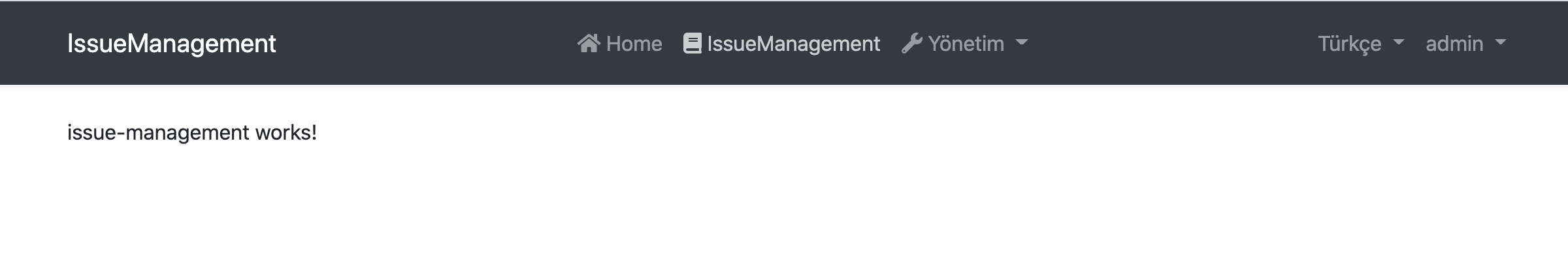

The issue management page is empty in the beginning. You may change the content in IssueManagementComponent at the angular/projects/issue-management/src/lib/issue-management.component.ts path and observe that the view changes accordingly.

Now, let's have a closer look at some key elements of your project.

Main Module

IssueManagementModule at the angular/projects/issue-management/src/lib/issue-management.module.ts path is the main module of your module project. There are a few things worth mentioning in it:

• Essential ABP modules, i.e. CoreModule and ThemeSharedModule, are imported.
• IssueManagementRoutingModule is imported.
• IssueManagementComponent is declared.
• It is prepared for configurability. The forLazy static method enables a configuration to be passed to the module when it is loaded by the router.

Main Routing Module

IssueManagementRoutingModule at the angular/projects/issue-management/src/lib/issue-management-routing.module.ts path is the main routing module of your module project. It currently does two things:

• Loads DynamicLayoutComponent at base path it is given.
• Loads IssueManagementComponent as child to the layout, again at the given base path.

You can rearrange this module to load more than one component at different routes, but you need to update the route provider at angular/projects/issue-management/config/src/providers/route.provider.ts to match the new routing structure with the routes in the menu. Please check Modifying the Menu to see how route providers work.

Config Module

There is a config module at the angular/projects/issue-management/config/src/issue-management-config.module.ts path. The static forRoot method of this module is supposed to be called at the route level. So, you may assume the following will take place:

@NgModule({
  imports: [
    /* other imports */

    IssueManagementConfigModule.forRoot(),
  ],

  /* rest of the module meta data */
})
export class AppModule {}

You can use this static method to configure an application that uses your module project. An example of such configuration is already implemented and the ISSUE_MANAGEMENT_ROUTE_PROVIDERS token is provided here. The method can take options which enables further configuration possibilities.

The difference between the forRoot method of the config module and the forLazy method of the main module is that, for smallest bundle size, the former should only be used when you have to configure an app before your module is even loaded.

Testing Angular UI

Please see the testing document.
