Docs Module
What is Docs Module?
Docs module is an application module for ABP. It simplifies software documentation. This module is free and open-source.
Integration
Currently docs module provides you to store your docs both on GitHub and file system.
Hosting
Docs module is an application module and does not offer any hosting solution. You can host your docs on-premise or on cloud.
Versioning
When you use GitHub to store your docs, Docs Module supports versioning. If you have multiple versions for your docs, there will be a combo-box on the UI to switch between versions. If you choose file system to store your docs, it does not support multiple versions.
The documents for ABP is also using this module.
Docs module follows the module architecture best practices guide.
Installation
This document covers Entity Framework Core
provider but you can also select MongoDB
as your database provider.
1- Creating an application
If you do not have an existing ABP project, you can either generate a CLI command from the get started page of the abp.io website and runs it or run the command below:
abp new Acme.MyProject
2- Running The Empty Application

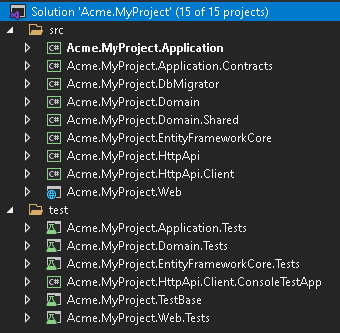

After you download the project, extract the ZIP file and open Acme.MyProject.sln
. You will see that the solution consists of Application
, Application.Contracts
, DbMigrator
, Domain
, Domain.Shared
, EntityFrameworkCore
, HttpApi
, HttpApi.Client
and Web
projects. Right click on Acme.MyProject.Web
project and Set as StartUp Project.
The database connection string is located in appsettings.json
of your Acme.MyProject.Web
project. If you have a different database configuration, change the connection string.
{
"ConnectionStrings": {
"Default": "Server=(LocalDb)\\MSSQLLocalDB;Database=MyProject;Trusted_Connection=True"
}
}
Run Acme.MyProject.DbMigrator
project, it will be responsible for applying database migration and seed data. The database MyProject
will be created in your database server.
Now an empty ABP project has been created! You can now run your project and see the empty website.
To login your website enter admin
as the username and 1q2w3E*
as the password.
3- Installation Module
Docs module packages are hosted on NuGet. There are 4 packages that needs be to installed to your application. Each package has to be installed to the relevant project.
3.1- Use ABP CLI
It is recommended to use the ABP CLI to install the module, open the CMD window in the solution file (.sln
) directory, and run the following command:
abp add-module Volo.Docs
3.2- Manually install
Or you can also manually install nuget package to each project:
Install Volo.Docs.Domain nuget package to
Acme.MyProject.Domain
project.Install-Package Volo.Docs.Domain
Install Volo.Docs.EntityFrameworkCore nuget package to
Acme.MyProject.EntityFrameworkCore
project.Install-Package Volo.Docs.EntityFrameworkCore
Install Volo.Docs.Application nuget package to
Acme.MyProject.Application
project.Install-Package Volo.Docs.Application
Install Volo.Docs.Web nuget package to
Acme.MyProject.Web
project.Install-Package Volo.Docs.Web
3.2.1- Adding Module Dependencies
An ABP module must declare [DependsOn]
attribute if it has a dependency upon another module. Each module has to be added in[DependsOn]
attribute to the relevant project.
Open
MyProjectDomainModule.cs
and addtypeof(DocsDomainModule)
as shown below;[DependsOn( typeof(DocsDomainModule), typeof(AbpIdentityDomainModule), typeof(AbpAuditingModule), typeof(BackgroundJobsDomainModule), typeof(AbpAuditLoggingDomainModule) )] public class MyProjectDomainModule : AbpModule { //... }
Open
MyProjectEntityFrameworkCoreModule.cs
and addtypeof(DocsEntityFrameworkCoreModule)
as shown below;[DependsOn( typeof(DocsEntityFrameworkCoreModule), typeof(MyProjectDomainModule), typeof(AbpIdentityEntityFrameworkCoreModule), typeof(AbpPermissionManagementEntityFrameworkCoreModule), typeof(AbpSettingManagementEntityFrameworkCoreModule), typeof(AbpEntityFrameworkCoreSqlServerModule), typeof(BackgroundJobsEntityFrameworkCoreModule), typeof(AbpAuditLoggingEntityFrameworkCoreModule) )] public class MyProjectEntityFrameworkCoreModule : AbpModule { //... }
Open
MyProjectApplicationModule.cs
and addtypeof(DocsApplicationModule)
as shown below;[DependsOn( typeof(DocsApplicationModule), typeof(MyProjectDomainModule), typeof(AbpIdentityApplicationModule))] public class MyProjectApplicationModule : AbpModule { public override void ConfigureServices(ServiceConfigurationContext context) { Configure<AbpPermissionOptions>(options => { options.DefinitionProviders.Add<MyProjectPermissionDefinitionProvider>(); }); Configure<AbpAutoMapperOptions>(options => { options.AddProfile<MyProjectApplicationAutoMapperProfile>(); }); } }
Open
MyProjectWebModule.cs
and addtypeof(DocsWebModule)
as shown below;[DependsOn( typeof(DocsWebModule), typeof(MyProjectApplicationModule), typeof(MyProjectEntityFrameworkCoreModule), typeof(AbpAutofacModule), typeof(AbpIdentityWebModule), typeof(AbpAccountWebModule), typeof(AbpAspNetCoreMvcUiBasicThemeModule) )] public class MyProjectWebModule : AbpModule { //... }
3.2.2- Adding NPM Package
Open package.json
and add @abp/docs": "^5.0.0
as shown below:
{
"version": "1.0.0",
"name": "my-app",
"private": true,
"dependencies": {
"@abp/aspnetcore.mvc.ui.theme.basic": "^5.0.0",
"@abp/docs": "^5.0.0"
}
}
Then open the command line terminal in the Acme.MyProject.Web
project folder and run the following command:
abp install-libs
4- Database Integration
4.1- Entity Framework Integration
If you choose Entity Framework as your database provider, you need to configure the Docs Module. To do this;
Open
MyProjectMigrationsDbContext.cs
and addbuilder.ConfigureDocs()
to theOnModelCreating()
.public class MyProjectMigrationsDbContext : AbpDbContext<MyProjectMigrationsDbContext> { public MyProjectMigrationsDbContext(DbContextOptions<MyProjectMigrationsDbContext> options) : base(options) { } protected override void OnModelCreating(ModelBuilder builder) { base.OnModelCreating(builder); /* Include modules to your migration db context */ builder.ConfigurePermissionManagement(); builder.ConfigureSettingManagement(); builder.ConfigureBackgroundJobs(); builder.ConfigureAuditLogging(); builder.ConfigureIdentity(); builder.ConfigureIdentityServer(); builder.ConfigureFeatureManagement(); builder.ConfigureTenantManagement(); builder.ConfigureDocs(); //Add this line to configure the Docs Module /* Configure customizations for entities from the modules included */ builder.Entity<IdentityUser>(b => { b.ConfigureCustomUserProperties(); }); /* Configure your own tables/entities inside the ConfigureQaDoc method */ builder.ConfigureMyProject(); } }
Open
Package Manager Console
inVisual Studio
and chooseAcme.MyProject.EntityFrameworkCore
as default project. Then write the below command to add the migration for Docs Module.add-migration Added_Docs_Module
When the command successfully executes , you will see a new migration file named as
20181221111621_Added_Docs_Module
in the folderAcme.MyProject.EntityFrameworkCore\Migrations
.Now, update the database for Docs module database changes. To do this run the below code on
Package Manager Console
inVisual Studio
. Be sureAcme.MyProject.EntityFrameworkCore
is still default project.update-database
Finally, you can check your database to see the newly created tables. For example you can see
DocsProjects
table must be added to your database.
5- Linking Docs Module
The default route for Docs module is;
/Documents
To add Docs module link to your application menu;
Open
MyProjectMenuContributor.cs
and add the below line to the methodConfigureMainMenuAsync()
.context.Menu.Items.Add(new ApplicationMenuItem("MyProject.Docs", l["Menu:Docs"], "/Documents"));
Final look of MyProjectMenuContributor.cs
private async Task ConfigureMainMenuAsync(MenuConfigurationContext context) { var l = context.ServiceProvider.GetRequiredService<IStringLocalizer<MyProjectResource>>(); context.Menu.Items.Insert(0, new ApplicationMenuItem("MyProject.Home", l["Menu:Home"], "/")); context.Menu.Items.Add(new ApplicationMenuItem("MyProject.Docs", l["Menu:Docs"], "/Documents")); }
The Menu:Docs
keyword is a localization key. To localize the menu text, open Localization\MyProject\en.json
in the project Acme.MyProject.Domain
. And add the below line
"Menu:Docs": "Documents"
Final look of en.json
{
"culture": "en",
"texts": {
"Menu:Home": "Home",
"Welcome": "Welcome",
"LongWelcomeMessage": "Welcome to the application. This is a startup project based on the ABP. For more information, visit abp.io.",
"Menu:Docs": "Documents"
}
}
The new menu item for Docs Module is added to the menu. Run your web application and browse to http://localhost:YOUR_PORT_NUMBER/documents
URL.
You will see a warning says;
There are no projects yet!
As we have not added any projects yet, this warning is normal.
6- Adding New Docs Project
Open DocsProjects
in your database, and insert a new record with the following field information;
- Name: The display name of the document name which will be shown on the web page.
- ShortName: A short and URL friendly name that will be used in your docs URL.
- Format: The format of the document (for Markdown:
md
, for HTML:html
) - DefaultDocumentName: The document for the initial page.
- NavigationDocumentName: The document to be used for the navigation menu (Index).
- MinimumVersion: The minimum version to show the docs. Below version will not be listed.
- DocumentStoreType: The source of the documents (for GitHub:
GitHub
, for file systemFileSystem
) - ExtraProperties: A serialized
JSON
that stores special configuration for the selectedDocumentStoreType
. - MainWebsiteUrl: The URL when user clicks to the logo of the Docs module page. You can simply set as
/
to link to your website root address. - LatestVersionBranchName: This is a config for GitHub. It's the branch name which to retrieve the docs. You can set it as
master
.
Sample Project Record for "GitHub"
You can use ABP GitHub documents to configure your GitHub document store.
Name:
ABP (GitHub)
ShortName:
abp
Format:
md
DefaultDocumentName:
Index
NavigationDocumentName:
docs-nav.json
MinimumVersion:
<NULL>
(no minimum version)DocumentStoreType:
GitHub
ExtraProperties:
{"GitHubRootUrl":"https://github.com/abpframework/abp/tree/{version}/docs","GitHubAccessToken":"***","GitHubUserAgent":""}
Note that
GitHubAccessToken
is masked with***
. It's a private token that you must get it from GitHub. See https://help.github.com/articles/creating-a-personal-access-token-for-the-command-line/MainWebsiteUrl:
/
LatestVersionBranchName:
dev
For SQL
databases, you can use the below T-SQL
command to insert the specified sample into your DocsProjects
table:
INSERT [dbo].[DocsProjects] ([Id], [Name], [ShortName], [Format], [DefaultDocumentName], [NavigationDocumentName], [MinimumVersion], [DocumentStoreType], [ExtraProperties], [MainWebsiteUrl], [LatestVersionBranchName], [ParametersDocumentName], [ConcurrencyStamp]) VALUES (N'12f21123-e08e-4f15-bedb-ae0b2d939659', N'ABP (GitHub)', N'abp', N'md', N'Index', N'docs-nav.json', NULL, N'GitHub', N'{"GitHubRootUrl":"https://github.com/abpframework/abp/tree/{version}/docs","GitHubAccessToken":"","GitHubUserAgent":""}', N'/', N'dev', N'', N'12f21123e08e4f15bedbae0b2d939659')
Be aware that GitHubAccessToken
is masked. It's a private token and you must get your own token and replace the ***
string.
Now you can run the application and navigate to /Documents
.
Sample Project Record for "FileSystem"
You can use ABP GitHub documents to configure your GitHub document store.
Name:
ABP (FileSystem)
ShortName:
abp
Format:
md
DefaultDocumentName:
Index
NavigationDocumentName:
docs-nav.json
MinimumVersion:
<NULL>
(no minimum version)DocumentStoreType:
FileSystem
ExtraProperties:
{"Path":"C:\\Github\\abp\\docs"}
Note that
Path
must be replaced with your local docs directory. You can fetch the ABP's documents from https://github.com/abpframework/abp/tree/master/docs and copy to the directoryC:\\Github\\abp\\docs
to get it work.MainWebsiteUrl:
/
LatestVersionBranchName:
<NULL>
For SQL
databases, you can use the below T-SQL
command to insert the specified sample into your DocsProjects
table:
INSERT [dbo].[DocsProjects] ([Id], [Name], [ShortName], [Format], [DefaultDocumentName], [NavigationDocumentName], [MinimumVersion], [DocumentStoreType], [ExtraProperties], [MainWebsiteUrl], [LatestVersionBranchName], [ParametersDocumentName], [ConcurrencyStamp]) VALUES (N'12f21123-e08e-4f15-bedb-ae0b2d939659', N'ABP (FileSystem)', N'abp', N'md', N'Index', N'docs-nav.json', NULL, N'FileSystem', N'{"Path":"C:\\Github\\abp\\docs"}', N'/', NULL, N'', N'12f21123e08e4f15bedbae0b2d939659')
Add one of the sample projects above and run the application. In the menu you will see Documents
link, click the menu link to open the documents page.
So far, we have created a new application from abp.io website and made it up and ready for Docs module.
7- Creating a New Document
In the sample Project records, you see that Format
is specified as md
which refers to Mark Down. You can see the mark down cheat sheet following the below link;
https://github.com/adam-p/markdown-here/wiki/Markdown-Cheatsheet
ABP Docs Module can render mark down to HTML.
Now let's have a look a sample document in markdown format.
# This is a header
Welcome to Docs Module.
## This is a sub header
[This is a link](https://abp.io)
![This is an image](https://abp.io/assets/my-image.png)
## This is a code block
```csharp
public class Person
{
public string Name { get; set; }
public string Address { get; set; }
}
```
As an example you can see ABP documentation:
https://github.com/abpframework/abp/blob/master/docs/en/
Conditional sections feature (Using Scriban)

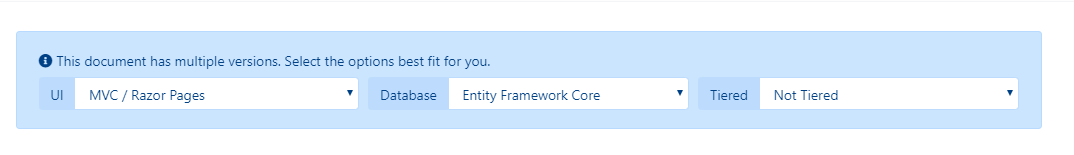

Docs module uses Scriban for conditionally show or hide some parts of a document. In order to use that feature, you have to create a JSON file as Parameter document per every language. It will contain all the key-values, as well as their display names.
For example, en/docs-params.json:
{
"parameters": [{
"name": "UI",
"displayName": "UI",
"values": {
"MVC": "MVC / Razor Pages",
"NG": "Angular"
}
},
{
"name": "DB",
"displayName": "Database",
"values": {
"EF": "Entity Framework Core",
"Mongo": "MongoDB"
}
},
{
"name": "Tiered",
"displayName": "Tiered",
"values": {
"No": "Not Tiered",
"Yes": "Tiered"
}
}]
}
Since not every single document in your projects may not have sections or may not need all of those parameters, you have to declare which of those parameters will be used for sectioning the document, as a JSON block anywhere on the document.
For example Getting-Started.md:
.....
........
This section will be automatically deleted during render. And f course, those key values must match with the ones in Parameter document.
Now you can use Scriban syntax to create sections in your document.
For example:
You can also use variables in a text, adding _Value postfix to its key:
This document assumes that you prefer to use **** as the UI framework and **** as the database provider.
Also, Document_Language_Code and Document_Version keys are pre-defined if you want to get the language code or the version of the current document (This may be useful for creating links that redirects to another documentation system in another domain).
IMPORTANT NOTICE: Scriban uses " and " for syntax. Therefore, you must use escape blocks if you are going to use those in your document (an Angular document, for example). See Scriban docs for more information.
8- Creating the Navigation Document
Navigation document is the main menu of the documents page. It is located on the left side of the page. It is a JSON
file. Take a look at the below sample navigation document to understand the structure.
{
"items":[
{
"text":"Sample Menu Item - 1",
"items":[
{
"text":"Sample Menu Item - 1.1",
"items":[
{
"text":"Sample Menu Item - 1.1.1",
"path":"SampleMenuItem_1_1_1.md"
}
]
},
{
"text":"Sample Menu Item - 1.2",
"items":[
{
"text":"Sample Menu Item - 1.2.1",
"path":"SampleMenuItem_1_2_1.md"
},
{
"text":"Sample Menu Item - 1.2.2",
"path":"SampleMenuItem_1_2_2.md"
}
]
}
]
},
{
"text":"Sample Menu Item - 2",
"items":[
{
"text":"Sample Menu Item - 2.1",
"items":[
{
"text":"Sample Menu Item - 2.1.1",
"path":"SampleMenuItem_2_1_1.md"
}
]
}
]
}
]
}

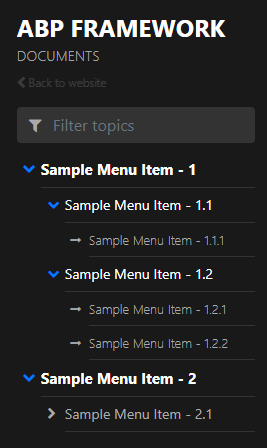

The upper sample JSON
file renders the below navigation menu as HTML
.
Finally a new Docs Module is added to your project which is feeded with GitHub.
Full-Text Search(Elastic Search)
The Docs module supports full-text search using Elastic Search. It is not enabled by default. You can configure DocsElasticSearchOptions
to enable it.
Configure<DocsElasticSearchOptions>(options =>
{
options.Enable = true;
options.IndexName = "your_index_name"; //default IndexName is abp_documents
});
The Index
is automatically created after the application starts if the Index
does not exist.
DefaultElasticClientProvider
is responsible for creating IElasticClient
. By default, it reads Elastic Search's Url
from IConfiguration
.
If your IElasticClient
needs additional configuration, please use override IElasticClientProvider
service and replace it in the dependency injection system.
{
"ElasticSearch": {
"Url": "http://localhost:9200"
}
}
Row Highlighting
You can apply highlight to specific code lines or a range of sequential lines. See the following examples:
```C# {3, 5}
public class Book : Entity<Guid>
{
public string Name { get; set; }
public string Surname { get; set; }
}
```
```C# {2-4}
public class Book : Entity<Guid>
{
public string Name { get; set; }
public string Surname { get; set; }
}
```
```C# {1, 2-4}
public class Book : Entity<Guid>
{
public string Name { get; set; }
public string Surname { get; set; }
}
```
Referencing Next & Previous Documents
The Docs Module supports referencing previous and next documents. It's useful if you have a series of documents that are strictly related to each other and need to be followed one after the other.
To reference the previous and next documents from a document, you should specify the documentation titles and their paths as follows:

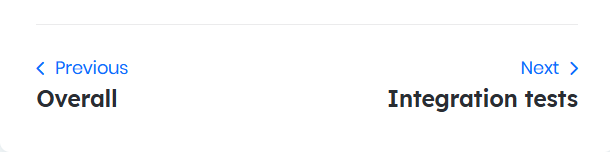

After you specify the next & previous documents, they will appear at the end of the current documentation like in the following figure:
Single Project Mode
The single project mode allows you to use a single name as a project name in your application. If you are not considering supporting multiple projects with their multiple docs and instead if you have a single project and want to have documentation only for it, it's especially useful for you.
You just need to configure the DocsUiOptions
, set the single project mode as enabled and also define a constant project name:
Configure<DocsUiOptions>(options =>
{
options.RoutePrefix = "docs";
options.SingleProjectMode.Enable = true;
options.SingleProjectMode.ProjectName = "abp";
});
Multi Language Mode
The multi language mode allows you to show a combobox that lists and shows all documentation languages and configures the related languages in routes.
It's enabled by default and supports multiple languages, but if you are considering only supporting a single language, and don't want to show the language combobox in the sidebar of your docs system, you can configure the DocsUiOptions
and set the multi language mode support as false to disable it:
Configure<DocsUiOptions>(options =>
{
options.MultiLanguageMode = false;
});
See Also
Docs Module is also available as a standalone application. Check out VoloDocs.
